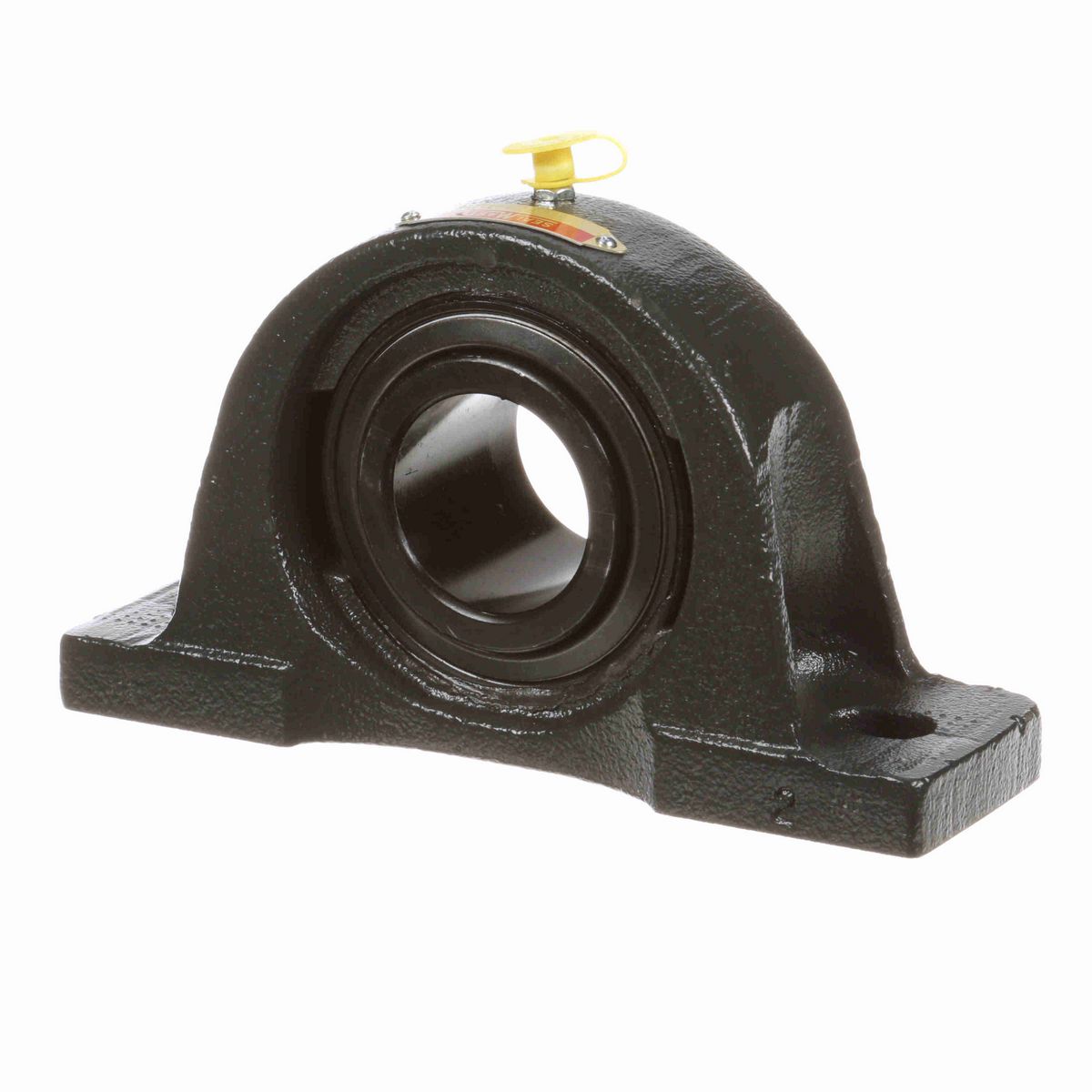

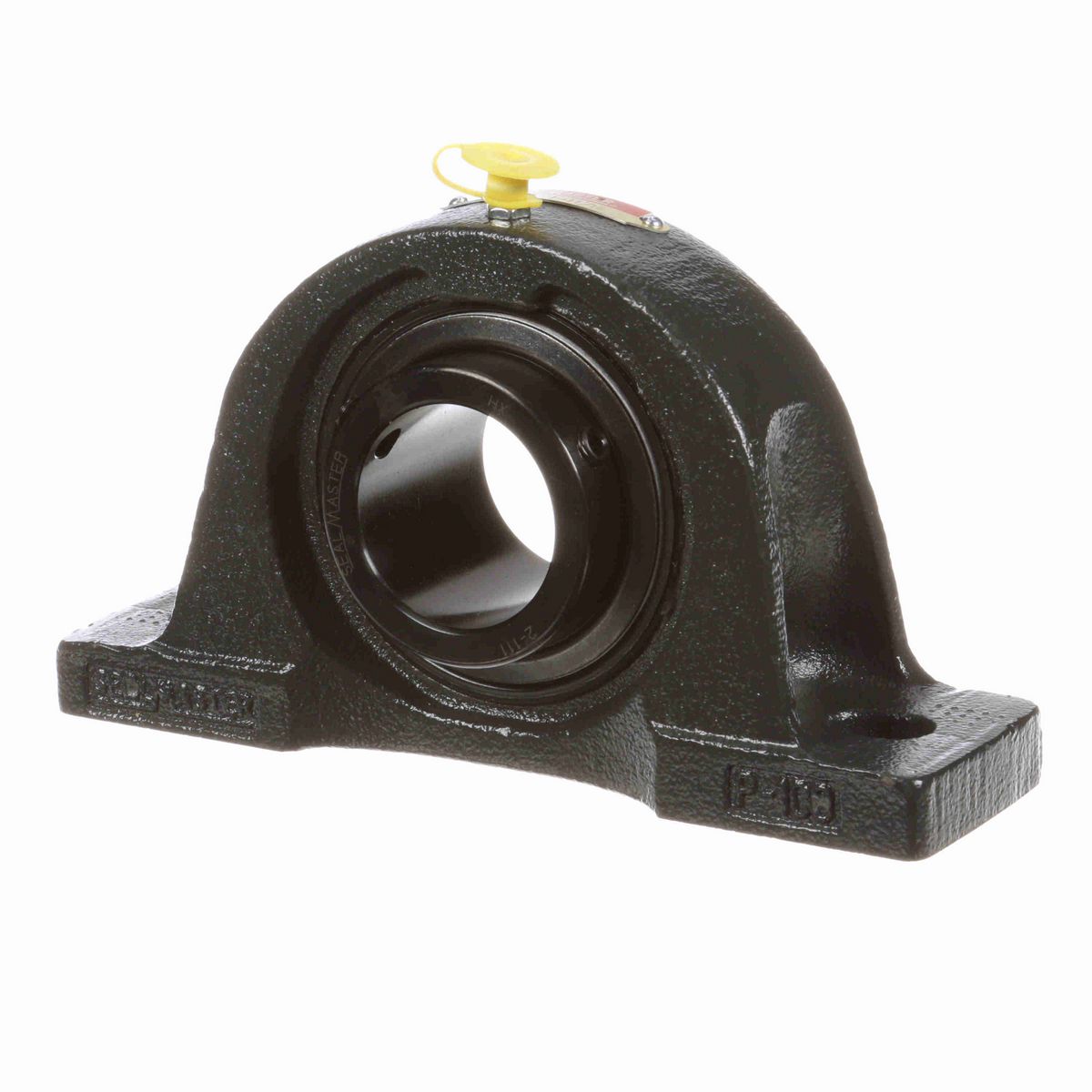

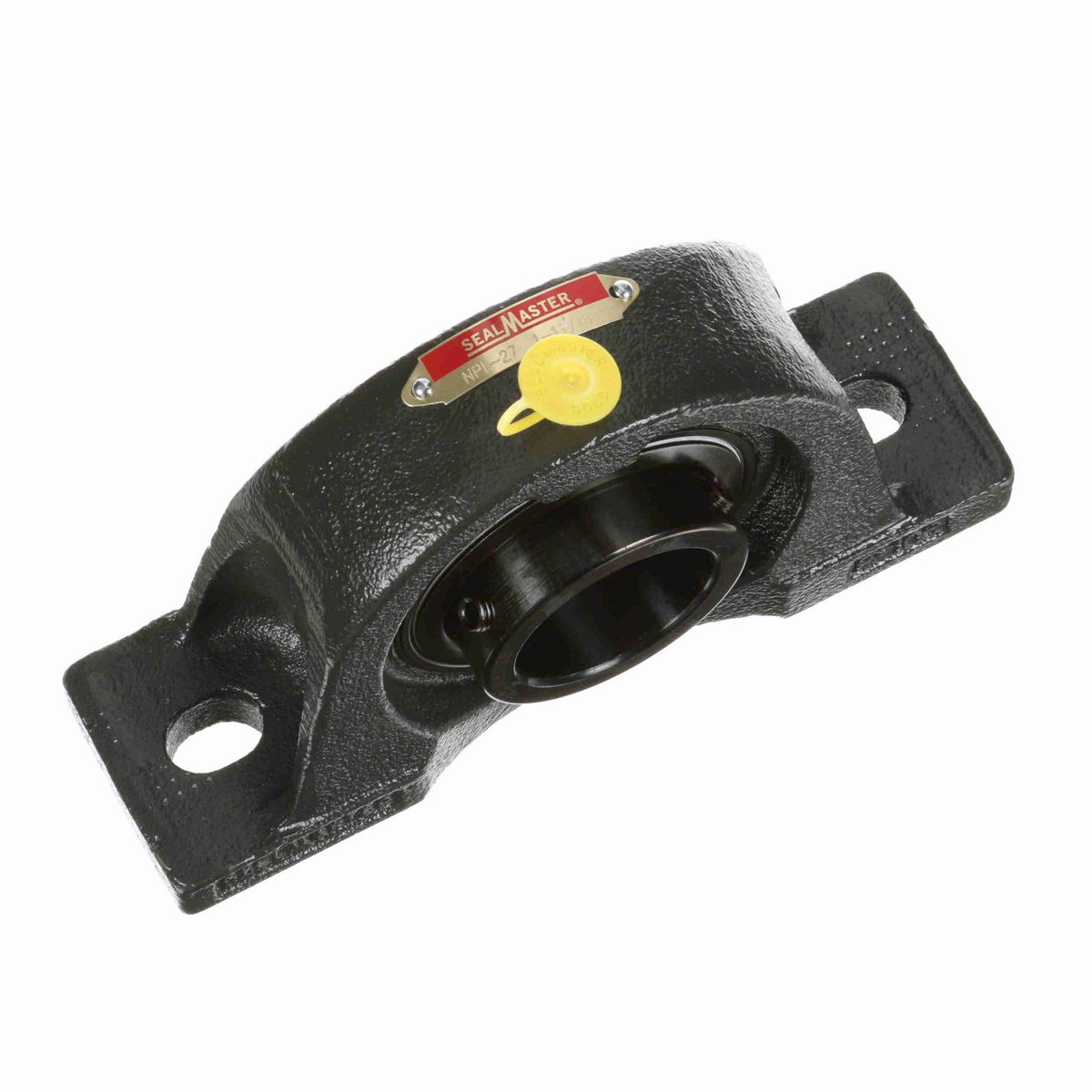

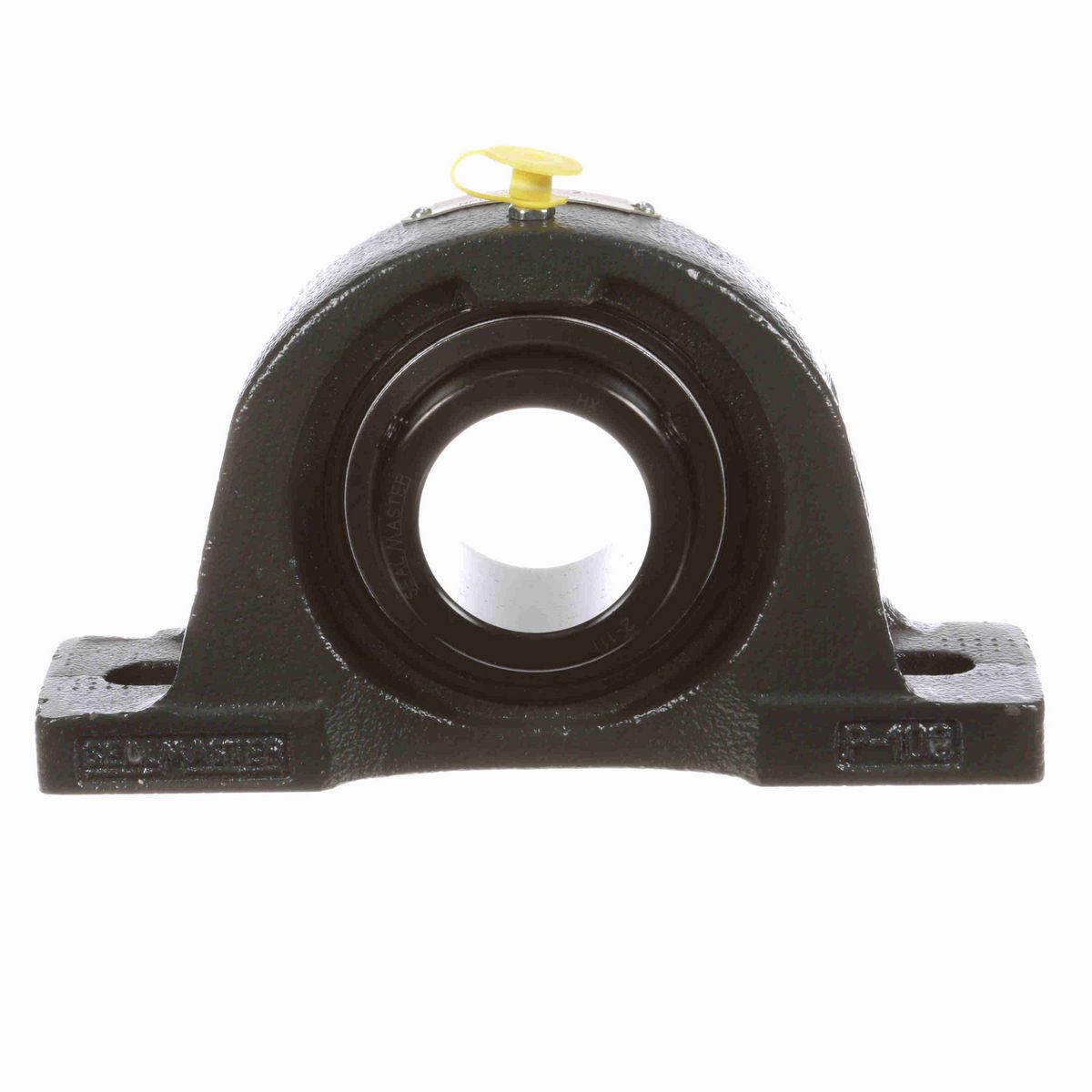

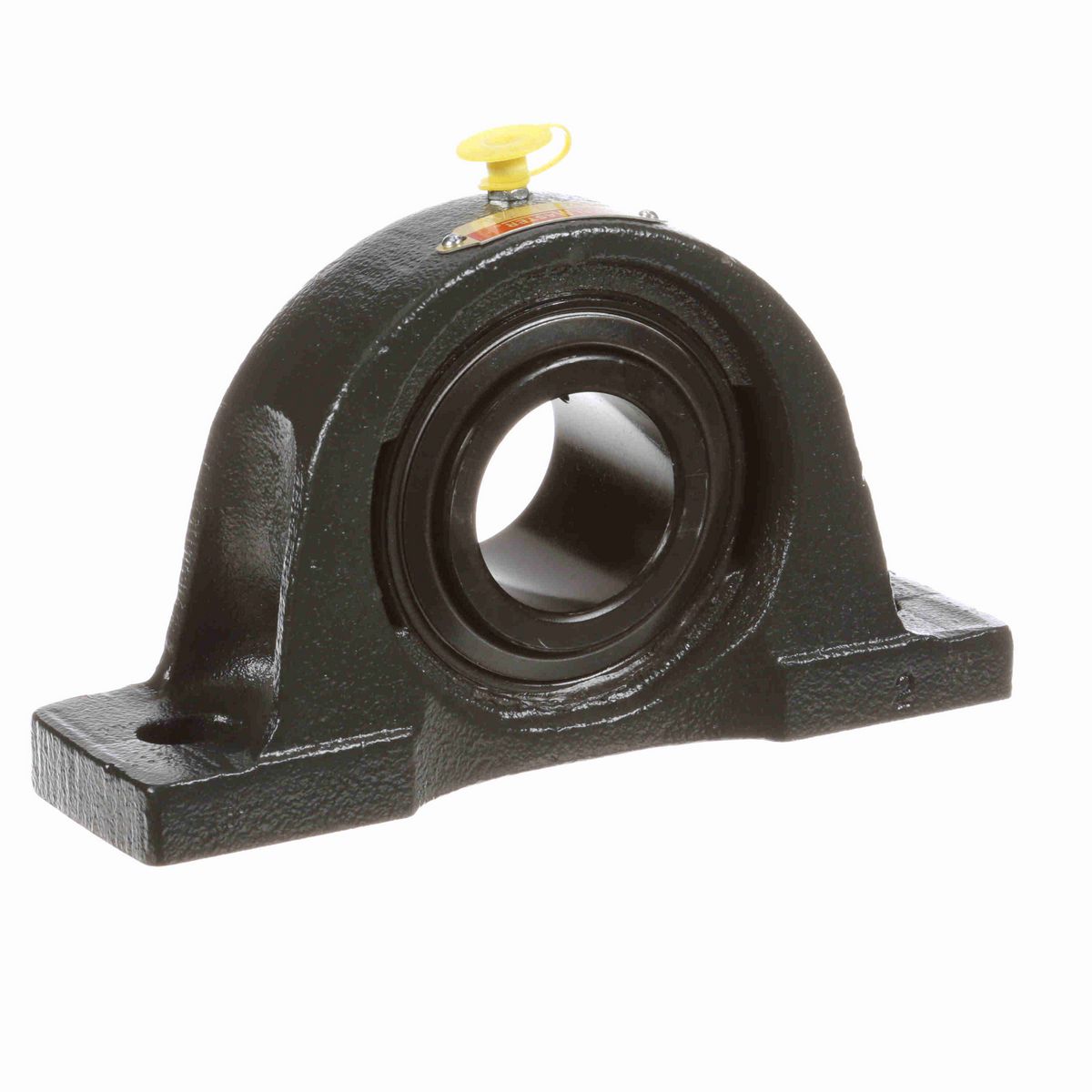

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	2.13 in
Overall Width (in)	2.13 in
Overall Height (in)	4.19 in
Overall Length (in)	7.5 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.6875 in
Foot Height (in)	0.63 in
Base to Center Height (in)	2.06 in
Length Through Bore (in)	1.938 in
Bolt Spacing Max (in)	6.06 in
Centerline to Outermost Bearing Face (in)	1.188 in
Bolt Spacing Min (in)	5.44 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Setscrew Torque (in-lbs)	240 in/lbs
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Dynamic Load Rating (lb)	7,901 lb
Bearing Insert Finish	Black Oxide
Base Length (in)	7.50 in
Radial Clearance	Standard
Vibration Frequency Inner Ring Defect	0.0994 cps
Vibration Frequency Fundamental Train	0.0067 cps
Vibration Frequency Roller Spin	0.0417 cps
Lubricant	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0673 cps
End Cap Available	No
Maximum Speed (RPM)	3800 rpm
Cage Type	Land Riding Retainer
Housing Coating	Powder Coated
Bearing Type	Standard Duty
Shaft Locking Type	Set Screw
Housing Material	Cast Iron
Inner Ring Outside Diameter (in)	2.063 in
Size Code	2-111
Max Operating Temperature (F)	220 °F
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Insert	2-111
Static Load Rating (lb)	5,139 lb

General Specifications

UPC	662461004692
Weight	6.55 LB
Packaged Length	5.19 IN
Packaged Width	2.13 IN
Packaged Height	7.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
