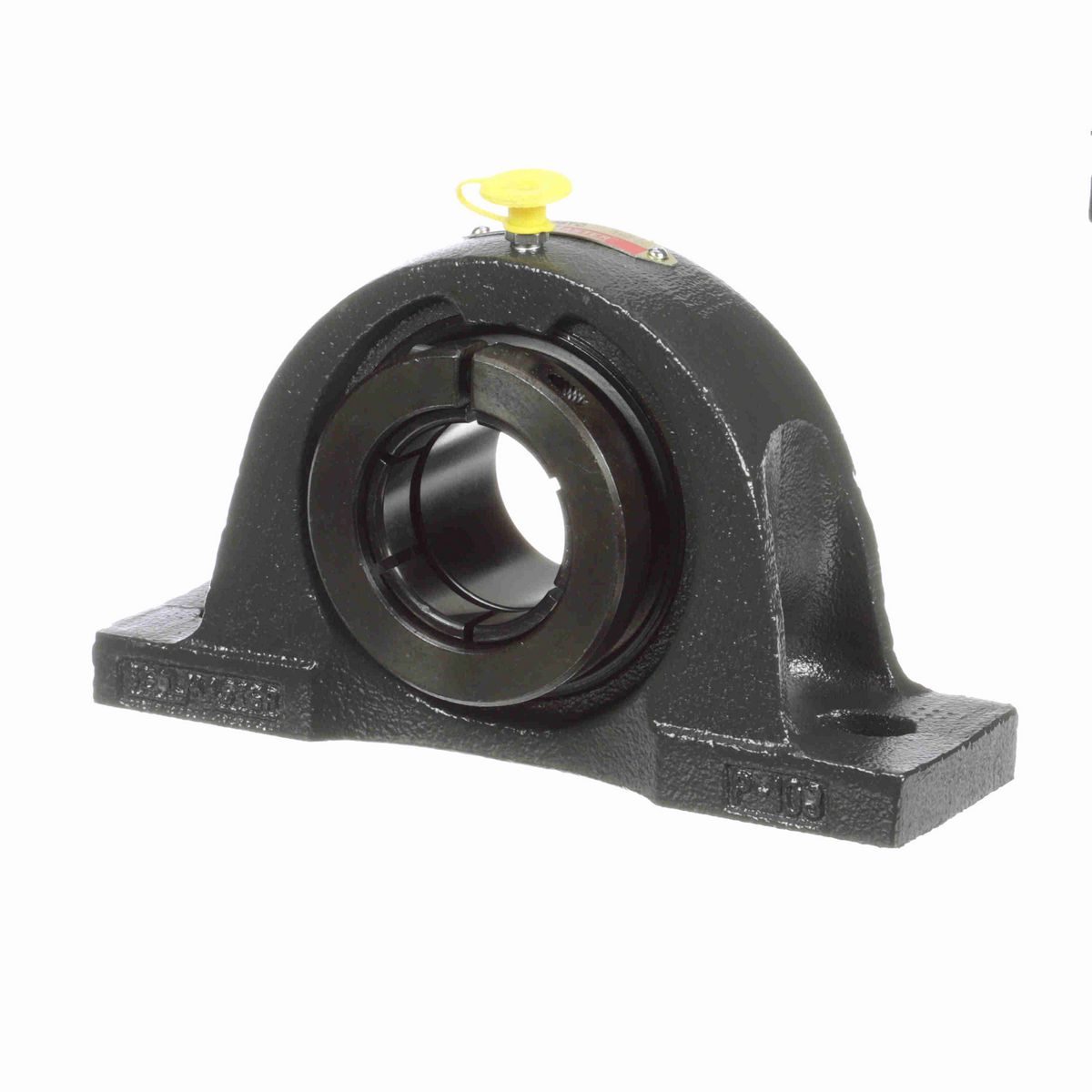

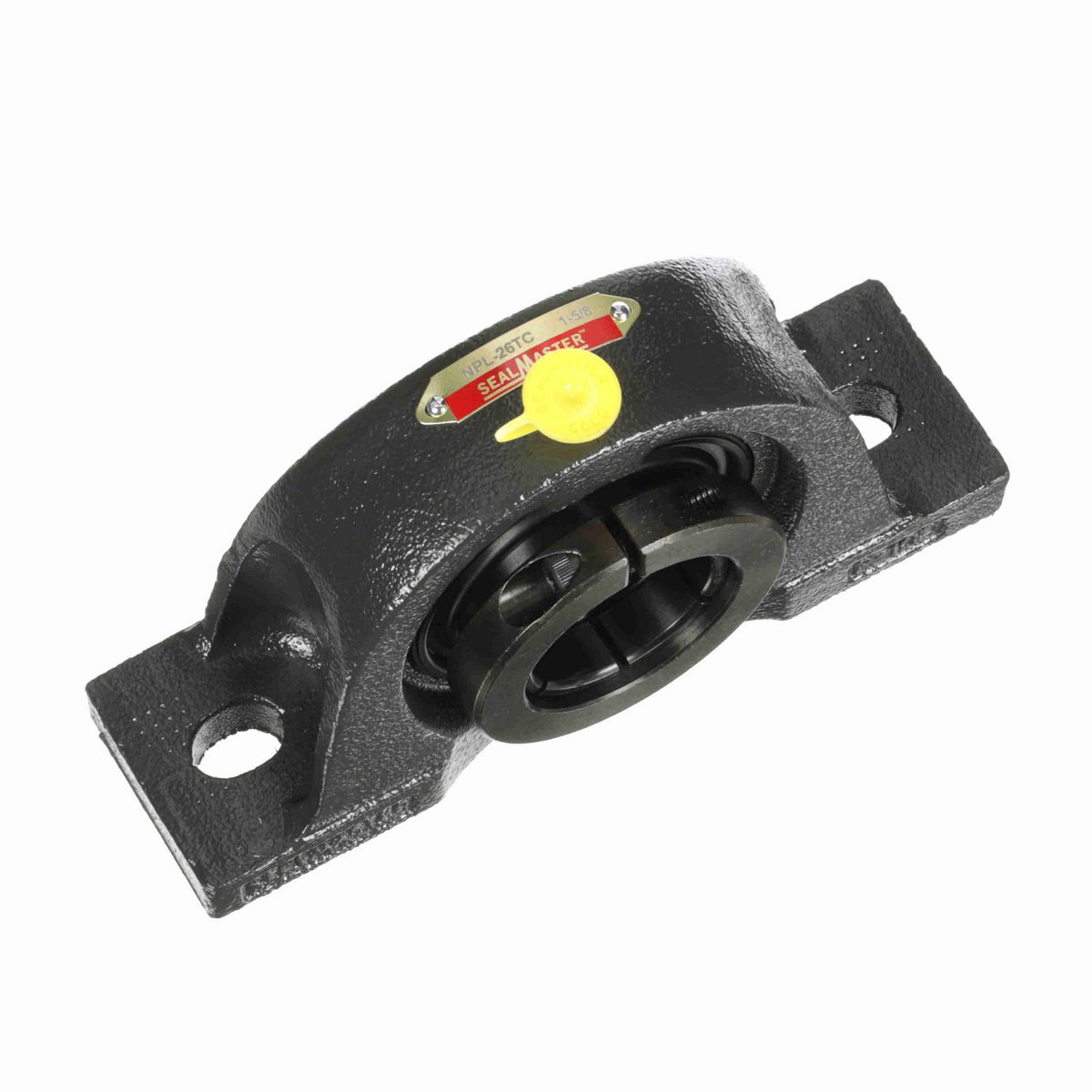

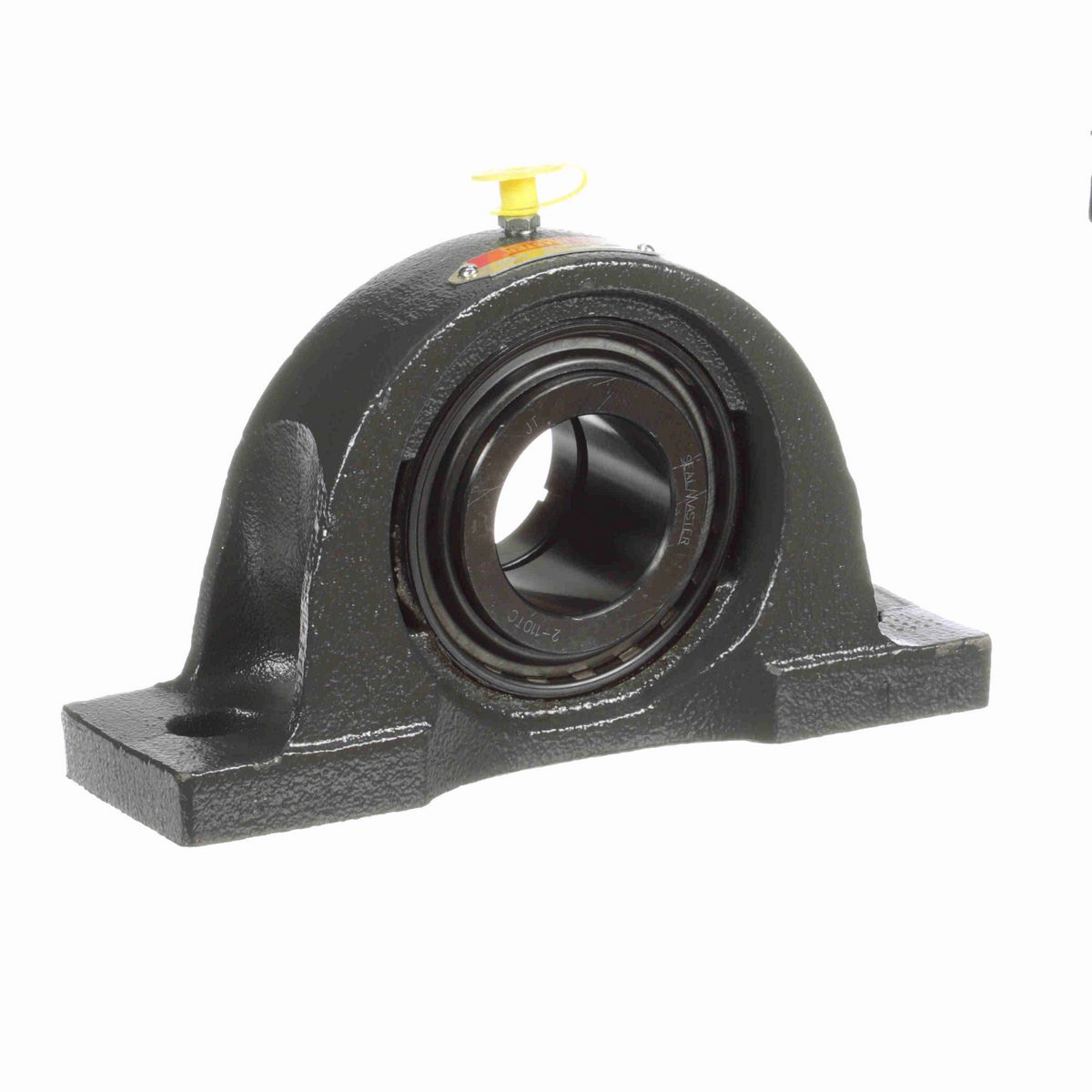

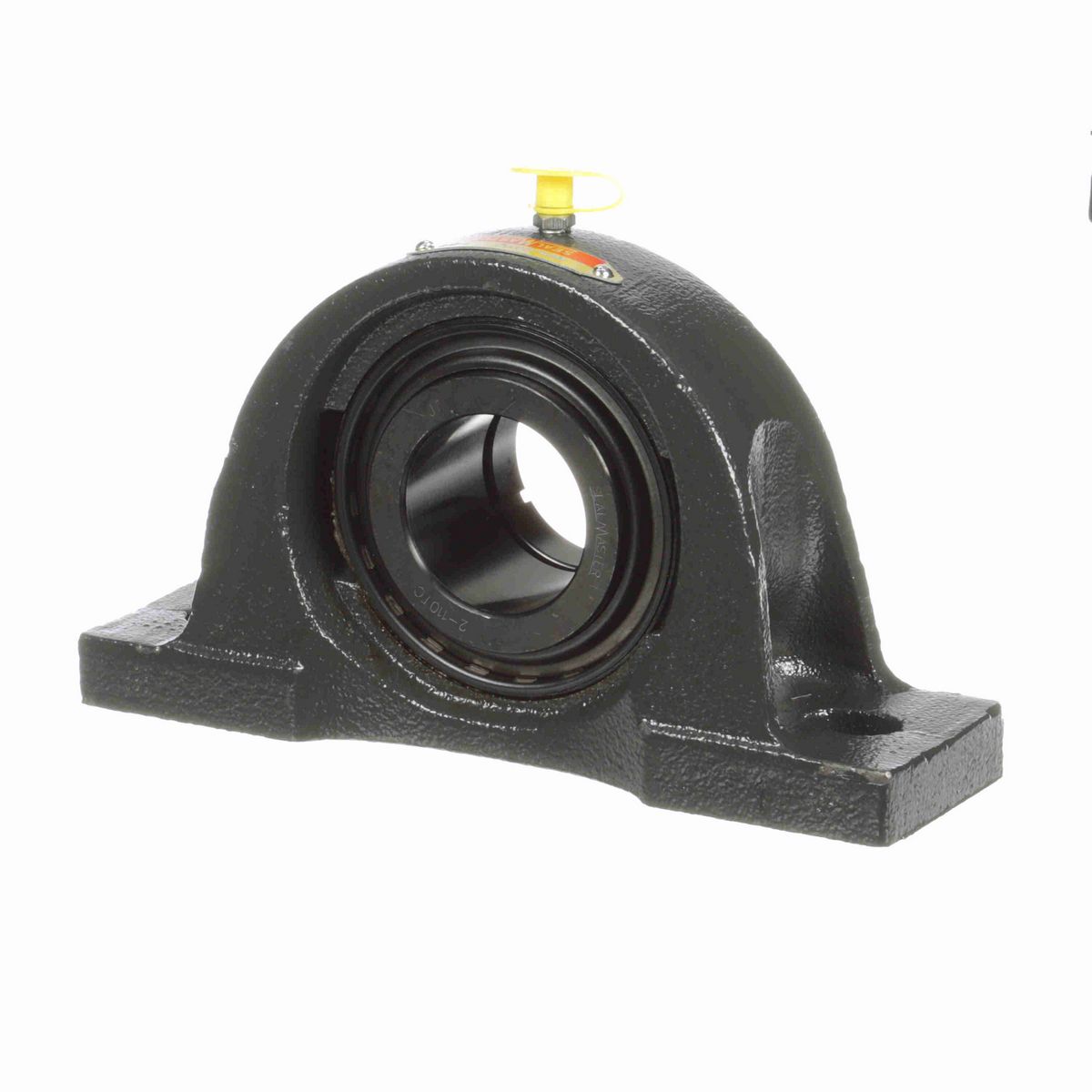

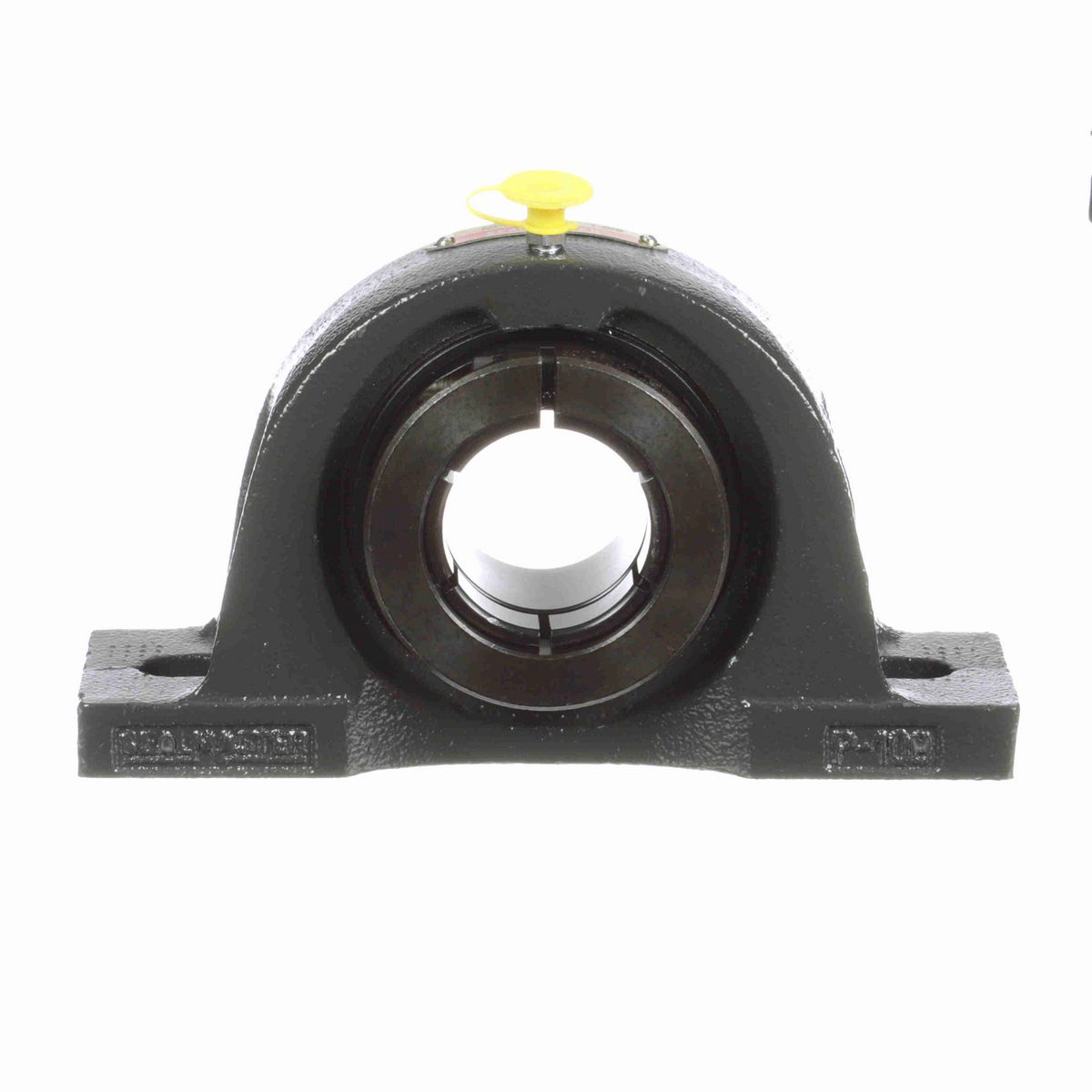

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.13 in
Overall Length (in)	7.5 in
Base Width (in)	2.13 in
Overall Height (in)	4.19 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.625 in
Base to Center Height (in)	2.06 in
Foot Height (in)	0.63 in
Length Through Bore (in)	2.00 in
Bolt Spacing Max (in)	6.06 in
Bolt Spacing Min (in)	5.44 in
Centerline to Outermost Bearing Face (in)	1.31 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Single Lip Contact Seal
Housing Style	Pillow Block
Setscrew Torque (in-lbs)	240 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.81 in
Inner Ring Outside Diameter (in)	2.063 in
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	7,901 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Vibration Frequency Inner Ring Defect	0.0994 cps
Vibration Frequency Roller Spin	0.0417 cps
Bearing Type	Standard Duty
Lubricant	Lithium Complex NLGI 2 Grease
Maximum Speed (RPM)	3800 rpm
Fixed vs. Expansion	Fixed
Size Code	2-111
End Cap Available	No
Shaft Locking Type	Concentric
Vibration Frequency Fundamental Train	0.0067 cps
Grease Fitting Thread Size	1/4-28
Max Operating Temperature (F)	220 °F
Vibration Frequency Outer Ring Defect	0.0673 cps
Static Load Rating (lb)	5,139 lb
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Insert	2-110TC
Base Length (in)	7.50 in

General Specifications

UPC	662461033616
Weight	6.73 LB
Packaged Length	5.19 IN
Packaged Width	2.13 IN
Packaged Height	7.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
