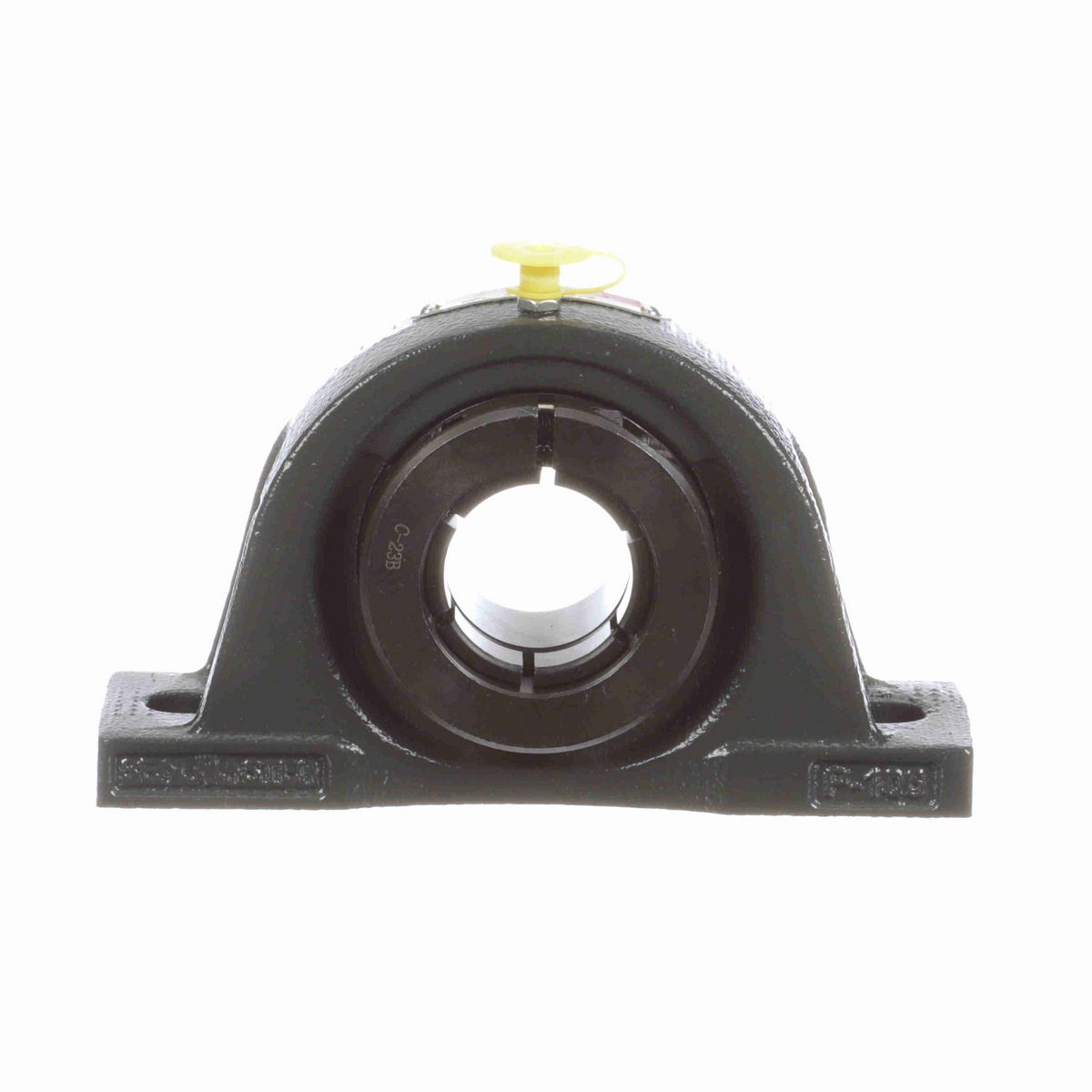

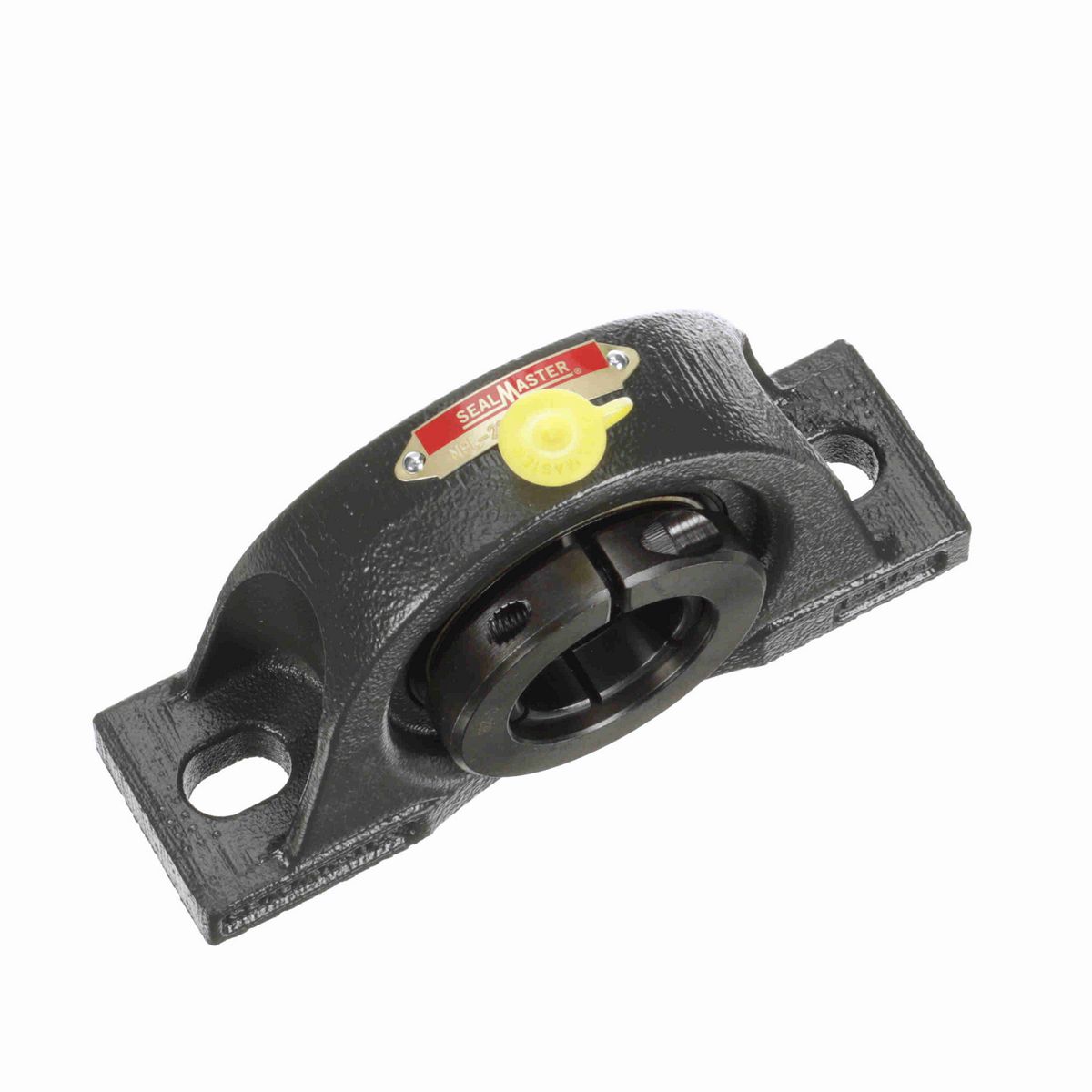

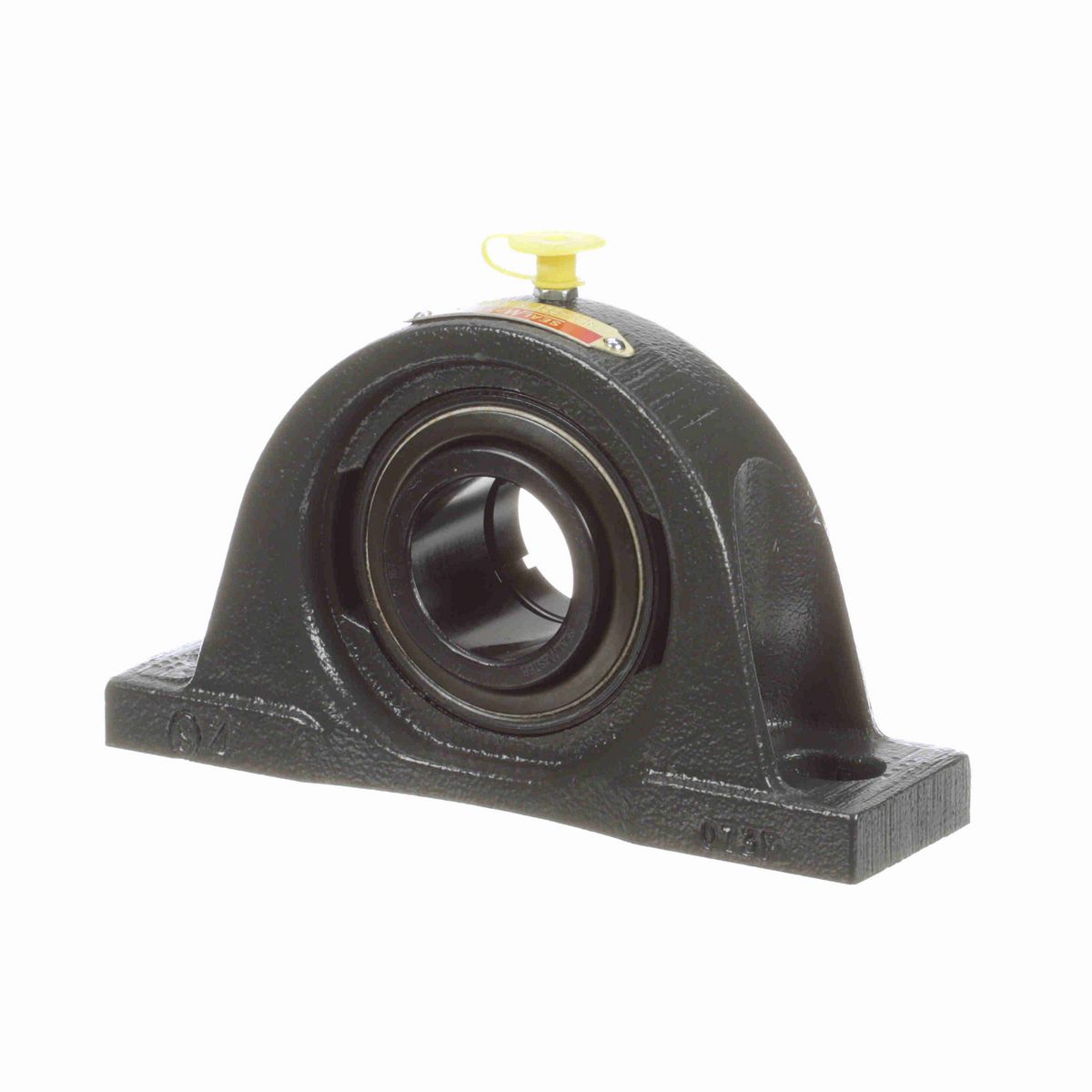

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	3.69 in
Base Width (in)	1.88 in
Overall Width (in)	1.88 in
Overall Length (in)	6.56 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.375 in
Base to Center Height (in)	1.8125 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.81 in
Bolt Spacing (in)	5 in
Bolt Spacing Min (in)	4.69 in
Centerline to Outermost Bearing Face (in)	1.12 in
Bolt Spacing Max (in)	5.31 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt, Low Base
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.62 in
Static Load Rating (lb)	3,493 lb
Size Code	2-17
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	5,782 lb
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Base Length (in)	6.56 in
Cage Type	Land Riding Retainer
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Inner Ring Outside Diameter (in)	1.851 in
Housing Material	Cast Iron
Bearing Type	Standard Duty
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0386 cps
Fixed vs. Expansion	Fixed
Lubricant	Lithium Complex NLGI 2 Grease
Max Operating Temperature (F)	220 °F
Insert	2-16T
Maximum Speed (RPM)	6500 rpm
Shaft Locking Type	Concentric
Radial Clearance	Standard
Vibration Frequency Fundamental Train	0.0066 cps

General Specifications

UPC	662461030547
Weight	4.30 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
