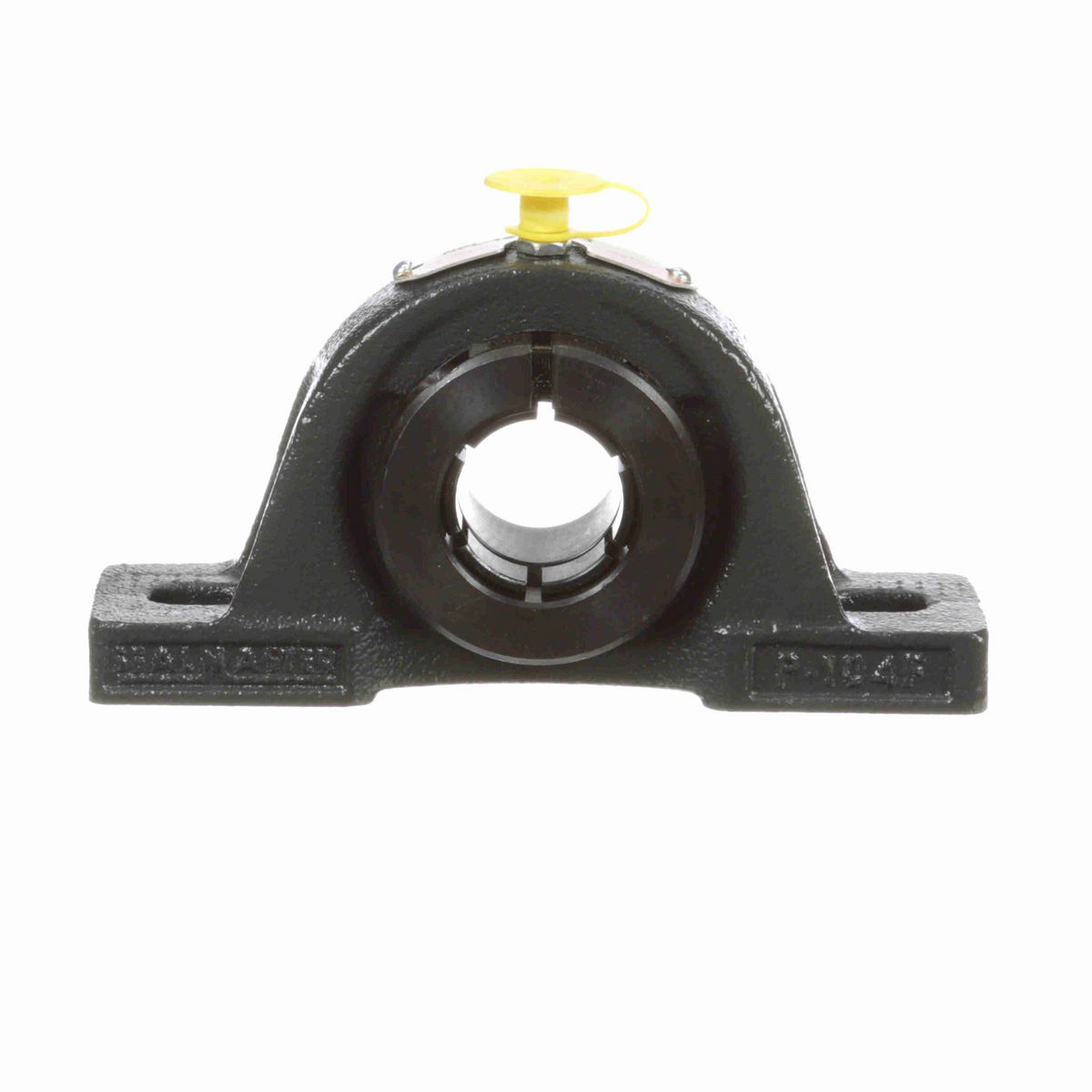

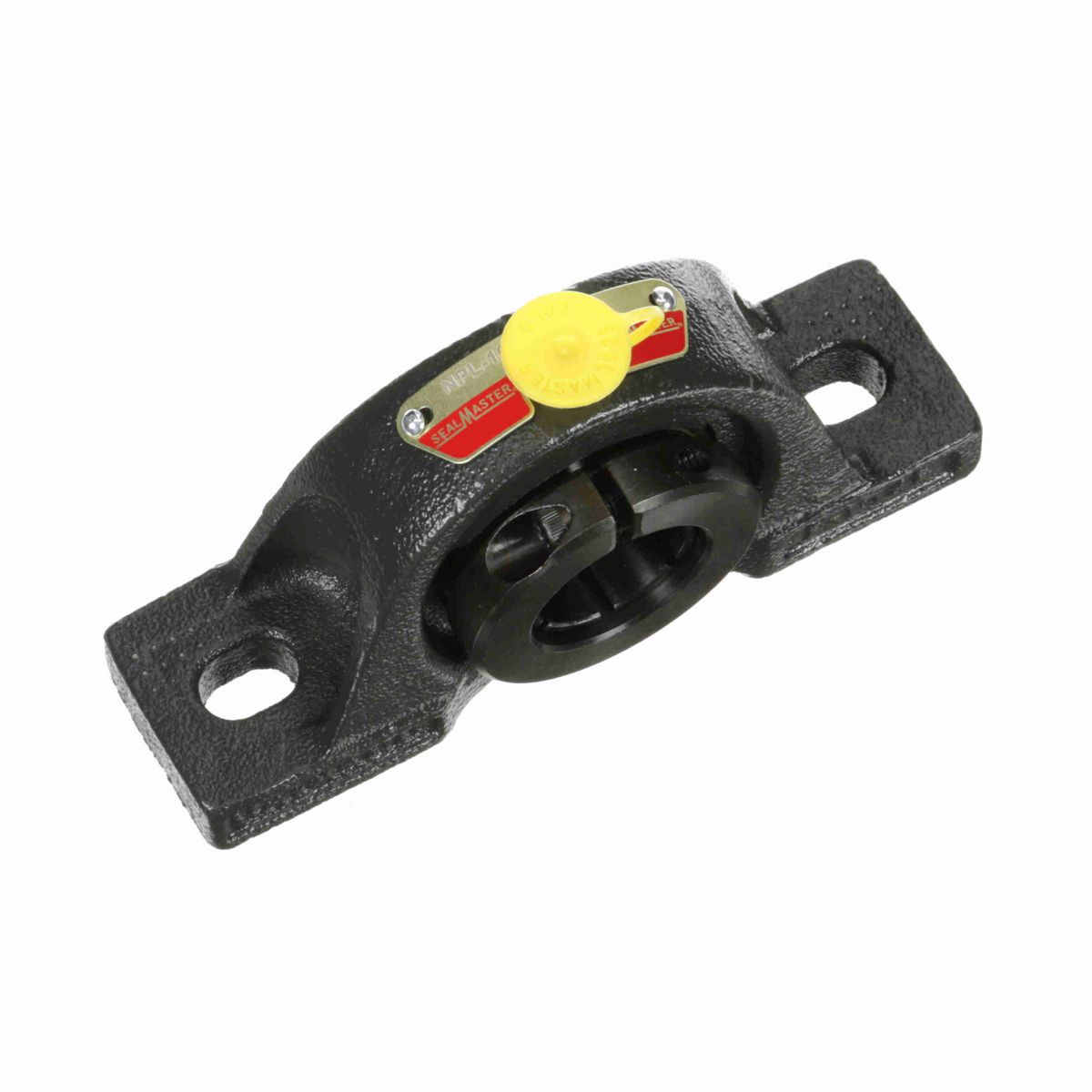

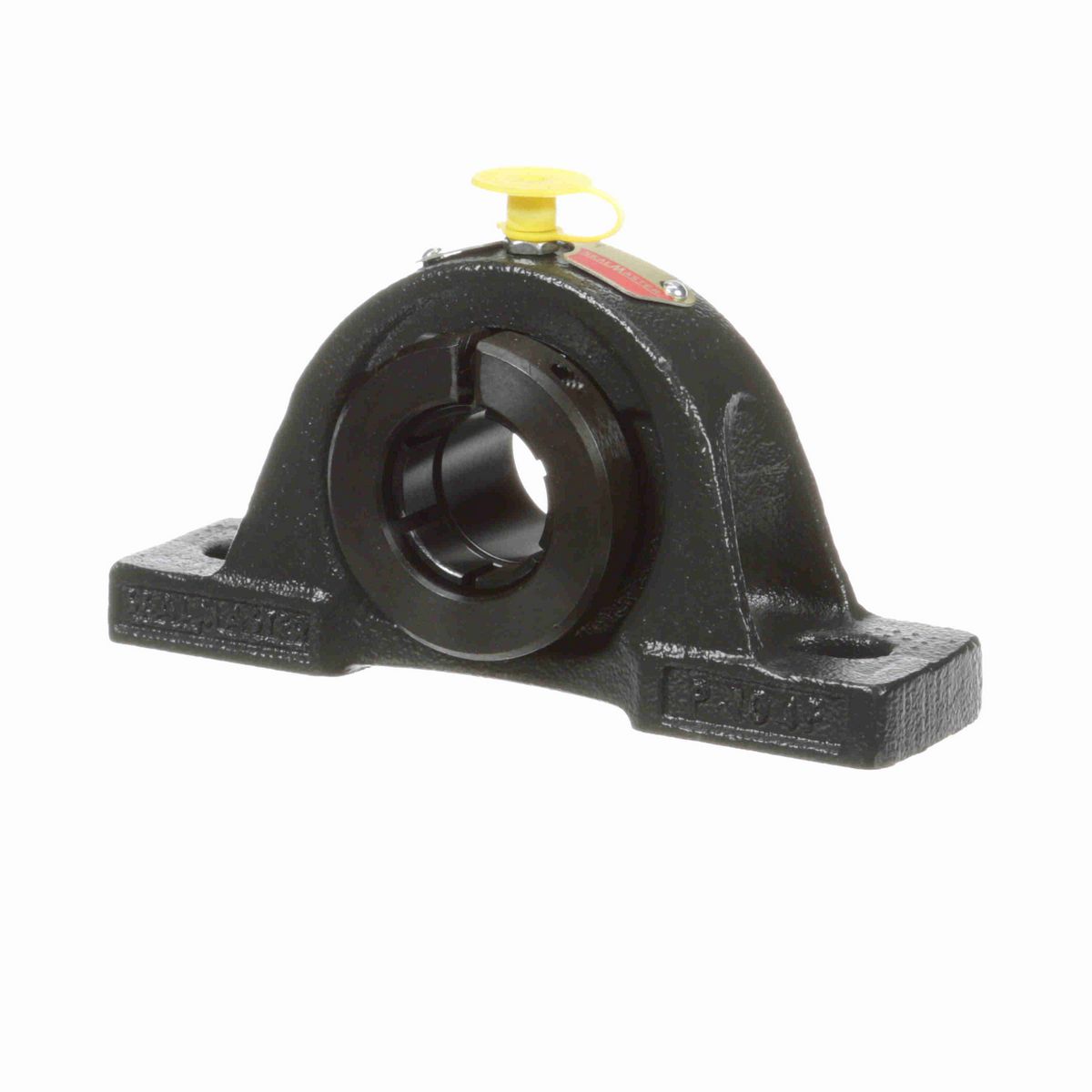

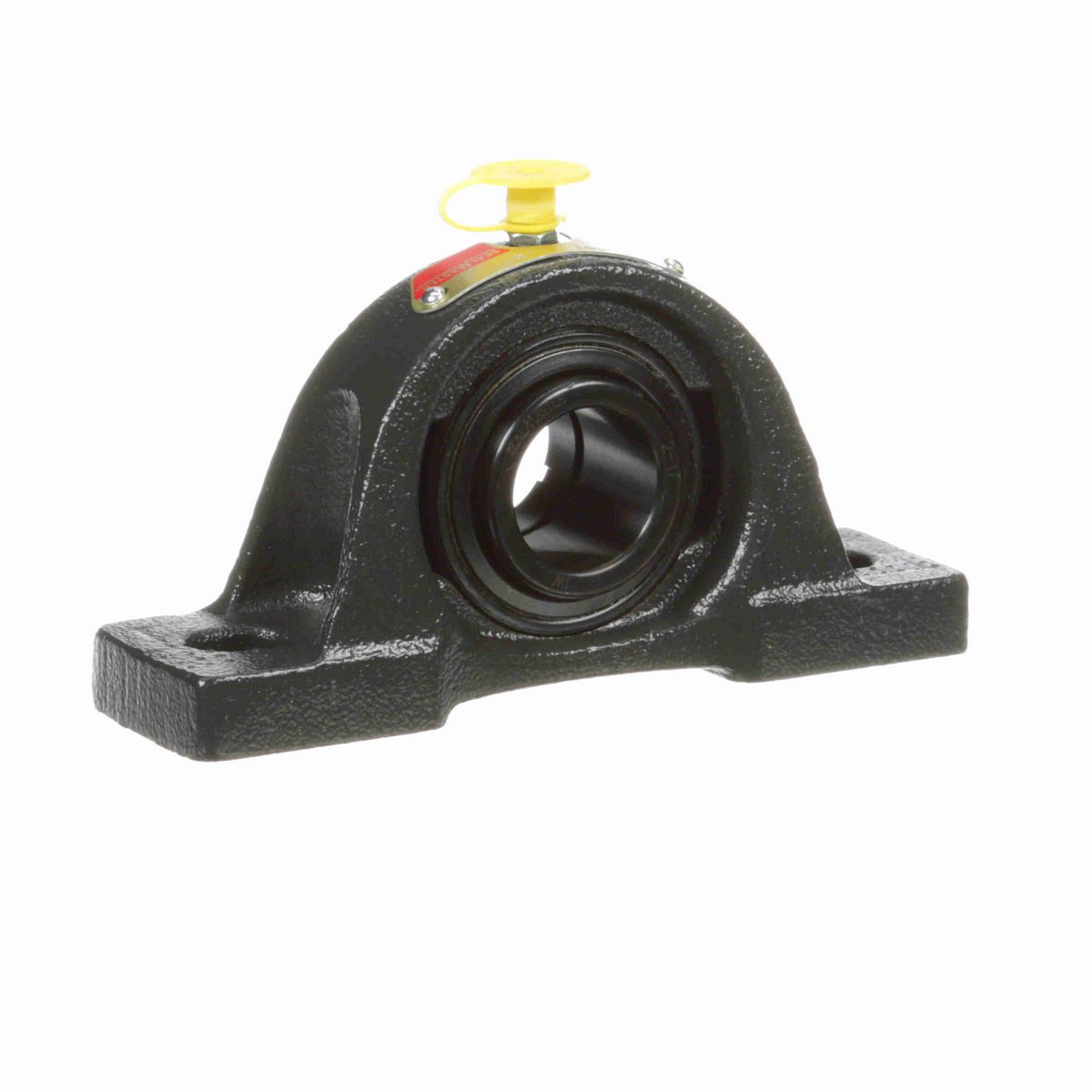

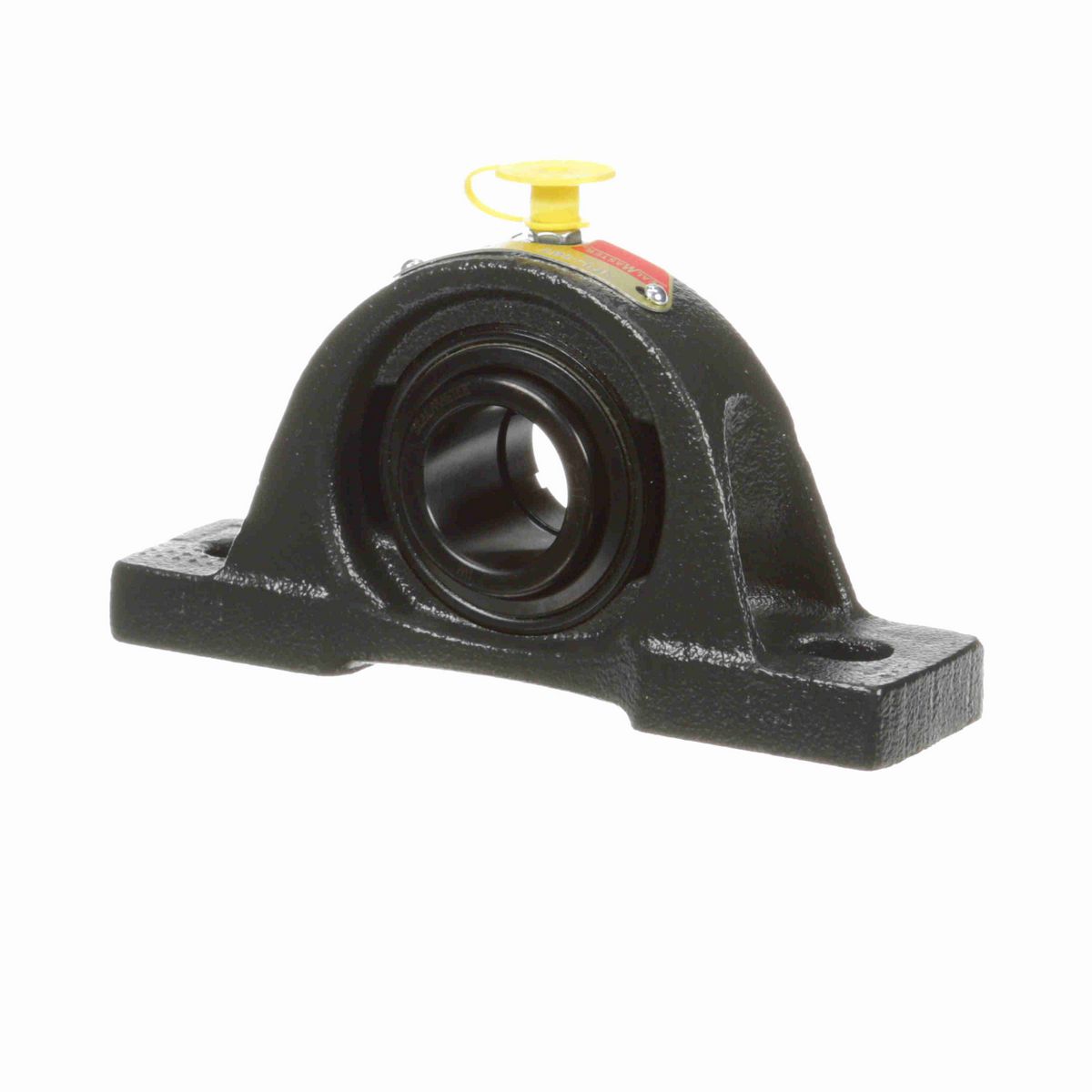

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	1.50 in
Base Width (in)	1.50 in
Overall Length (in)	5.5 in
Overall Height (in)	2.69 in
Bolt Size (in)	3/8 in
Bore Diameter (in)	1 in
Foot Height (in)	0.50 in
Base to Center Height (in)	1.3125 in
Length Through Bore (in)	1.438 in
Bolt Spacing Min (in)	3.88 in
Centerline to Outermost Bearing Face (in)	0.875 in
Bolt Spacing Max (in)	4.38 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	1.94 in
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Static Load Rating (lb)	1,651 lb
Base Length (in)	5.50 in
Grease Fitting Thread Size	1/4-28
Dynamic Load Rating (lb)	2,801 lb
Insert	2-1T
Vibration Frequency Roller Spin	0.0442 cps
Vibration Frequency Outer Ring Defect	0.0682 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Size Code	2-015
Maximum Speed (RPM)	9000 rpm
Vibration Frequency Inner Ring Defect	0.0985 cps
End Cap Available	No
Housing Coating	Powder Coated
Shaft Locking Type	Concentric
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Lubricant	Lithium Complex NLGI 2 Grease
Inner Ring Outside Diameter (in)	1.375 in
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Vibration Frequency Fundamental Train	0.0068 cps

General Specifications

UPC	662461030509
Weight	2.18 LB
Packaged Length	3.50 IN
Packaged Width	1.69 IN
Packaged Height	5.75 IN
HTC	8483.20.8040
Country of Origin	United States of America
