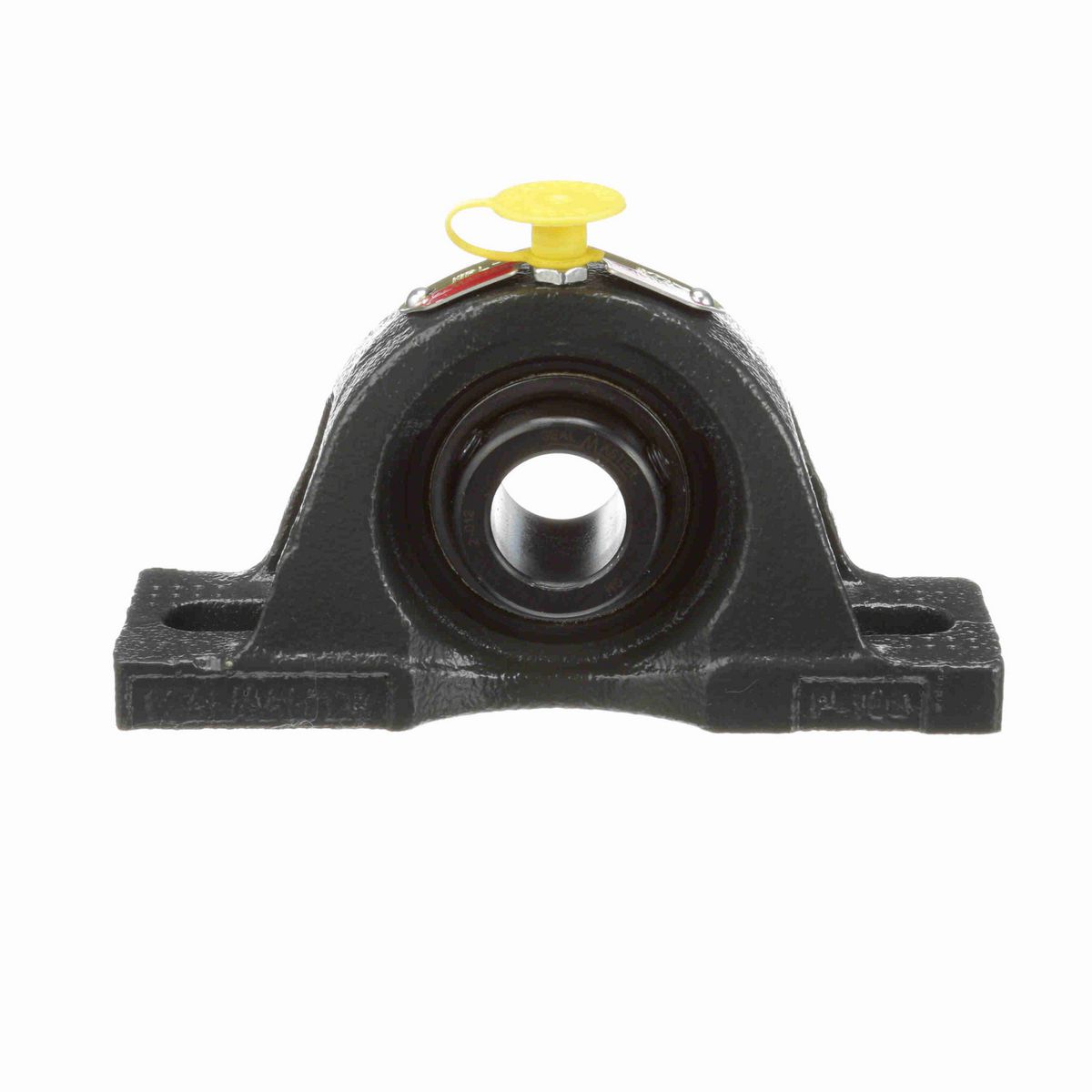

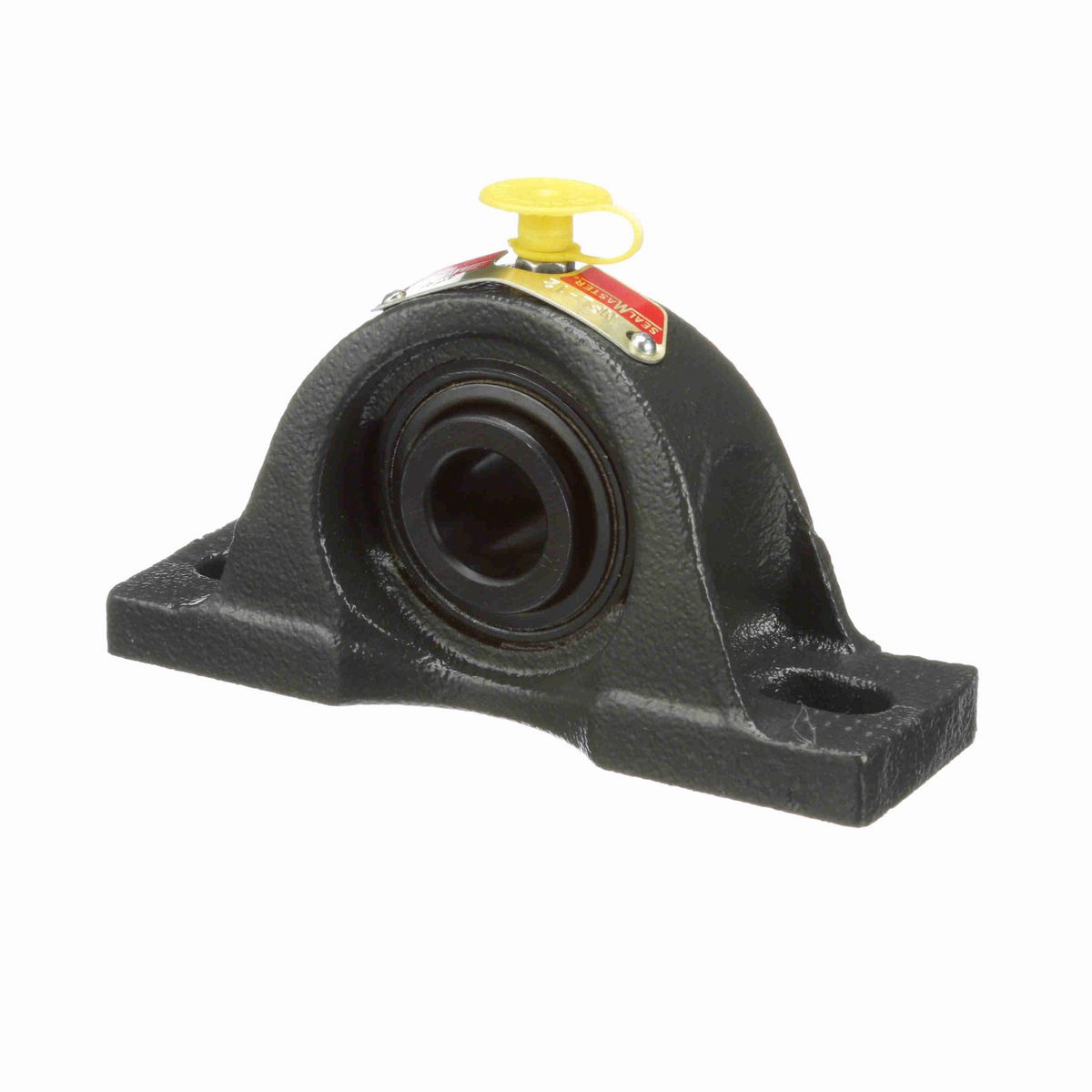

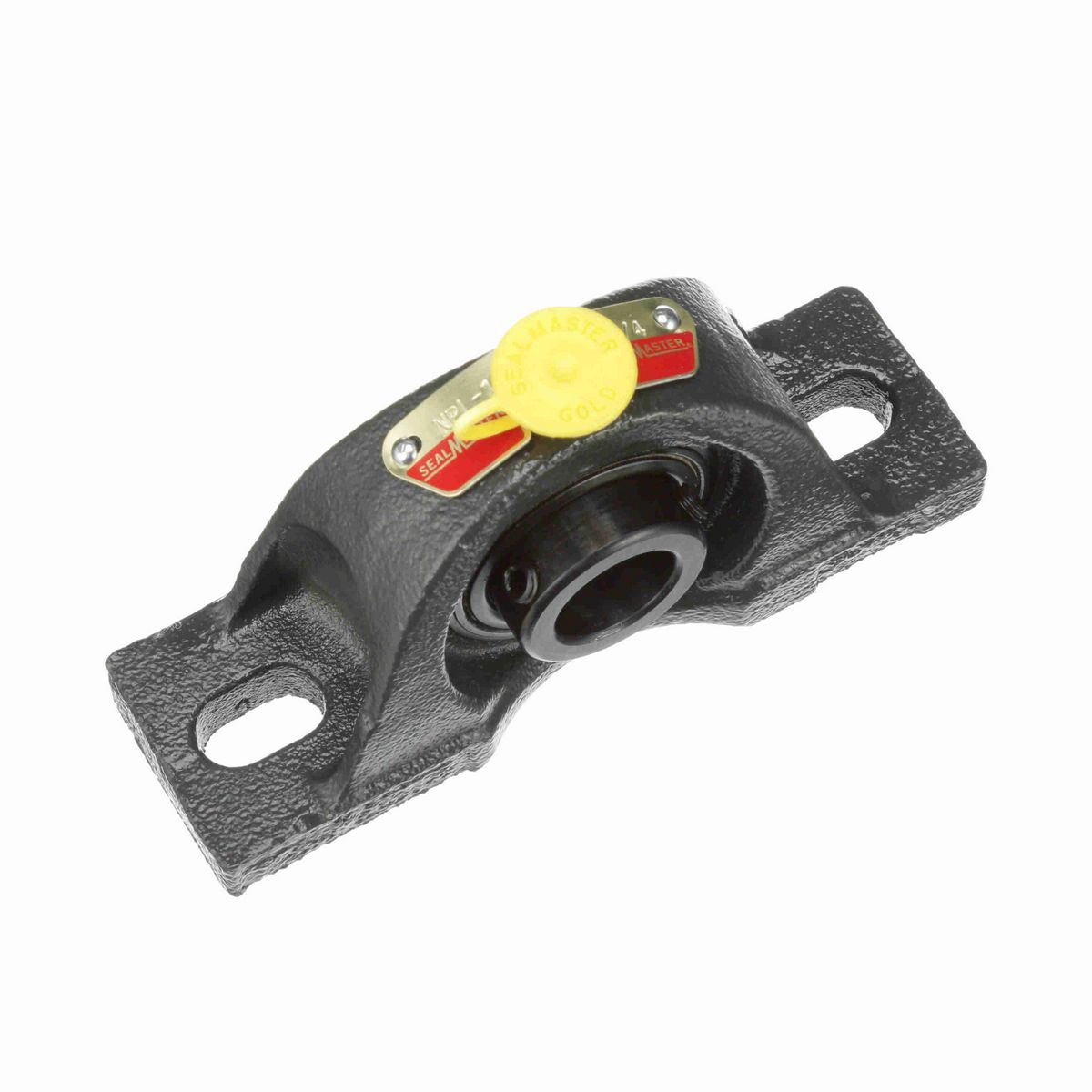

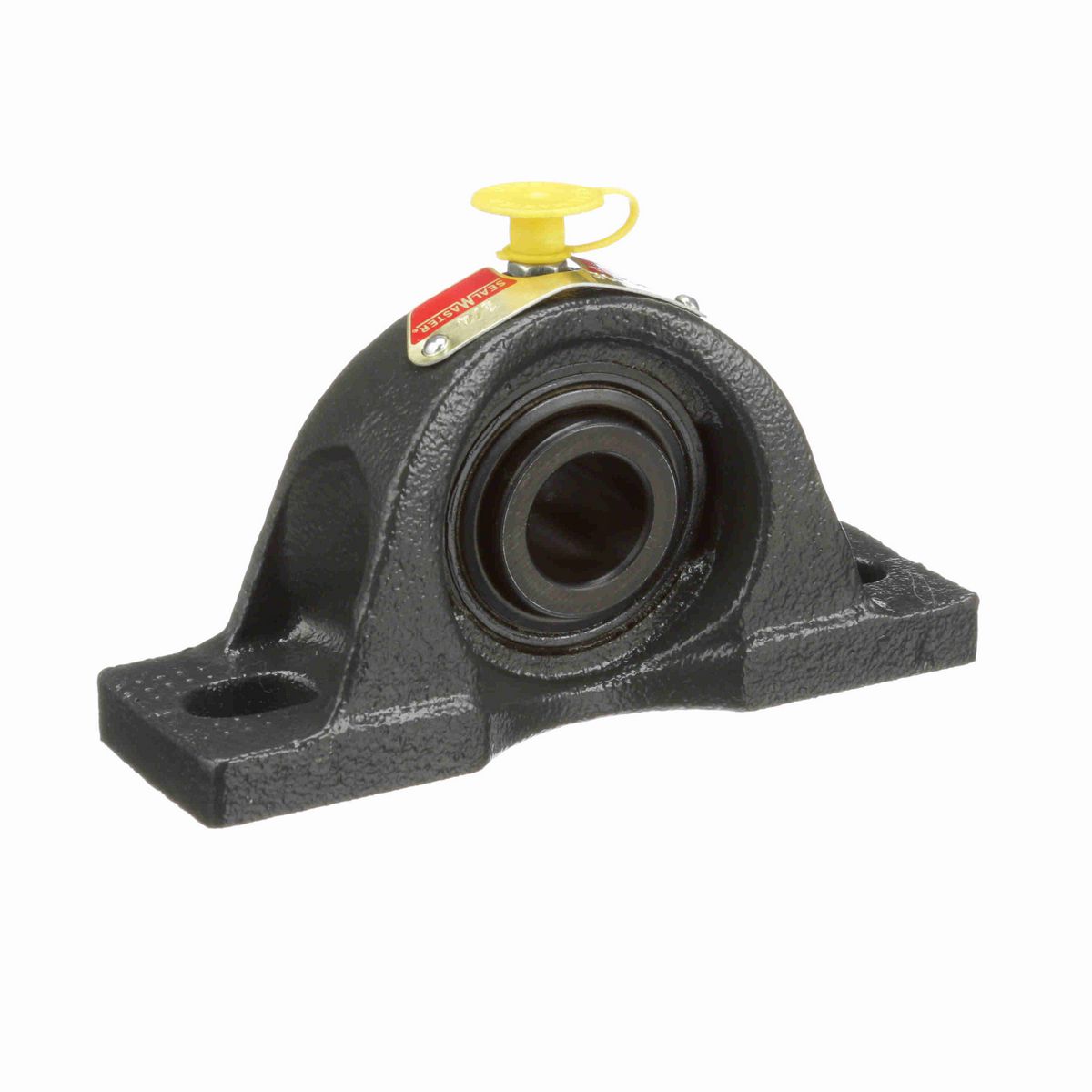

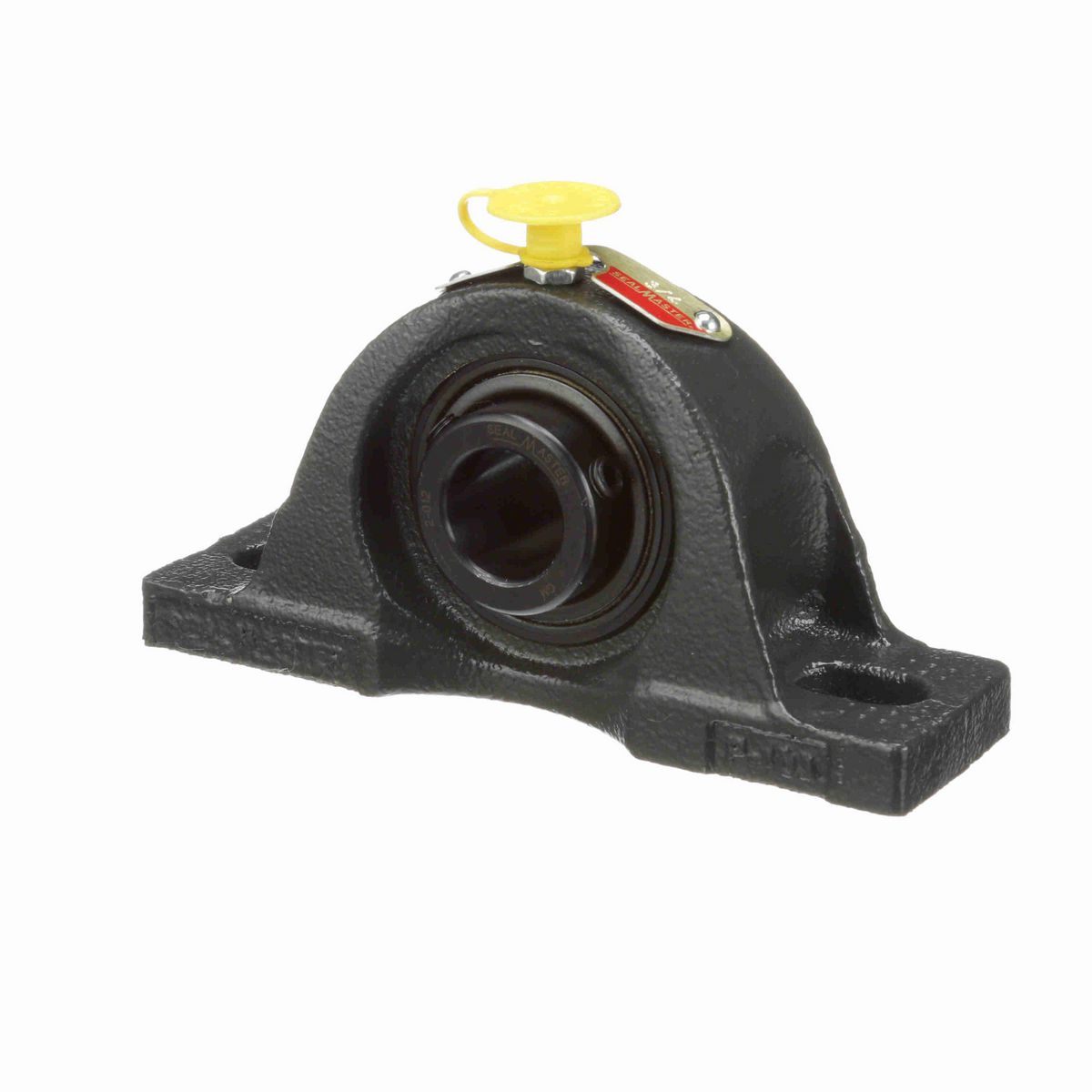

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	5 in
Overall Width (in)	1.5 in
Base Width (in)	1.5 in
Overall Height (in)	2.5 in
Bolt Size (in)	3/8 in
Bore Diameter (in)	0.75 in
Base to Center Height (in)	1.25 in
Foot Height (in)	0.44 in
Length Through Bore (in)	1.219 in
Centerline to Outermost Bearing Face (in)	0.719 in
Bolt Spacing Min (in)	3.38 in
Bolt Spacing (in)	3.75 in
Bolt Spacing Max (in)	4.13 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt, Low Base
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Shaft Locking Type	Set Screw
Vibration Frequency Outer Ring Defect	0.0593 cps
Static Load Rating (lb)	1,444 lb
Dynamic Load Rating (lb)	2,611 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Roller Spin	0.0381 cps
Vibration Frequency Fundamental Train	0.0066 cps
End Cap Available	No
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Maximum Speed (RPM)	7300 rpm
Insert	2-012
Max Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0907 cps
Inner Ring Outside Diameter (in)	1.188 in
Grease Fitting Thread Size	1/4-28
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Size Code	2-012
Housing Material	Cast Iron
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Base Length (in)	5 in
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461004531
Weight	1.74 LB
Packaged Length	3.19 IN
Packaged Width	1.69 IN
Packaged Height	5.25 IN
HTC	8483.20.8040
Country of Origin	United States of America
