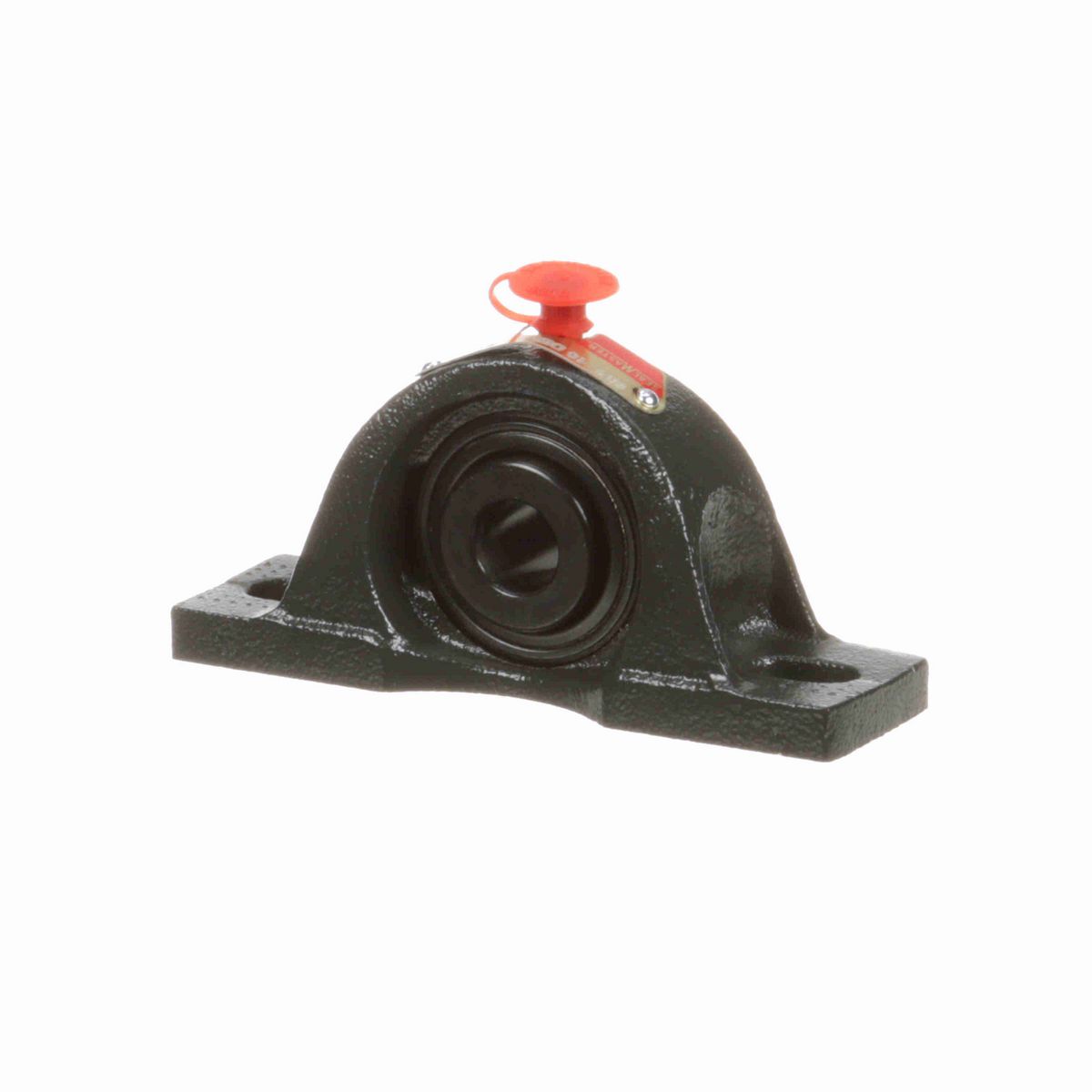

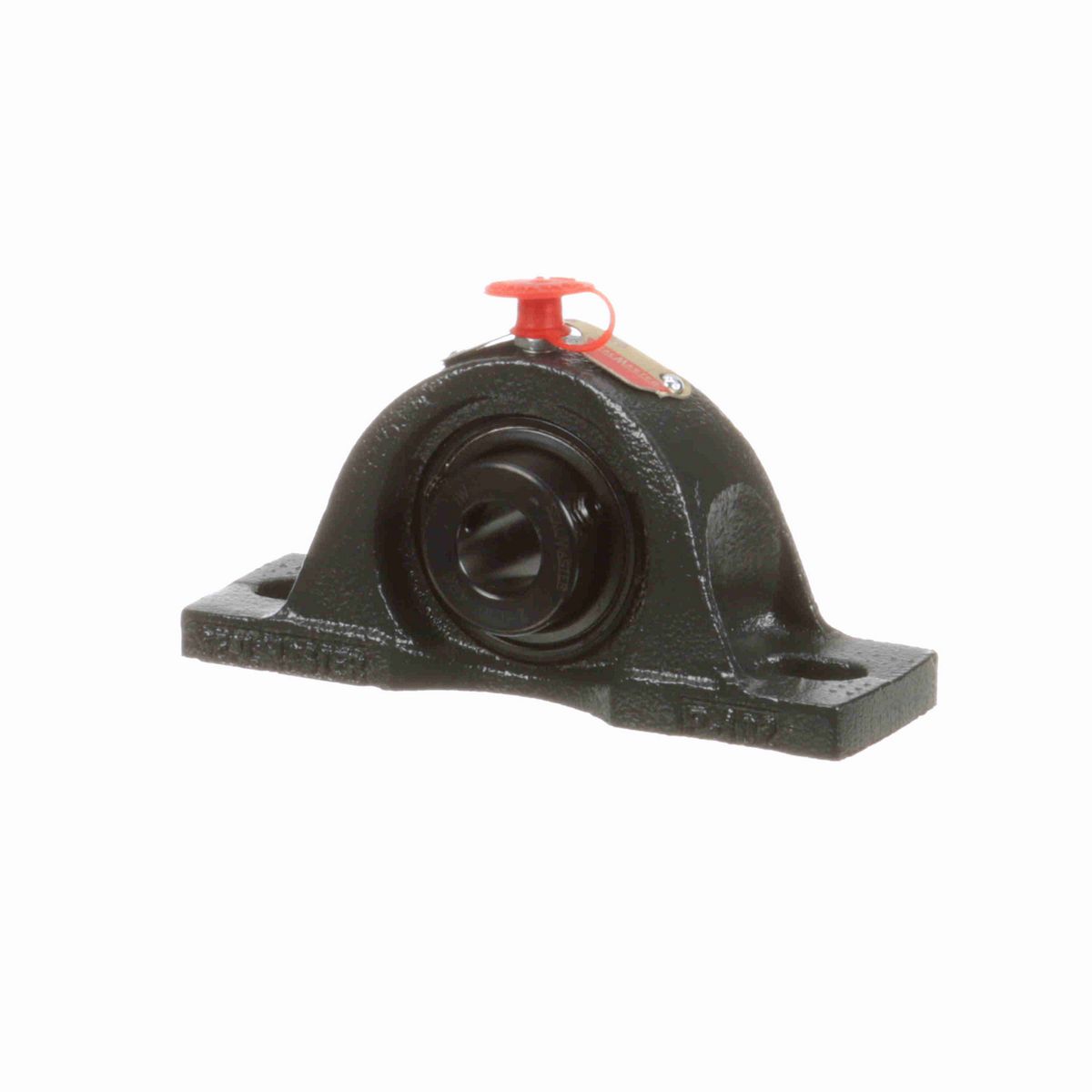

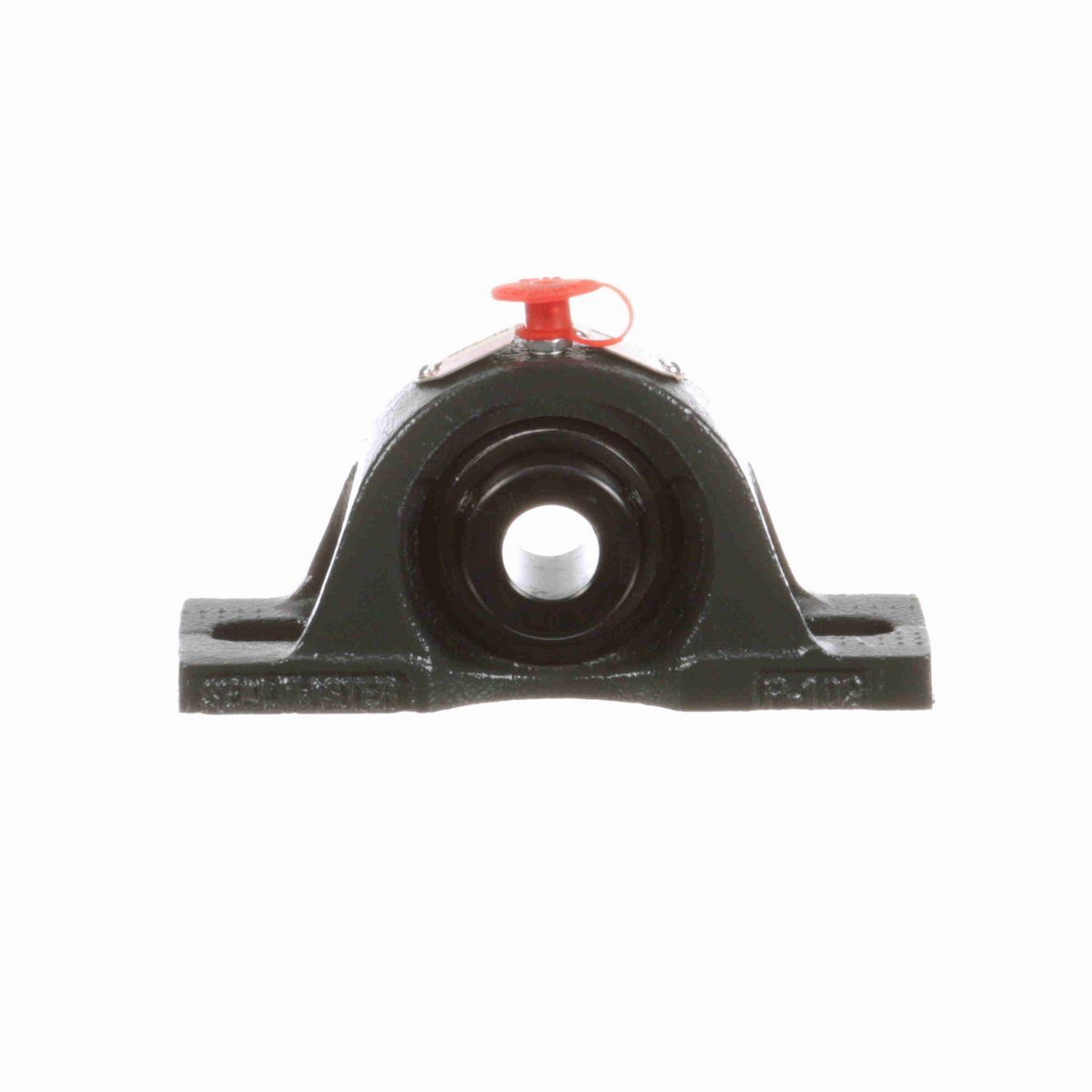

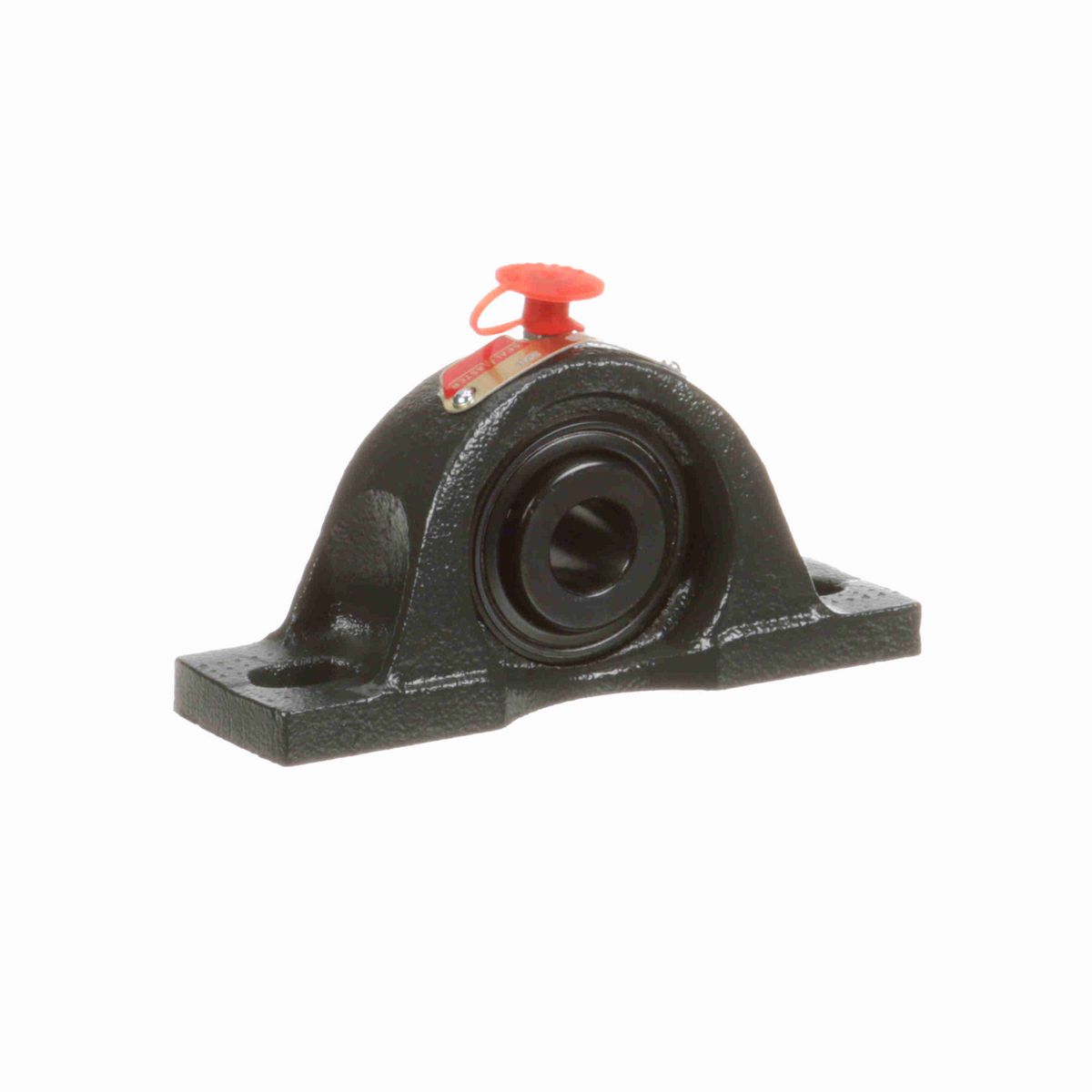

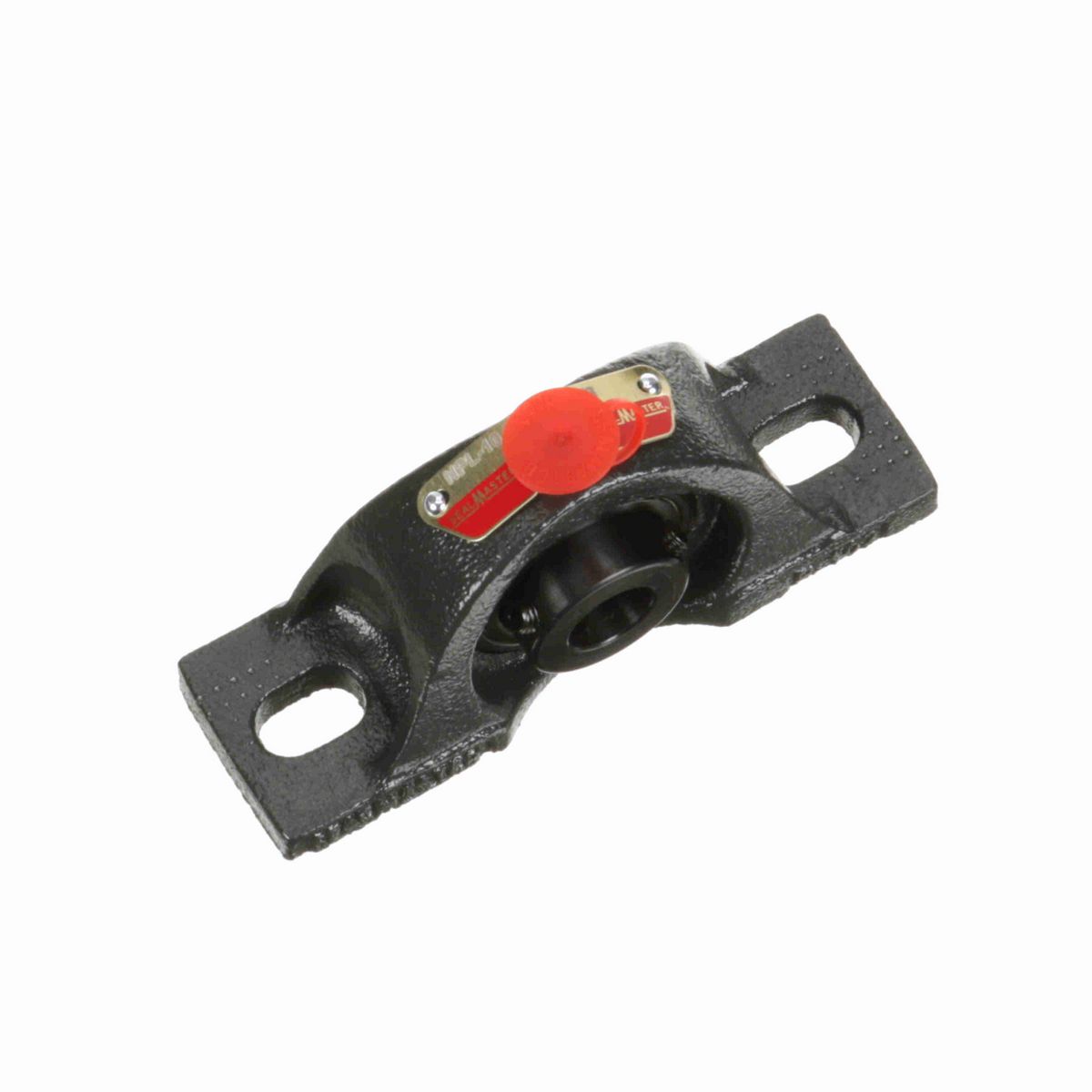

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	5 in
Base Width (in)	1.5 in
Overall Height (in)	2.31 in
Overall Width (in)	1.5 in
Bolt Size (in)	3/8 in
Bore Diameter (in)	0.625 in
Foot Height (in)	0.38 in
Base to Center Height (in)	1.0625 in
Length Through Bore (in)	1.219 in
Centerline to Outermost Bearing Face (in)	0.719 in
Bolt Spacing Min (in)	3.38 in
Bolt Spacing (in)	3.75 in
Bolt Spacing Max (in)	4.13 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Options	High Temperature
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	High Temp Labyrinth
Housing Type	Pillow Block, Two Bolt, Low Base
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bearing Type	Standard Duty
Insert	2-010 ARC
Static Load Rating (lb)	1,444 lb
Dynamic Load Rating (lb)	2,611 lb
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Size Code	2-012
End Cap Available	No
Vibration Frequency Outer Ring Defect	0.0585 cps
Vibration Frequency Fundamental Train	0.0065 cps
Maximum Speed (RPM)	7300 rpm
Base Length (in)	5 in
Radial Clearance	Standard
Lubricant	Lithium Complex Grease With Synthetic Oil
Shaft Locking Type	Set Screw
Inner Ring Outside Diameter (in)	1.188 in
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Coating	Powder Coated
Bearing Insert Finish	Black Oxide
Vibration Frequency Roller Spin	0.0361 cps
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/4-28
Vibration Frequency Inner Ring Defect	0.0915 cps

General Specifications

UPC	662461301777
Weight	1.70 LB
Packaged Length	3.19 IN
Packaged Width	1.69 IN
Packaged Height	5.25 IN
HTC	8483.20.8040
Country of Origin	United States of America
