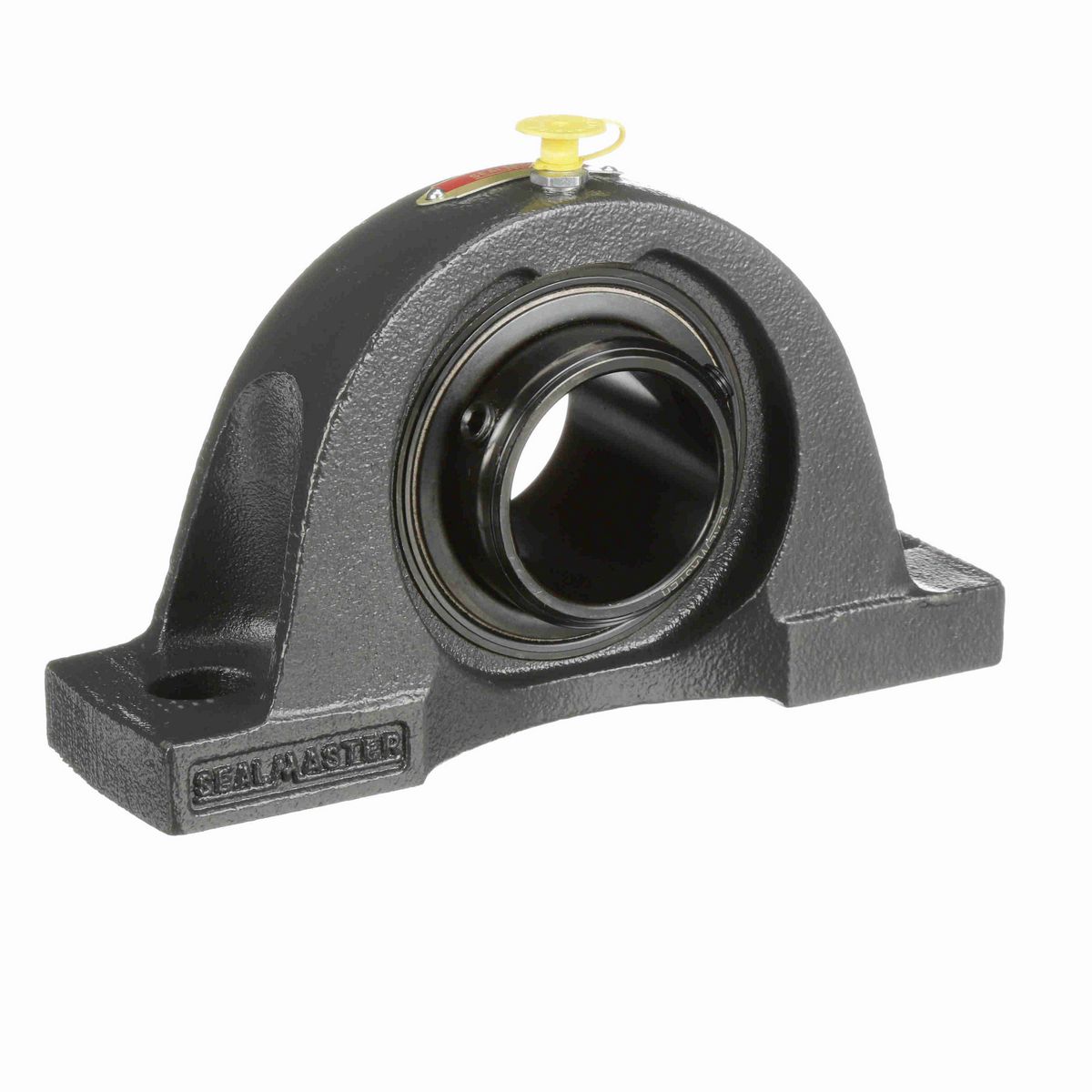

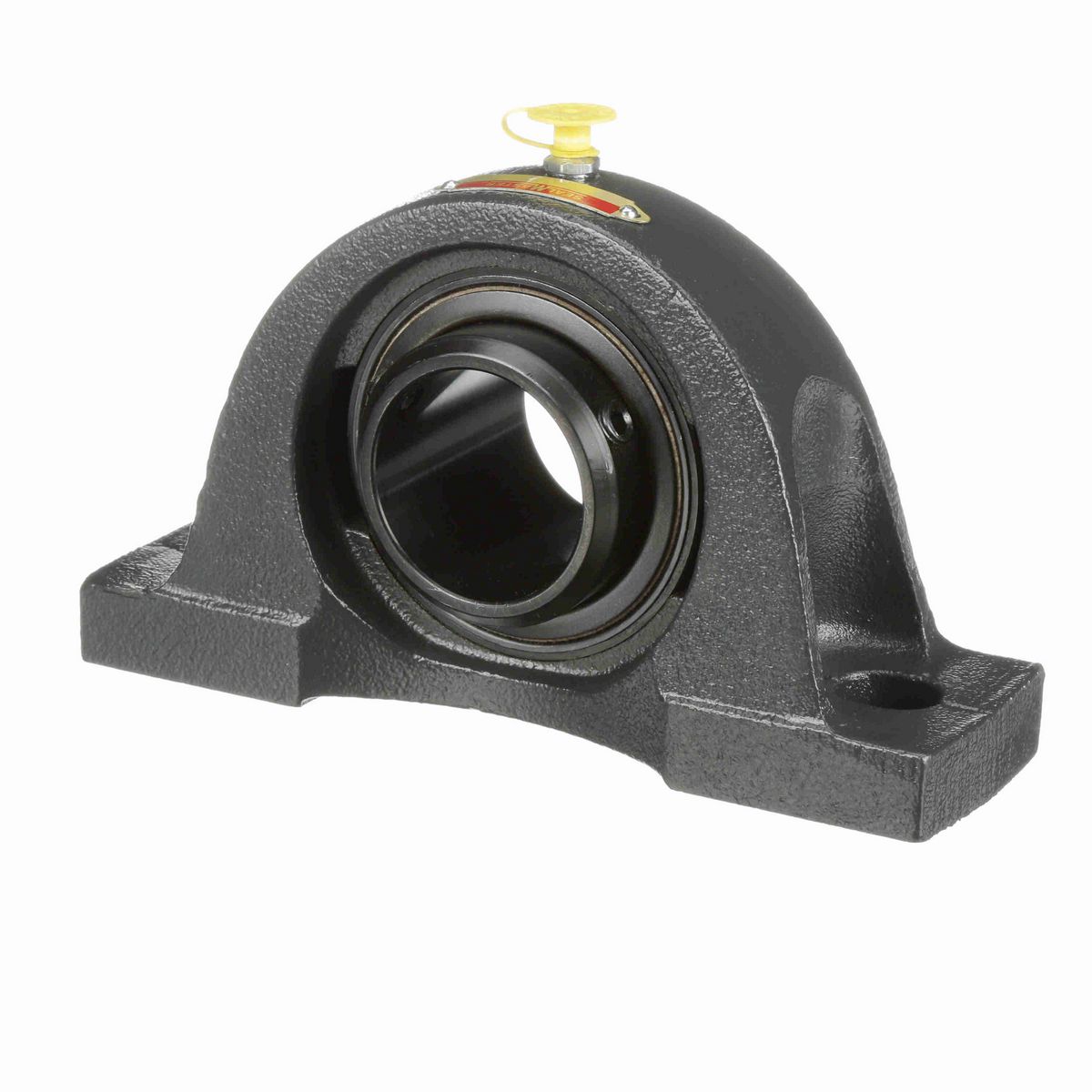

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.38 in
Overall Length (in)	7.5 in
Overall Height (in)	4.25 in
Base Width (in)	2.13 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.75 in
Base to Center Height (in)	2.13 in
Foot Height (in)	0.69 in
Length Through Bore (in)	2.375 in
Bolt Spacing Max (in)	6.06 in
Centerline to Outermost Bearing Face (in)	1.188 in
Bolt Spacing Min (in)	5.44 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	125-165 in/lbs
Grease Fitting Thread Size	1/4-28
Cage Type	Land Riding Retainer
Maximum Speed (RPM)	5300 rpm
Base Length (in)	7.50 in
Housing Material	Cast Iron
Dynamic Load Rating (lb)	7,901 lb
Vibration Frequency Roller Spin	0.0417 cps
Bearing Insert Material	52100 Bearing Steel
Bearing Type	Standard Duty
Misalignment Capability	±2.0° Misalignment - Static Only
Size Code	2-111
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0673 cps
Vibration Frequency Inner Ring Defect	0.0994 cps
Insert	2-112D
Bearing Insert Finish	Black Oxide
End Cap Available	No
Inner Ring Outside Diameter (in)	2.063 in
Shaft Locking Type	Double Set Screw
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0067 cps
Static Load Rating (lb)	5,139 lb
Max Operating Temperature (F)	220 °F
Radial Clearance	Standard
Housing Coating	Powder Coated

General Specifications

UPC	662461015476
Weight	6.70 LB
Packaged Length	5.19 IN
Packaged Width	2.13 IN
Packaged Height	7.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
