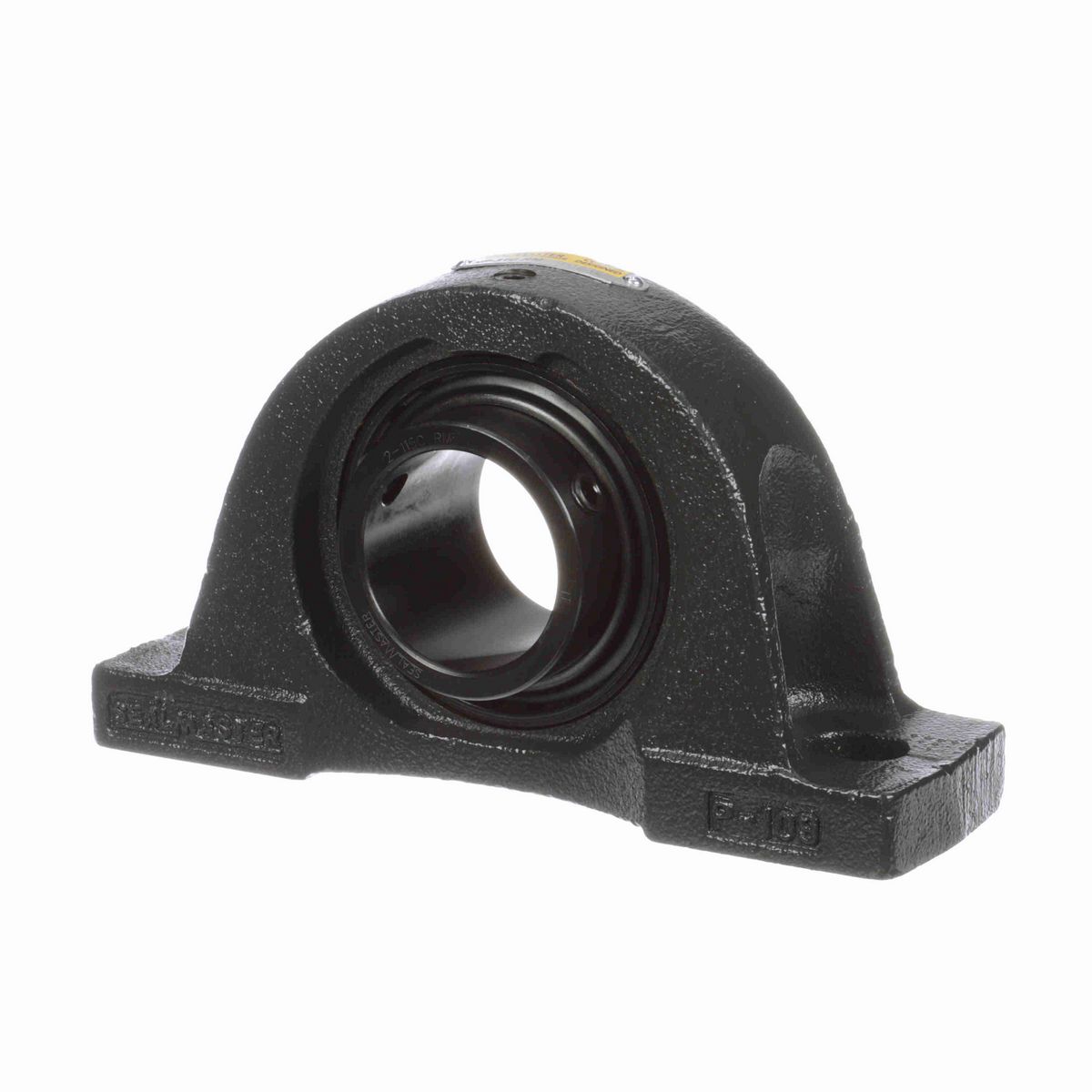

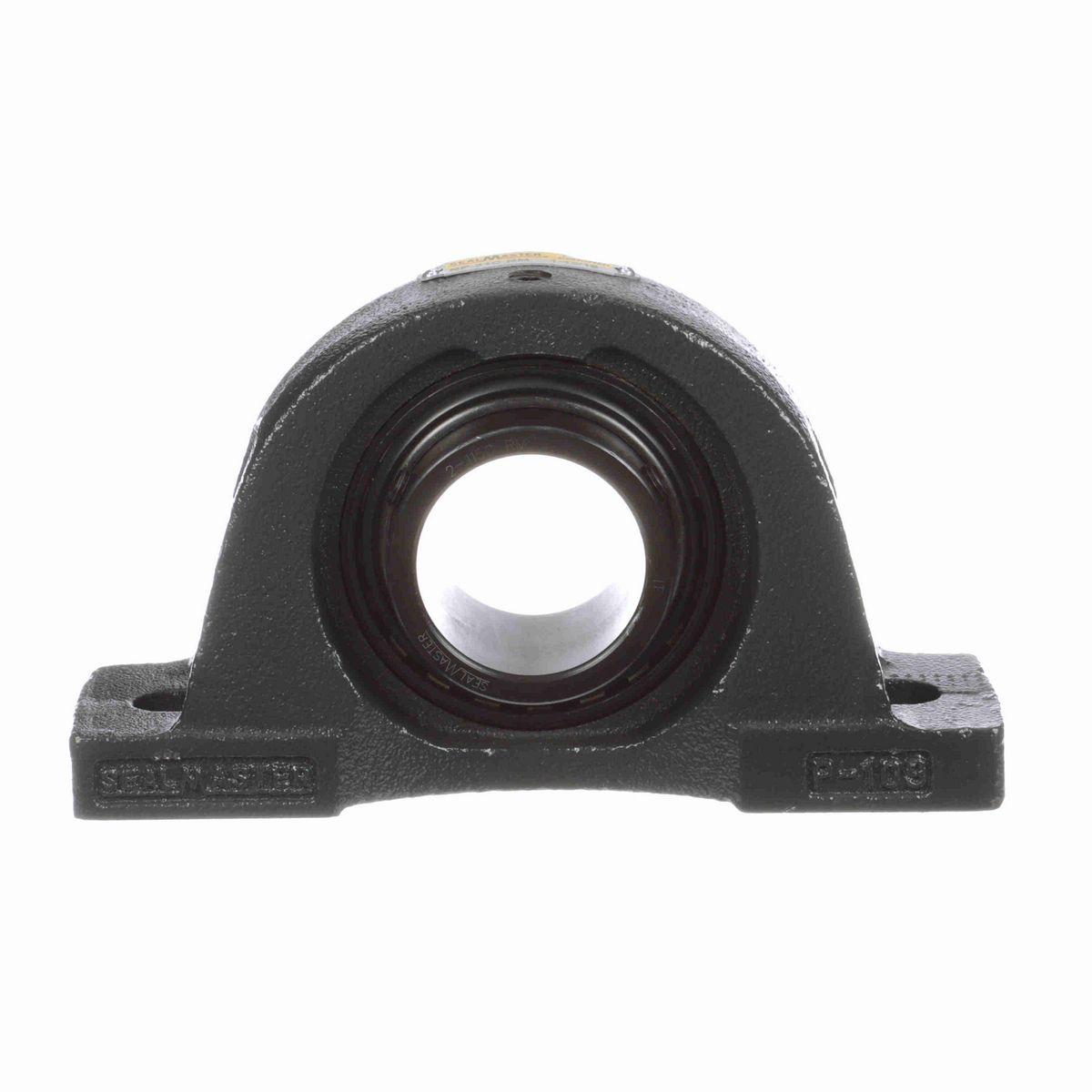

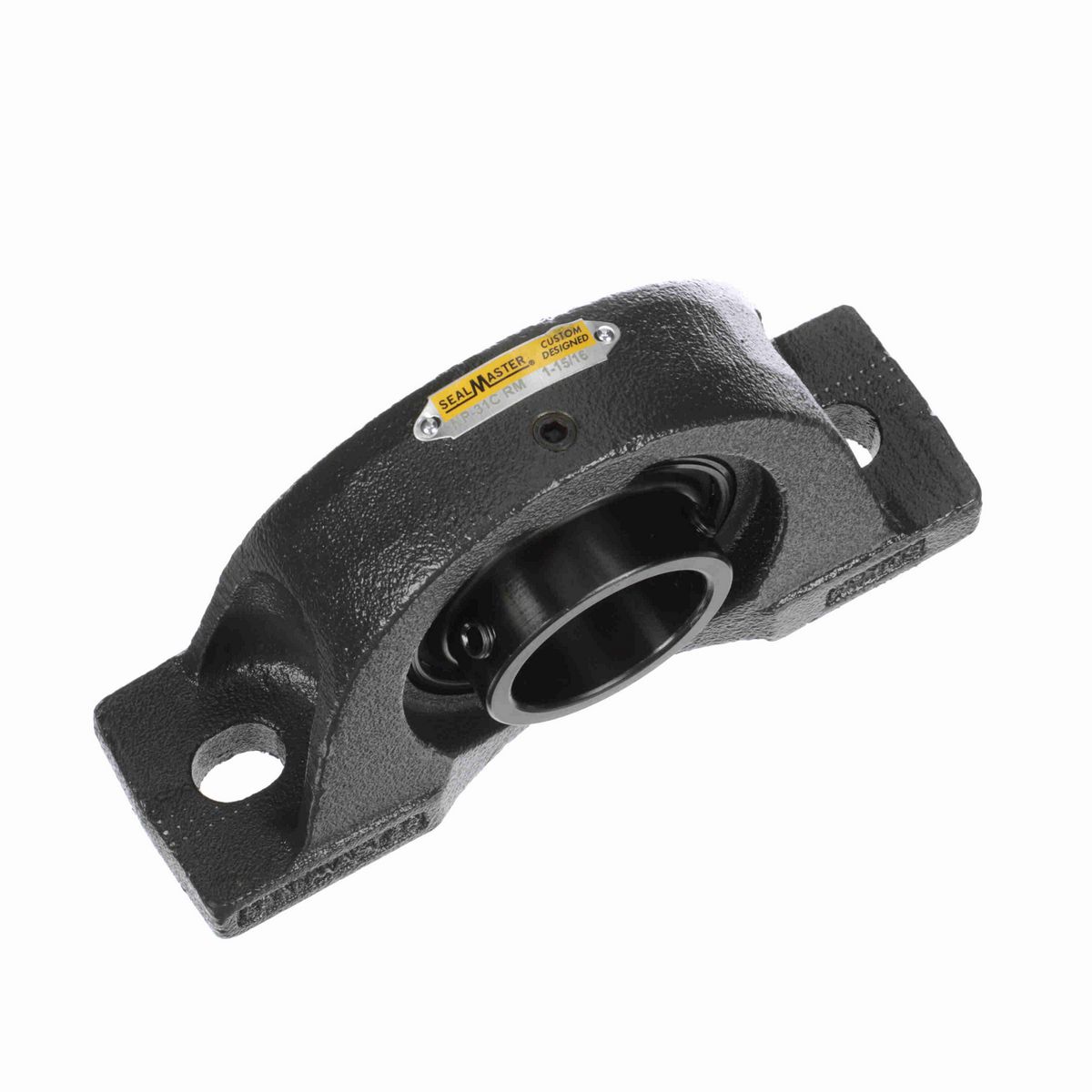

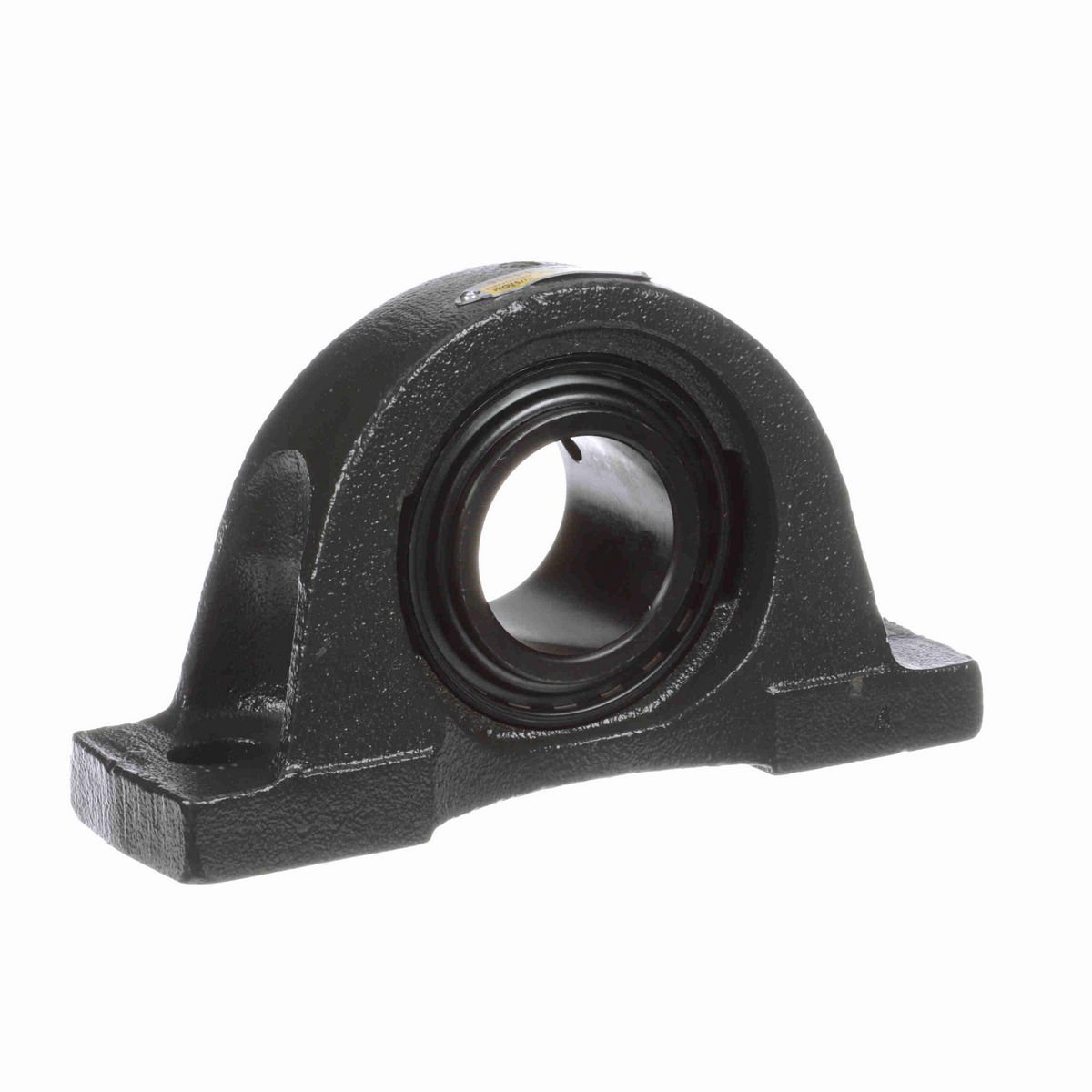

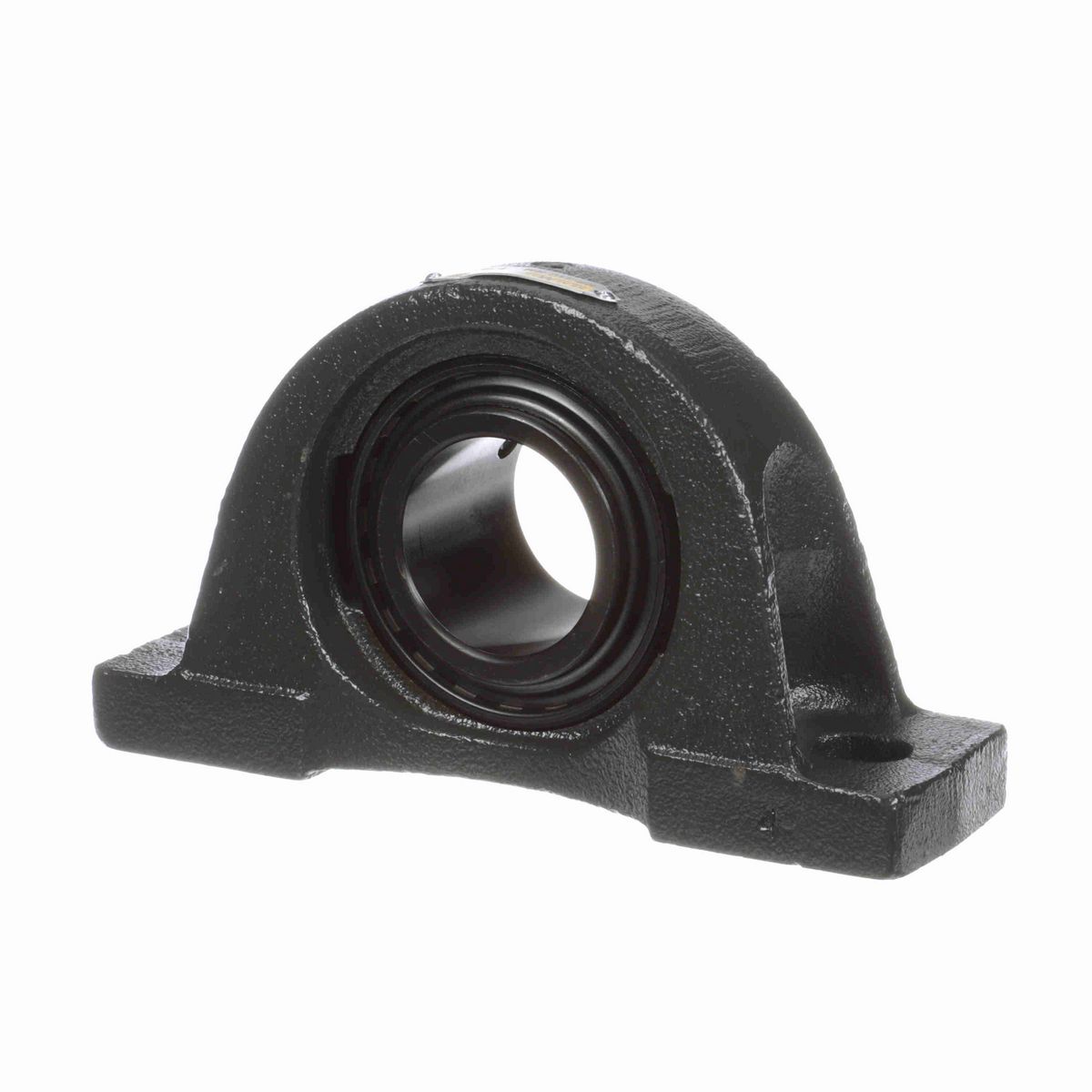

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
• Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.

Dimensions

Overall Width (in)	2.38 in
Base Width (in)	2.38 in
Overall Length (in)	8.13 in
Overall Height (in)	4.56 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.75 in
Base to Center Height (in)	2.2500 in
Length Through Bore (in)	2.031 in
Bolt Spacing Min (in)	6 in
Bolt Spacing Max (in)	6.5 in
Centerline to Outermost Bearing Face (in)	1.281 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Options	Reduced Maintenance - Lubed for Life
Housing Color	Black
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Ability to Relubricate	No
Inner Race Heat Treat Method	Zone-Hardened
Radial Clearance	Standard
Bearing Insert Material	52100 Bearing Steel
Base Length (in)	8.13 in
Vibration Frequency Outer Ring Defect	0.0683 cps
Shaft Locking Type	Set Screw
Vibration Frequency Roller Spin	0.0445 cps
Vibration Frequency Fundamental Train	0.0068 cps
Lubricant	Lithium Complex NLGI 2 Grease
Maximum Speed (RPM)	3550 rpm
Bearing Type	Standard Duty
Vibration Frequency Inner Ring Defect	0.0984 cps
Inner Ring Outside Diameter (in)	2.469 in
Housing Coating	Powder Coated
Static Load Rating (lb)	5,216 lb
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Grease Fitting Thread Size	1/8 NPT
Bearing Insert Finish	Black Oxide
Housing Material	Cast Iron
Insert	2-115C RM
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
End Cap Available	No
Size Code	2-115
Dynamic Load Rating (lb)	7,889 lb

General Specifications

UPC	662461333822
Weight	7.90 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.8040
Country of Origin	United States of America
