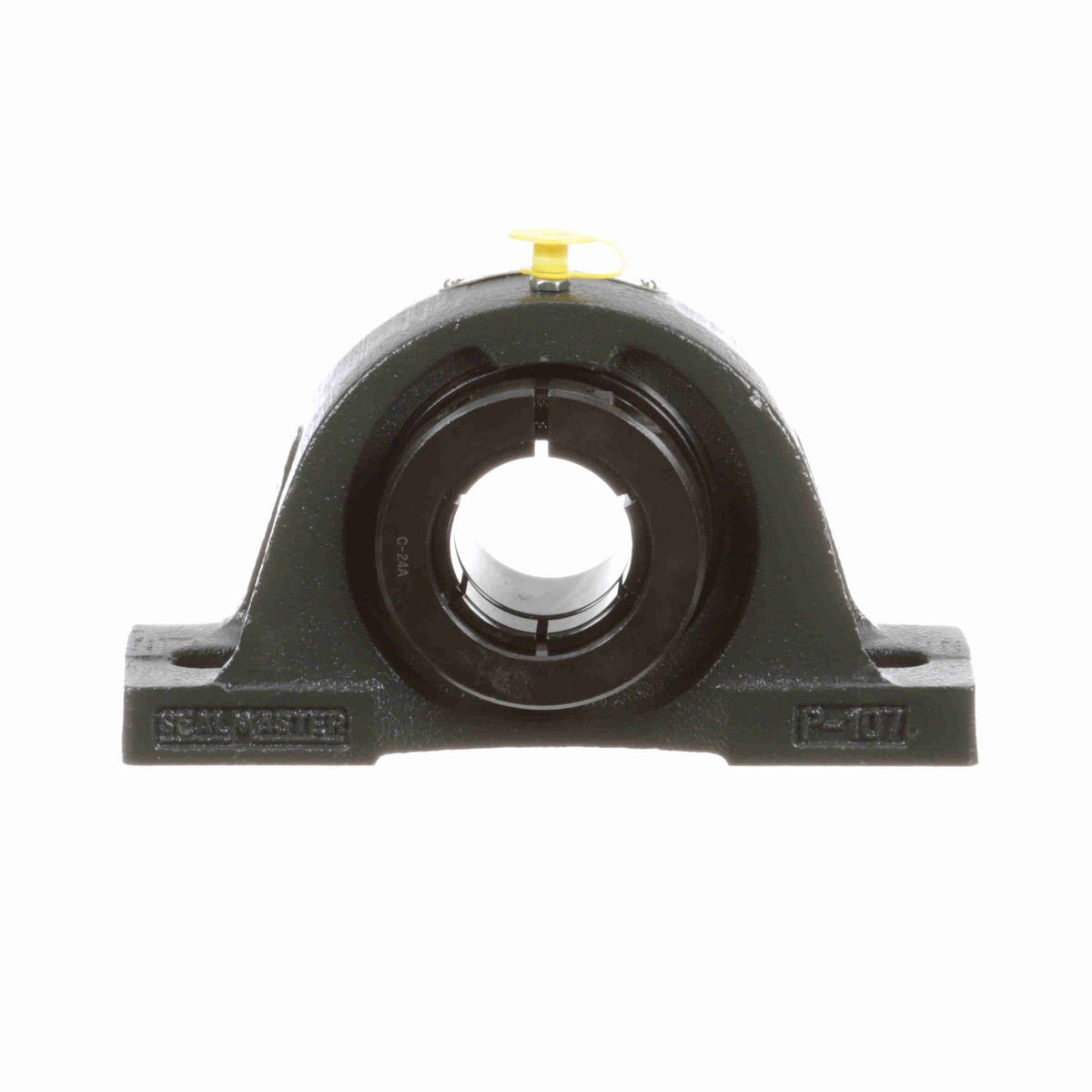

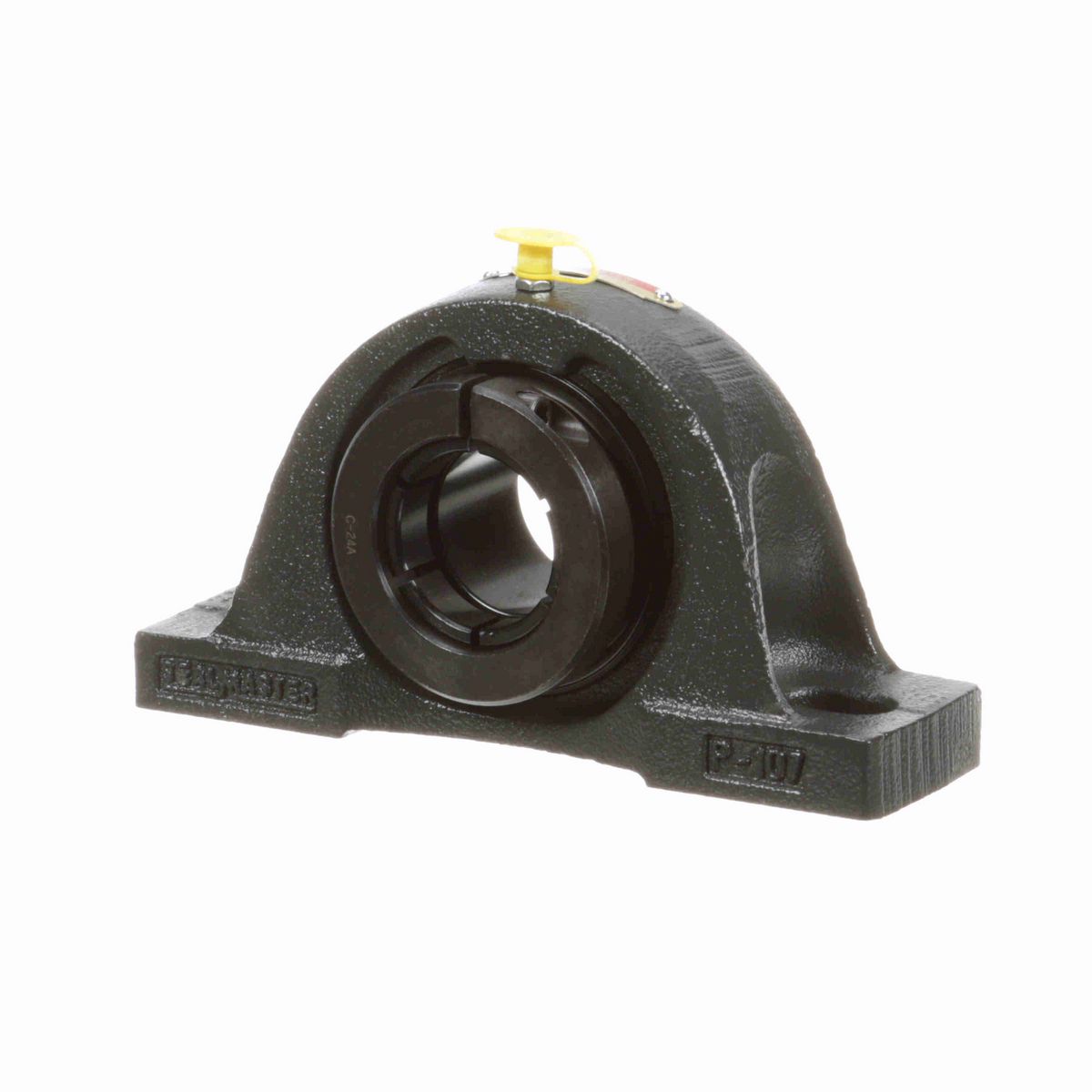

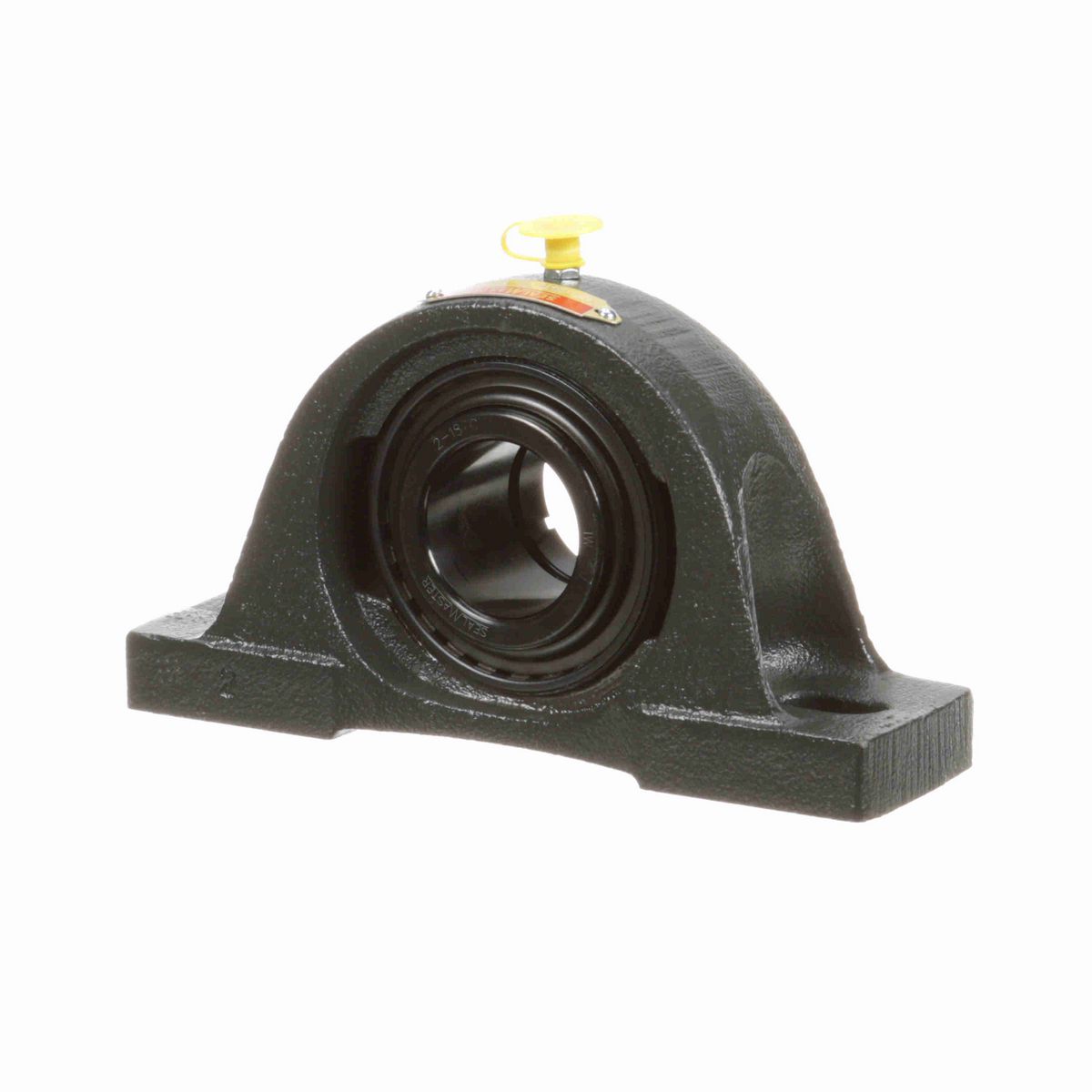

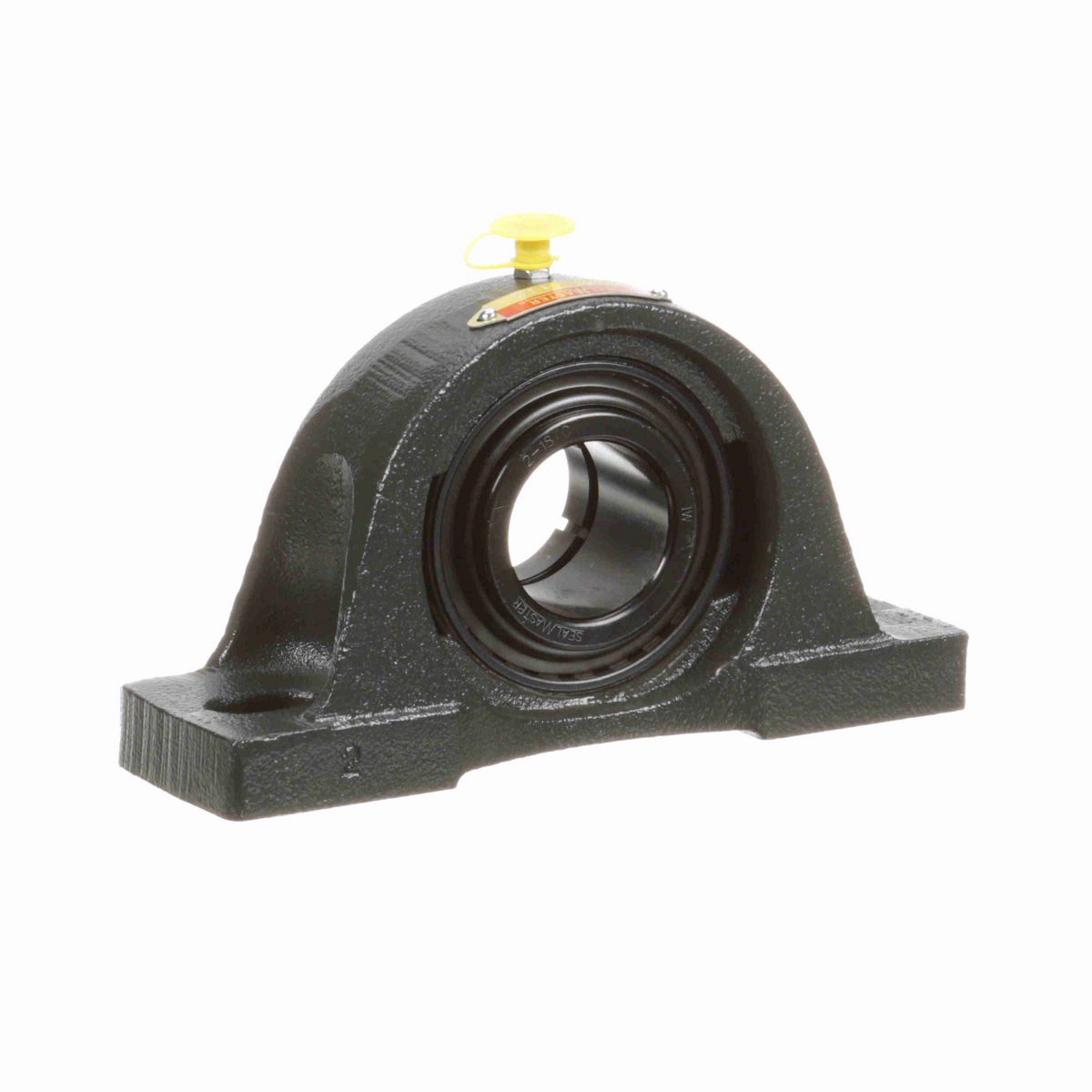

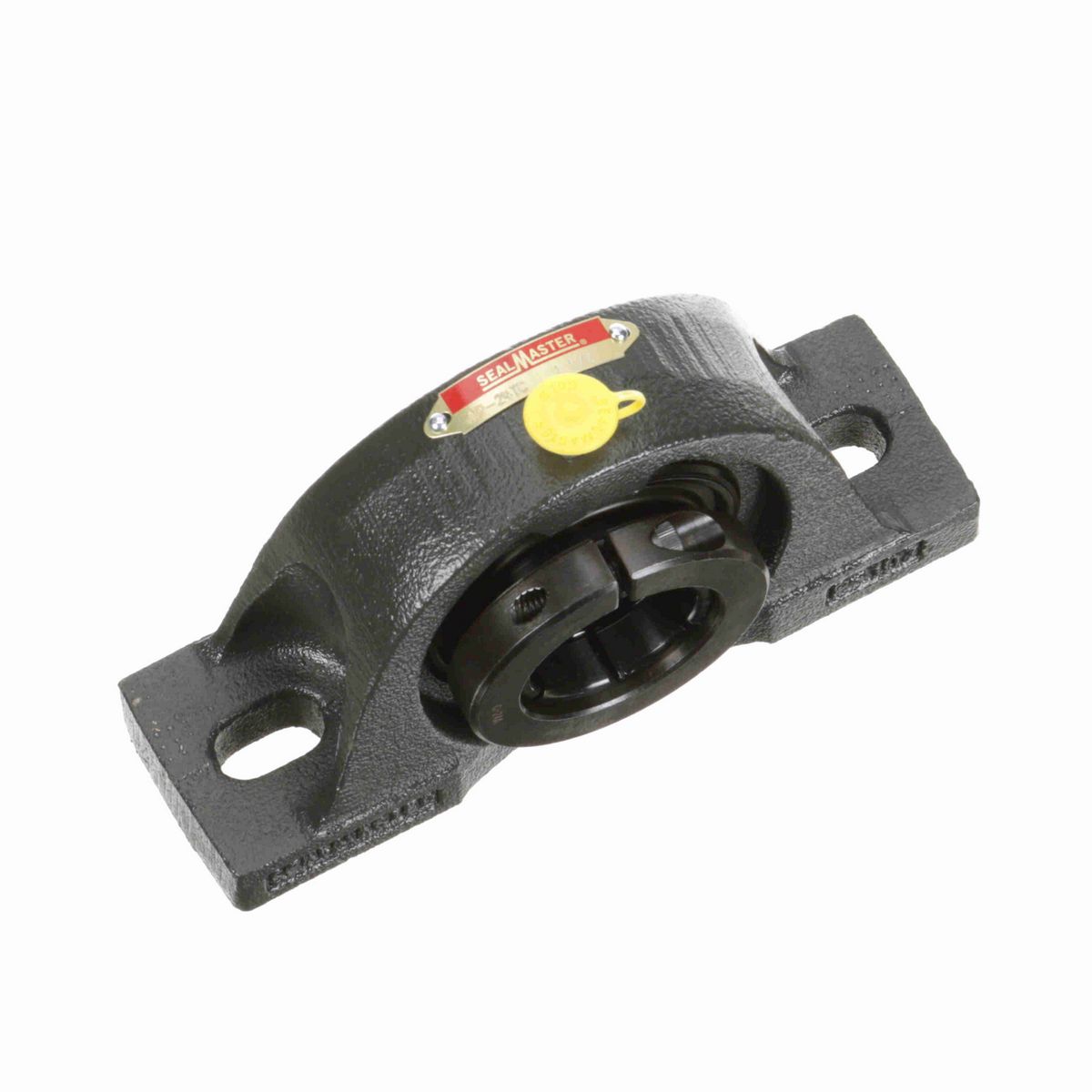

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	7.25 in
Overall Width (in)	2.13 in
Overall Height (in)	3.94 in
Base Width (in)	2.13 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.5 in
Base to Center Height (in)	1.9375 in
Foot Height (in)	0.69 in
Length Through Bore (in)	2 in
Bolt Spacing Max (in)	5.88 in
Bolt Spacing Min (in)	4.88 in
Centerline to Outermost Bearing Face (in)	1.31 in
Bolt Spacing (in)	5.38 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.75 in
Lubricant	Lithium Complex NLGI 2 Grease
Inner Ring Outside Diameter (in)	2.07 in
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Roller Spin	0.0376 cps
Dynamic Load Rating (lb)	7,340 lb
Base Length (in)	7.25 in
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Max Operating Temperature (F)	220 °F
Fixed vs. Expansion	Fixed
Shaft Locking Type	Concentric
End Cap Available	No
Vibration Frequency Inner Ring Defect	0.0909 cps
Vibration Frequency Outer Ring Defect	0.0591 cps
Size Code	2-19
Maximum Speed (RPM)	4150 rpm
Static Load Rating (lb)	4,467 lb
Radial Clearance	Standard
Insert	2-18TC
Housing Material	Cast Iron
Grease Fitting Thread Size	1/4-28
Vibration Frequency Fundamental Train	0.0066 cps
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Bearing Type	Standard Duty

General Specifications

UPC	662461032763
Weight	6.05 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.8040
Country of Origin	United States of America
