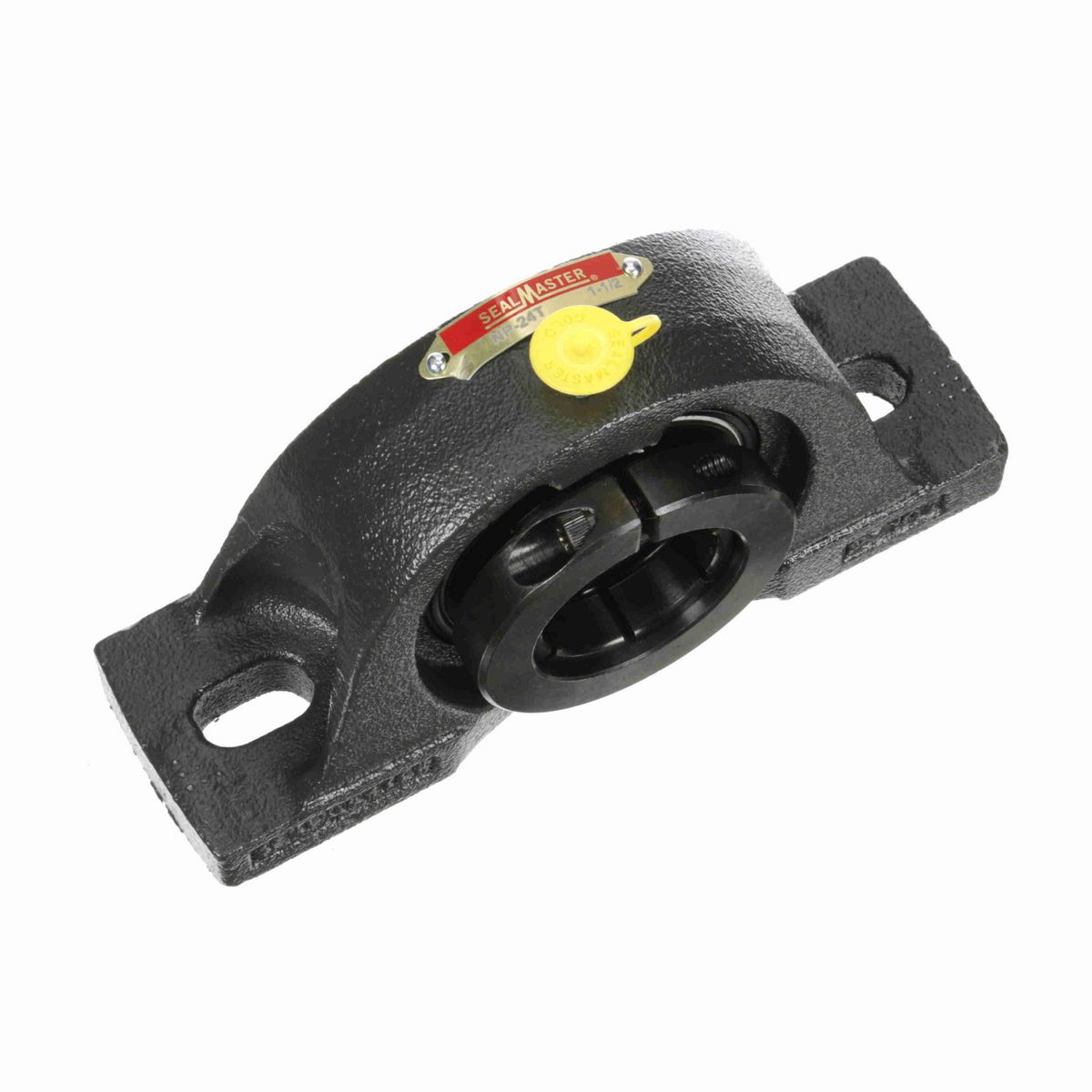

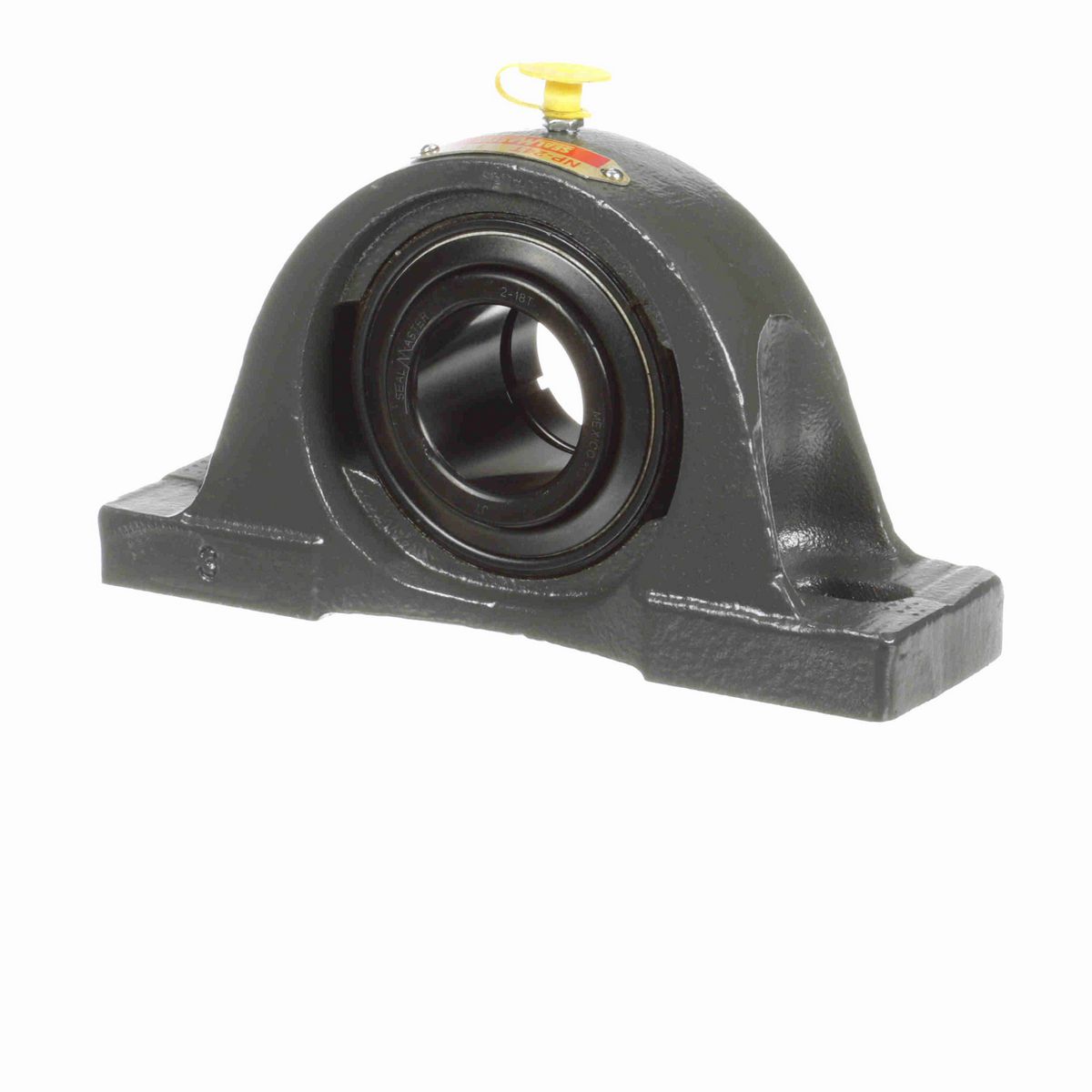

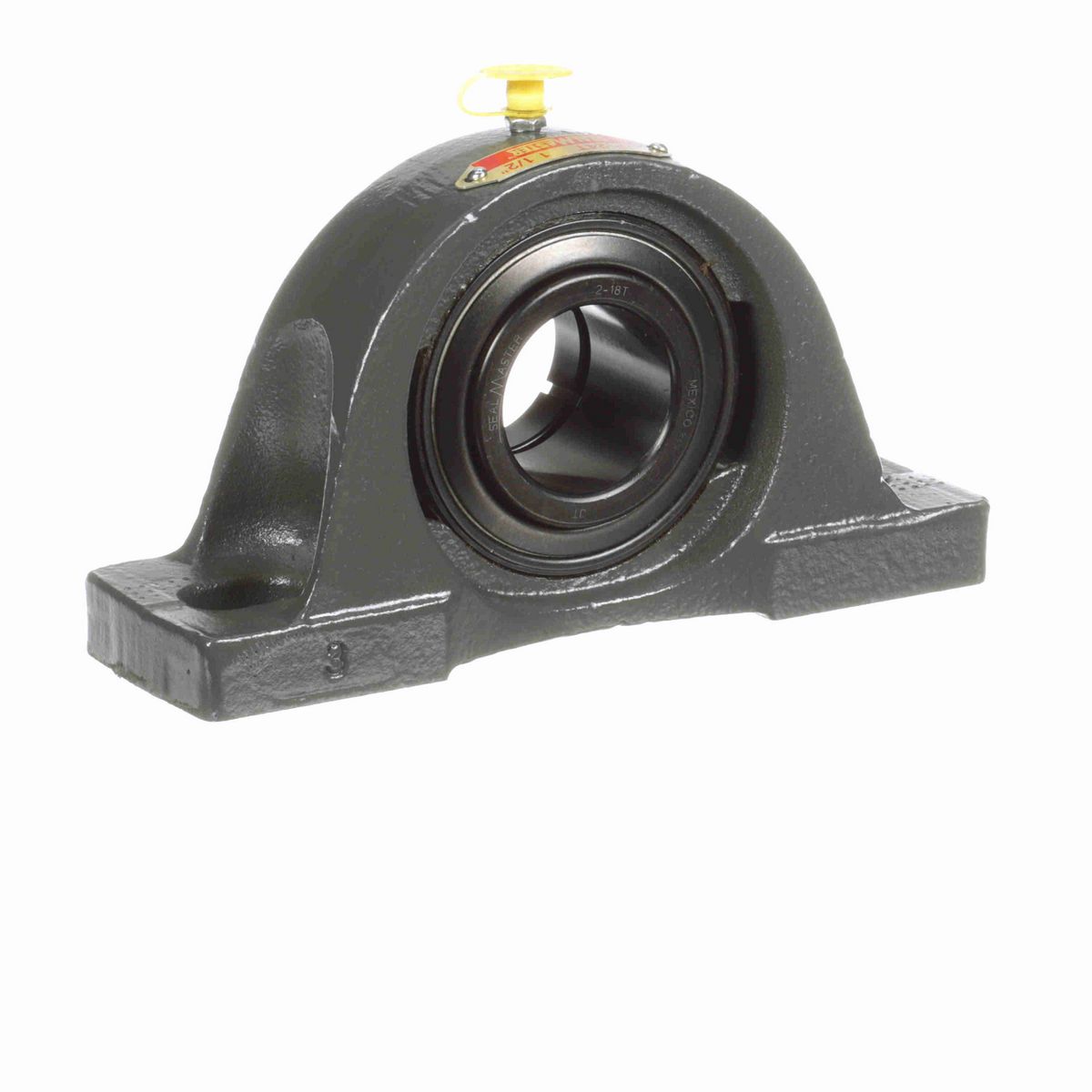

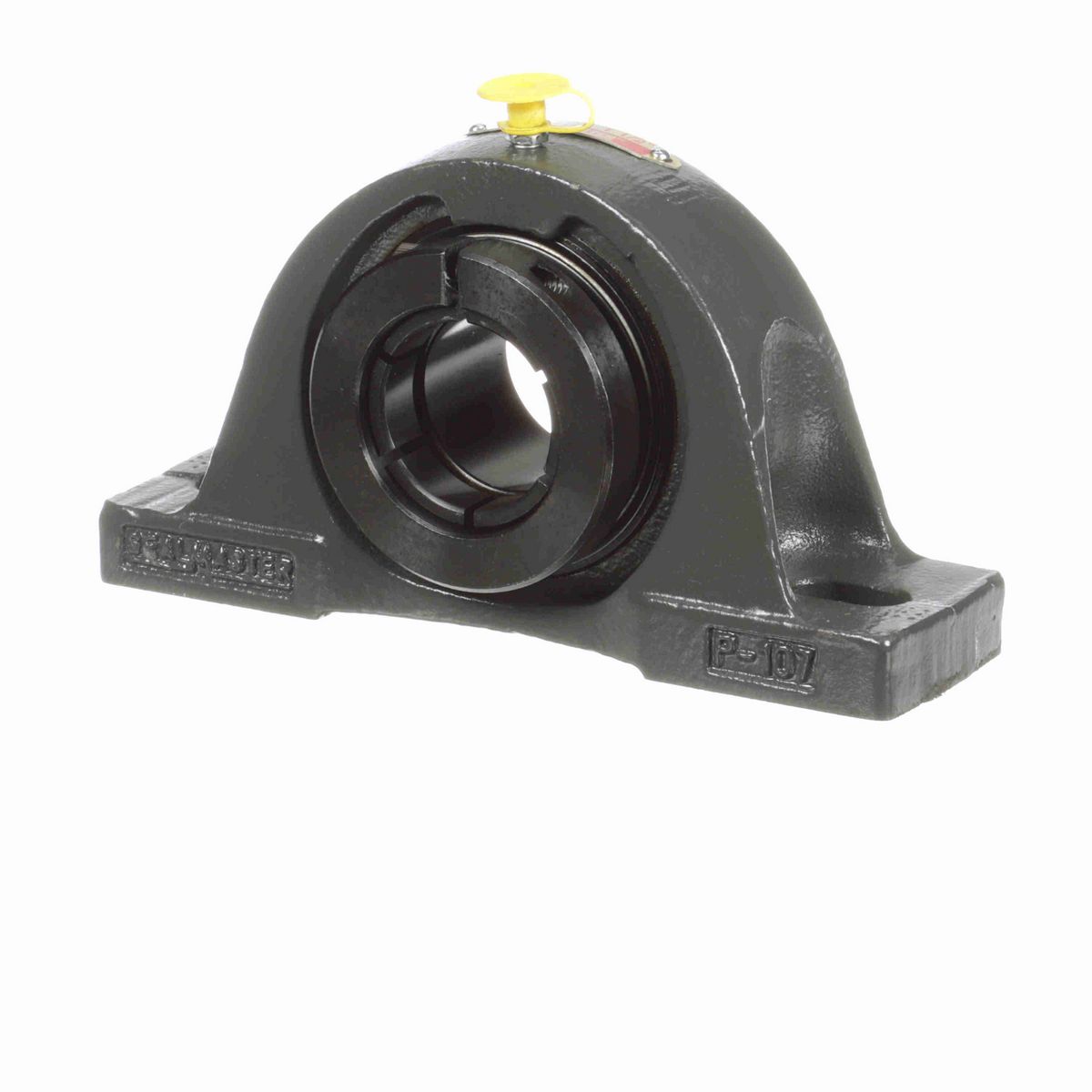

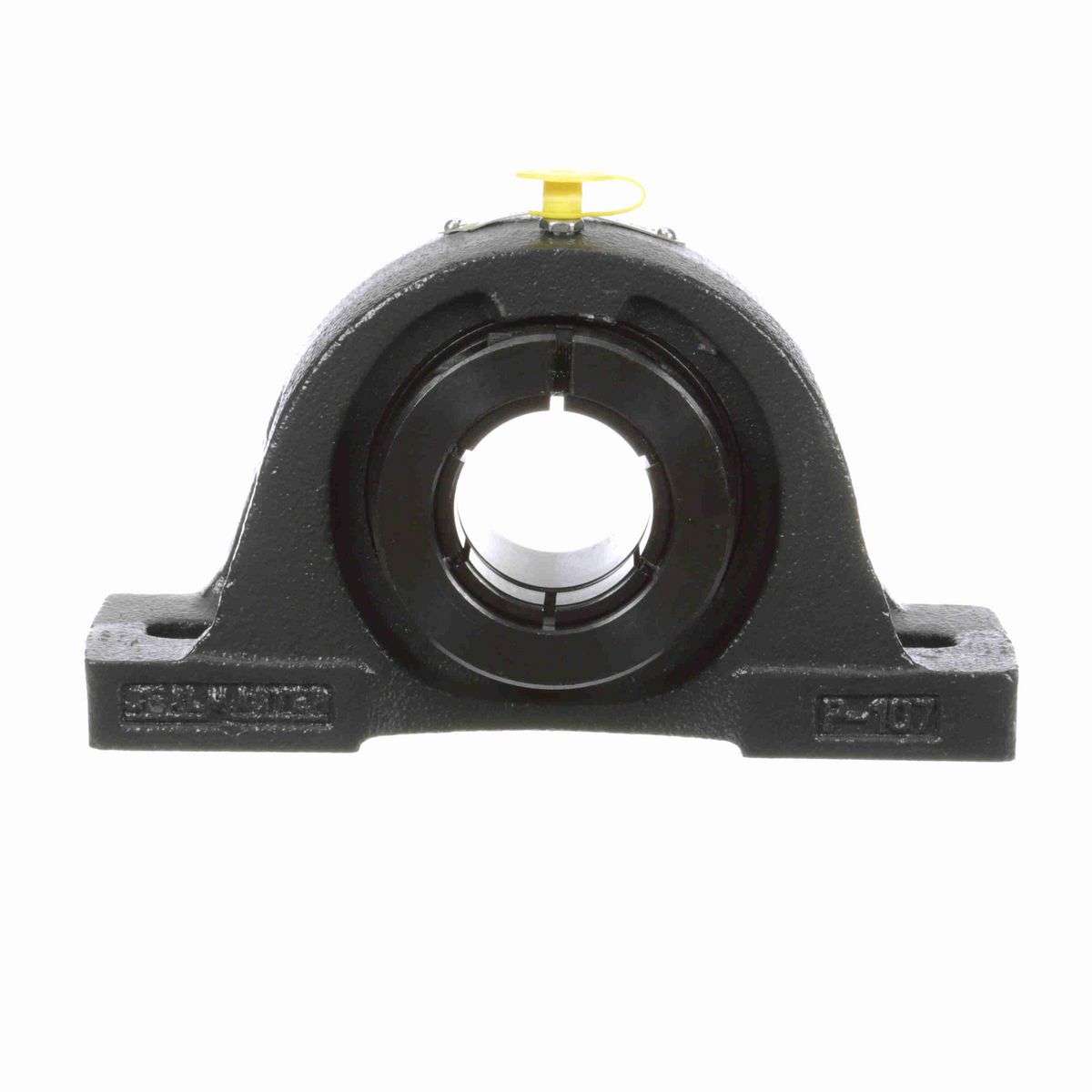

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	7.25 in
Overall Width (in)	2.13 in
Overall Height (in)	3.94 in
Base Width (in)	2.13 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.5 in
Base to Center Height (in)	1.9375 in
Foot Height (in)	0.69 in
Length Through Bore (in)	2 in
Bolt Spacing Min (in)	4.88 in
Centerline to Outermost Bearing Face (in)	1.31 in
Bolt Spacing Max (in)	5.88 in
Bolt Spacing (in)	5.38 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.75 in
Inner Race Heat Treat Method	Zone-Hardened
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	7,340 lb
Vibration Frequency Inner Ring Defect	0.0909 cps
Shaft Locking Type	Concentric
Fixed vs. Expansion	Fixed
Bearing Type	Standard Duty
Vibration Frequency Fundamental Train	0.0066 cps
Base Length (in)	7.25 in
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Insert	2-18T
Cage Type	Land Riding Retainer
Vibration Frequency Roller Spin	0.0376 cps
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	5850 rpm
Grease Fitting Thread Size	1/4-28
Vibration Frequency Outer Ring Defect	0.0591 cps
Size Code	2-19
Static Load Rating (lb)	4,467 lb
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.07 in

General Specifications

UPC	662461029701
Weight	6.17 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.8040
Country of Origin	Mexico
