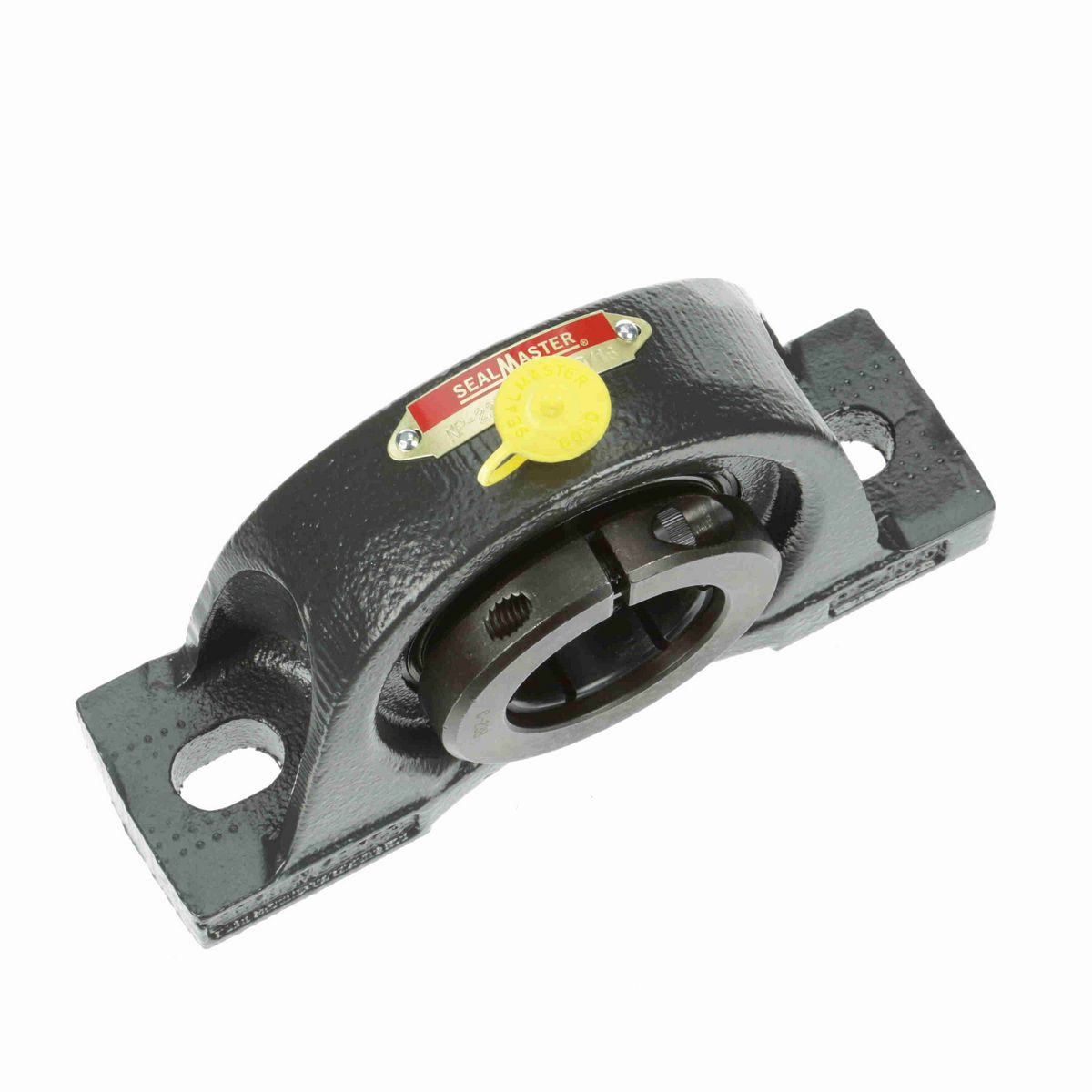

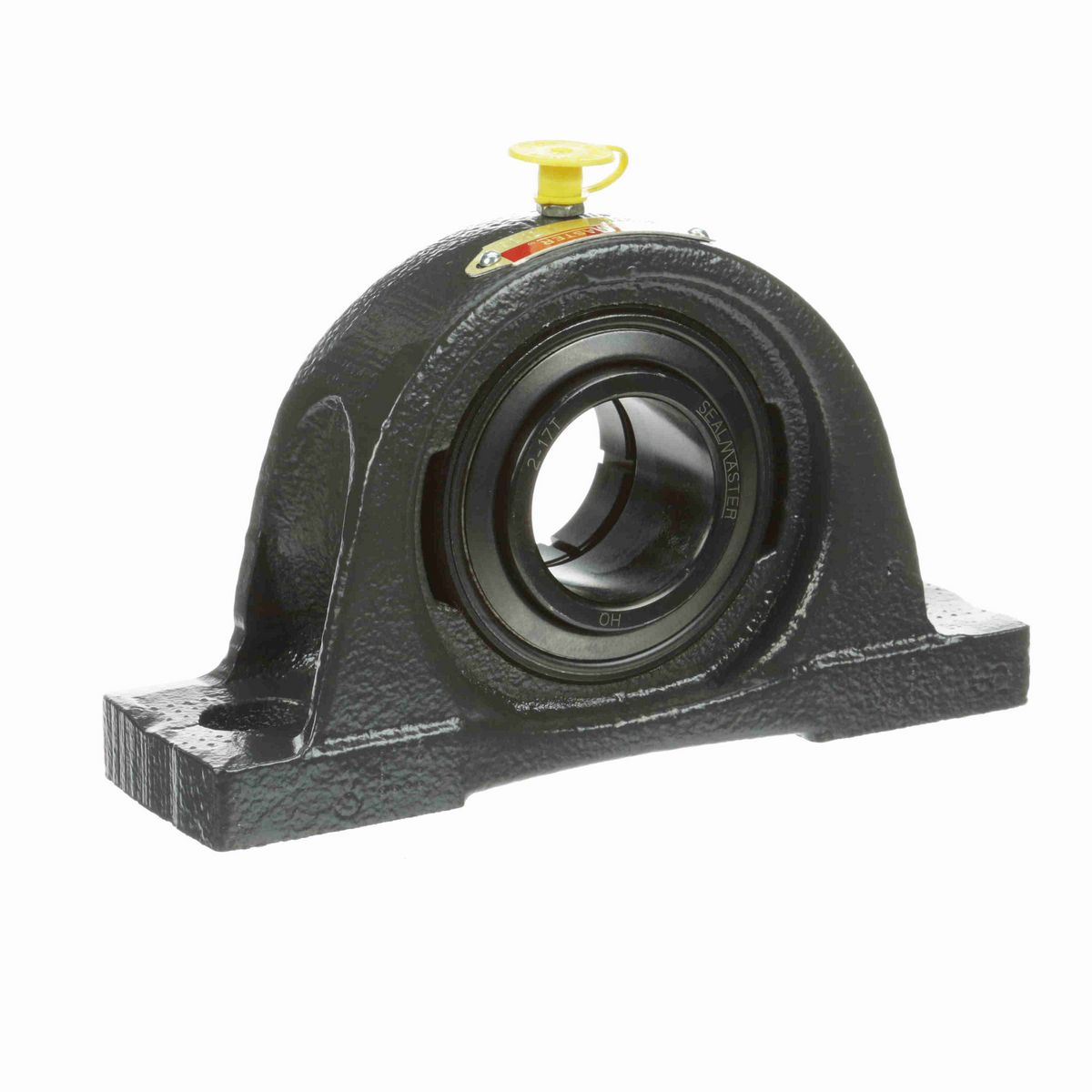

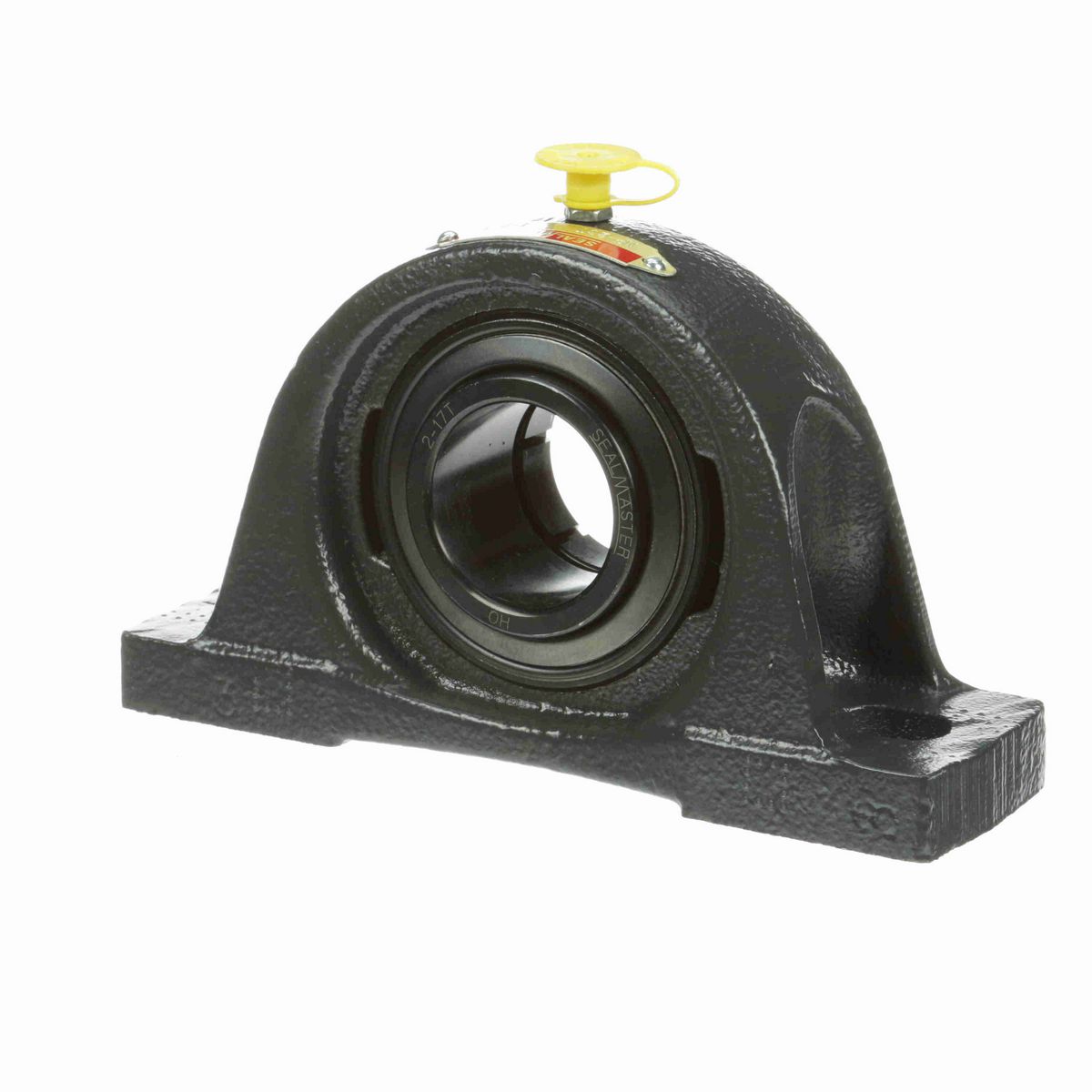

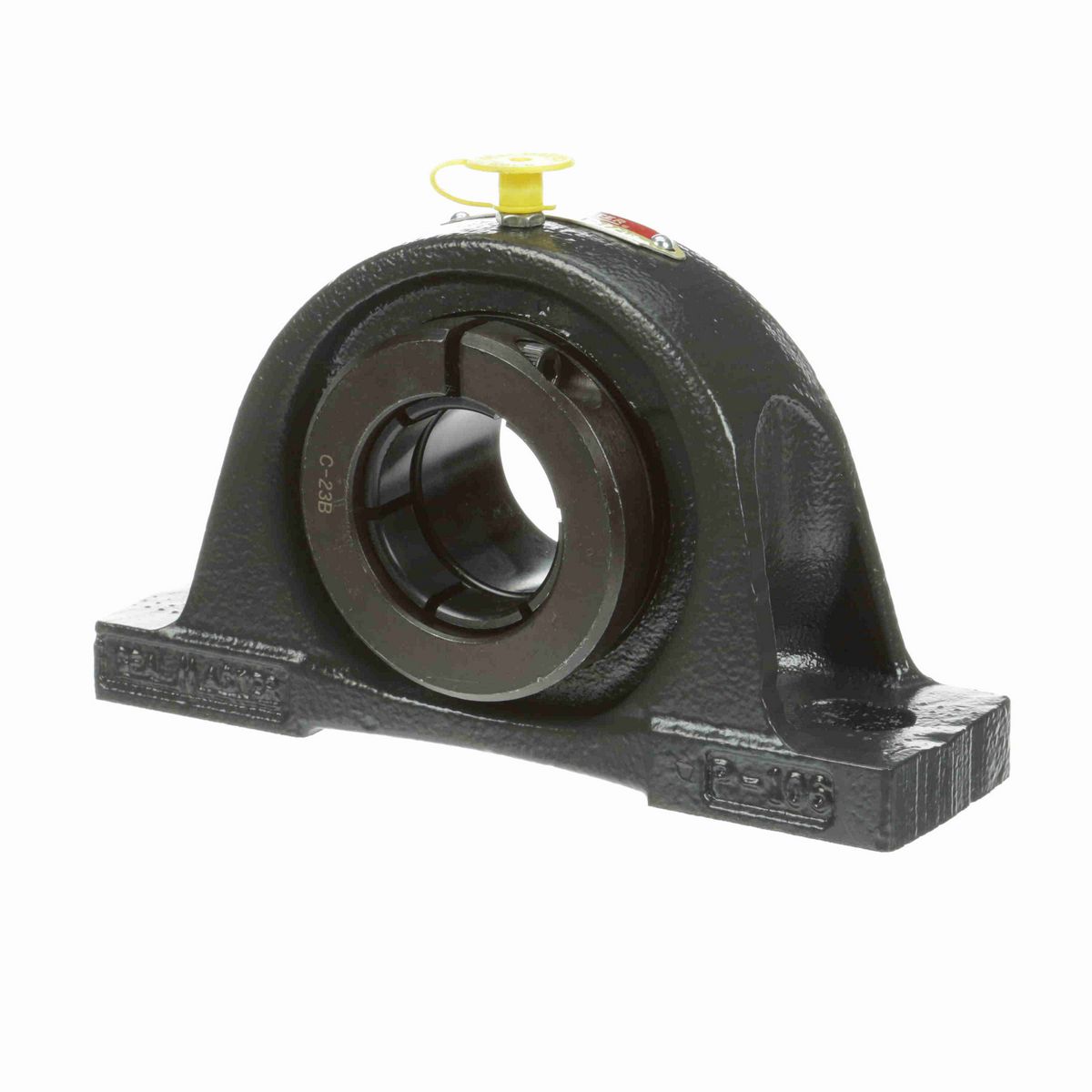

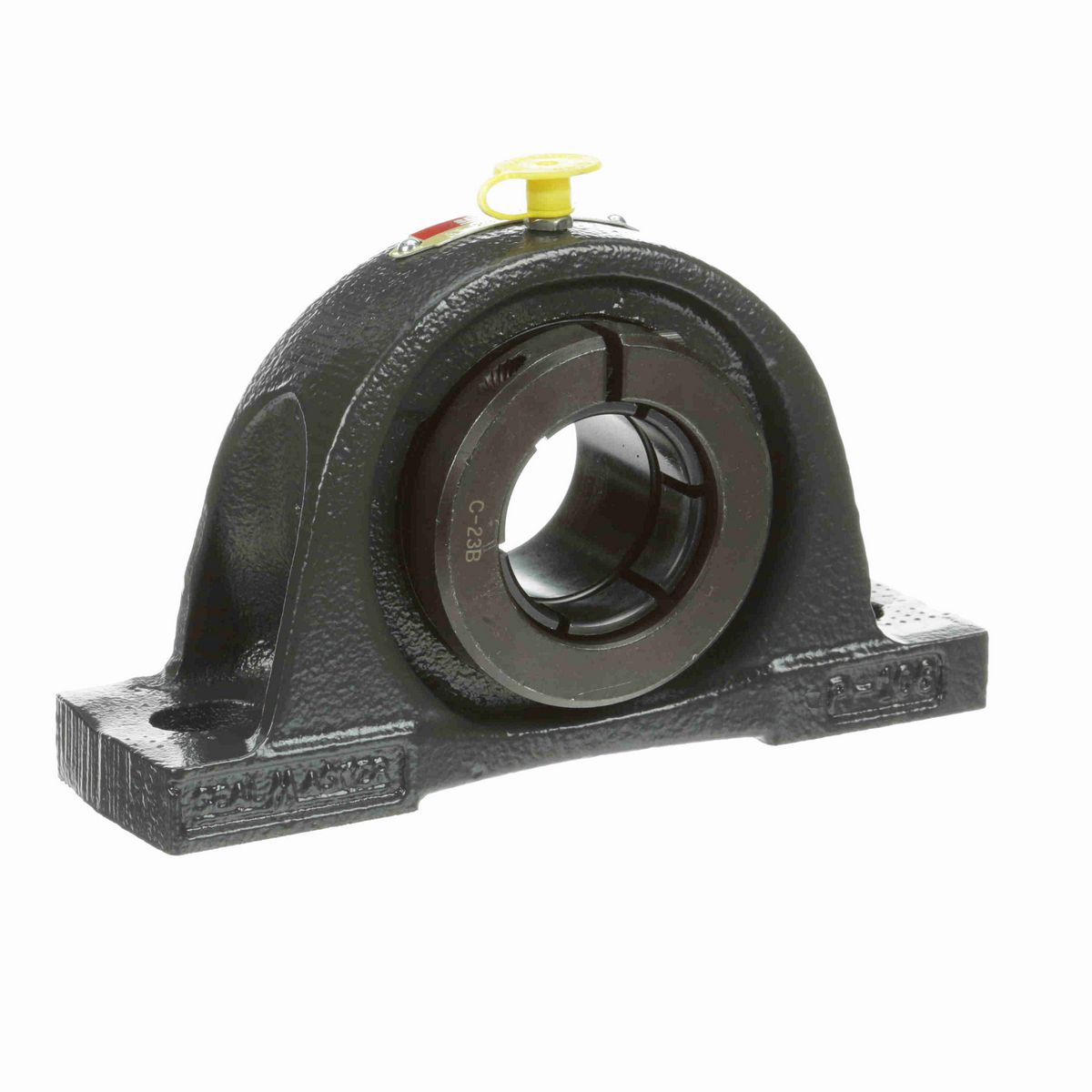

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	6.56 in
Overall Width (in)	1.88 in
Overall Height (in)	3.75 in
Base Width (in)	1.88 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.4375 in
Foot Height (in)	0.63 in
Base to Center Height (in)	1.875 in
Length Through Bore (in)	1.81 in
Centerline to Outermost Bearing Face (in)	1.12 in
Bolt Spacing Max (in)	5.31 in
Bolt Spacing (in)	5 in
Bolt Spacing Min (in)	4.69 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.62 in
Static Load Rating (lb)	3,493 lb
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Fundamental Train	0.0066 cps
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Base Length (in)	6.56 in
Bearing Insert Finish	Black Oxide
Maximum Speed (RPM)	6500 rpm
End Cap Available	No
Vibration Frequency Inner Ring Defect	0.0905 cps
Housing Coating	Powder Coated
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	5,782 lb
Grease Fitting Thread Size	1/4-28
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Insert	2-17T
Vibration Frequency Roller Spin	0.0386 cps
Size Code	2-17
Inner Ring Outside Diameter (in)	1.851 in
Shaft Locking Type	Concentric
Bearing Insert Material	52100 Bearing Steel
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Cage Type	Land Riding Retainer

General Specifications

UPC	662461029695
Weight	4.59 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	Mexico
