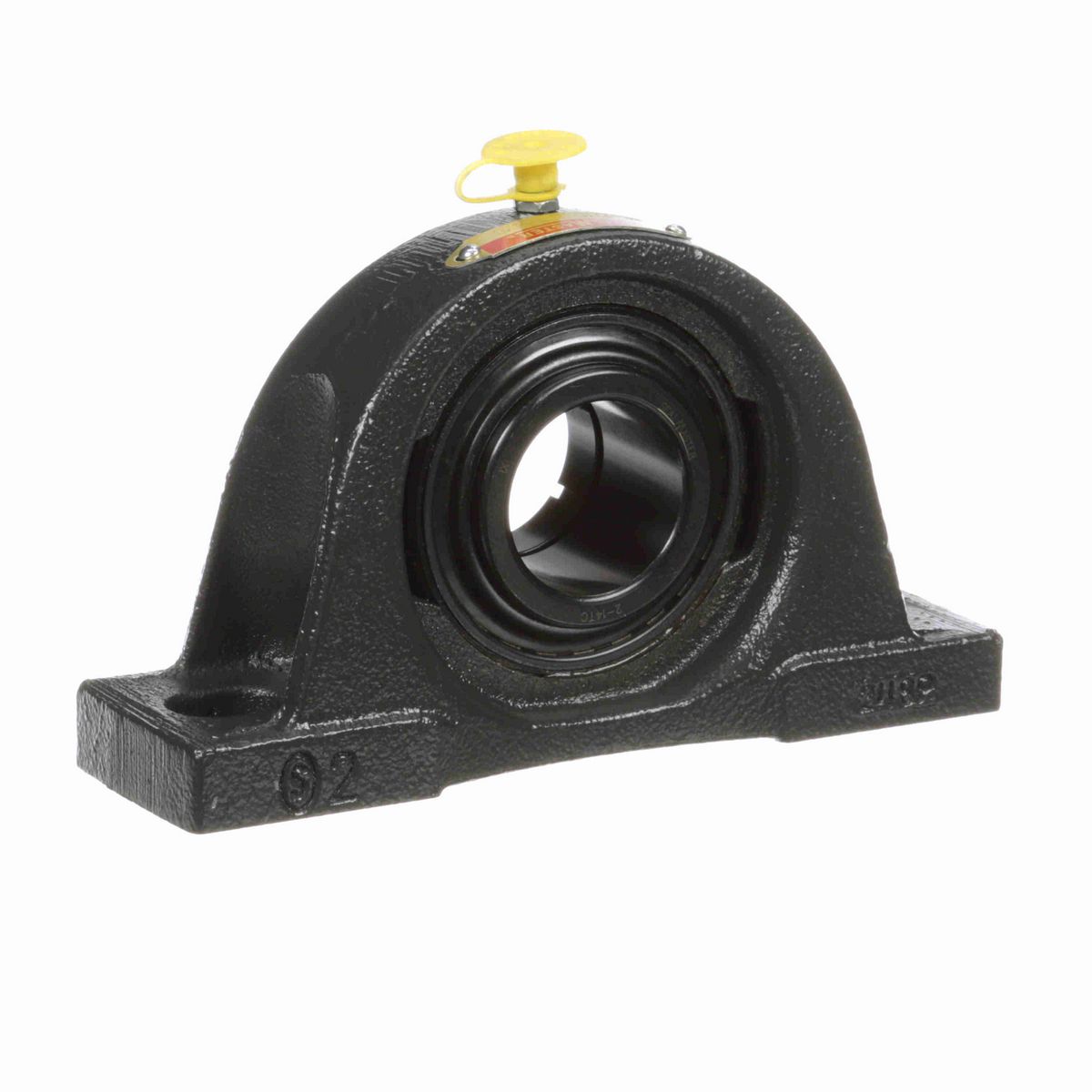

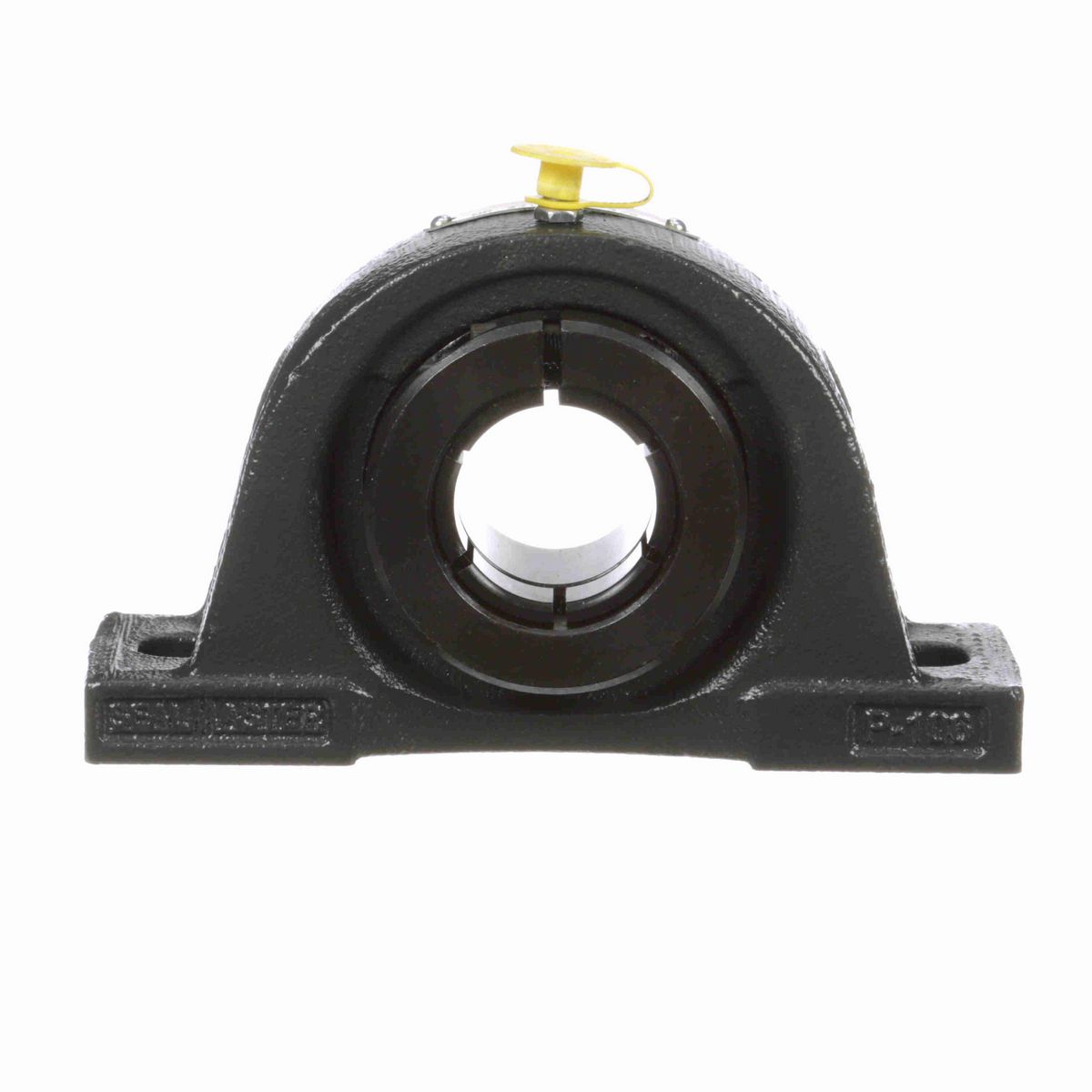

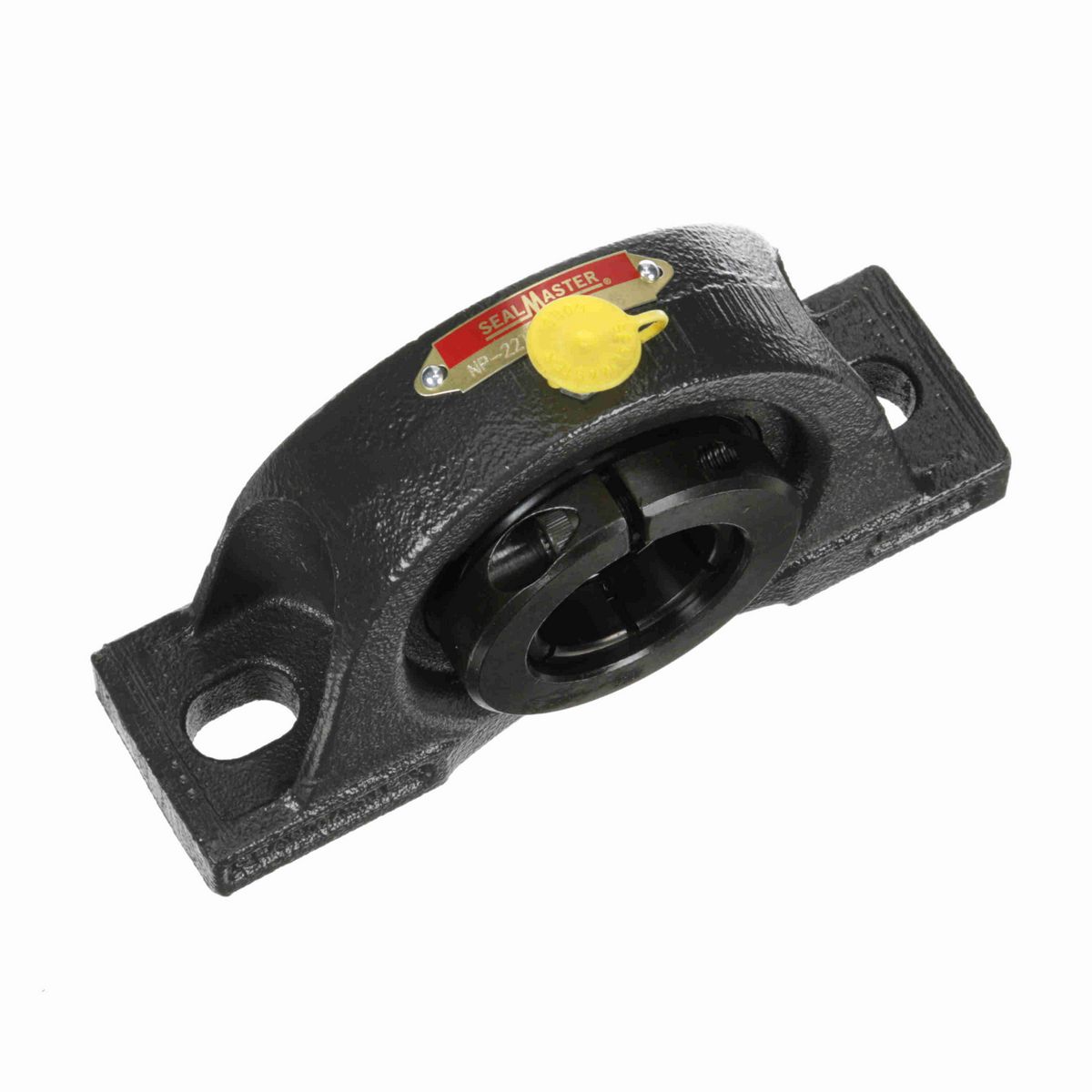

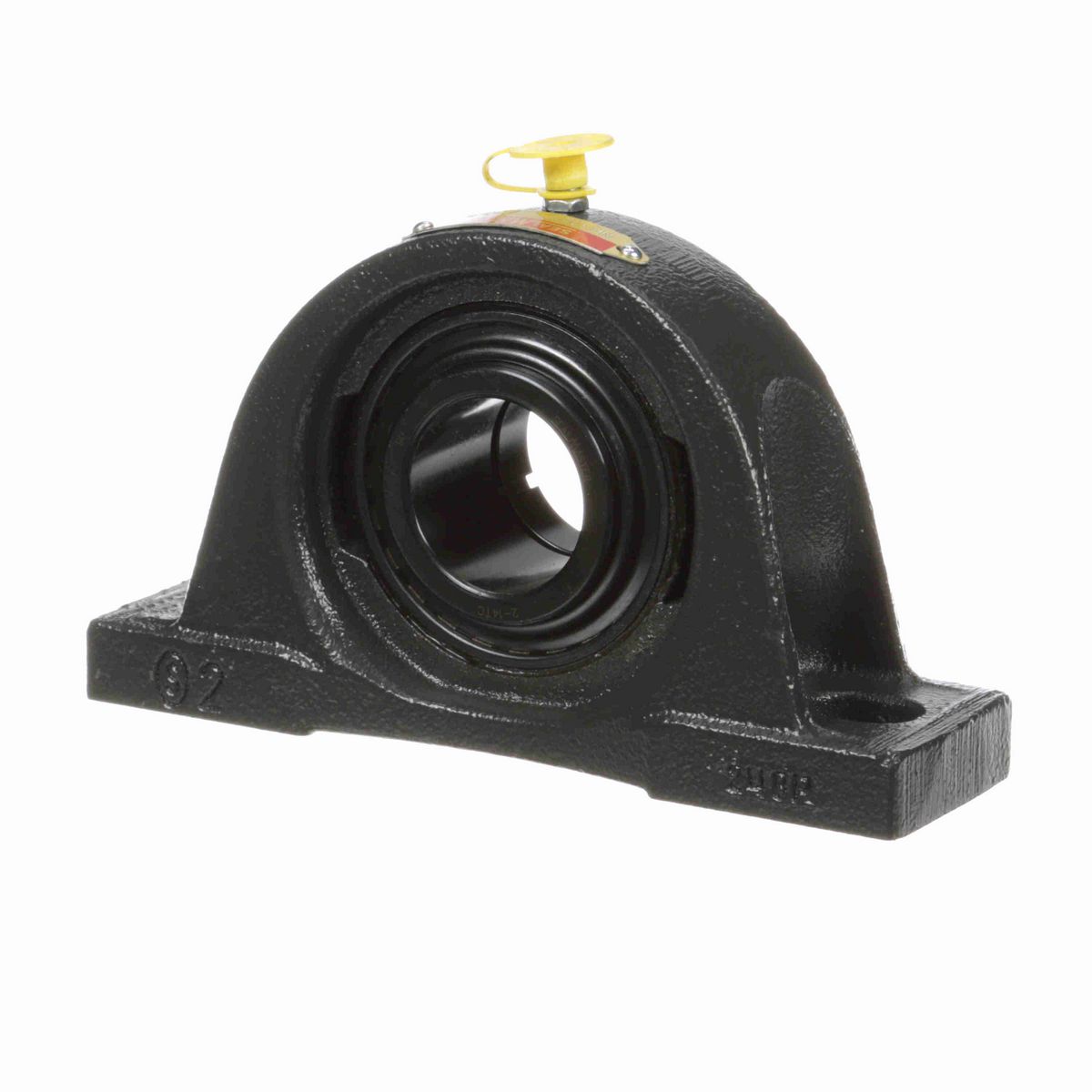

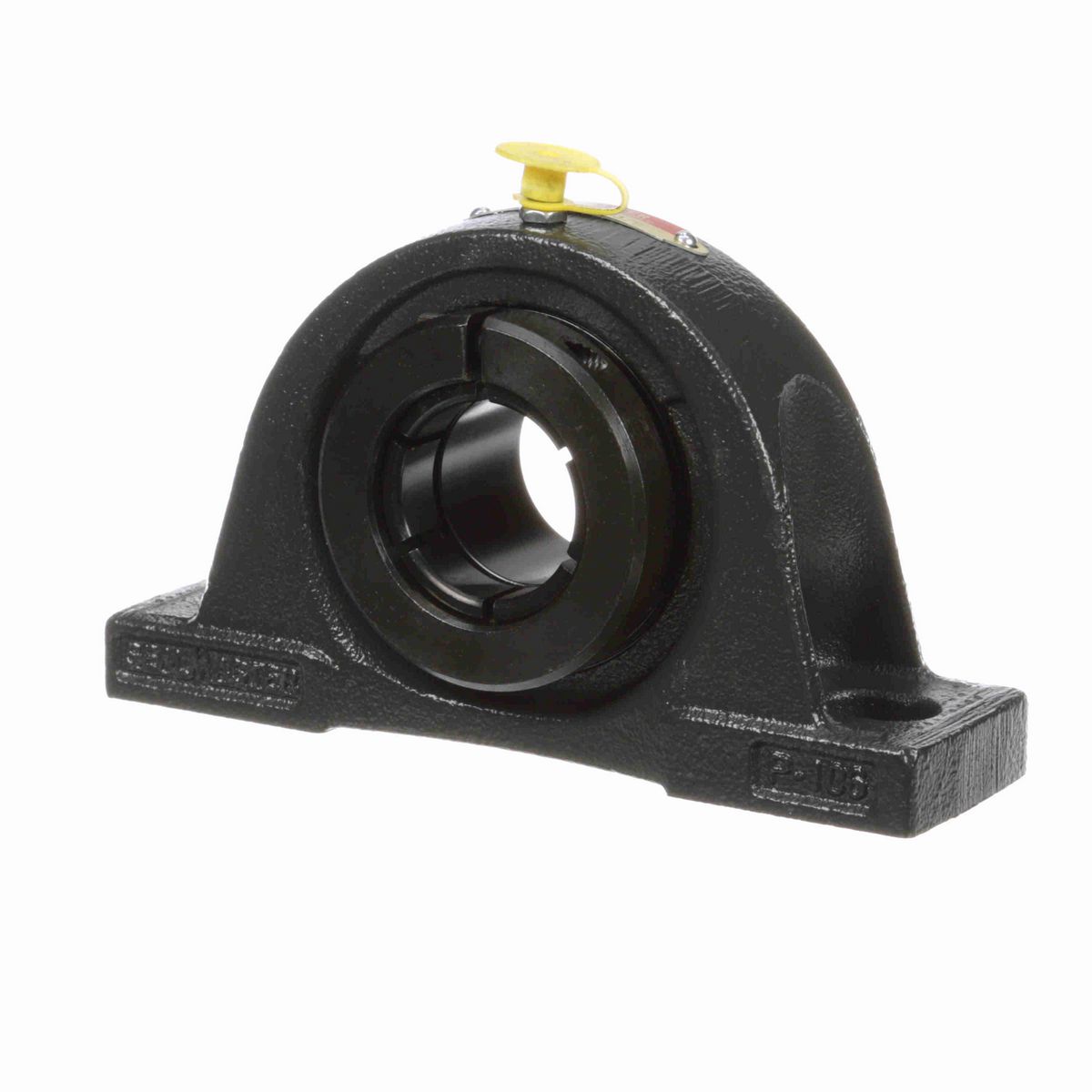

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	6.56 in
Overall Height (in)	3.75 in
Base Width (in)	1.88 in
Overall Width (in)	1.88 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.375 in
Foot Height (in)	0.63 in
Base to Center Height (in)	1.875 in
Length Through Bore (in)	1.81 in
Bolt Spacing Min (in)	4.69 in
Centerline to Outermost Bearing Face (in)	1.12 in
Bolt Spacing Max (in)	5.31 in
Bolt Spacing (in)	5 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.62 in
Size Code	2-17
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	1.851 in
Insert	2-16TC
Vibration Frequency Outer Ring Defect	0.0595 cps
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Grease Fitting Thread Size	1/4-28
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Fundamental Train	0.0066 cps
Static Load Rating (lb)	3,493 lb
Shaft Locking Type	Concentric
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	5,782 lb
Max Operating Temperature (F)	220 °F
Fixed vs. Expansion	Fixed
Base Length (in)	6.56 in
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0386 cps
Maximum Speed (RPM)	4650 rpm
Bearing Type	Standard Duty

General Specifications

UPC	662461032749
Weight	4.77 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
