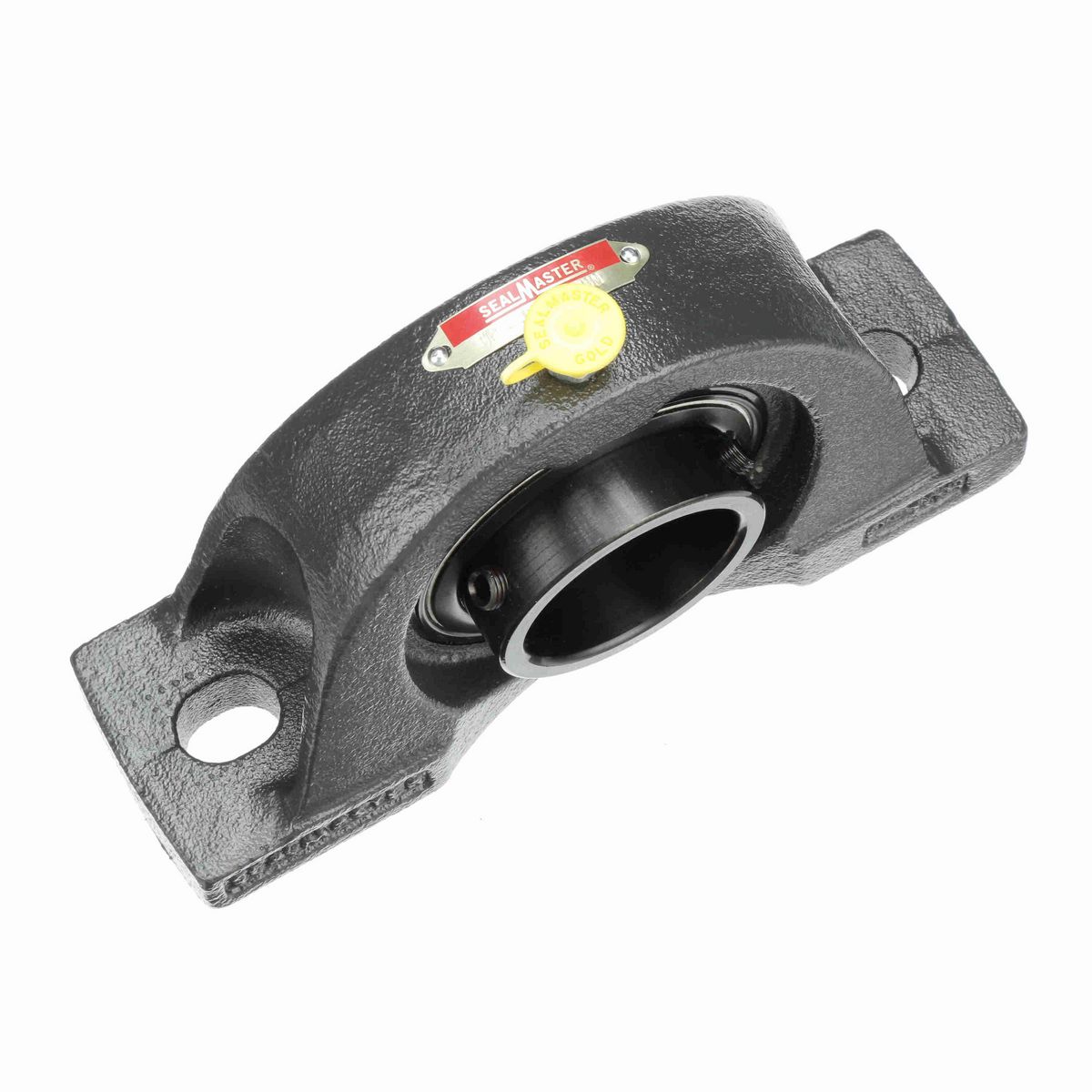

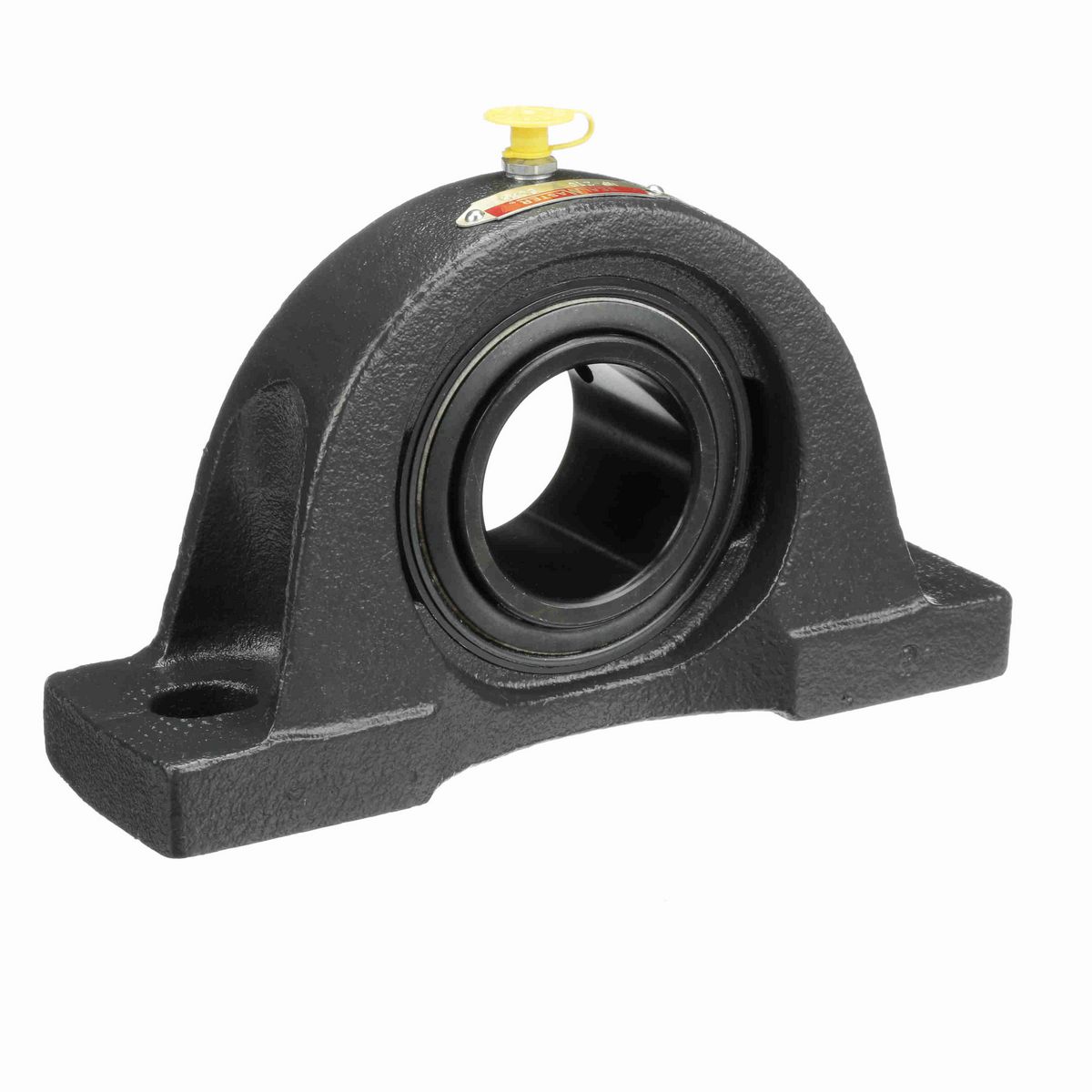

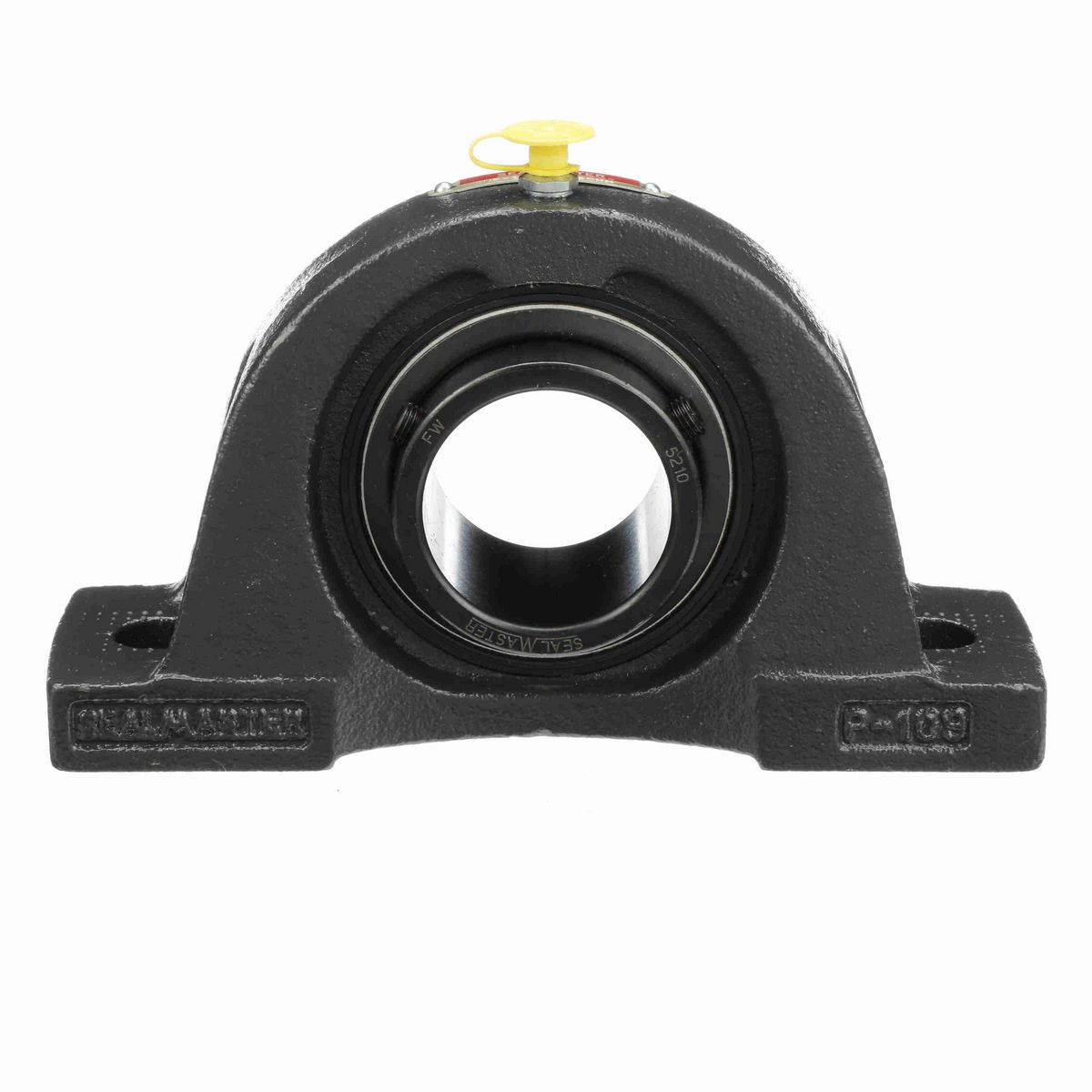

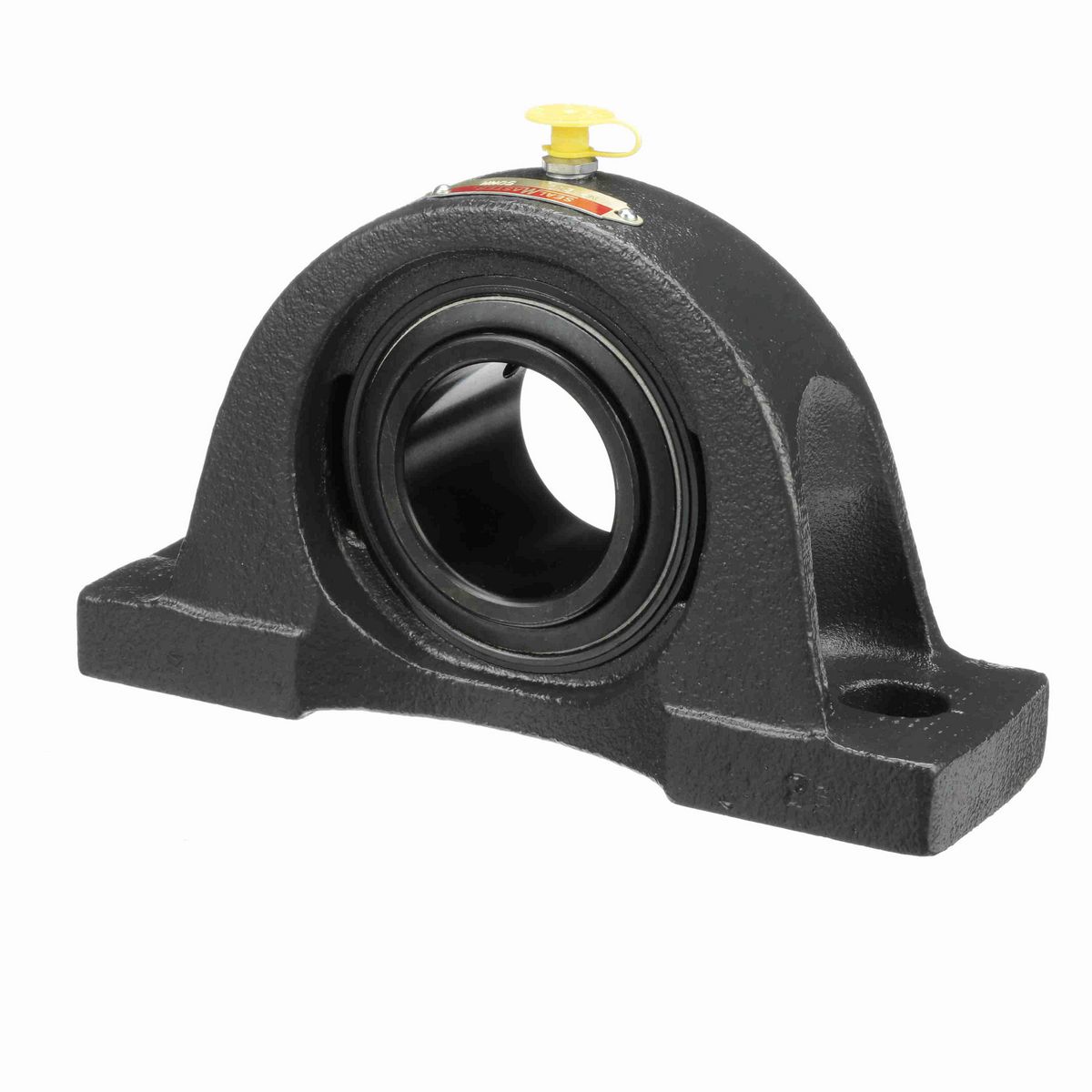

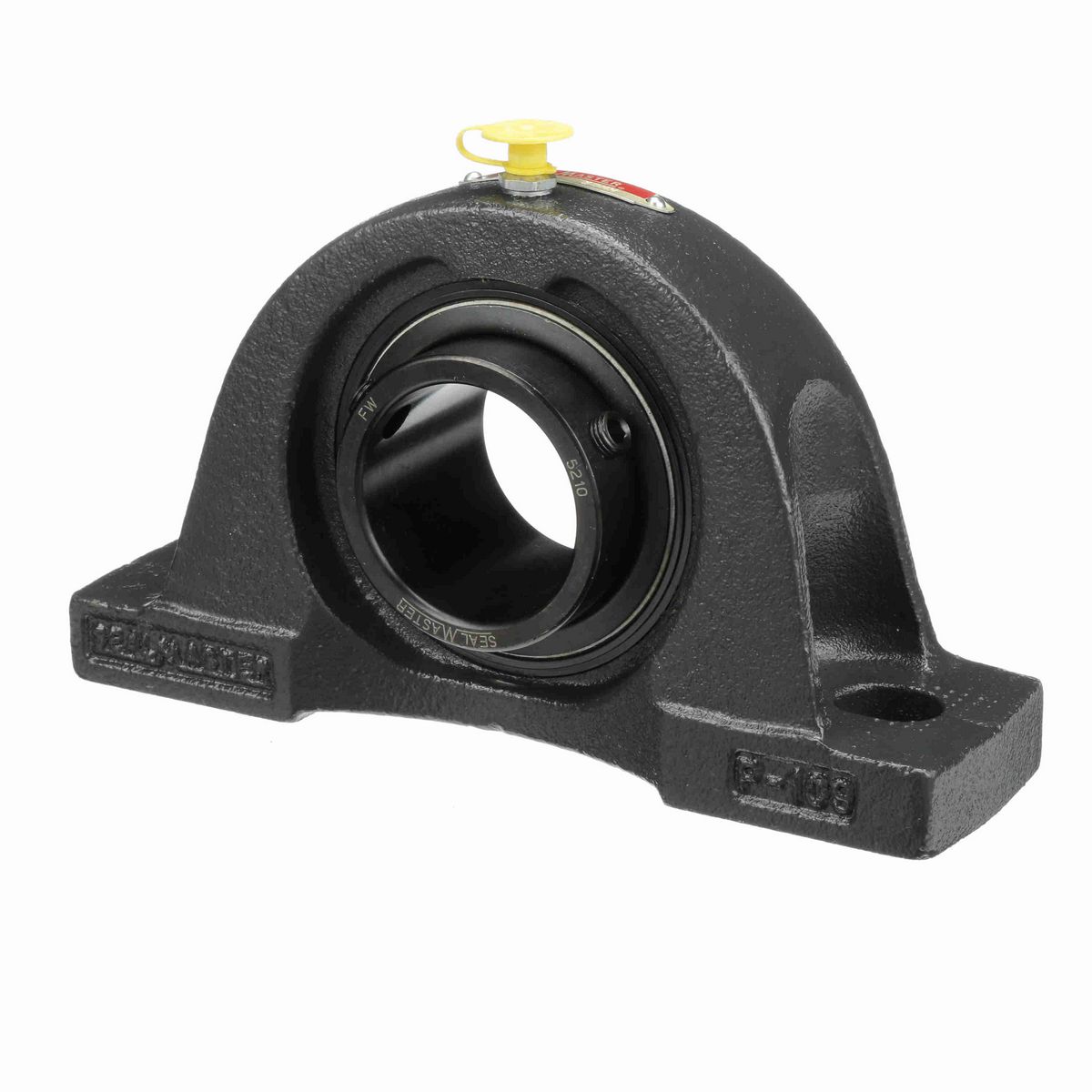

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	2.38 in
Overall Width (in)	2.38 in
Overall Length (in)	8.13 in
Overall Height (in)	4.56 in
Bolt Size (in)	5/8 in
Bore Diameter (mm)	50 mm
Foot Height (in)	0.75 in
Base to Center Height (in)	2.2500 in
Length Through Bore (in)	2.031 in
Bolt Spacing Max (in)	6.5 in
Centerline to Outermost Bearing Face (in)	1.281 in
Bolt Spacing Min (in)	6 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bearing Type	Standard Duty
Base Length (in)	8.13 in
Maximum Speed (RPM)	3550 rpm
Housing Material	Cast Iron
Vibration Frequency Roller Spin	0.0445 cps
Insert	5210
End Cap Available	No
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Outer Ring Defect	0.0683 cps
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-115
Shaft Locking Type	Set Screw
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.469 in
Housing Coating	Powder Coated
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	7,889 lb
Radial Clearance	Standard
Vibration Frequency Fundamental Train	0.0068 cps
Static Load Rating (lb)	5,216 lb
Vibration Frequency Inner Ring Defect	0.0984 cps

General Specifications

UPC	662461051818
Weight	8.18 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.8040
Country of Origin	Mexico
