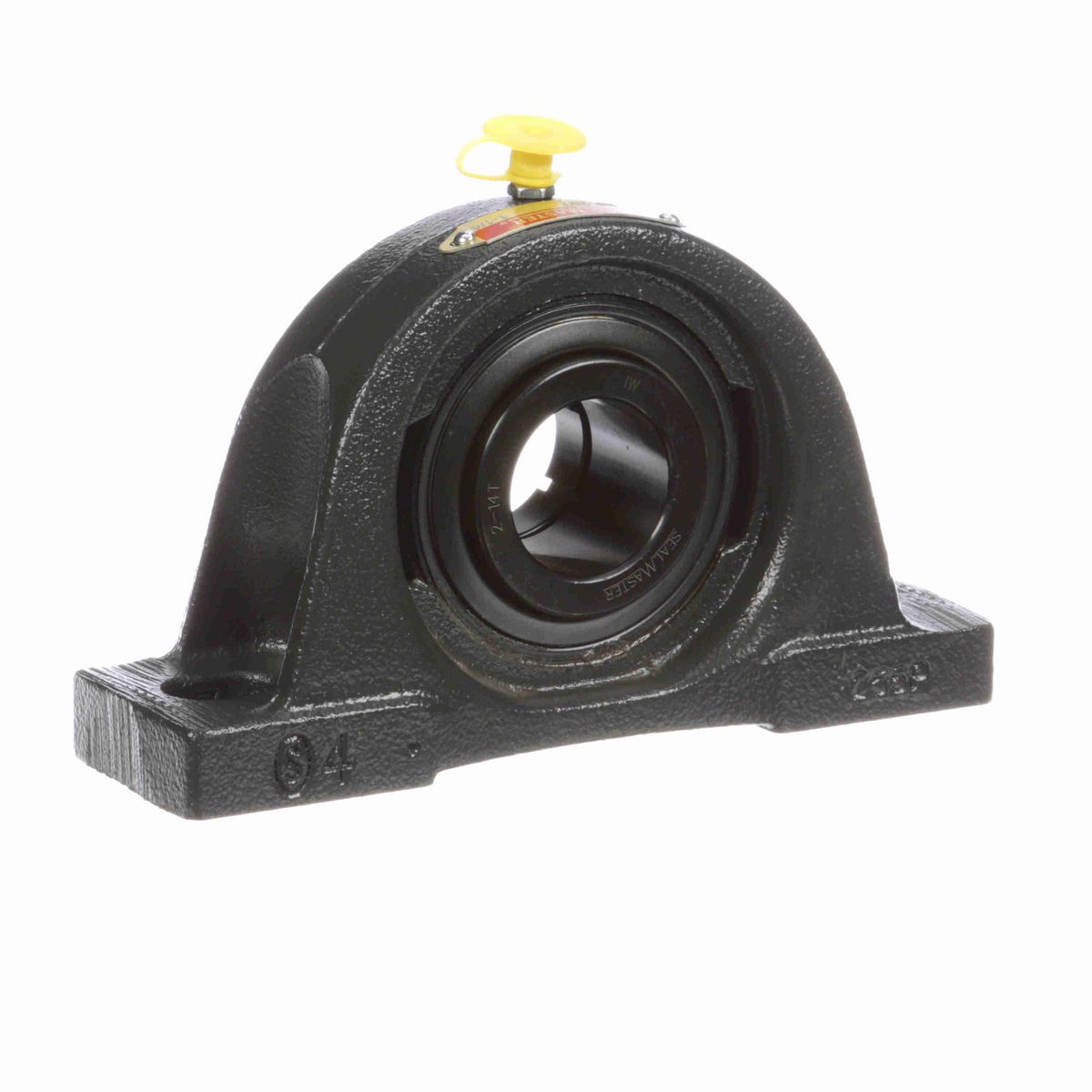

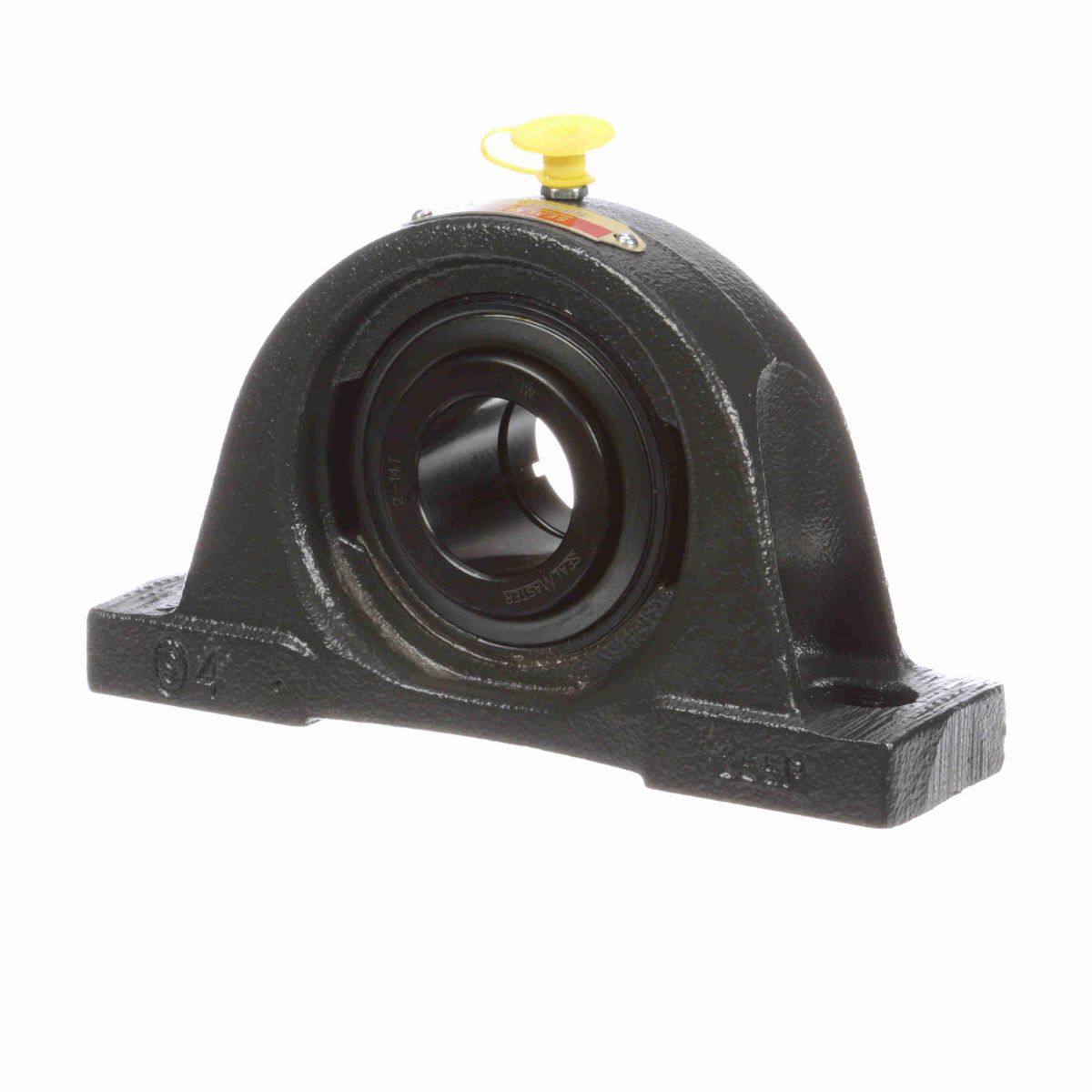

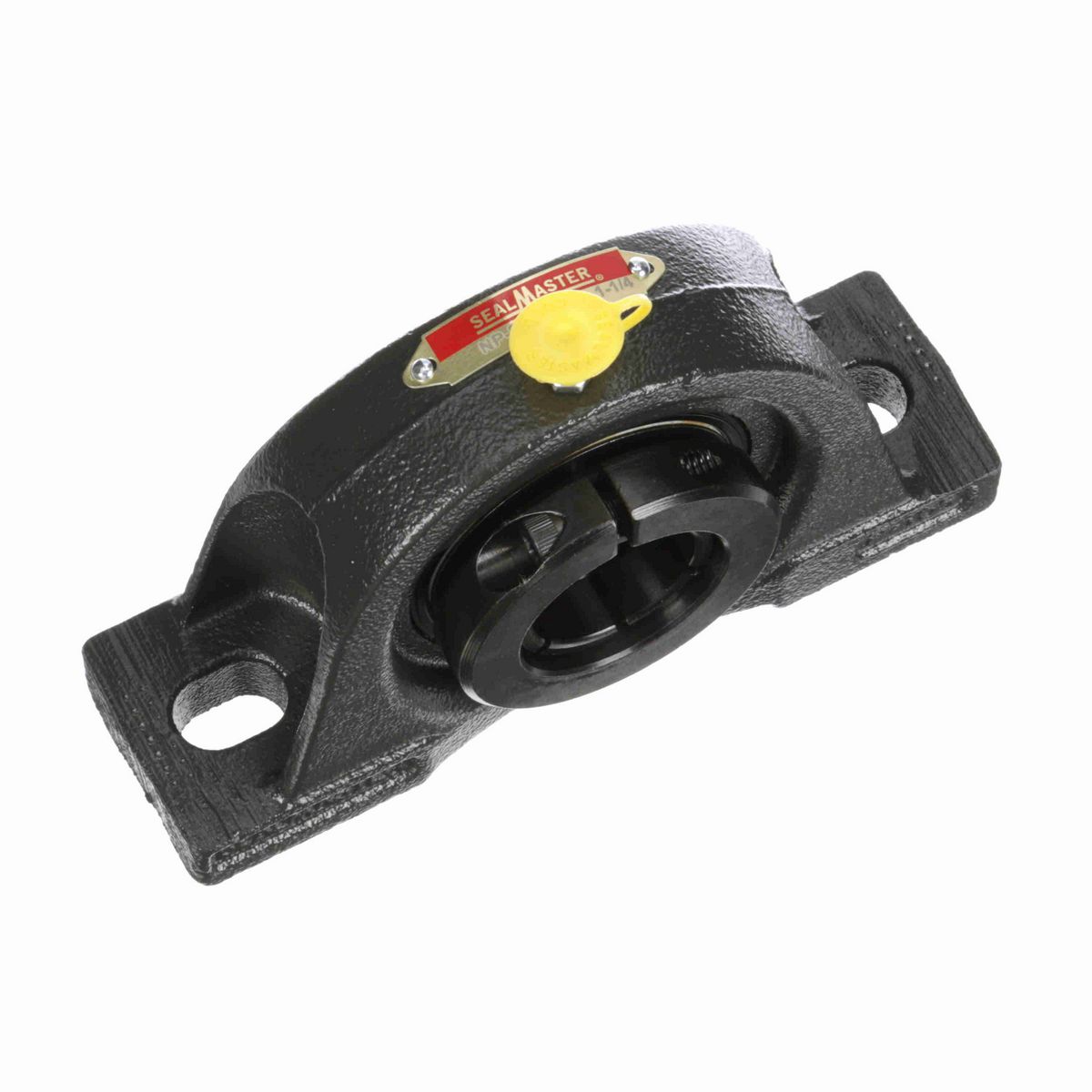

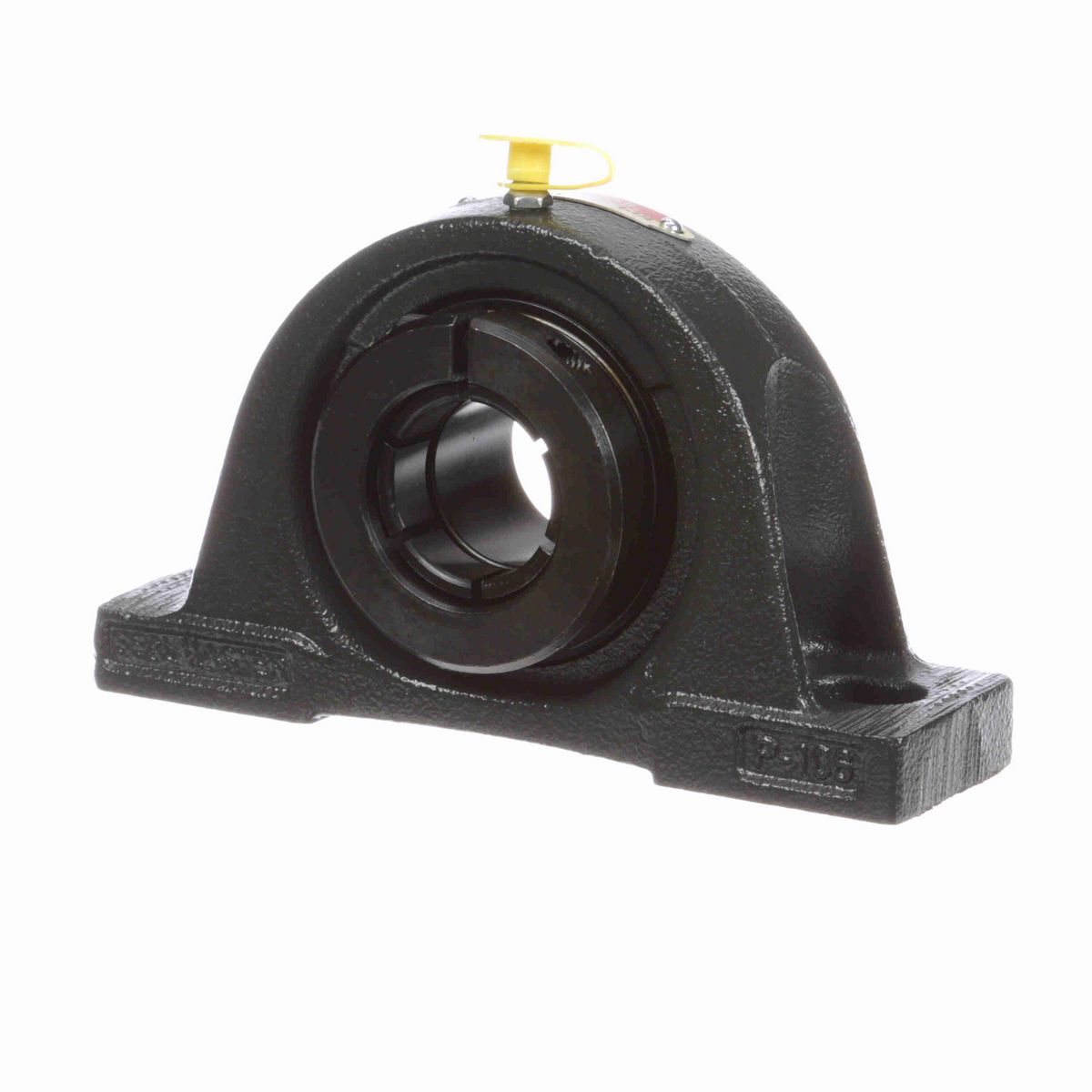

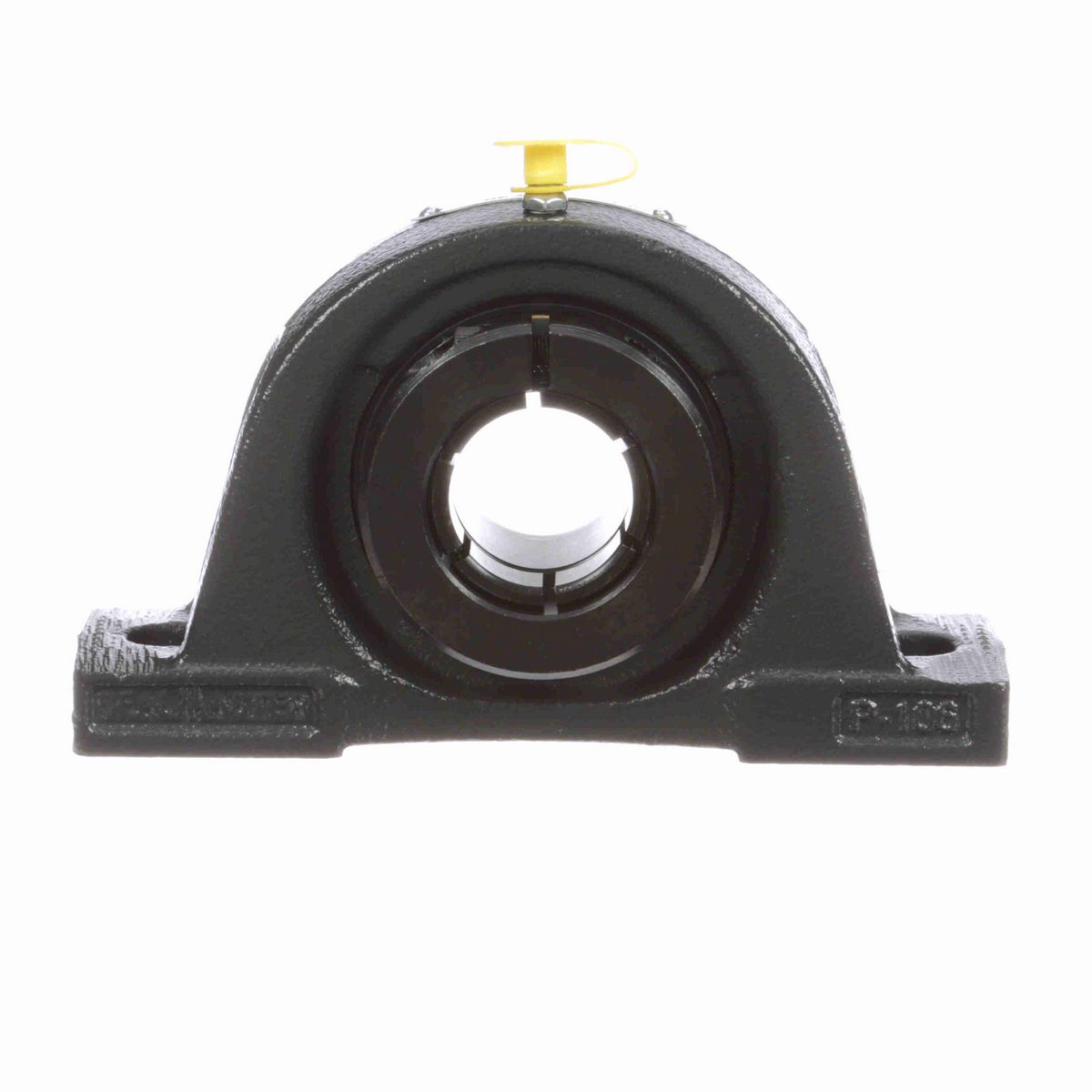

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	1.88 in
Overall Height (in)	3.75 in
Overall Length (in)	6.56 in
Base Width (in)	1.88 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.25 in
Base to Center Height (in)	1.875 in
Foot Height (in)	0.63 in
Length Through Bore (in)	1.81 in
Centerline to Outermost Bearing Face (in)	1.12 in
Bolt Spacing Min (in)	4.69 in
Bolt Spacing Max (in)	5.31 in
Bolt Spacing (in)	5 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.5 in
Radial Clearance	Standard
Insert	2-14T
Housing Material	Cast Iron
Vibration Frequency Inner Ring Defect	0.0905 cps
Max Operating Temperature (F)	220 °F
Base Length (in)	6.56 in
Maximum Speed (RPM)	6500 rpm
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0595 cps
Grease Fitting Thread Size	1/4-28
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Concentric
Housing Coating	Powder Coated
Vibration Frequency Fundamental Train	0.0066 cps
Vibration Frequency Roller Spin	0.0386 cps
Dynamic Load Rating (lb)	5,782 lb
Size Code	2-17
Lubricant	Lithium Complex NLGI 2 Grease
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	1.851 in
Cage Type	Land Riding Retainer
Bearing Type	Standard Duty
Static Load Rating (lb)	3,493 lb
Bearing Insert Finish	Black Oxide

General Specifications

UPC	662461029671
Weight	4.74 LB
Packaged Length	2.06 IN
Packaged Width	4.38 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	Mexico
