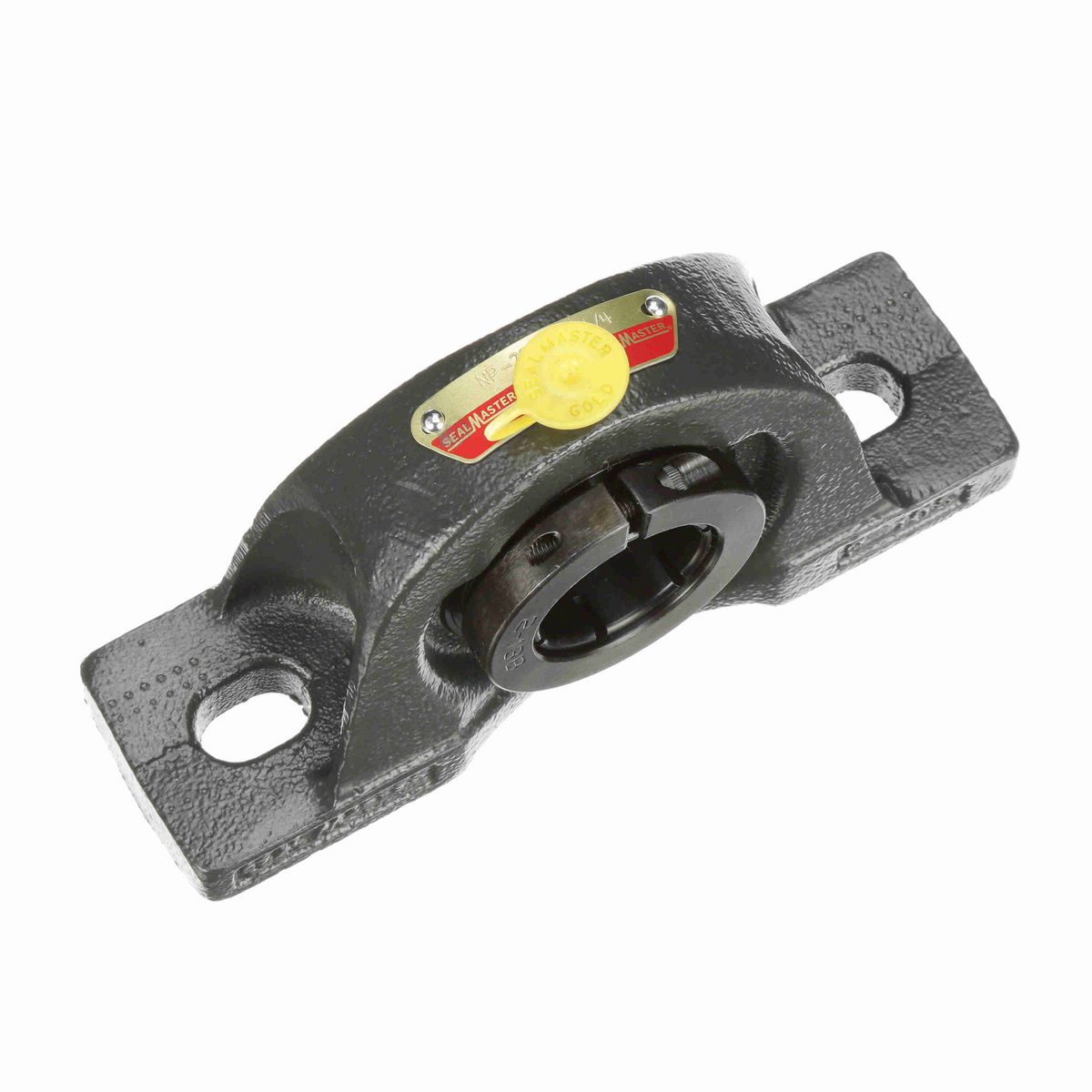

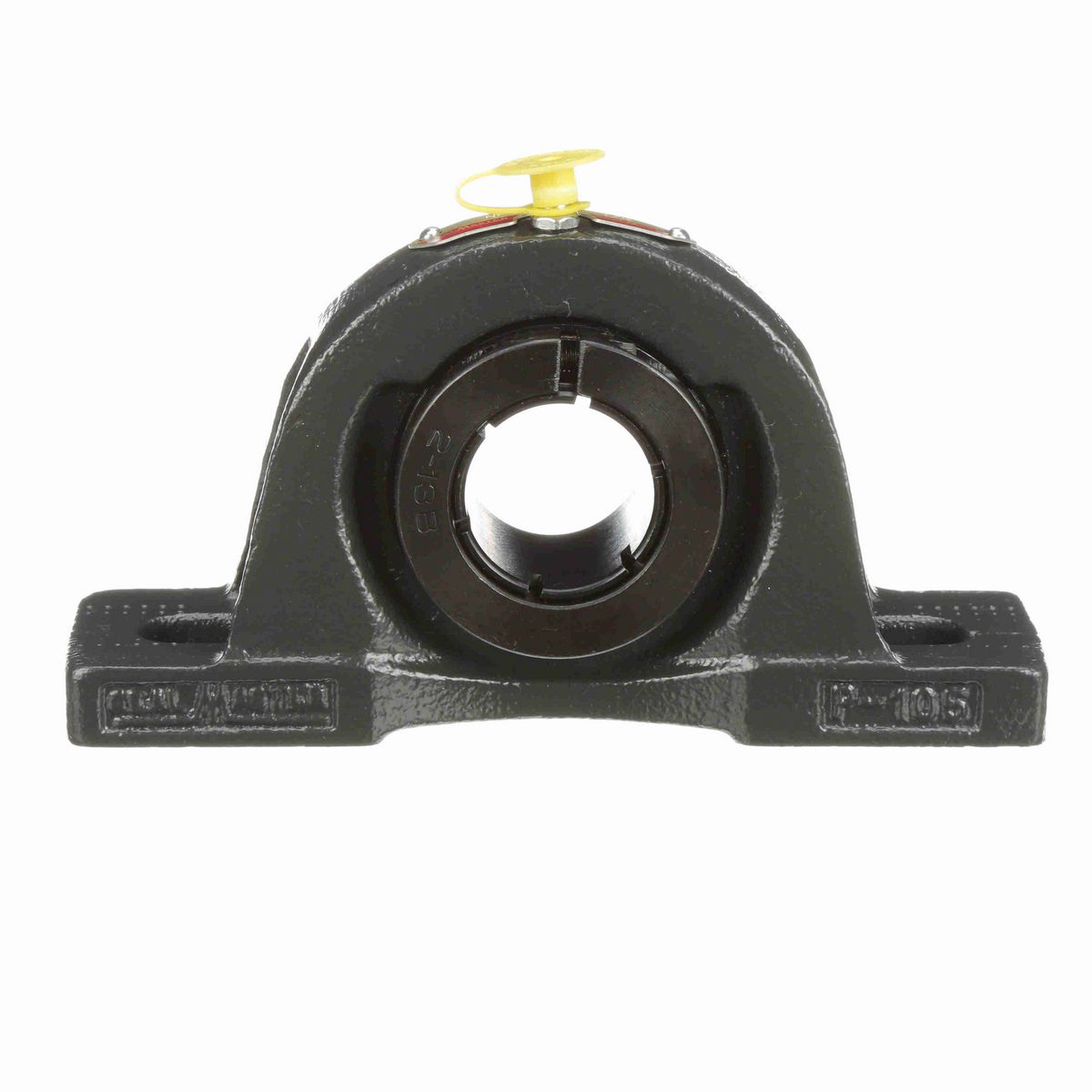

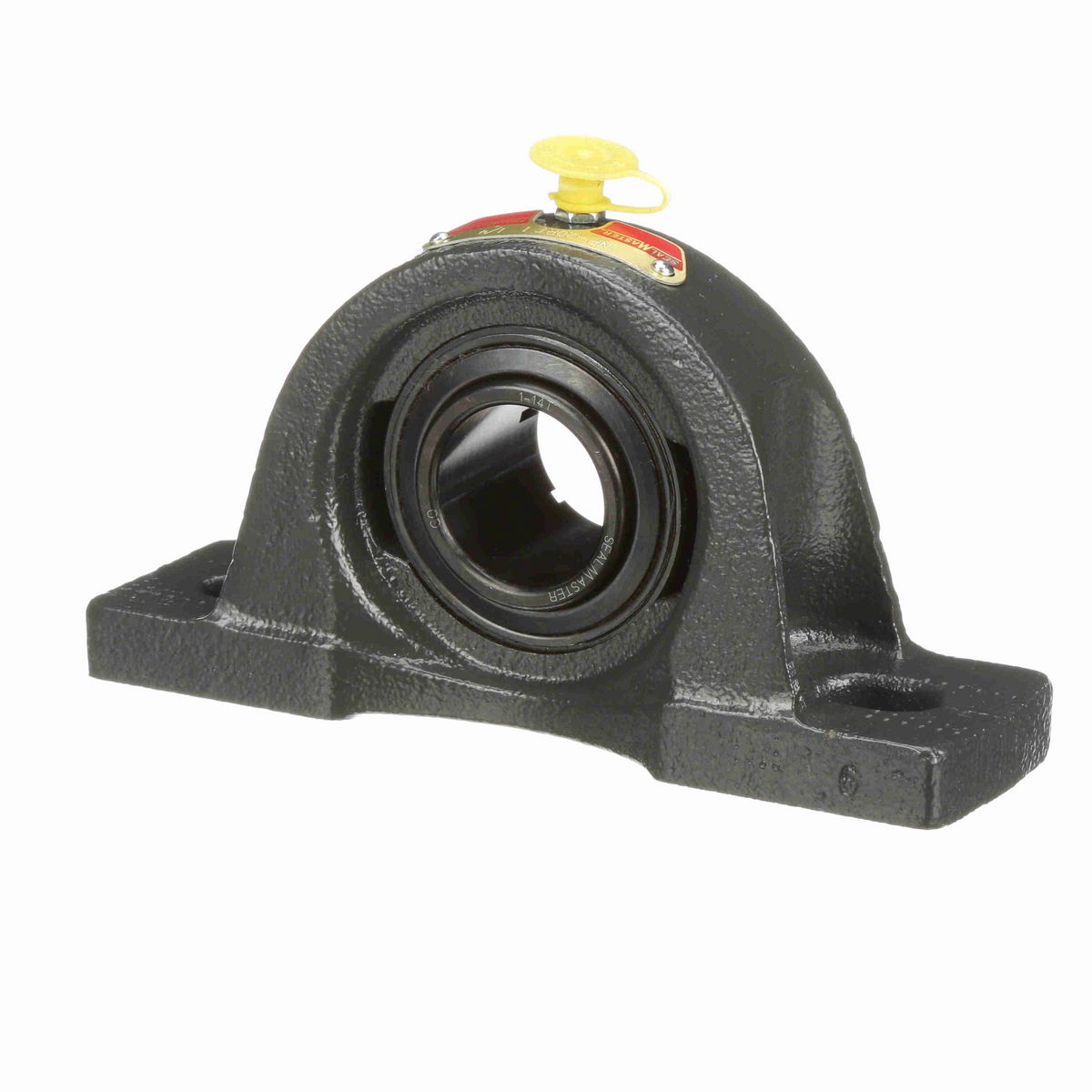

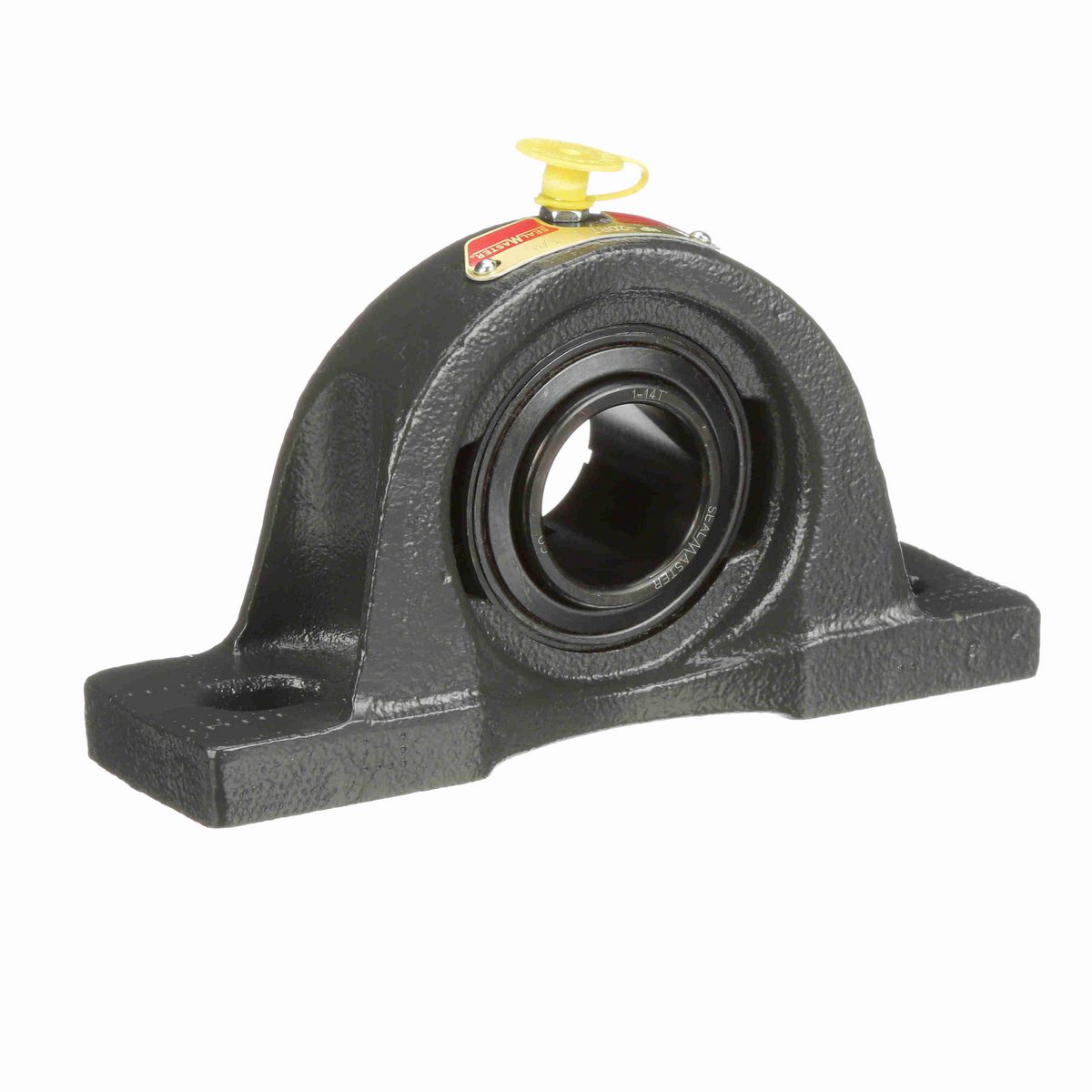

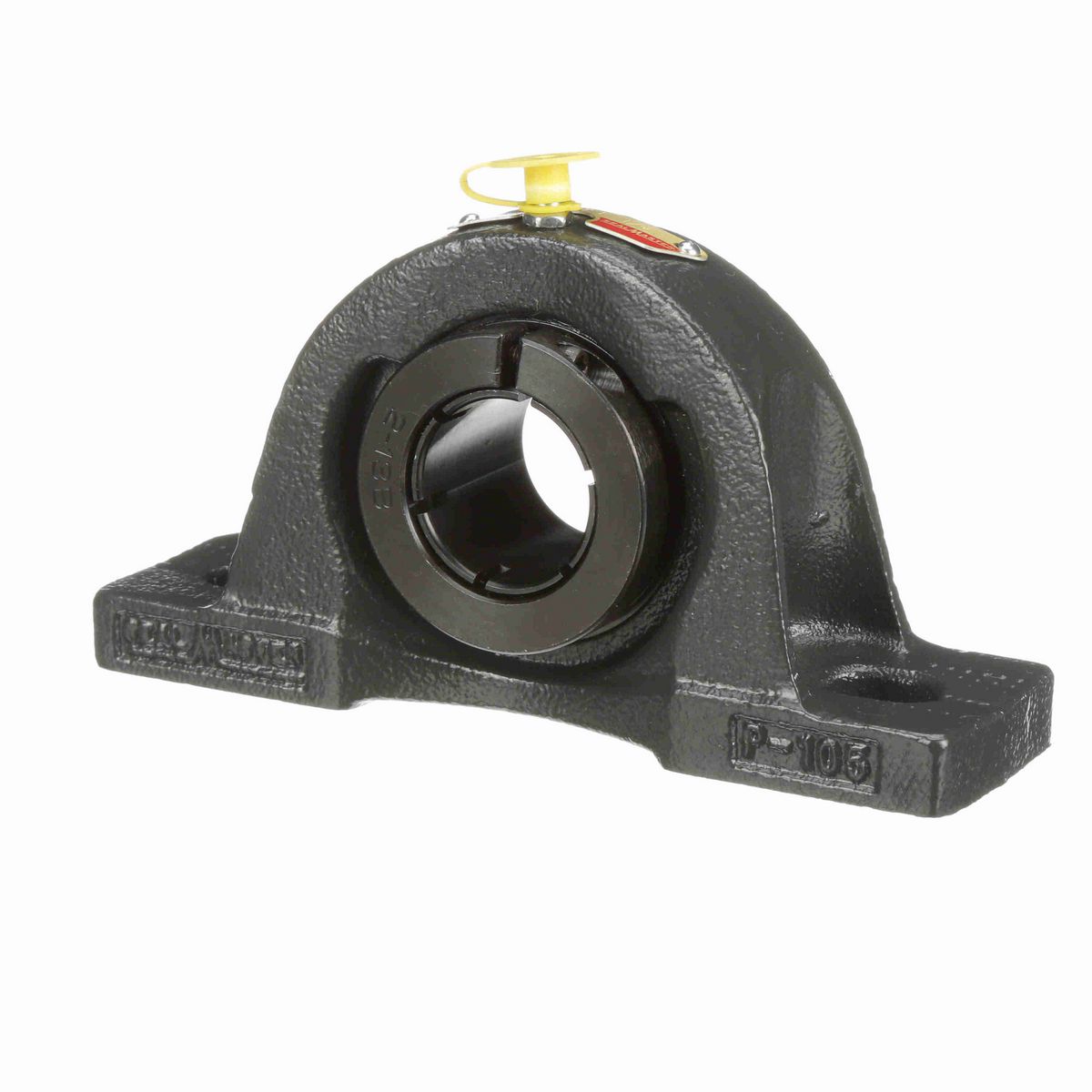

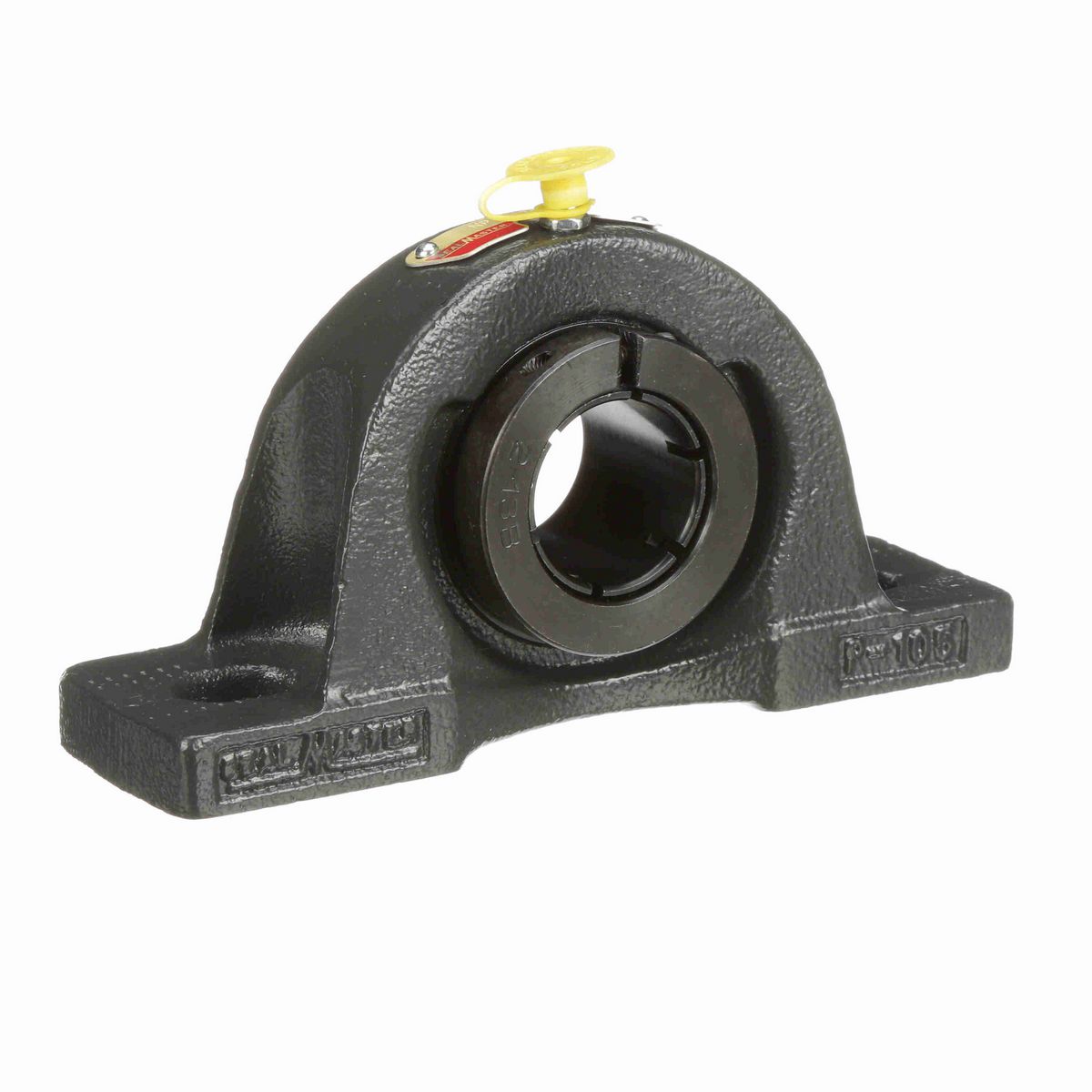

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	1.88 in
Overall Height (in)	3.38 in
Overall Width (in)	1.88 in
Overall Length (in)	6.5 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.25 in
Foot Height (in)	0.56 in
Base to Center Height (in)	1.6875 in
Length Through Bore (in)	1.56 in
Bolt Spacing Max (in)	5.06 in
Bolt Spacing (in)	4.75 in
Bolt Spacing Min (in)	4.44 in
Centerline to Outermost Bearing Face (in)	0.98 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.23 in
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/4-28
Vibration Frequency Outer Ring Defect	0.0595 cps
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	2,567 lb
End Cap Available	No
Vibration Frequency Fundamental Train	0.0066 cps
Bearing Type	Standard Duty
Radial Clearance	Standard
Insert	1-14T
Vibration Frequency Inner Ring Defect	0.0905 cps
Housing Material	Cast Iron
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Inner Ring Outside Diameter (in)	1.594 in
Dynamic Load Rating (lb)	4,381 lb
Cage Type	Land Riding Retainer
Shaft Locking Type	Concentric
Base Length (in)	6.5 in
Maximum Speed (RPM)	7600 rpm
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-13
Bearing Insert Finish	Black Oxide
Vibration Frequency Roller Spin	0.0385 cps

General Specifications

UPC	662461269787
Weight	3.80 LB
Packaged Length	2.06 IN
Packaged Width	4.38 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
