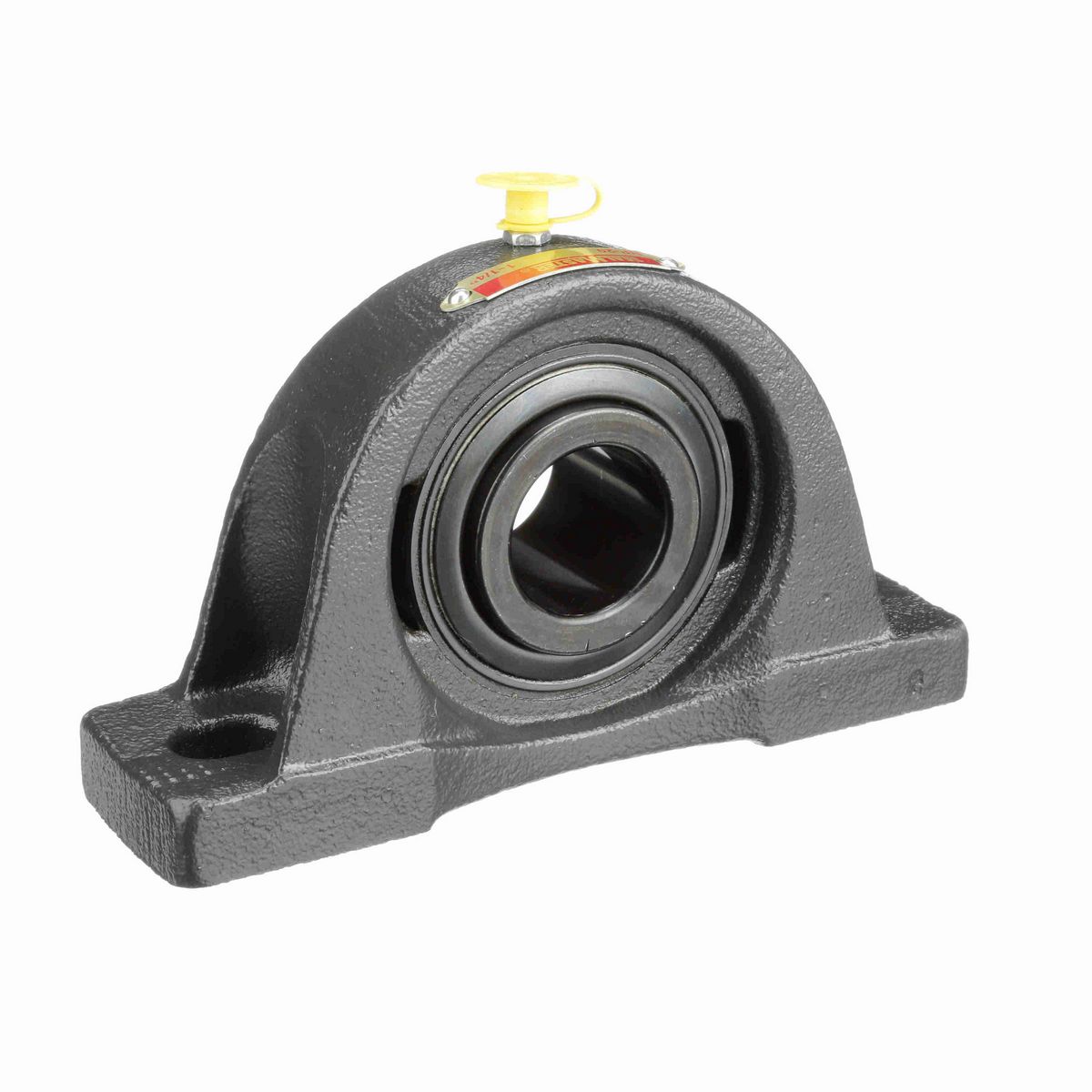

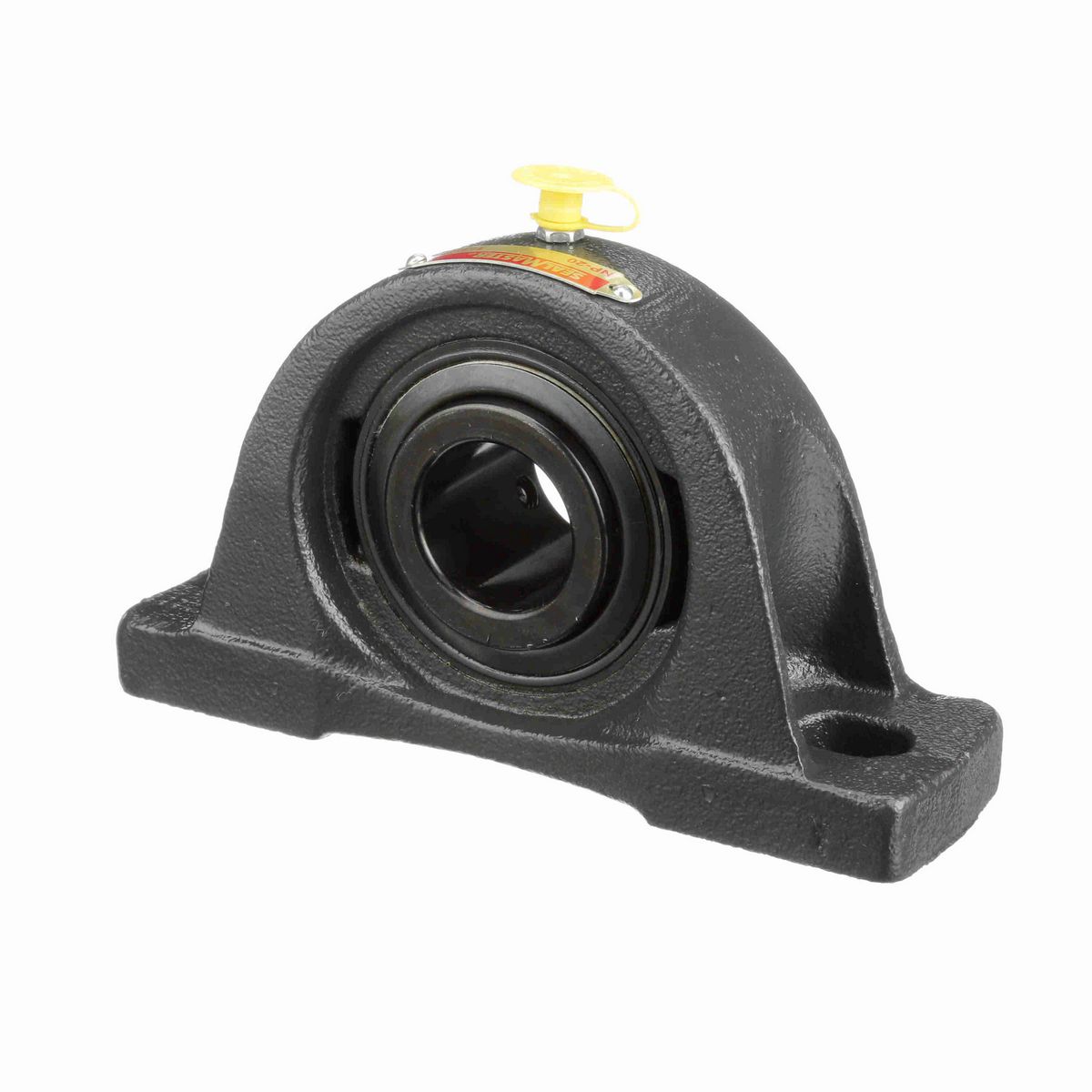

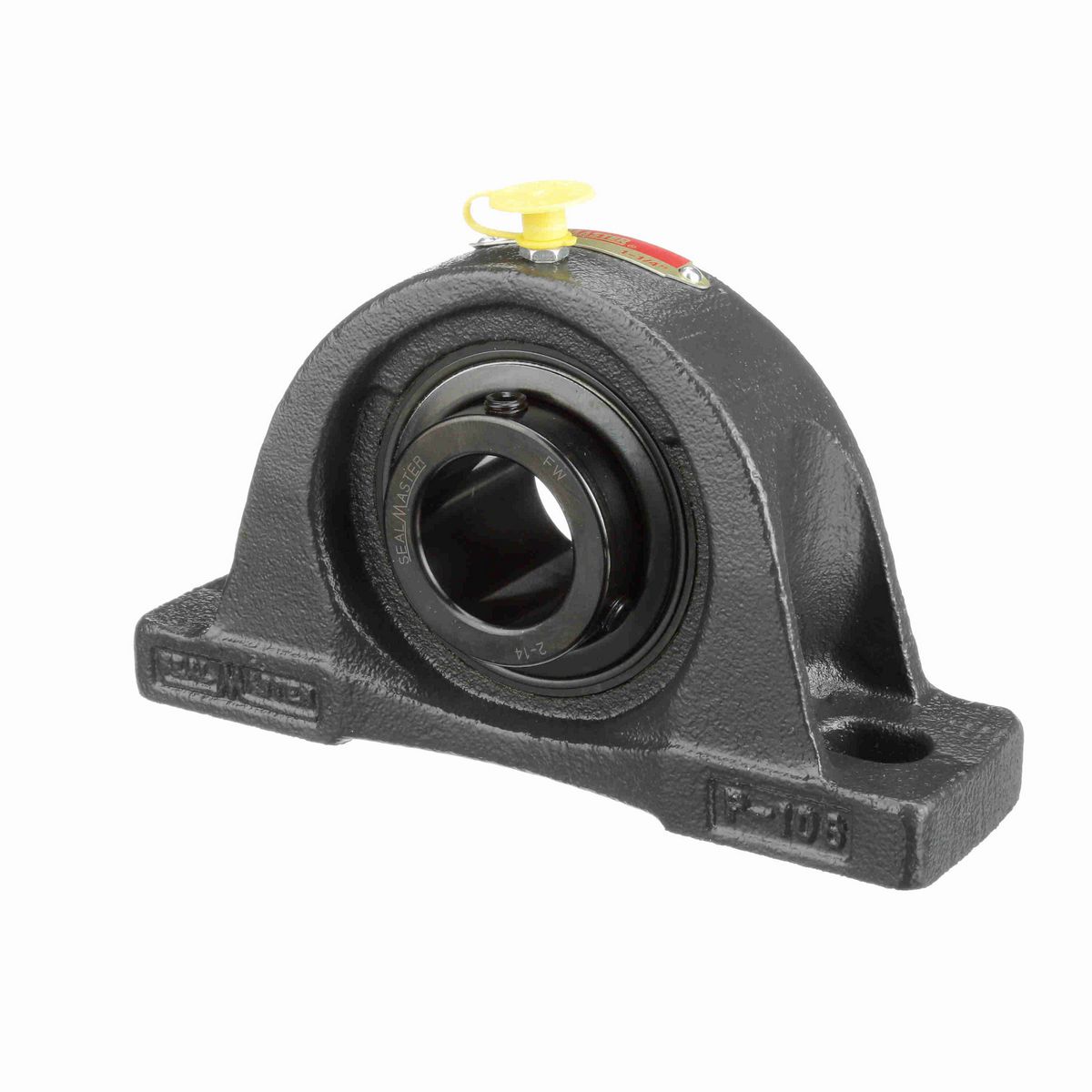

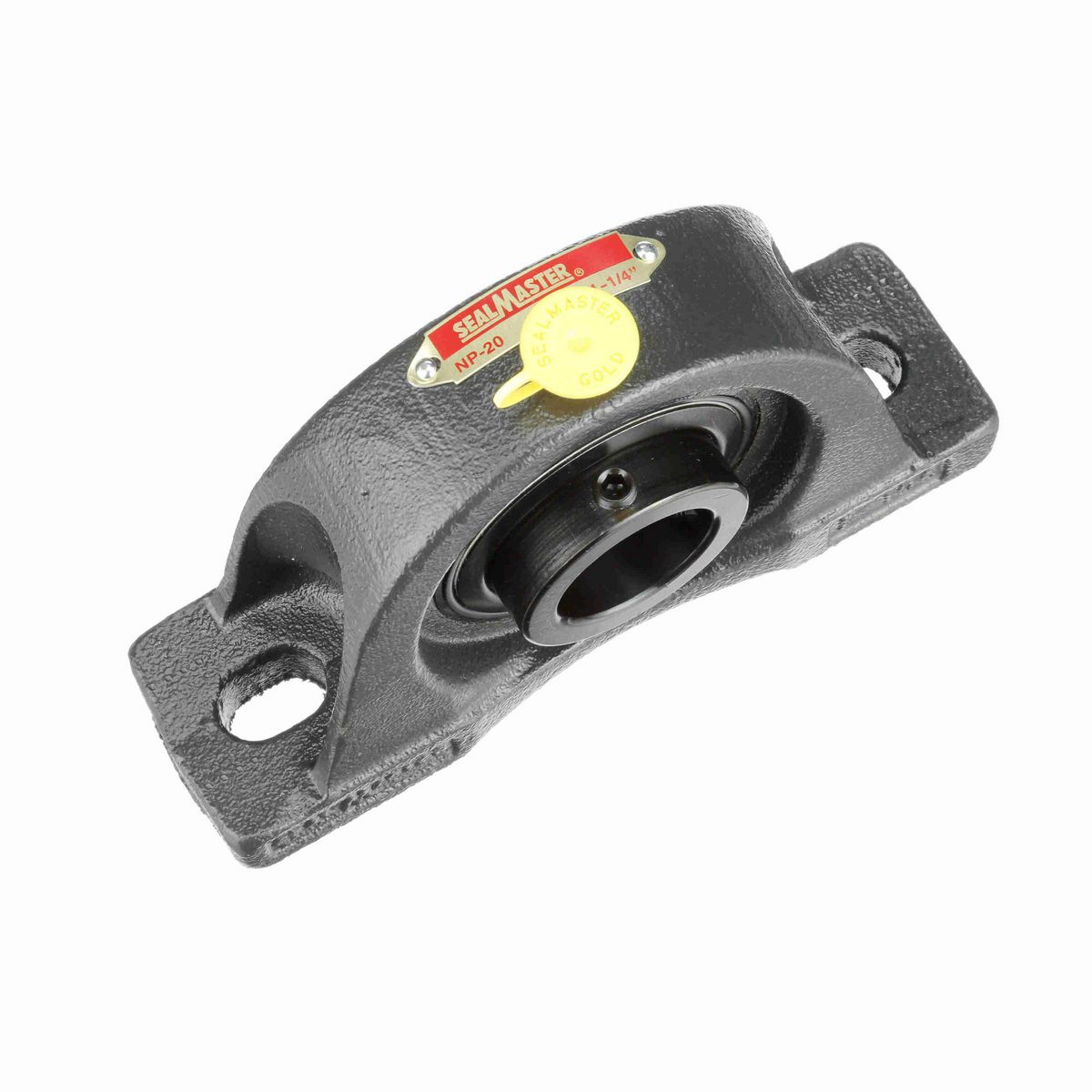

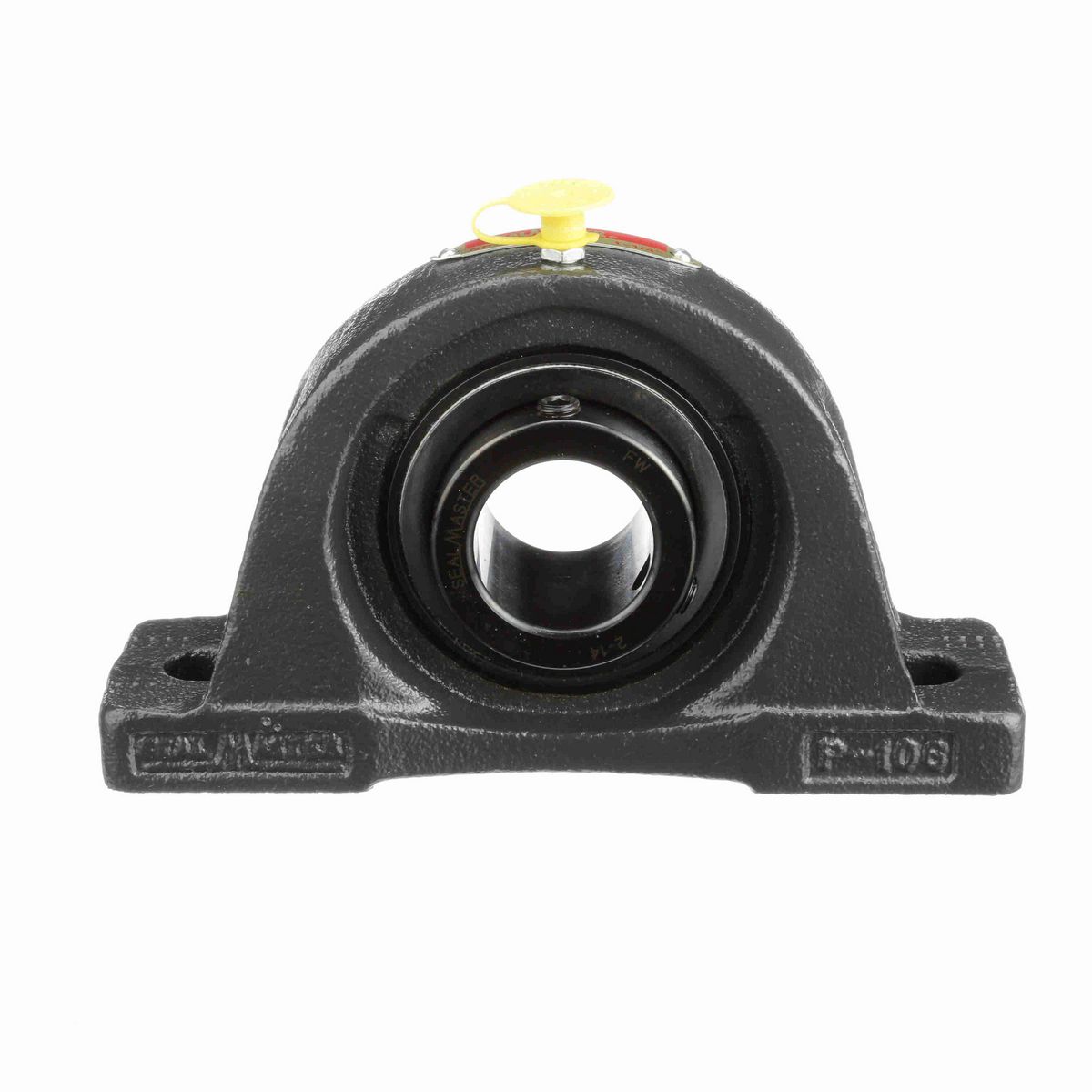

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	1.88 in
Overall Length (in)	6.56 in
Base Width (in)	1.88 in
Overall Height (in)	3.75 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.25 in
Base to Center Height (in)	1.875 in
Foot Height (in)	0.63 in
Length Through Bore (in)	1.685 in
Bolt Spacing Max (in)	5.31 in
Centerline to Outermost Bearing Face (in)	1 in
Bolt Spacing (in)	5 in
Bolt Spacing Min (in)	4.69 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0066 cps
Base Length (in)	6.56 in
Bearing Insert Finish	Black Oxide
Cage Type	Land Riding Retainer
Vibration Frequency Roller Spin	0.0386 cps
Lubricant	Lithium Complex NLGI 2 Grease
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Set Screw
Size Code	2-17
Inner Ring Outside Diameter (in)	1.851 in
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	5,782 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Cast Iron
Housing Coating	Powder Coated
Radial Clearance	Standard
Grease Fitting Thread Size	1/4-28
End Cap Available	No
Vibration Frequency Inner Ring Defect	0.0905 cps
Maximum Speed (RPM)	4650 rpm
Static Load Rating (lb)	3,493 lb
Vibration Frequency Outer Ring Defect	0.0595 cps
Insert	2-14

General Specifications

UPC	662461001615
Weight	4.64 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	Mexico
