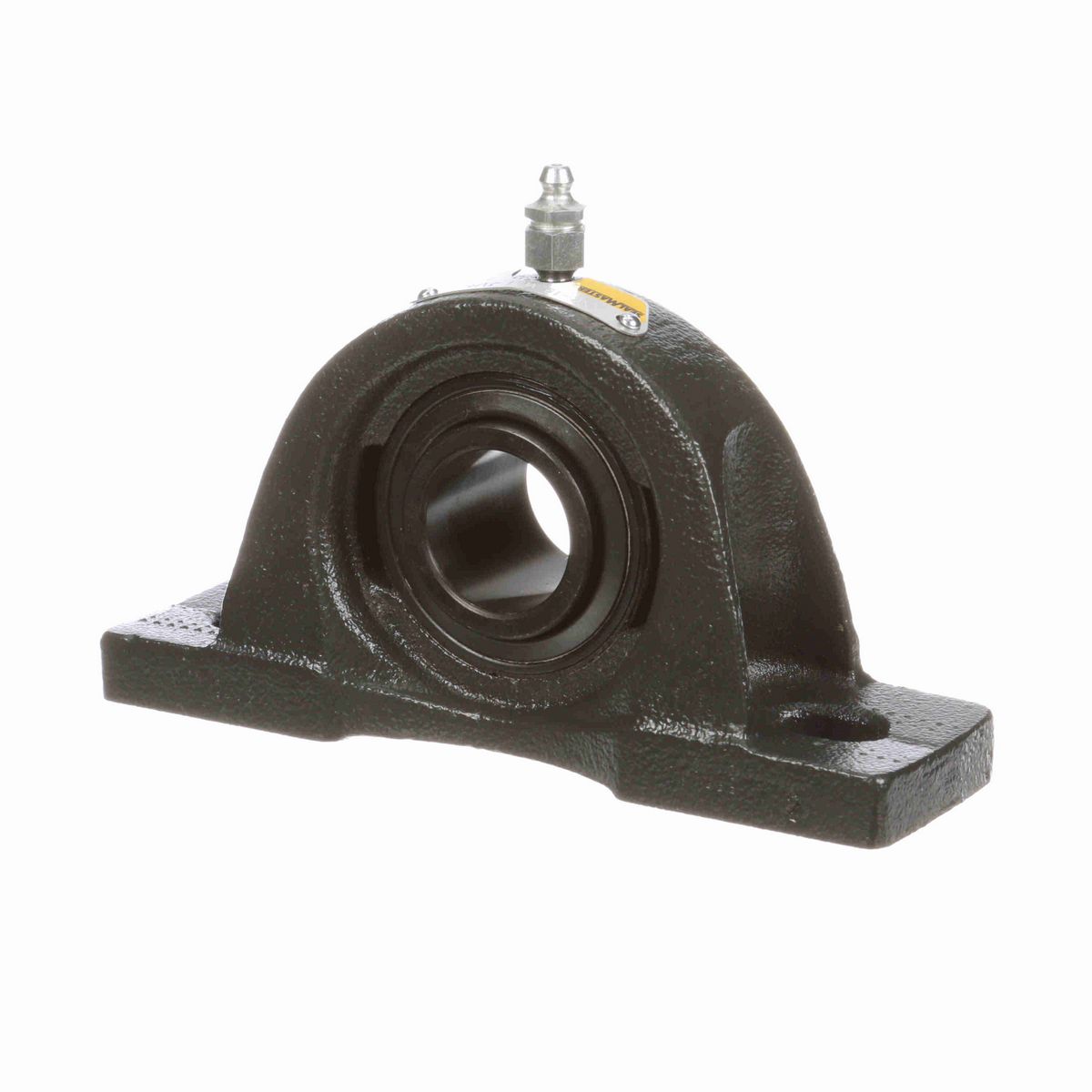

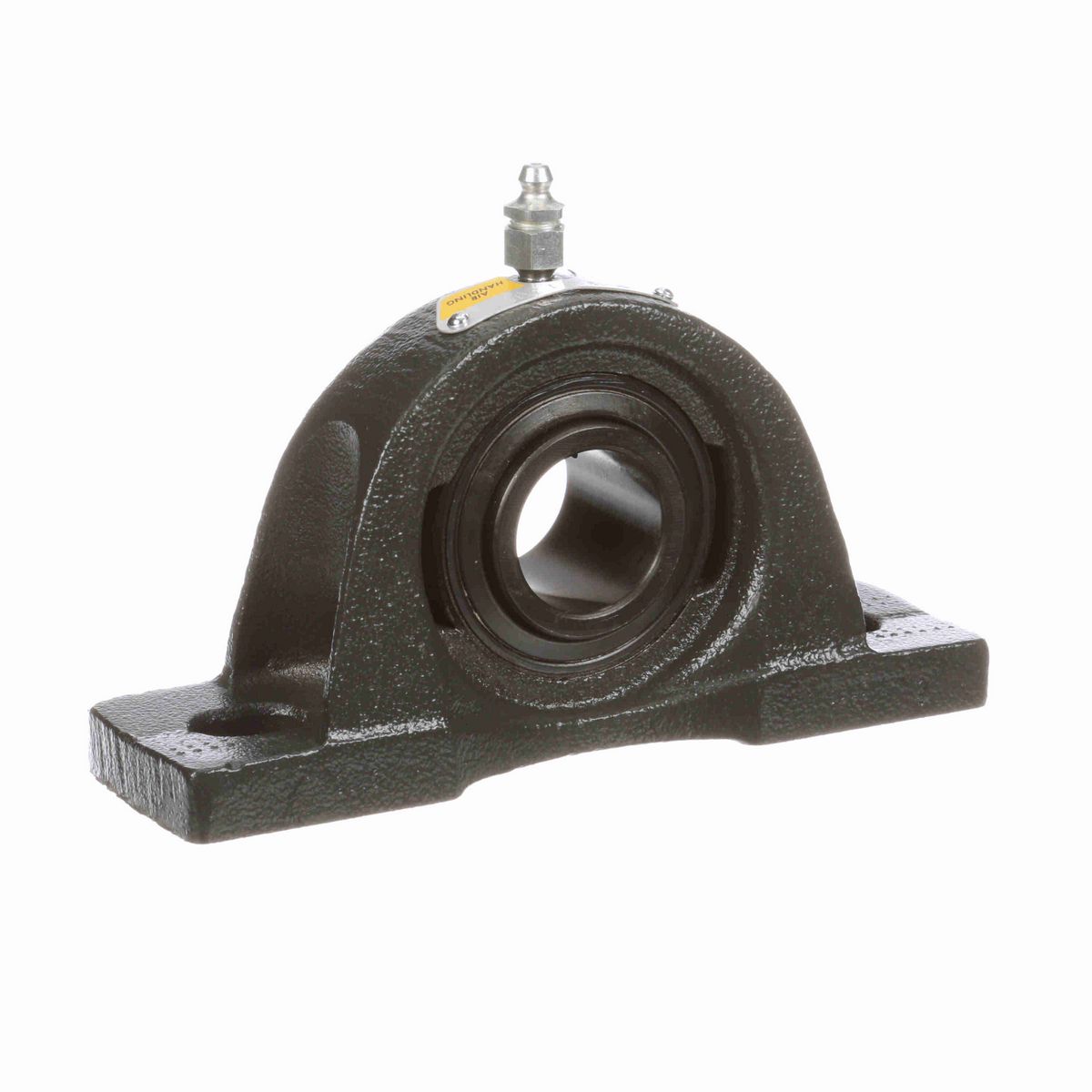

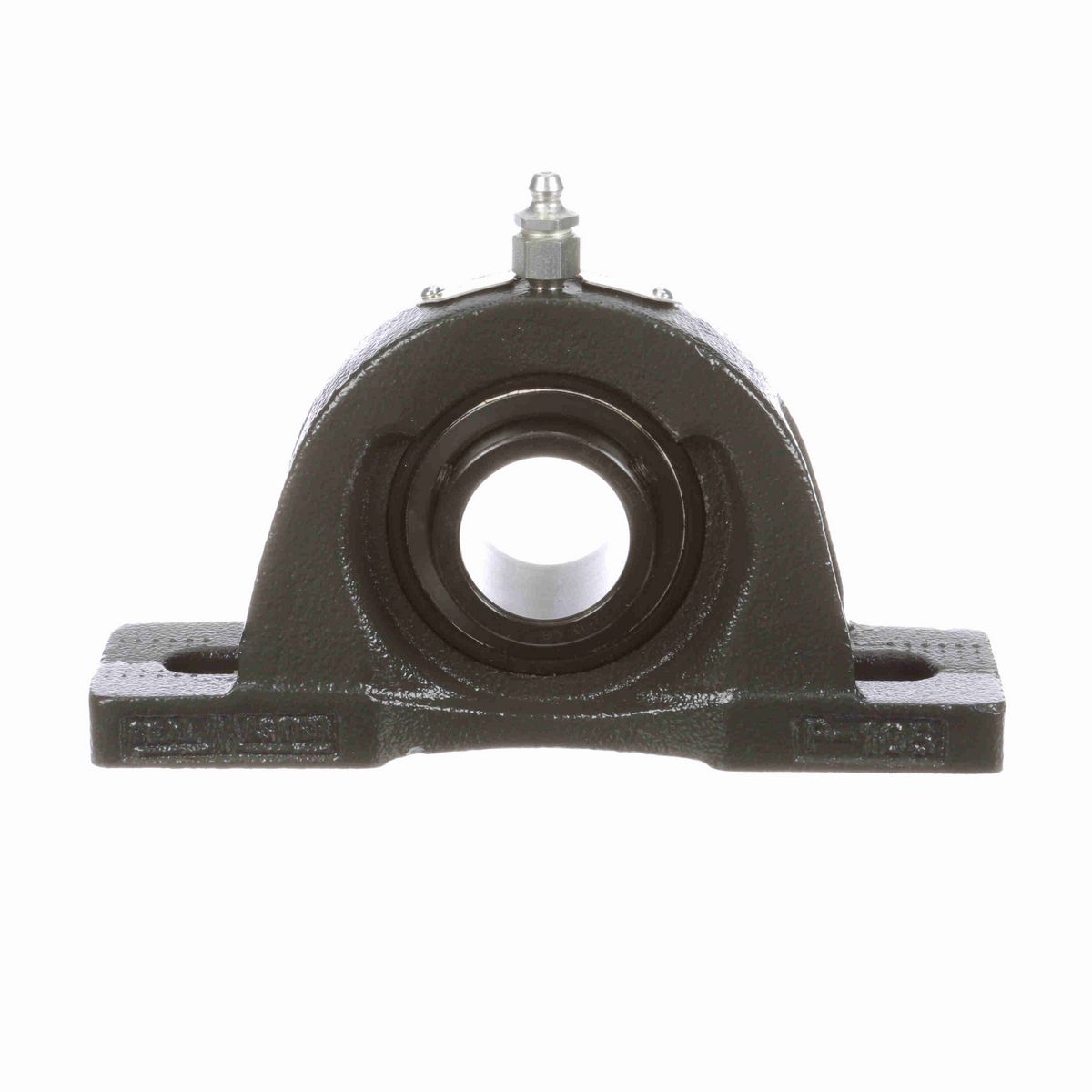

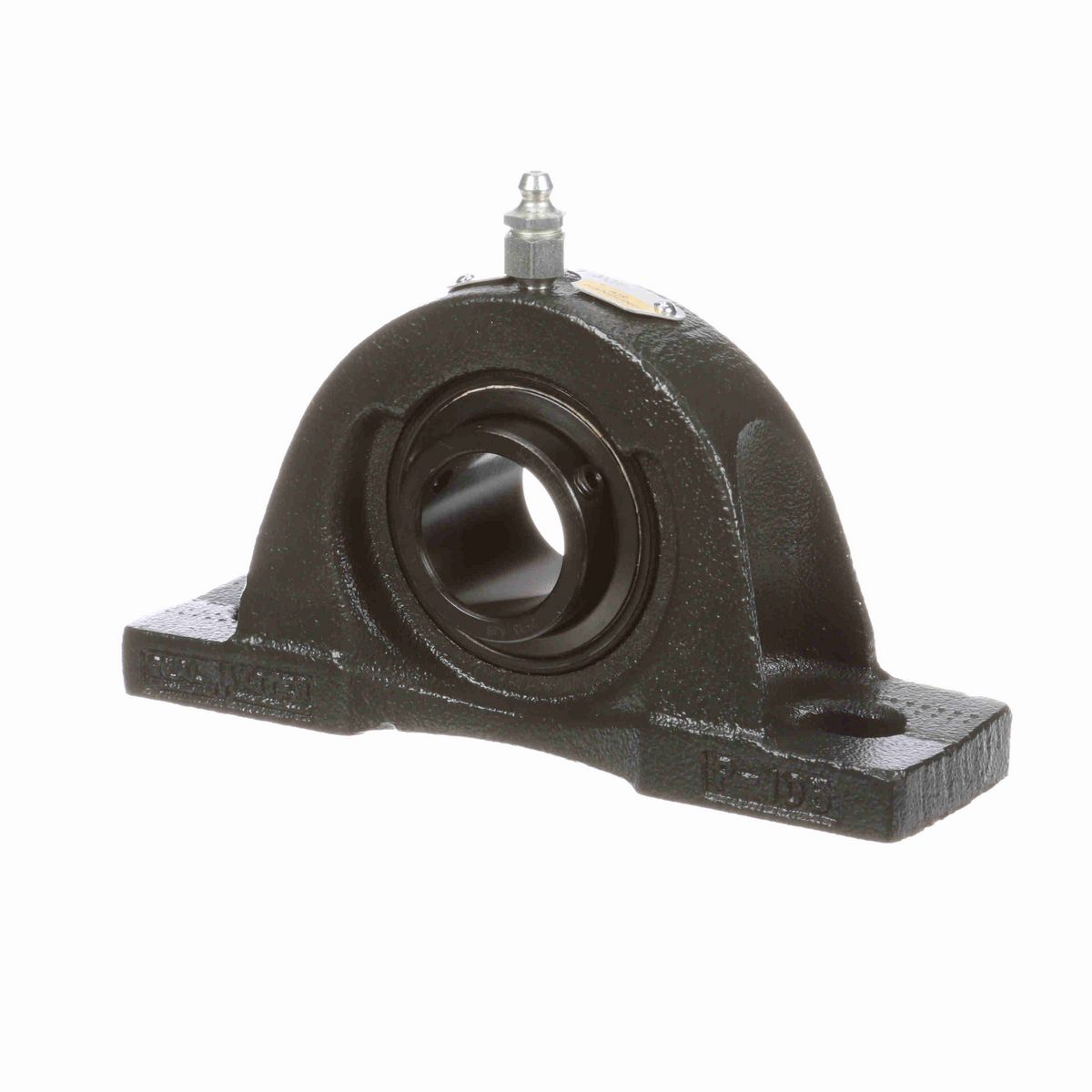

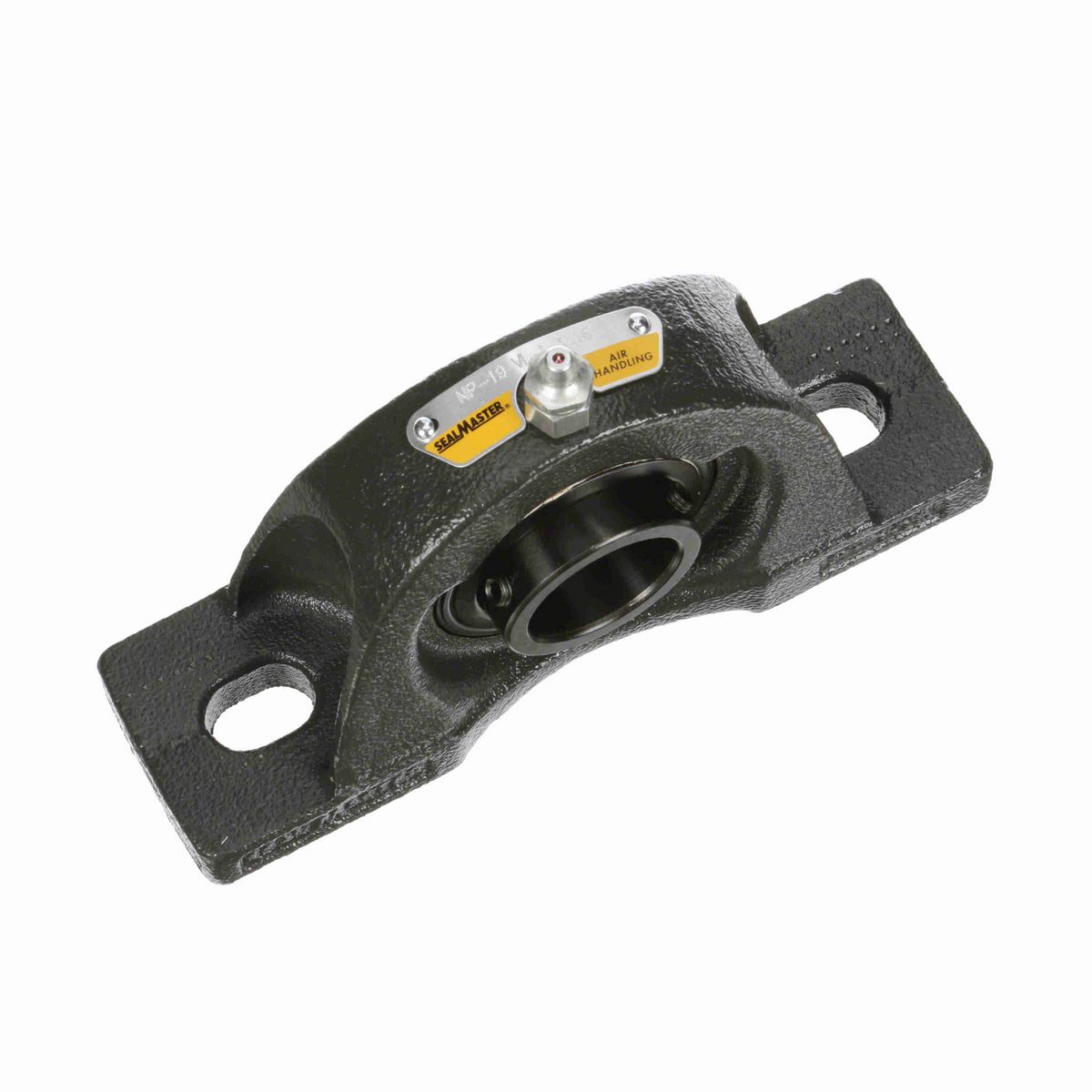

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	1.88 in
Overall Height (in)	3.38 in
Overall Width (in)	1.88 in
Overall Length (in)	6.5 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.1875 in
Base to Center Height (in)	1.6875 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.497 in
Bolt Spacing Min (in)	4.44 in
Bolt Spacing (in)	4.75 in
Bolt Spacing Max (in)	5.06 in
Centerline to Outermost Bearing Face (in)	0.875 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Options	High Temperature
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	High Temp Labyrinth
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Maximum Speed (RPM)	5450 rpm
Bearing Insert Material	52100 Bearing Steel
Insert	2-13 AJB
Vibration Frequency Roller Spin	0.0385 cps
Lubricant	Lithium Complex NLGI 2 Grease
Static Load Rating (lb)	2,567 lb
Housing Coating	Powder Coated
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	220 °F
Bearing Insert Finish	Black Oxide
Vibration Frequency Fundamental Train	0.0066 cps
Dynamic Load Rating (lb)	4,381 lb
Grease Fitting Thread Size	1/4-28
Bearing Type	Standard Duty
Base Length (in)	6.5 in
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	1.594 in
Radial Clearance	Standard
Housing Material	Cast Iron
Shaft Locking Type	Set Screw
Vibration Frequency Inner Ring Defect	0.0905 cps
Size Code	2-13
Vibration Frequency Outer Ring Defect	0.0595 cps
End Cap Available	No

General Specifications

UPC	662461234648
Weight	3.60 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
