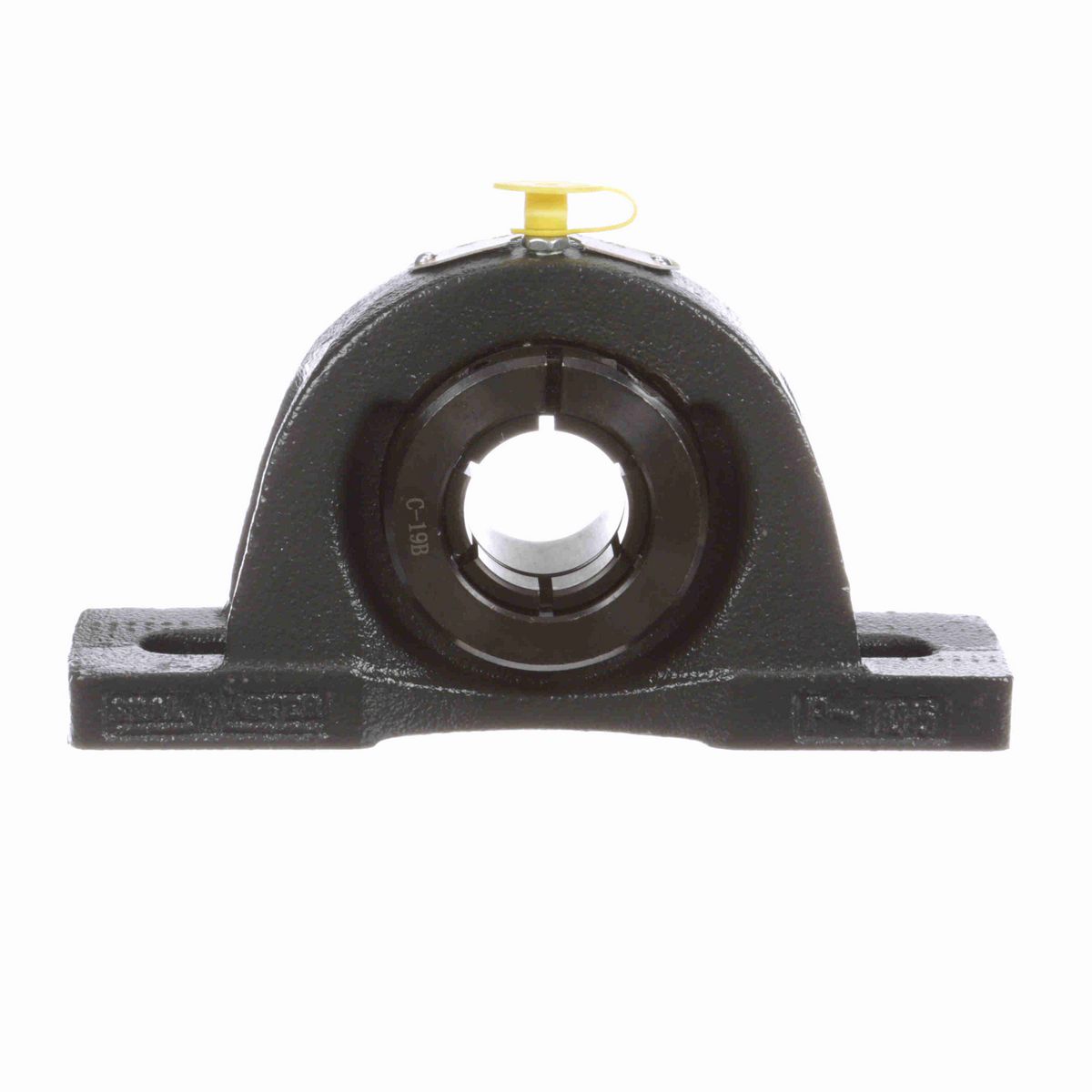

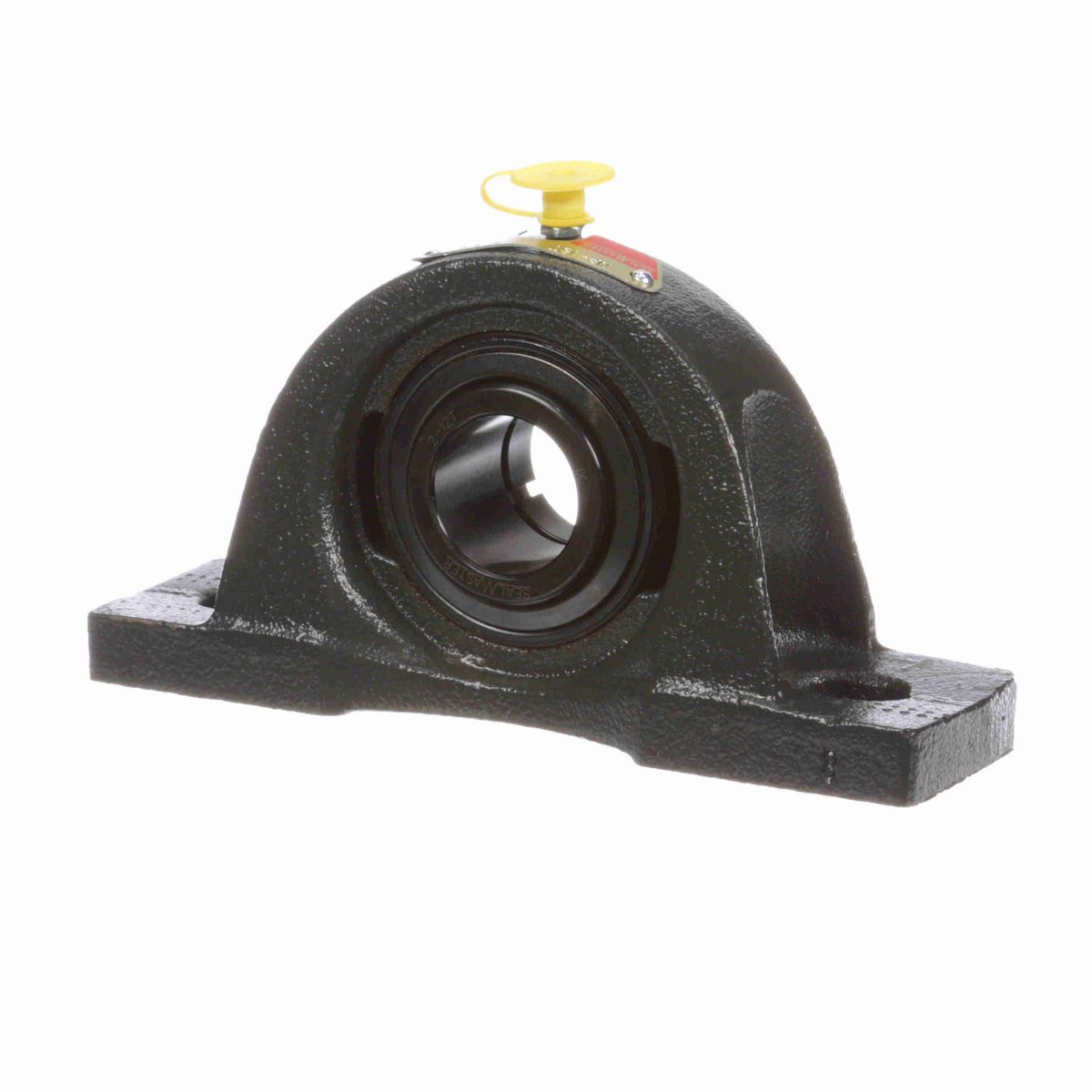

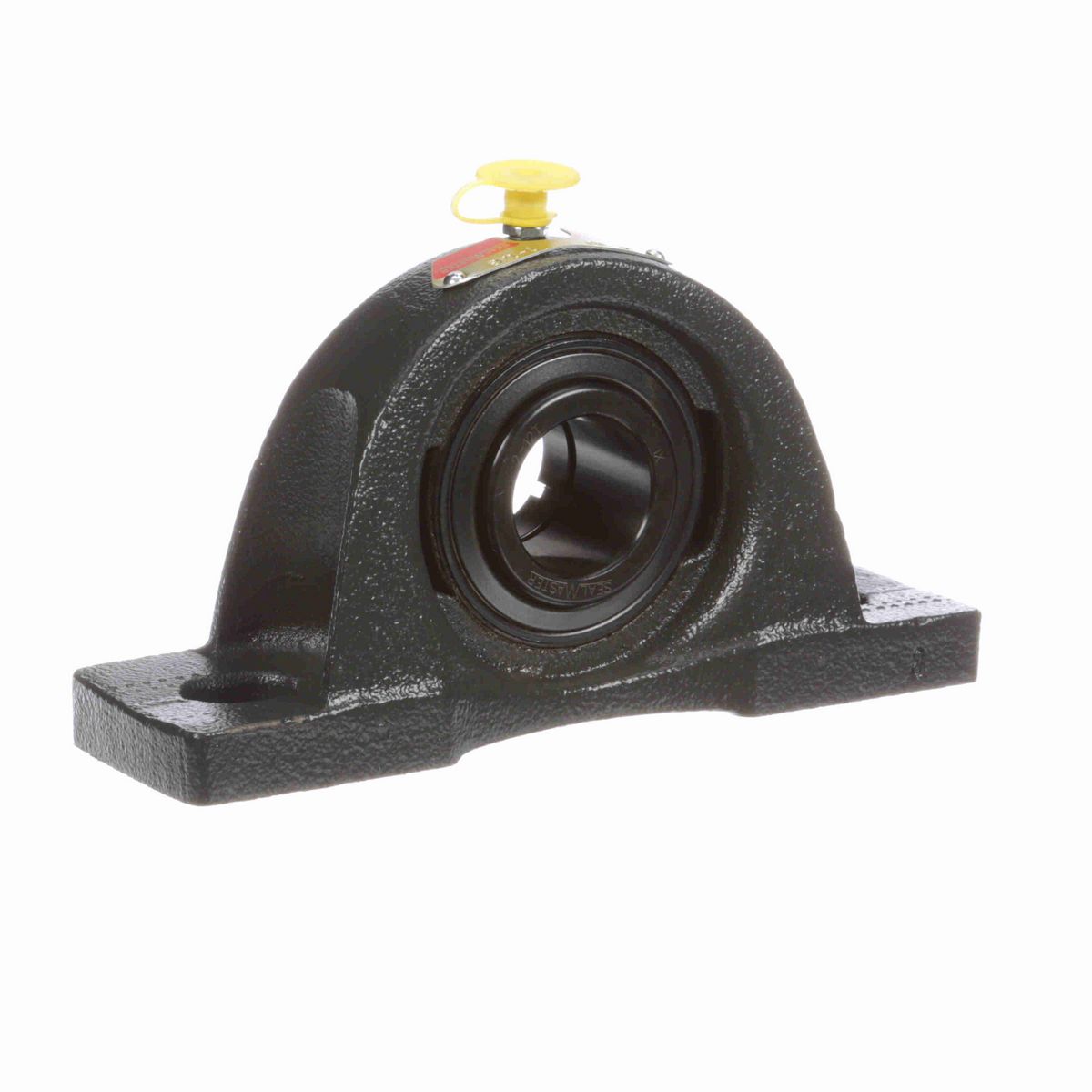

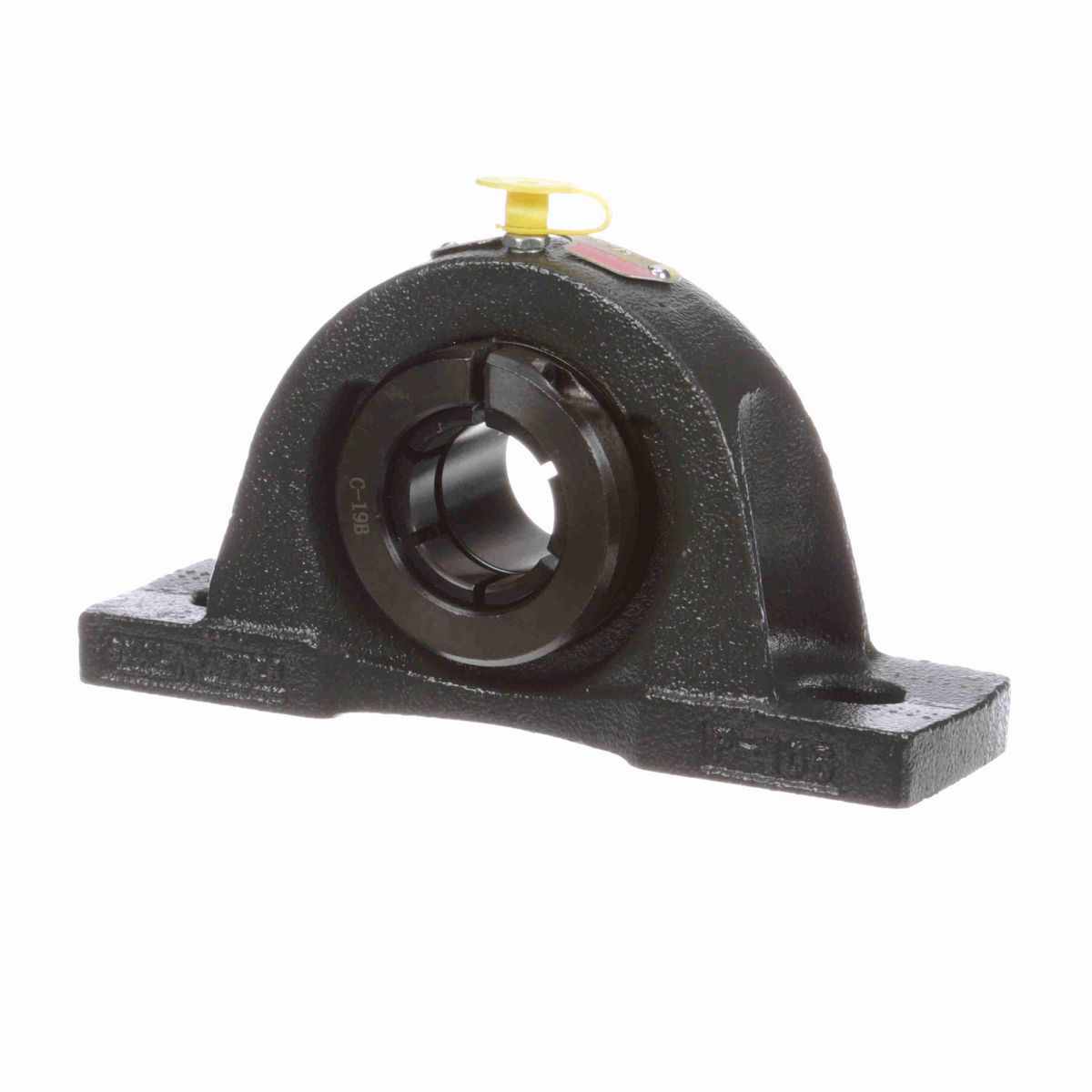

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	1.88 in
Overall Height (in)	3.38 in
Overall Length (in)	6.5 in
Overall Width (in)	1.88 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.125 in
Base to Center Height (in)	1.6875 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.56 in
Bolt Spacing Max (in)	5.06 in
Bolt Spacing (in)	4.75 in
Bolt Spacing Min (in)	4.44 in
Centerline to Outermost Bearing Face (in)	0.98 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Locking Collar Outside Diameter (in)	2.23 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0066 cps
End Cap Available	No
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Type	Standard Duty
Static Load Rating (lb)	2,567 lb
Max Operating Temperature (F)	220 °F
Fixed vs. Expansion	Fixed
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	7600 rpm
Shaft Locking Type	Concentric
Grease Fitting Thread Size	1/4-28
Size Code	2-13
Base Length (in)	6.5 in
Dynamic Load Rating (lb)	4,381 lb
Insert	2-12T
Cage Type	Land Riding Retainer
Vibration Frequency Roller Spin	0.0385 cps
Inner Ring Outside Diameter (in)	1.594 in
Vibration Frequency Outer Ring Defect	0.0595 cps

General Specifications

UPC	662461029657
Weight	3.92 LB
Packaged Length	2.06 IN
Packaged Width	4.38 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	Mexico
