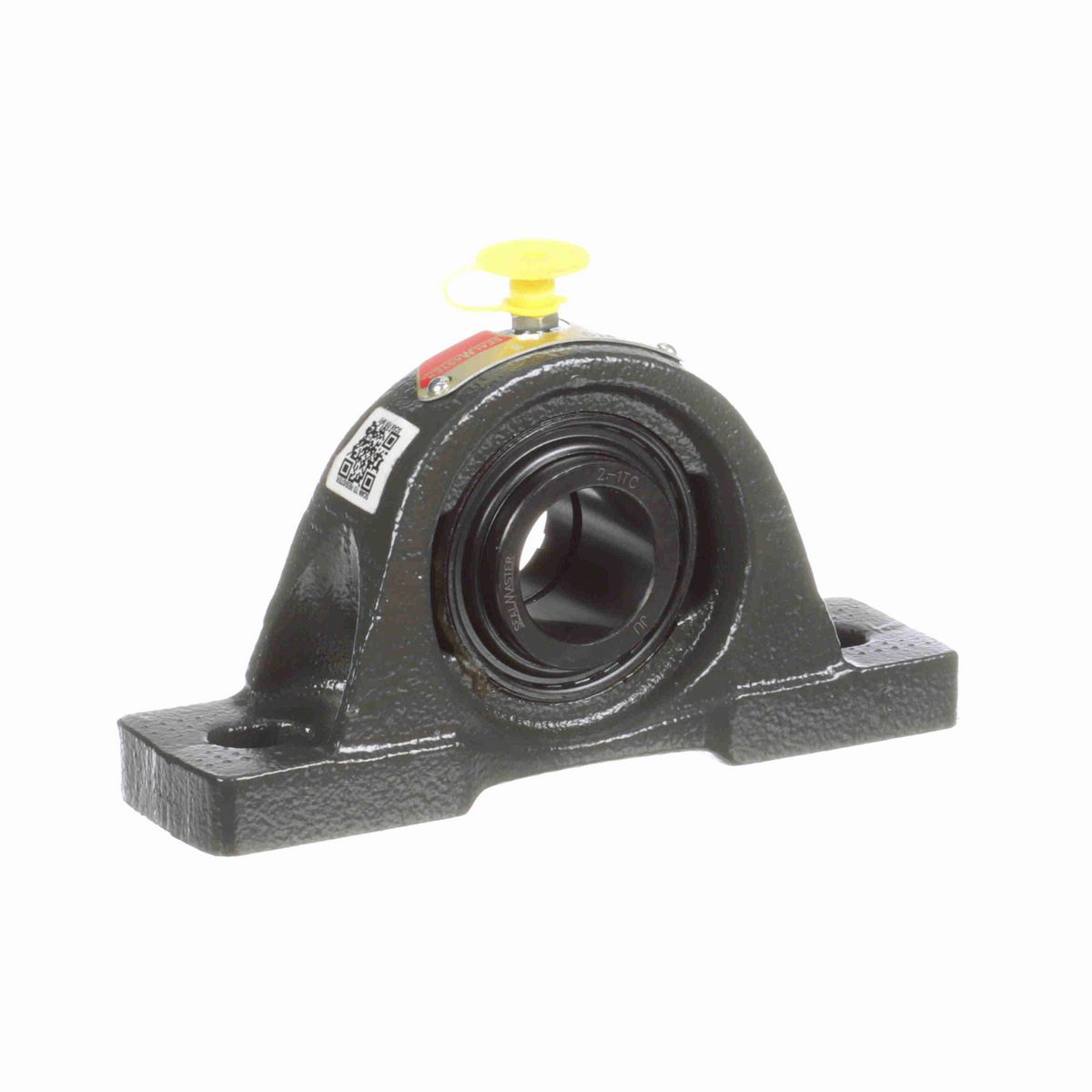

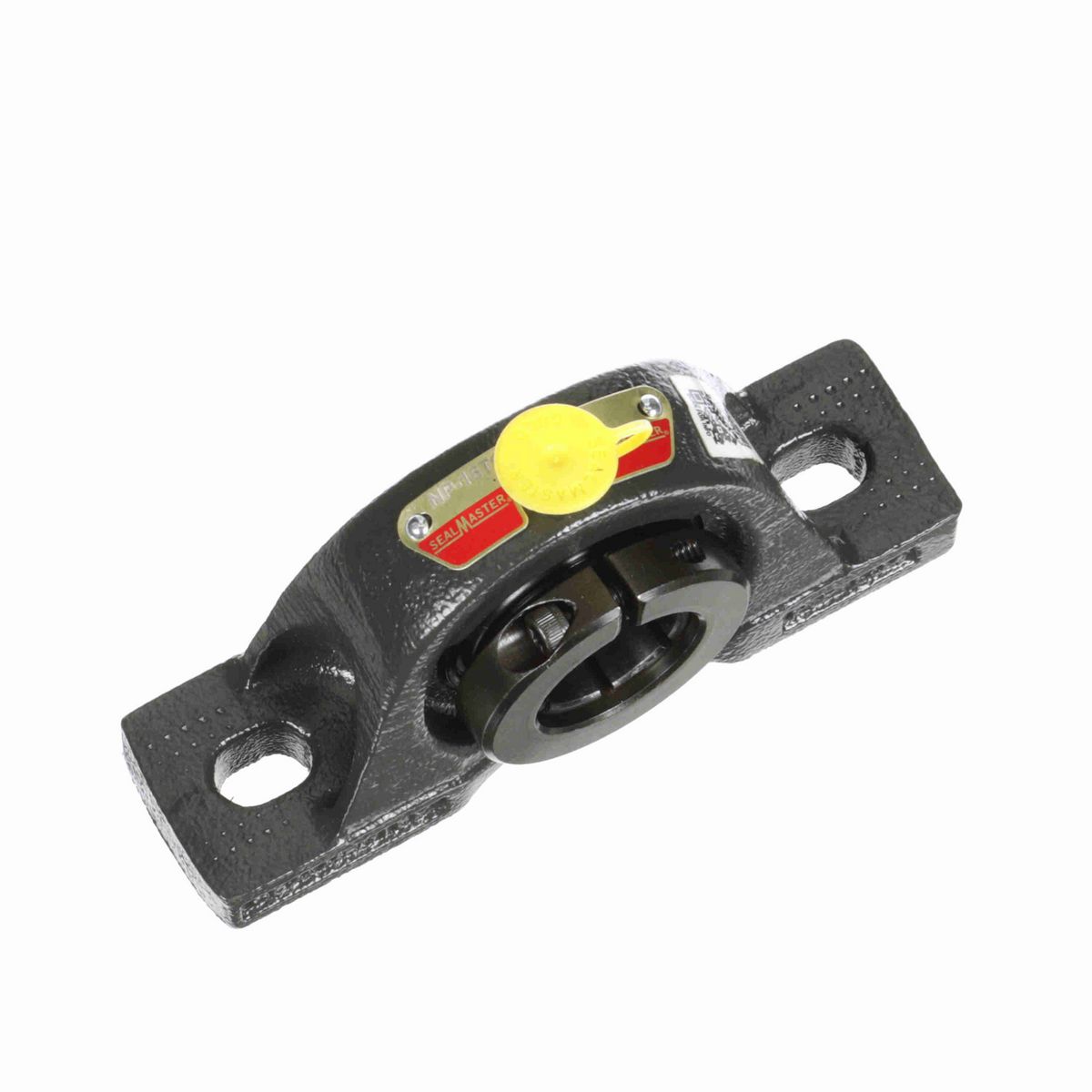

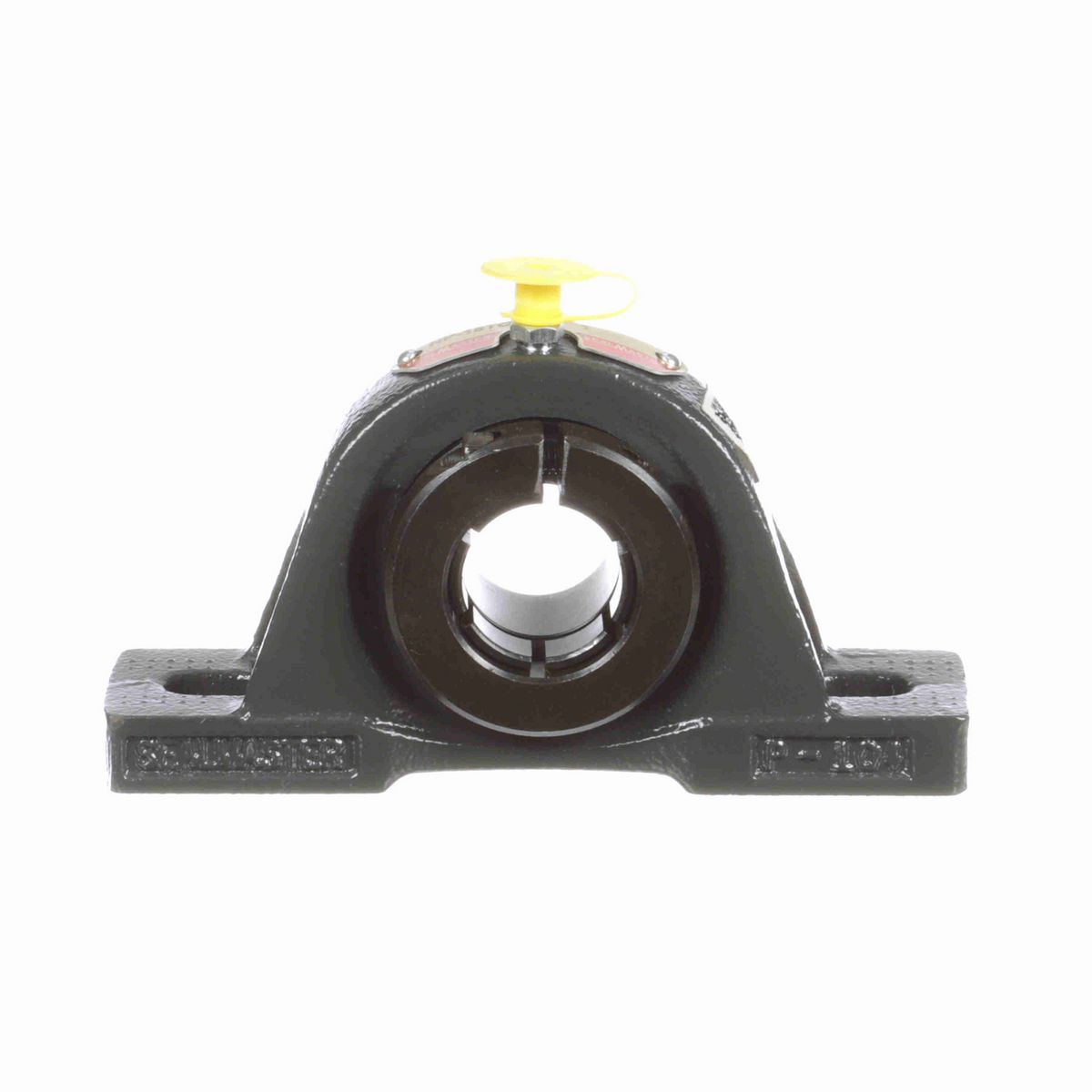

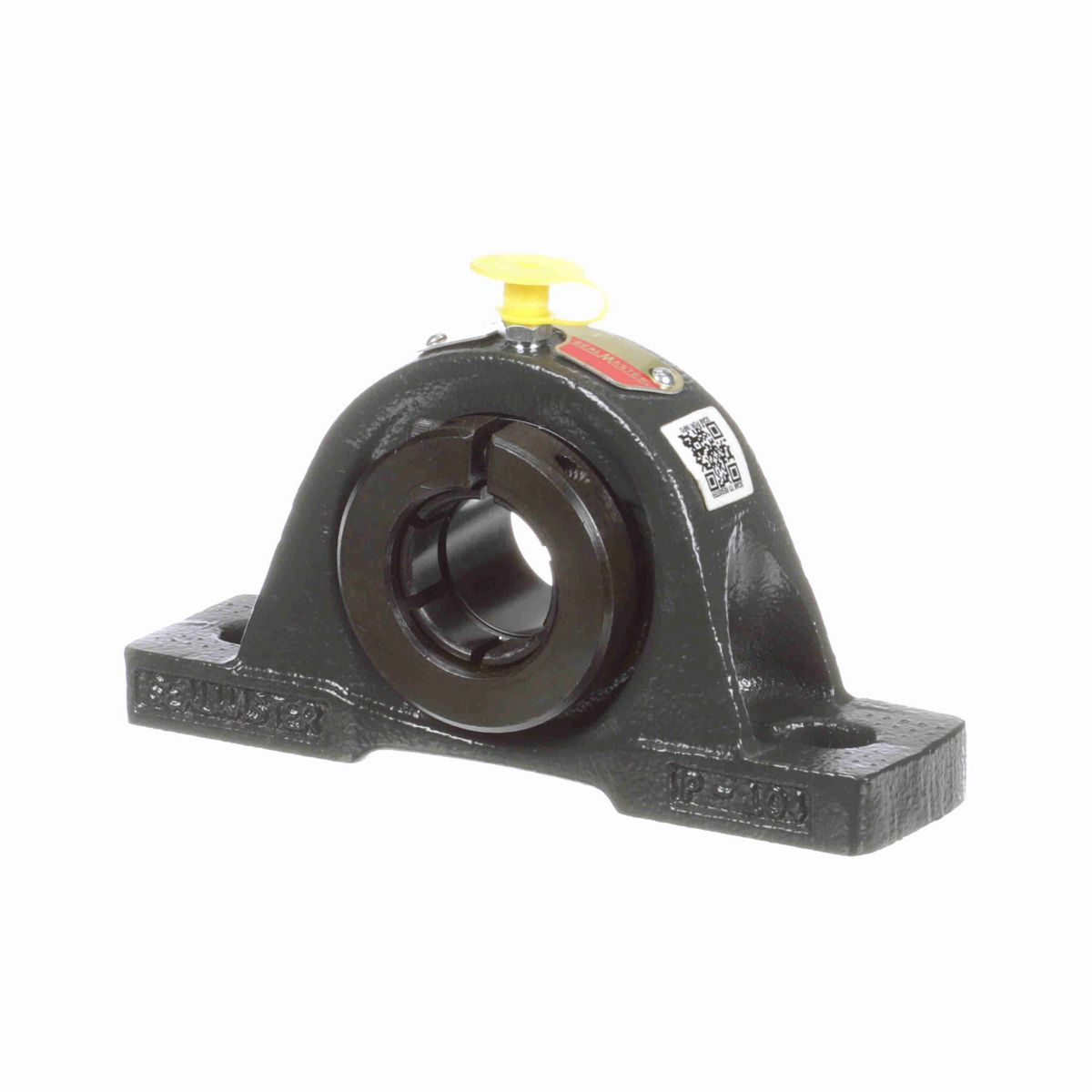

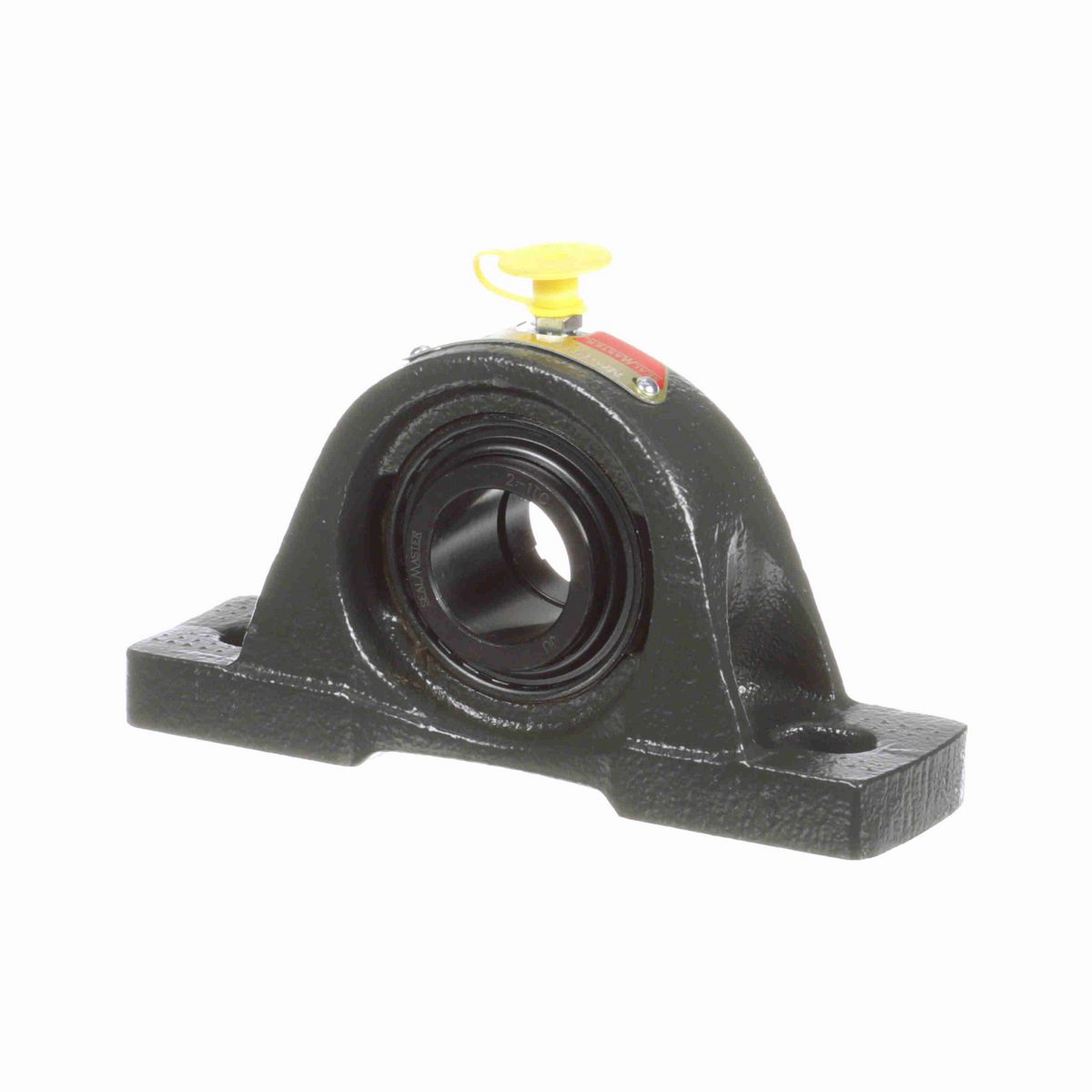

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	2.81 in
Overall Width (in)	1.50 in
Overall Length (in)	5.5 in
Base Width (in)	1.50 in
Bolt Size (in)	3/8 in
Bore Diameter (in)	1 in
Base to Center Height (in)	1.4375 in
Foot Height (in)	0.50 in
Length Through Bore (in)	1.438 in
Bolt Spacing Max (in)	4.38 in
Bolt Spacing Min (in)	3.88 in
Centerline to Outermost Bearing Face (in)	0.875 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Locking Collar Outside Diameter (in)	1.94 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Inner Ring Outside Diameter (in)	1.375 in
Housing Material	Cast Iron
Radial Clearance	Standard
Base Length (in)	5.50 in
Vibration Frequency Inner Ring Defect	0.0985 cps
Static Load Rating (lb)	1,651 lb
Shaft Locking Type	Concentric
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Outer Ring Defect	0.0682 cps
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Insert	2-1TC
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Roller Spin	0.0442 cps
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	2,801 lb
Maximum Speed (RPM)	6350 rpm
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/4-28
Size Code	2-015
Fixed vs. Expansion	Fixed
Cage Type	Land Riding Retainer
Vibration Frequency Fundamental Train	0.0068 cps

General Specifications

UPC	662461032701
Weight	2.28 LB
Packaged Length	3.50 IN
Packaged Width	1.69 IN
Packaged Height	5.75 IN
HTC	8483.20.8040
Country of Origin	United States of America
