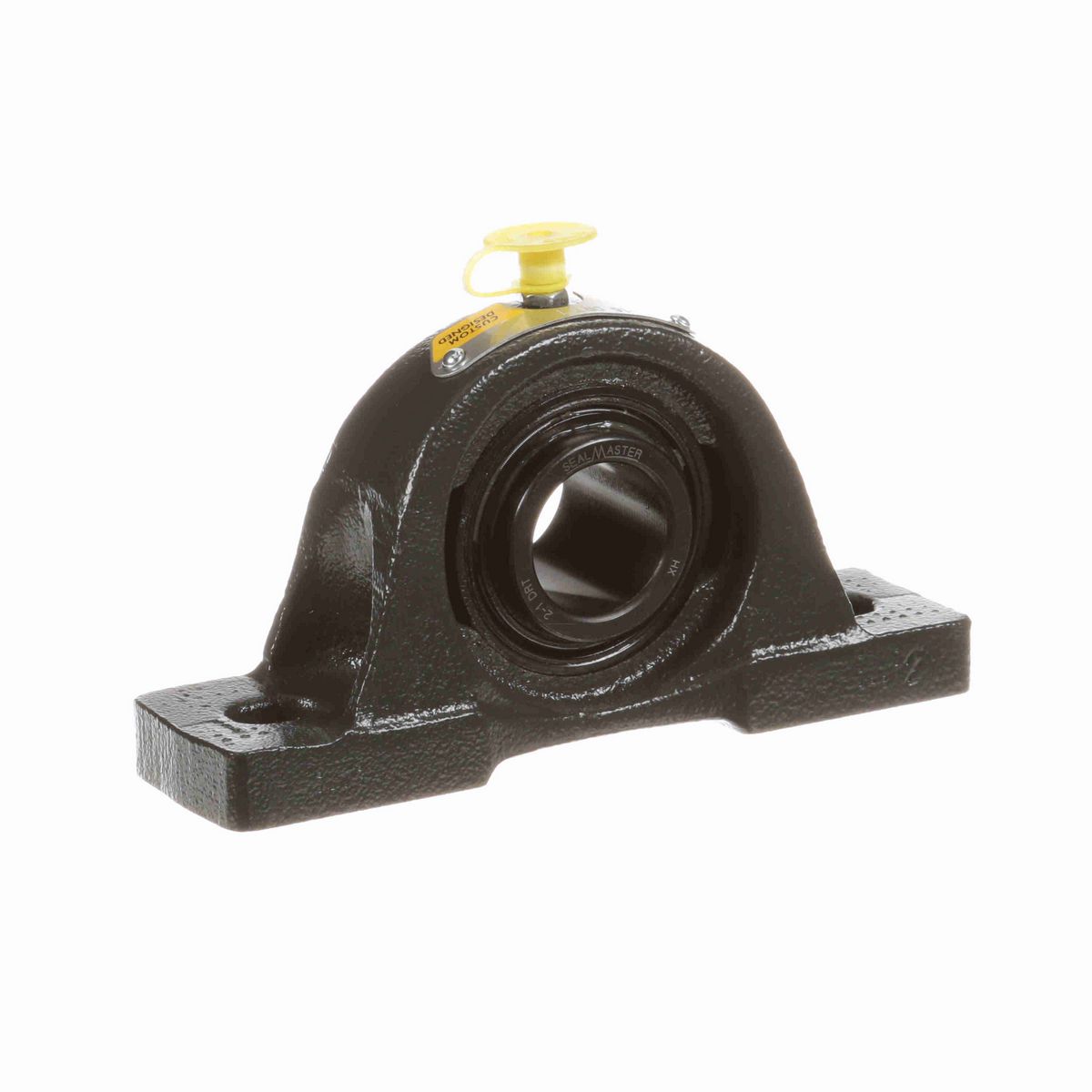

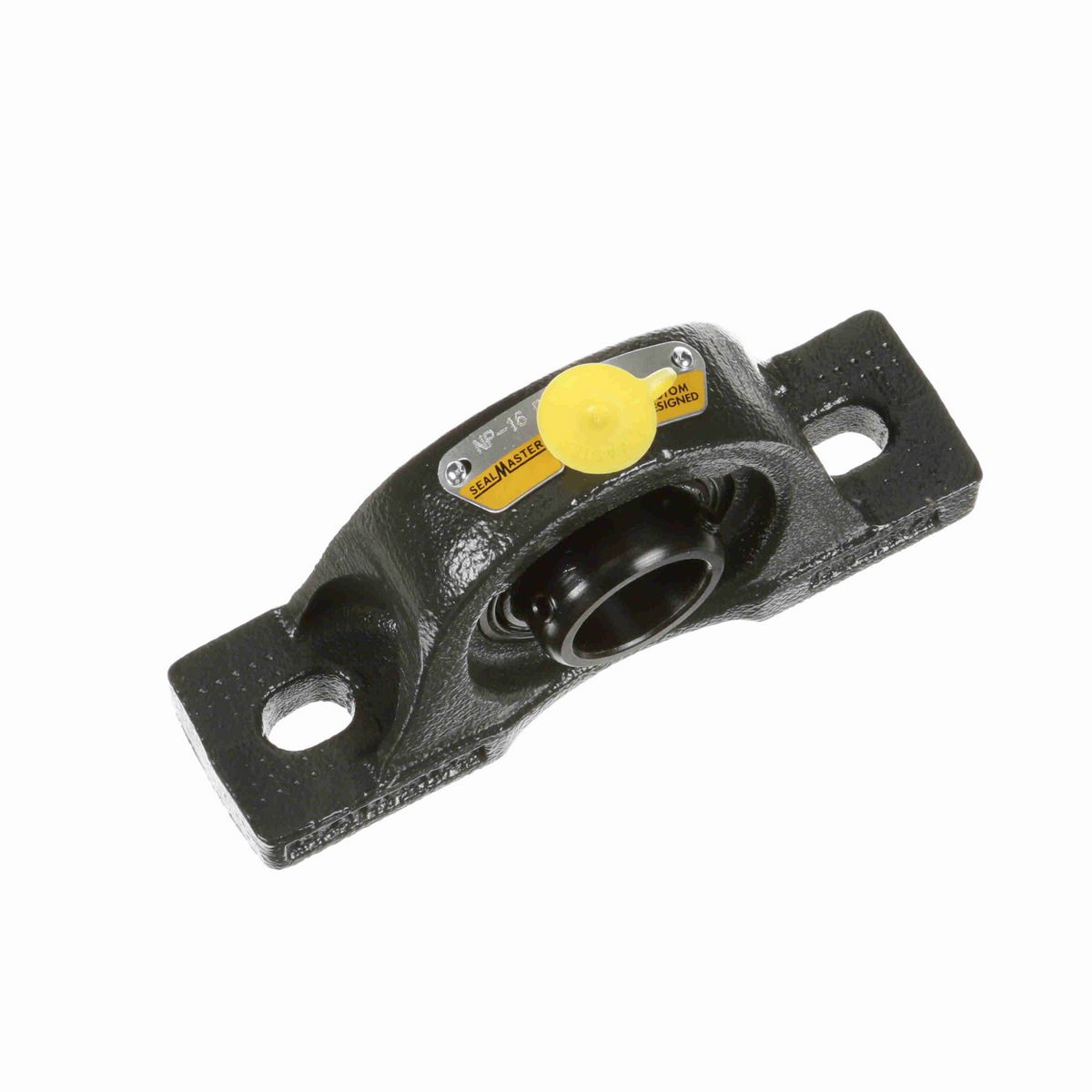

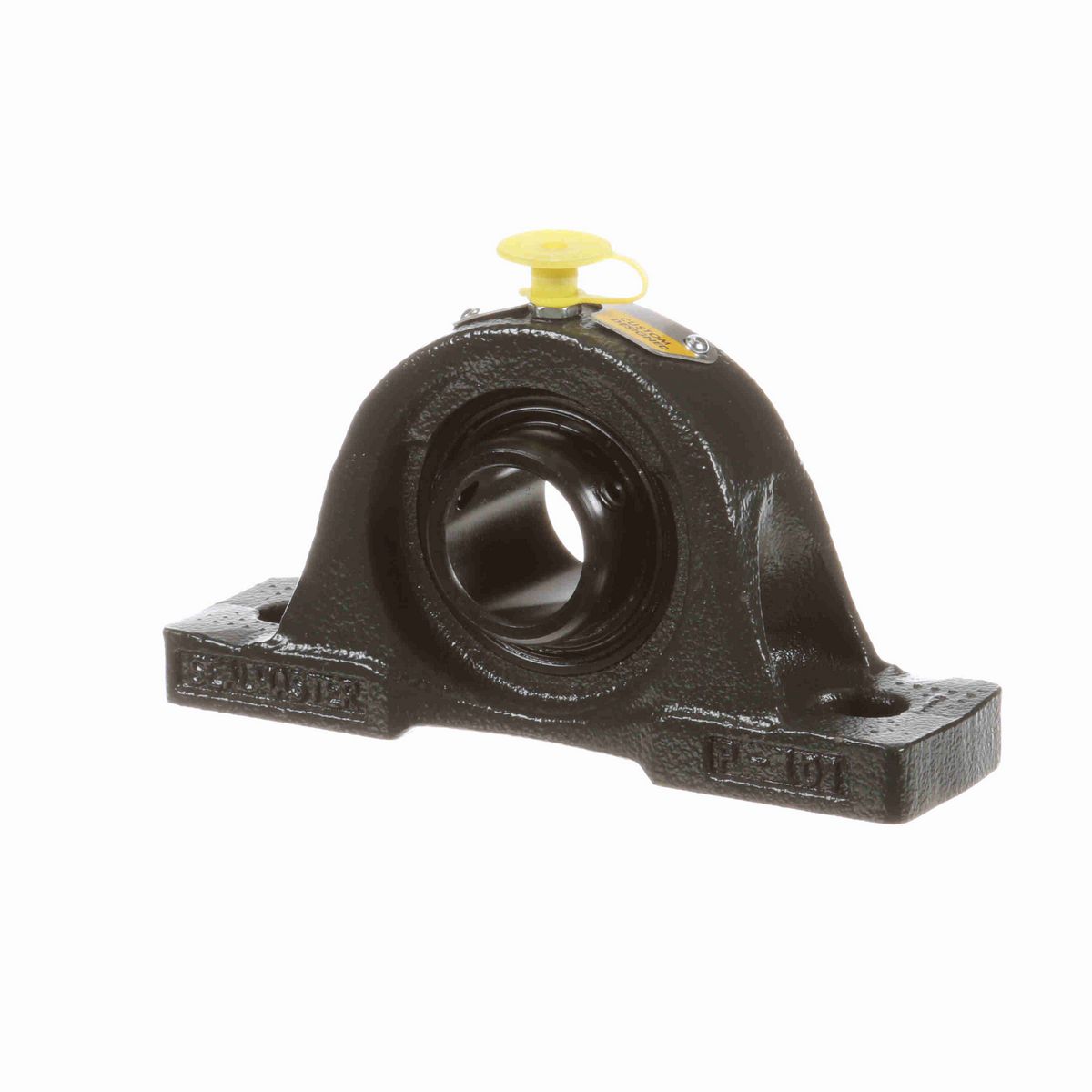

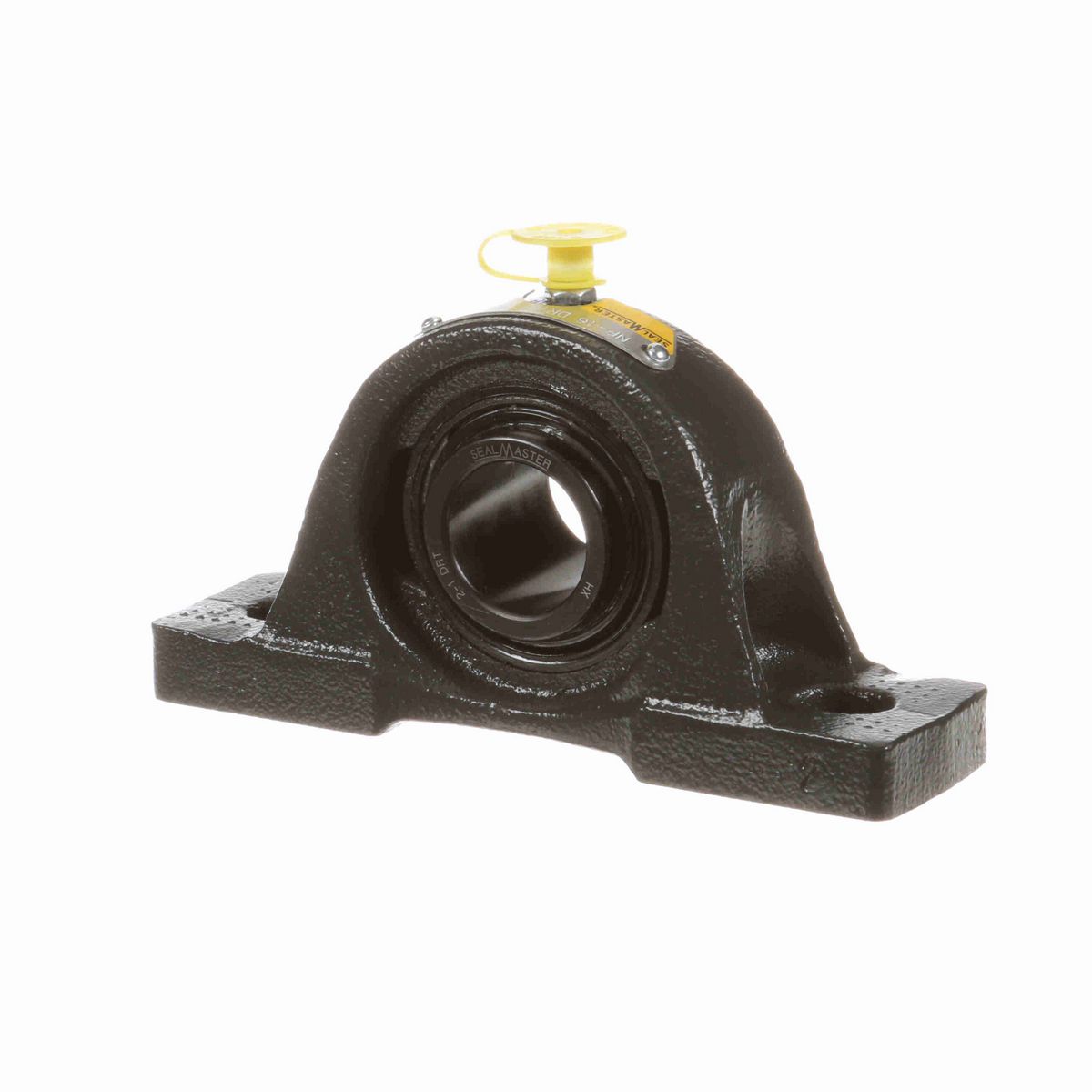

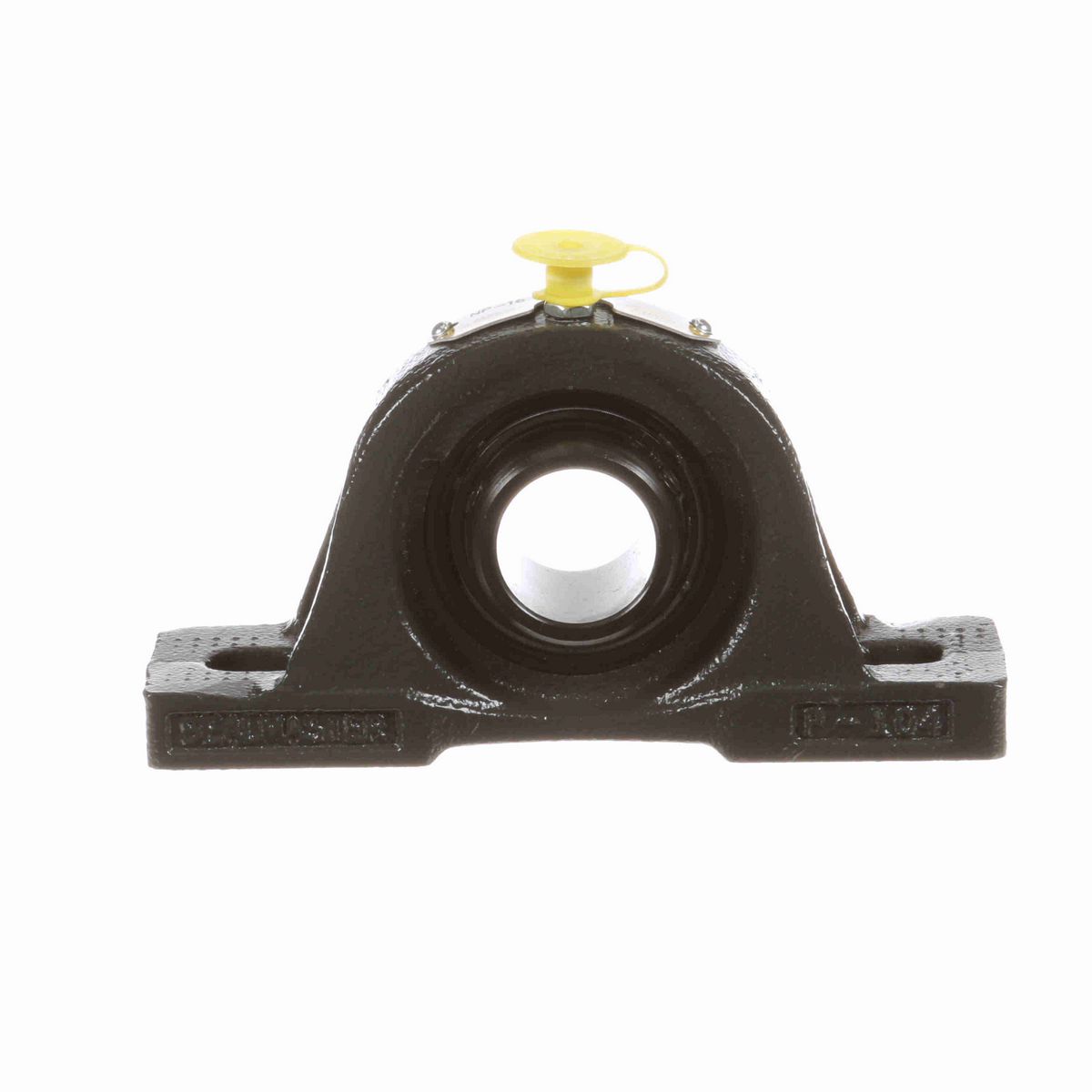

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	2.81 in
Overall Length (in)	5.5 in
Overall Width (in)	1.50 in
Base Width (in)	1.50 in
Bolt Size (in)	3/8 in
Bore Diameter (in)	1 in
Base to Center Height (in)	1.4375 in
Foot Height (in)	0.50 in
Length Through Bore (in)	1.375 in
Bolt Spacing Min (in)	3.88 in
Centerline to Outermost Bearing Face (in)	0.813 in
Bolt Spacing Max (in)	4.38 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Options	High Contamination
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Multi-Lip Contact Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	2,801 lb
Shaft Locking Type	Set Screw
Housing Coating	Powder Coated
Radial Clearance	Standard
Size Code	2-015
Cage Type	Land Riding Retainer
Fixed vs. Expansion	Fixed
Bearing Insert Material	52100 Bearing Steel
Insert	2-1 DRT
Bearing Type	Standard Duty
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Grease Fitting Thread Size	1/4-28
Base Length (in)	5.50 in
Static Load Rating (lb)	1,651 lb
End Cap Available	No
Vibration Frequency Fundamental Train	0.0068 cps
Inner Ring Outside Diameter (in)	1.375 in
Housing Material	Cast Iron
Vibration Frequency Outer Ring Defect	0.0682 cps
Lubricant	Lithium Complex NLGI 2 Grease - 100% Fill
Max Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0985 cps
Vibration Frequency Roller Spin	0.0442 cps
Maximum Speed (RPM)	550 rpm

General Specifications

UPC	662461326732
Weight	2.10 LB
Packaged Length	3.50 IN
Packaged Width	1.69 IN
Packaged Height	5.75 IN
HTC	8483.20.8040
Country of Origin	United States of America
