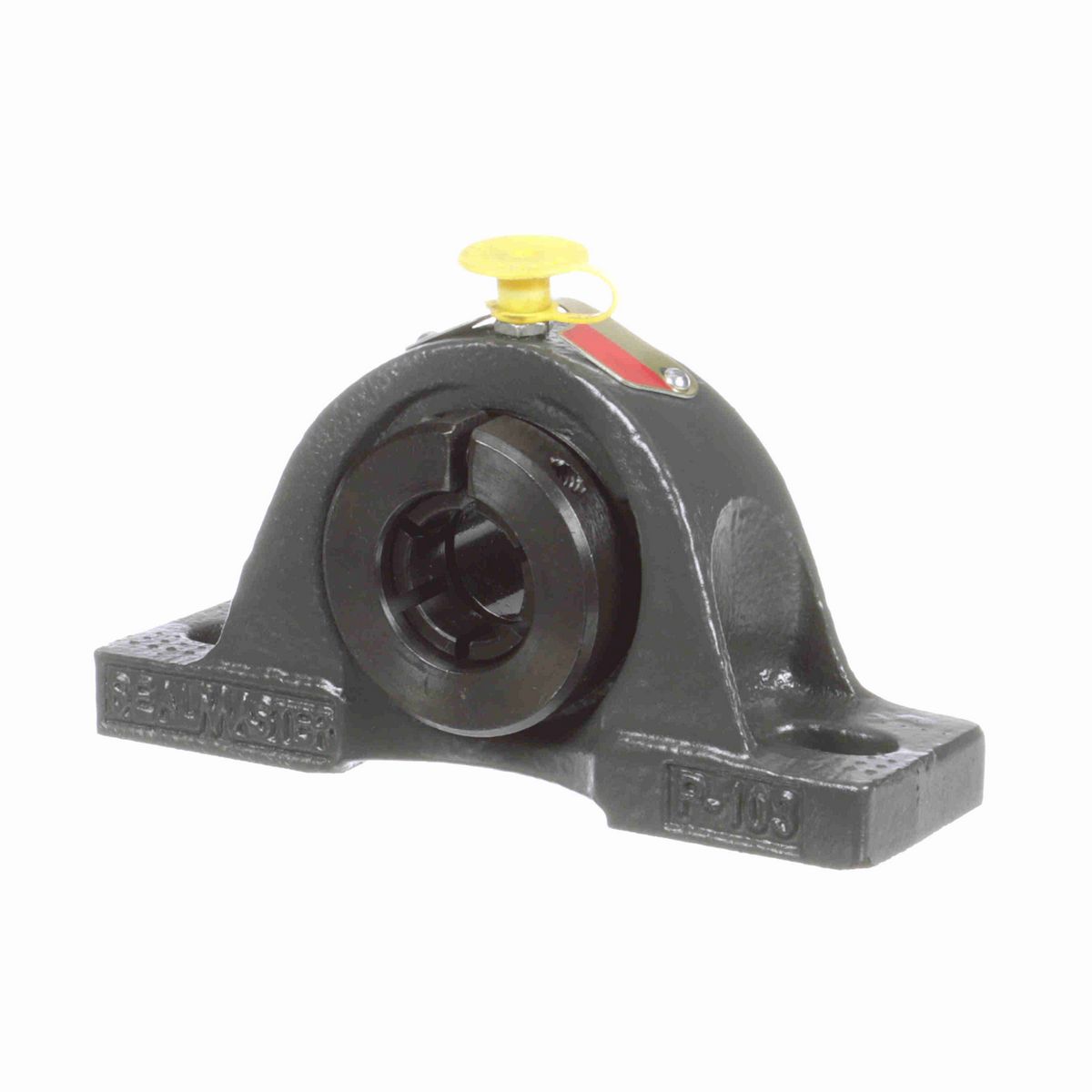

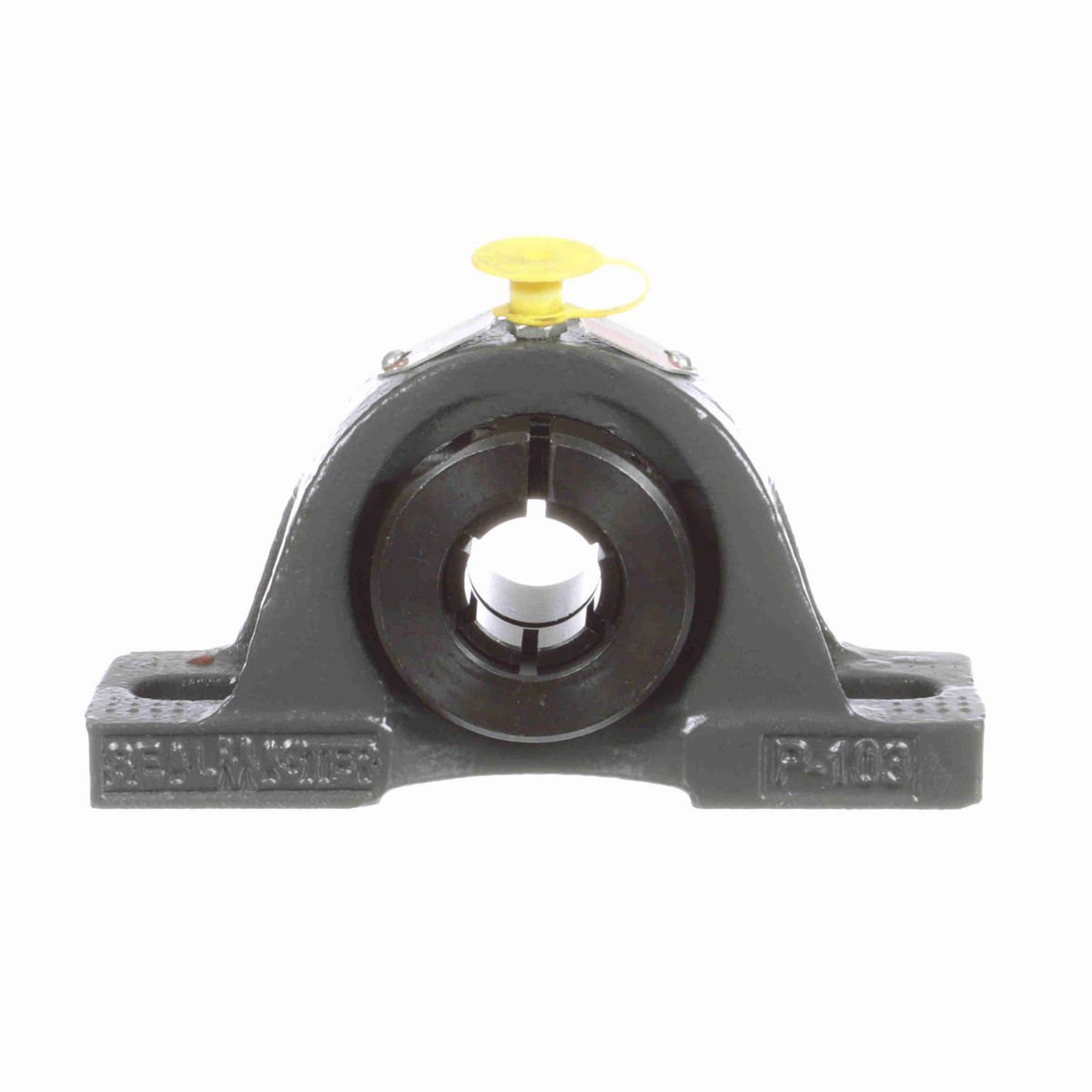

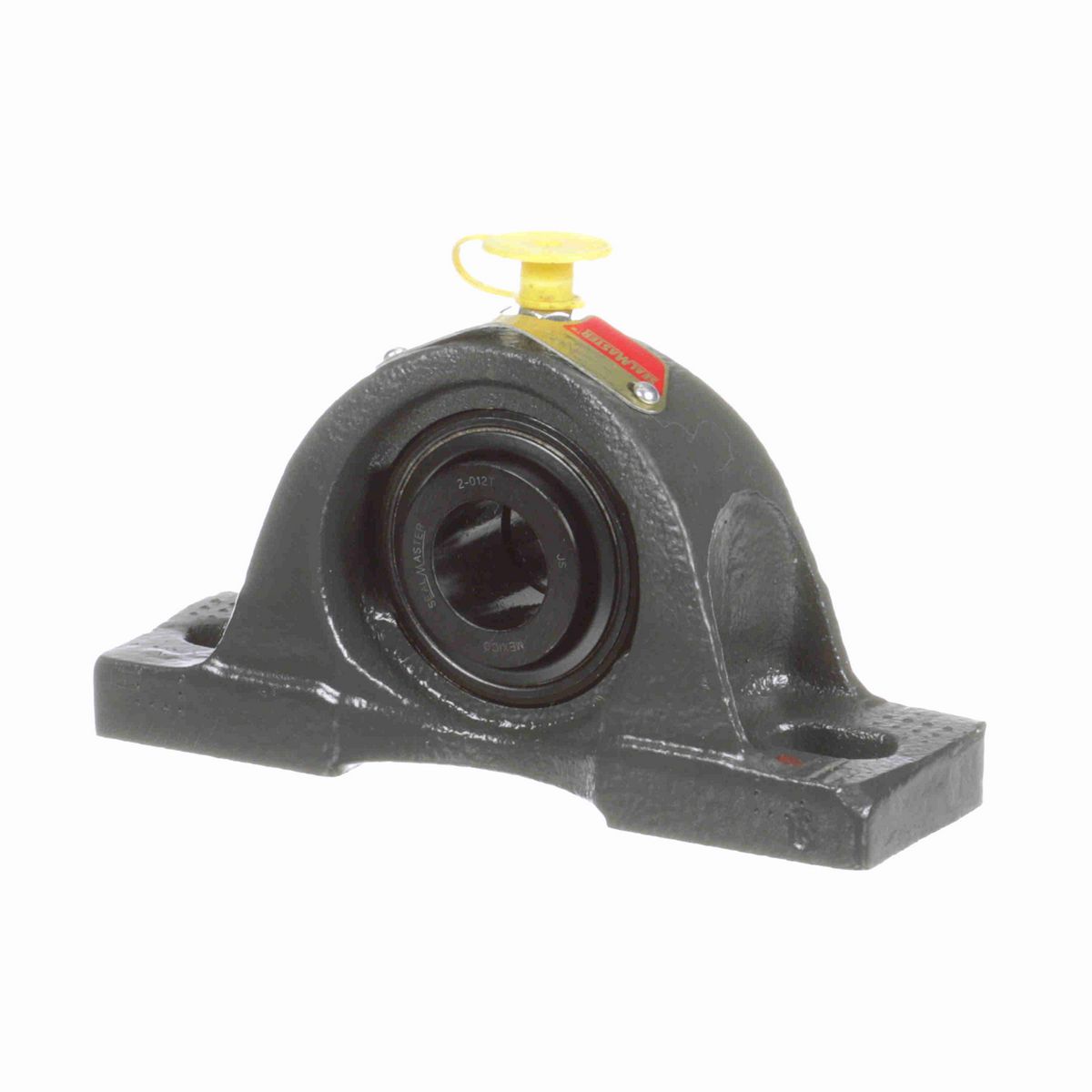

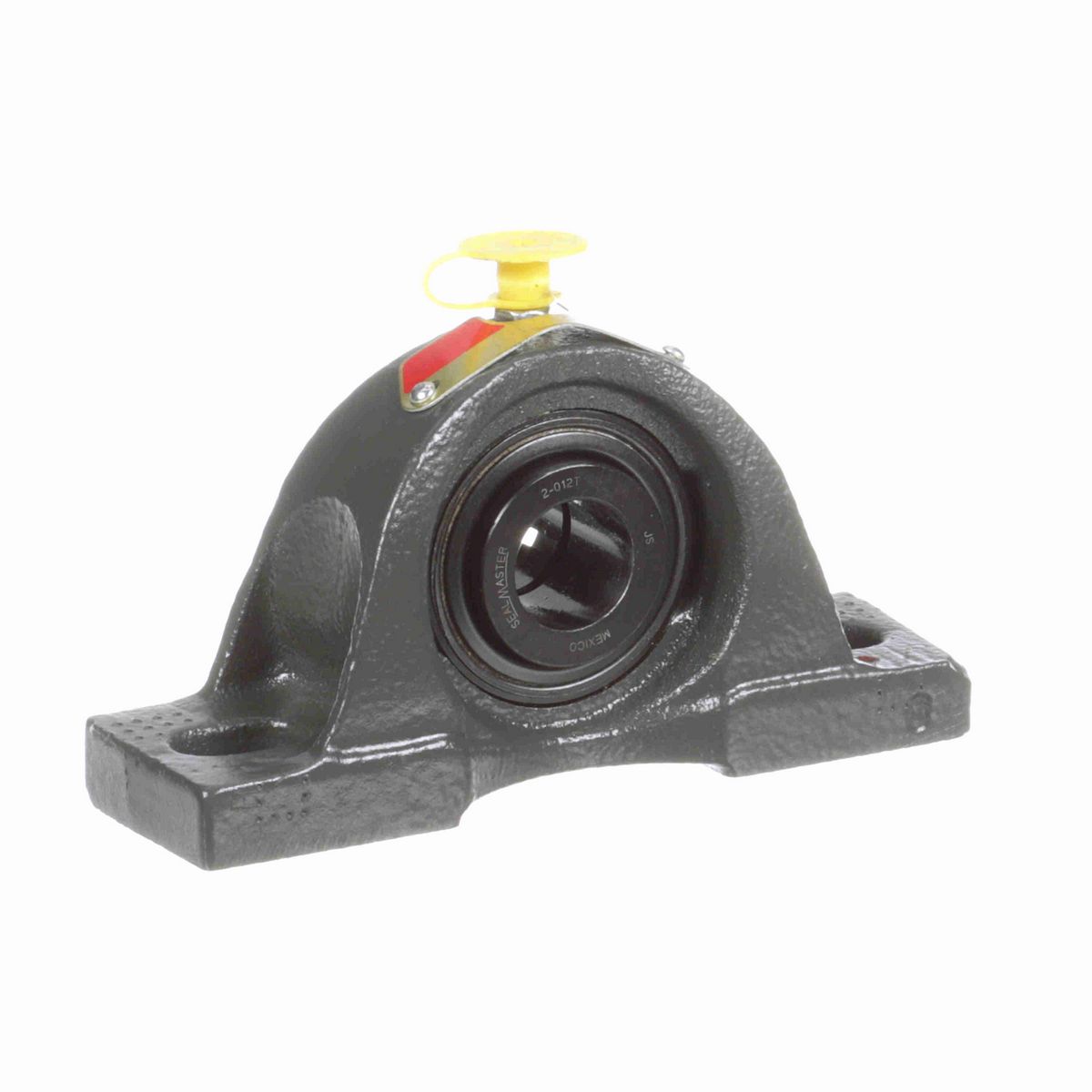

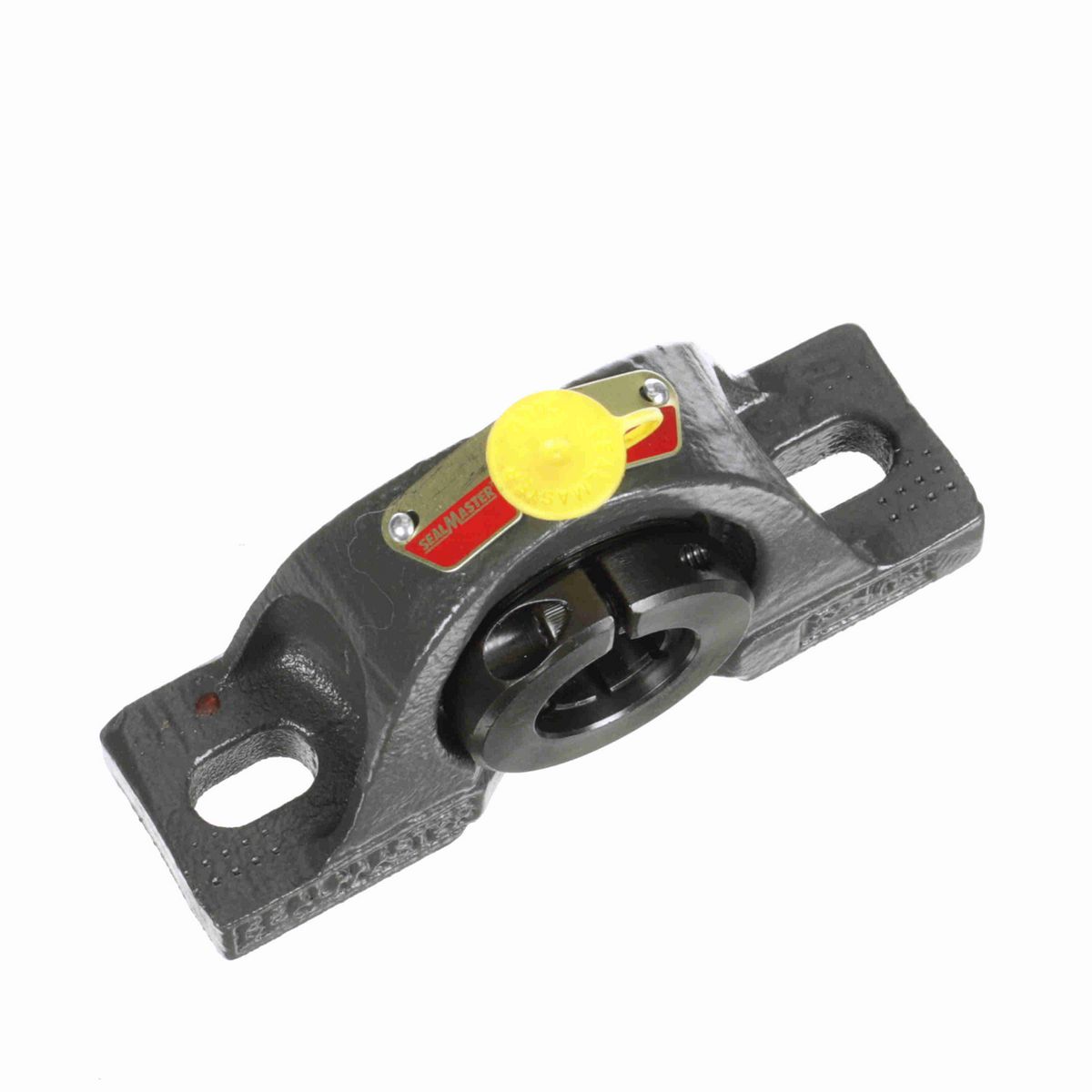

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	1.5 in
Overall Height (in)	2.56 in
Overall Length (in)	5 in
Base Width (in)	1.5 in
Bolt Size (in)	3/8 in
Bore Diameter (in)	0.75 in
Base to Center Height (in)	1.3125 in
Foot Height (in)	0.5 in
Length Through Bore (in)	1.28 in
Bolt Spacing Max (in)	4.13 in
Centerline to Outermost Bearing Face (in)	0.78 in
Bolt Spacing (in)	3.75 in
Bolt Spacing Min (in)	3.38 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Locking Collar Outside Diameter (in)	1.8 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Housing Material	Cast Iron
Max Operating Temperature (F)	220 °F
End Cap Available	No
Vibration Frequency Outer Ring Defect	0.0593 cps
Vibration Frequency Inner Ring Defect	0.0907 cps
Radial Clearance	Standard
Insert	2-012T
Grease Fitting Thread Size	1/4-28
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0066 cps
Vibration Frequency Roller Spin	0.0381 cps
Lubricant	Lithium Complex NLGI 2 Grease
Maximum Speed (RPM)	10200 rpm
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	1.188 in
Size Code	2-012
Dynamic Load Rating (lb)	2,611 lb
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	1,444 lb
Shaft Locking Type	Concentric
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Base Length (in)	5 in
Bearing Type	Standard Duty
Housing Coating	Powder Coated

General Specifications

UPC	662461029626
Weight	1.95 LB
Packaged Length	1.69 IN
Packaged Width	3.19 IN
Packaged Height	5.25 IN
HTC	8483.20.8040
Country of Origin	Mexico
