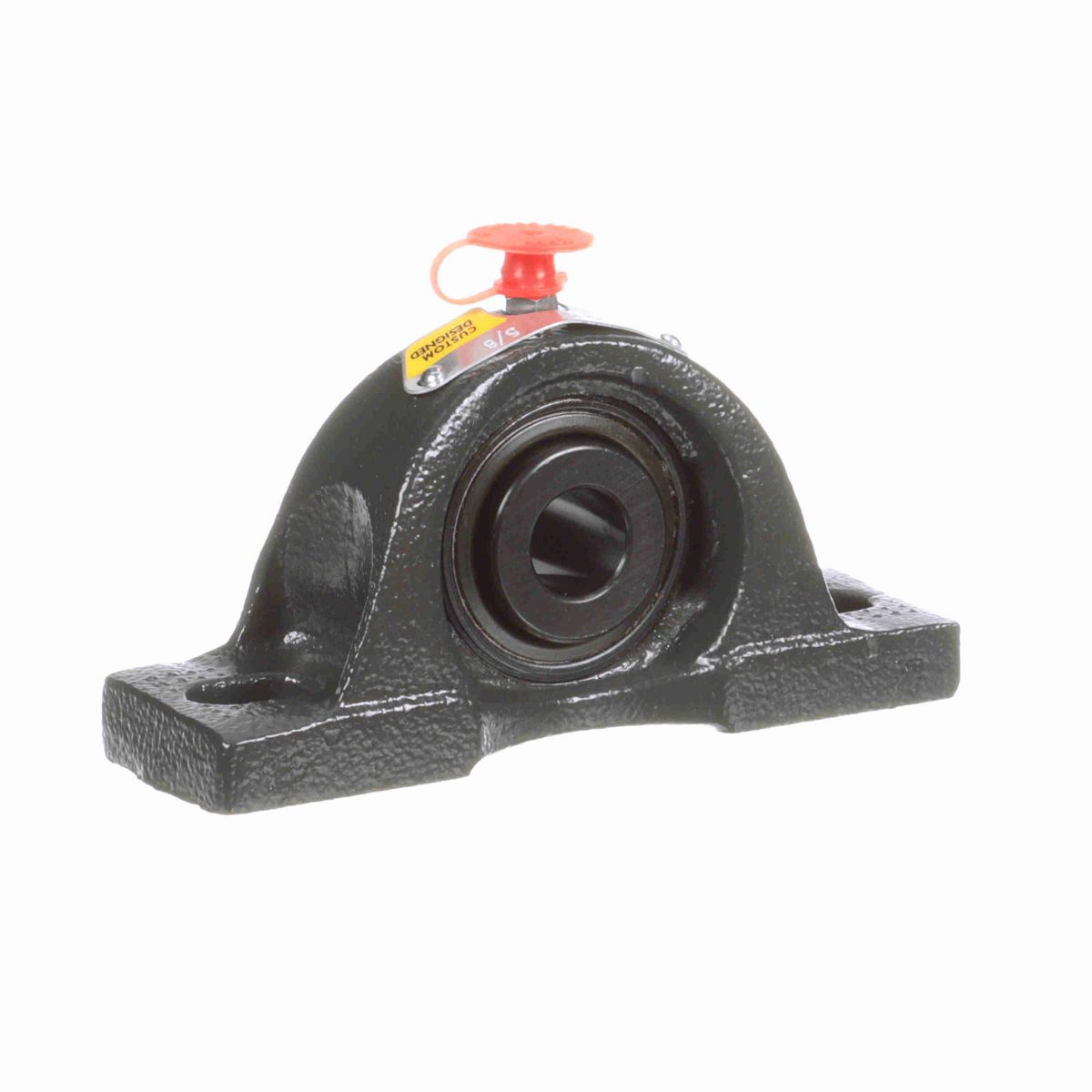

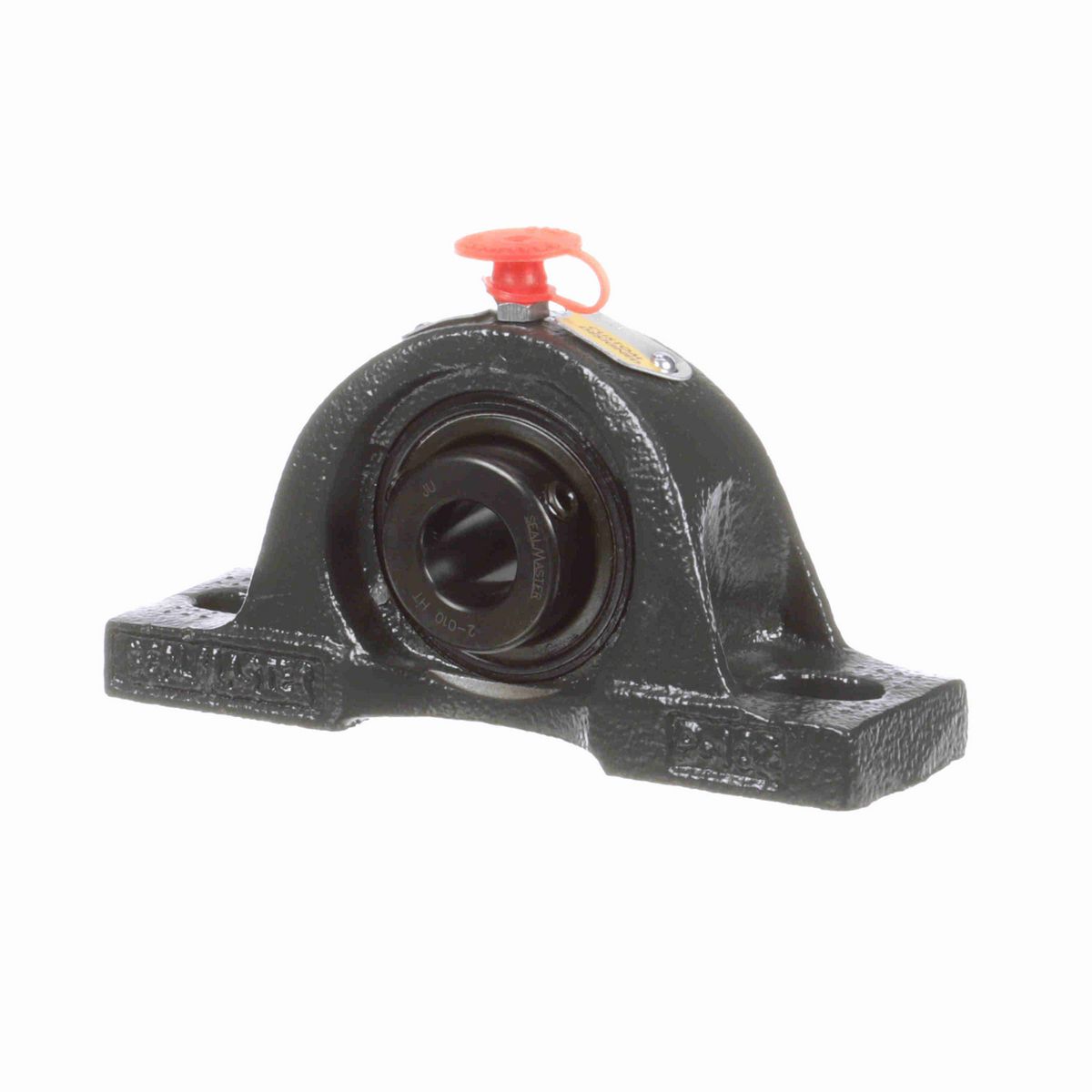

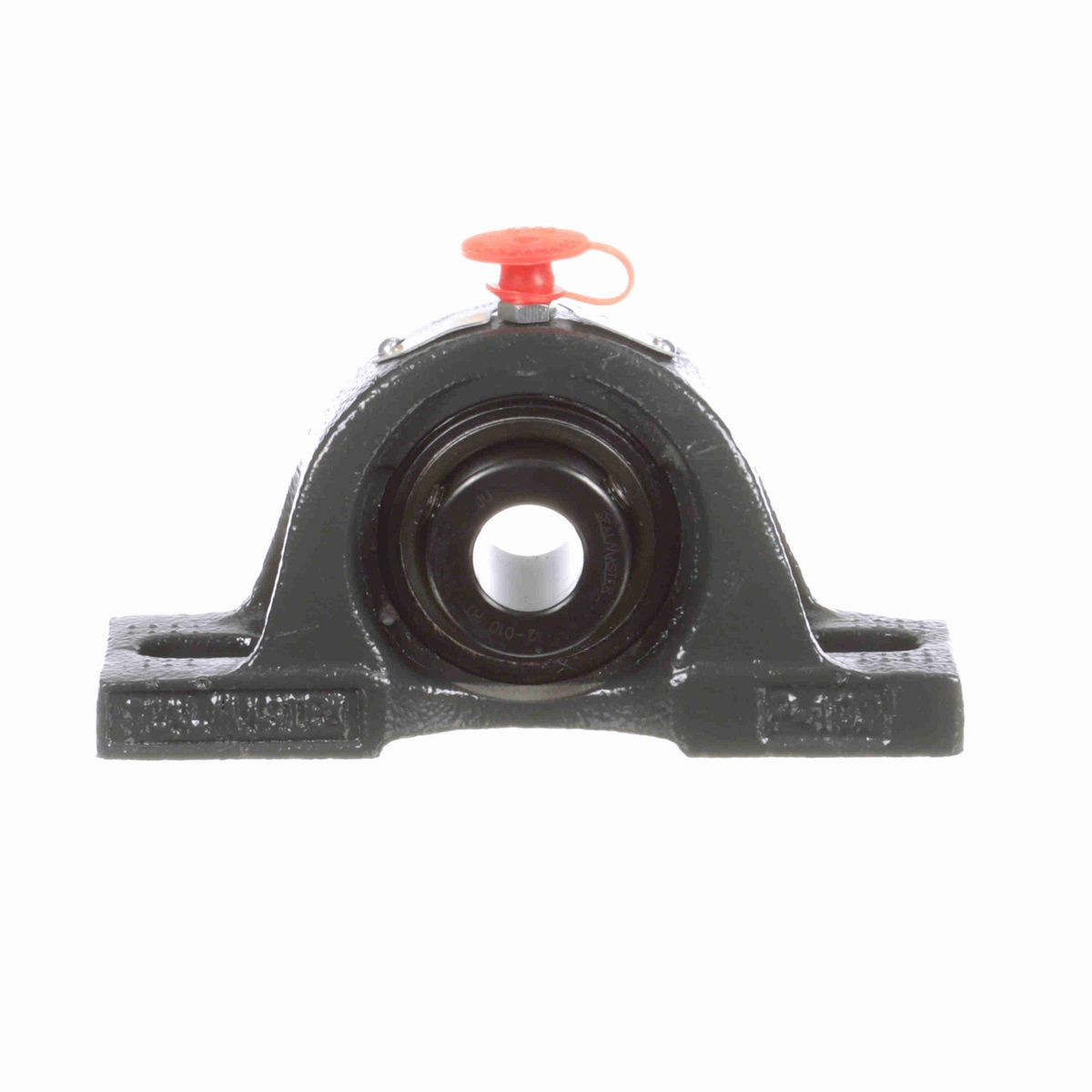

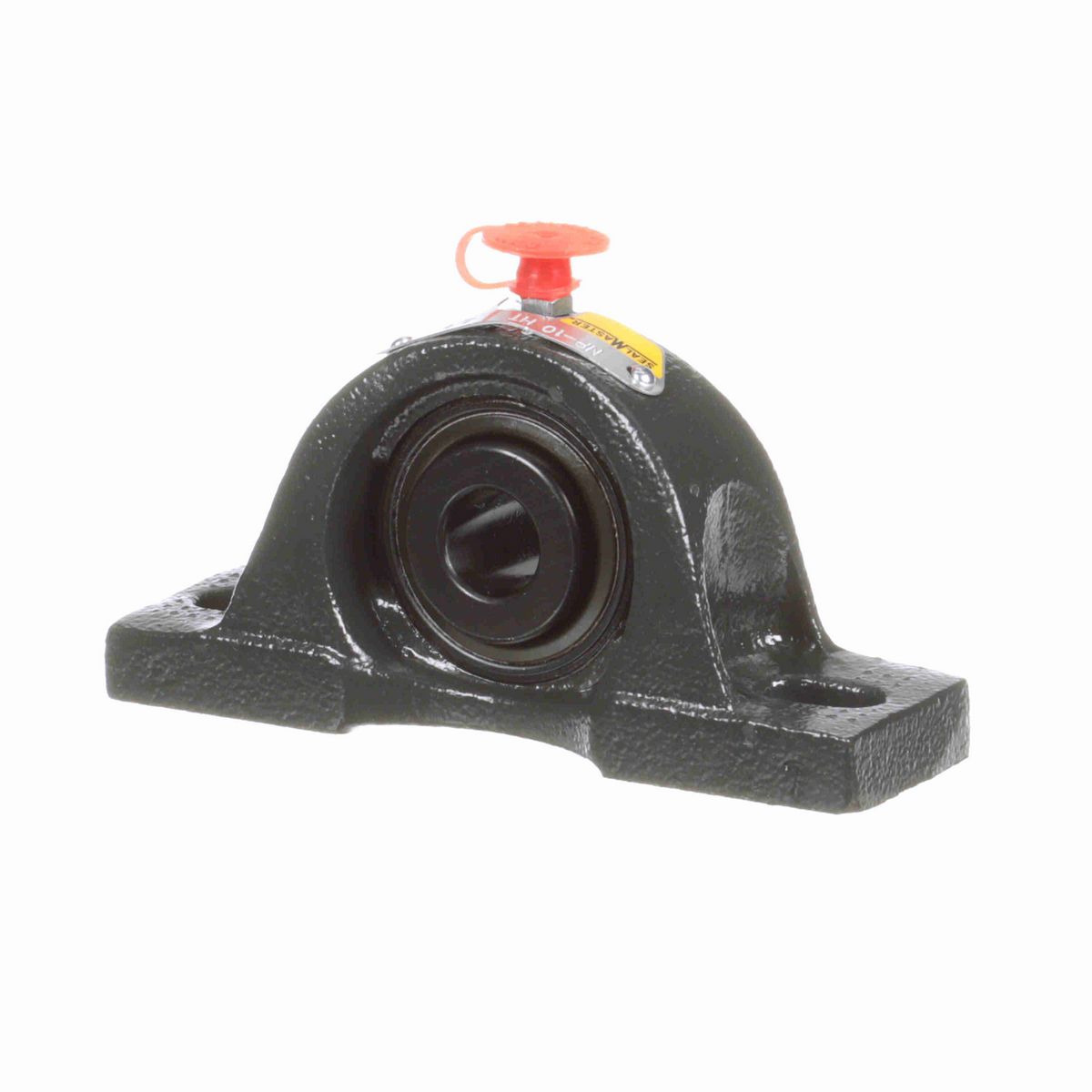

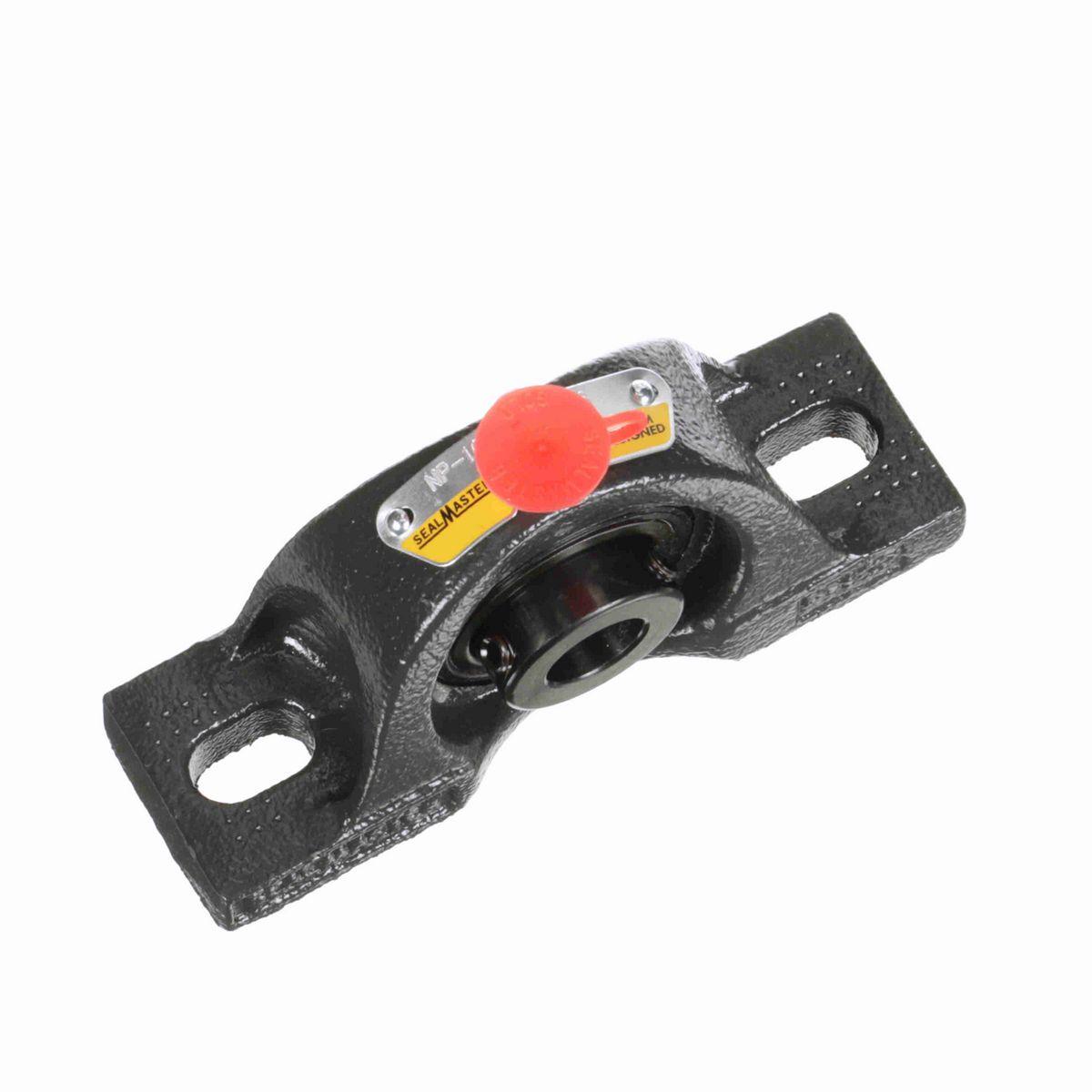

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger for dry and dusty environment
• Increased internal clearance and high temperature grease
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	1.5 in
Overall Length (in)	5 in
Overall Width (in)	1.5 in
Overall Height (in)	2.44 in
Bolt Size (in)	3/8 in
Bore Diameter (in)	0.625 in
Foot Height (in)	0.5 in
Base to Center Height (in)	1.1875 in
Length Through Bore (in)	1.219 in
Bolt Spacing Min (in)	3.38 in
Bolt Spacing (in)	3.75 in
Bolt Spacing Max (in)	4.13 in
Centerline to Outermost Bearing Face (in)	0.719 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Options	High Temperature
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	High Temp Labyrinth
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	1,444 lb
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Size Code	2-012
Maximum Speed (RPM)	3200 rpm
Housing Coating	Powder Coated
Lubricant	Synthetic NLGI 2 High Temperature Grease
Radial Clearance	Increased
Insert	2-010 HT
Dynamic Load Rating (lb)	2,611 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0361 cps
Cage Type	Land Riding Retainer
Vibration Frequency Inner Ring Defect	0.0915 cps
Grease Fitting Thread Size	1/4-28
End Cap Available	No
Vibration Frequency Outer Ring Defect	0.0585 cps
Vibration Frequency Fundamental Train	0.0065 cps
Inner Ring Outside Diameter (in)	1.188 in
Max Operating Temperature (F)	400 °F
Shaft Locking Type	Set Screw
Bearing Type	Standard Duty
Base Length (in)	5 in

General Specifications

UPC	662461355725
Weight	1.70 LB
Packaged Length	3.19 IN
Packaged Width	1.69 IN
Packaged Height	5.25 IN
HTC	8483.20.8040
Country of Origin	United States of America
