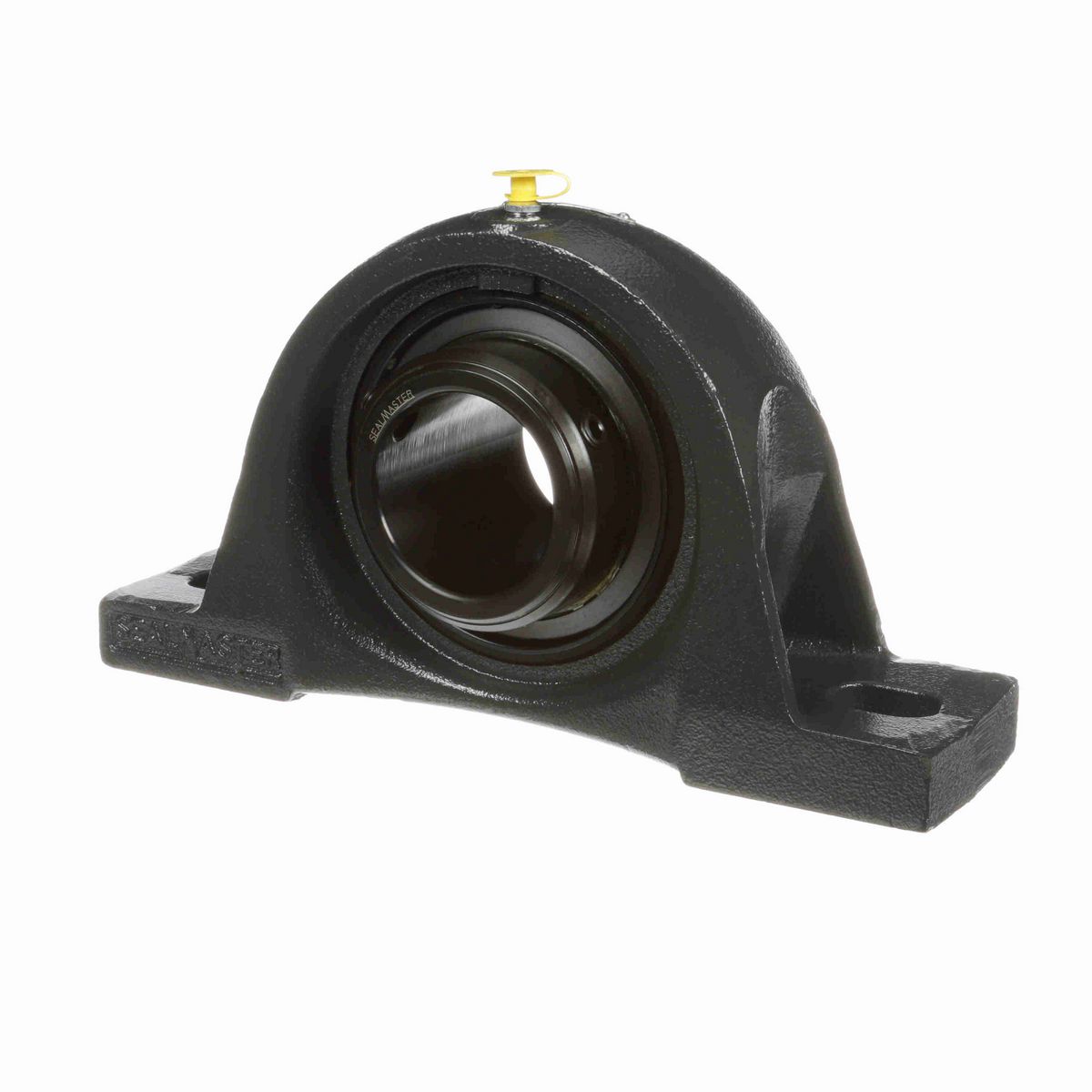

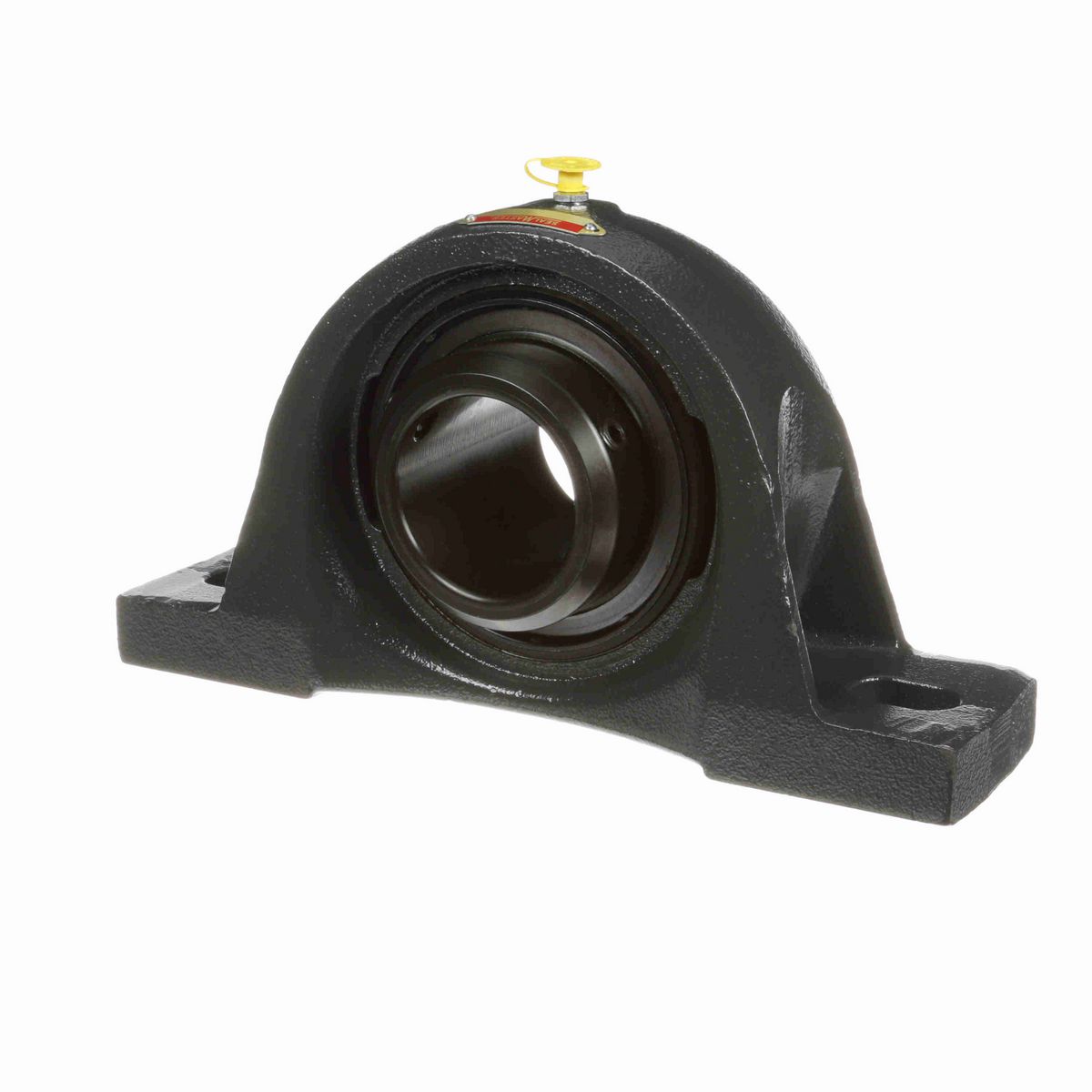

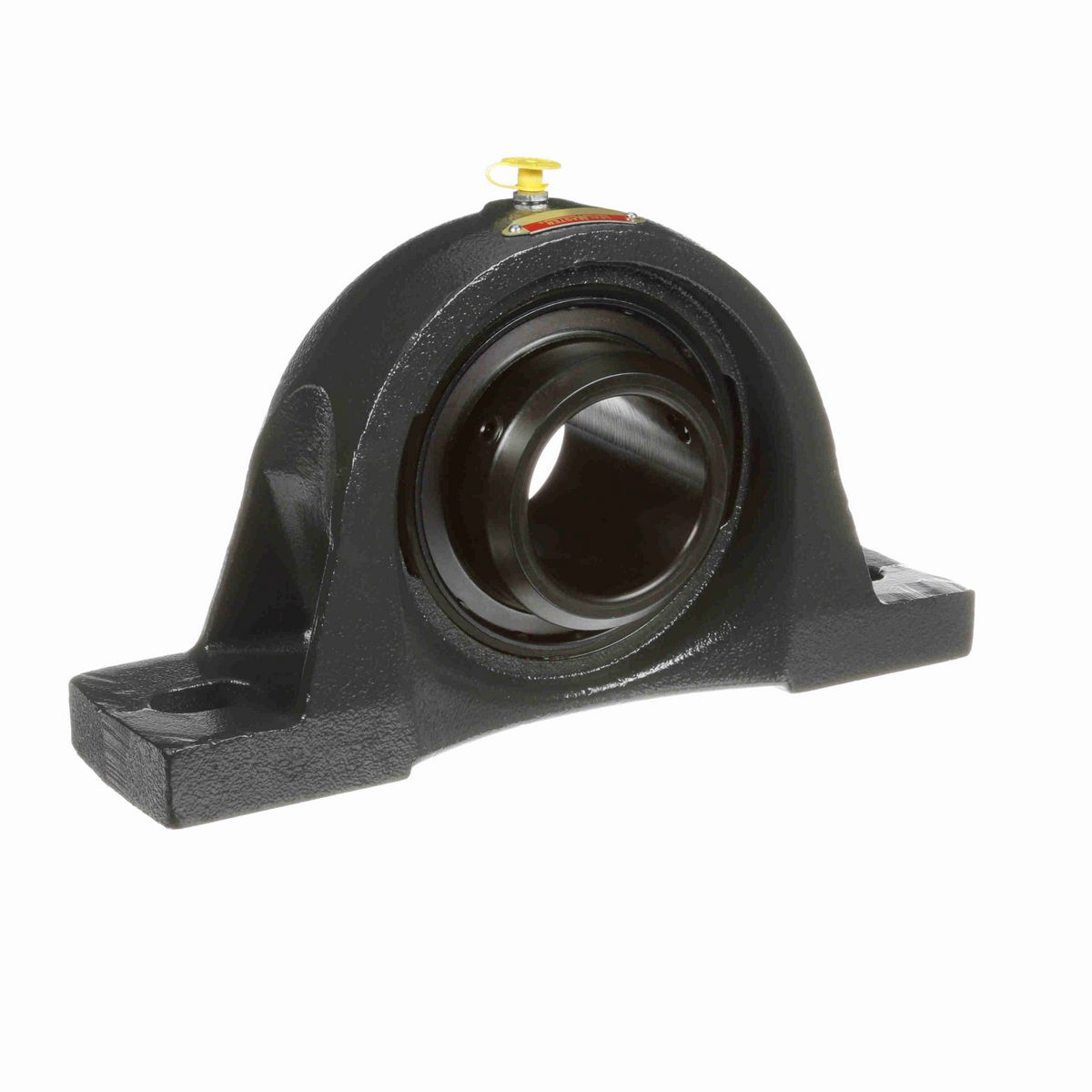

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	7.50 in
Overall Width (in)	3.88 in
Base Width (in)	3.38 in
Overall Length (in)	13.75 in
Bolt Size (in)	7/8 in
Bore Diameter (in)	2.9375 in
Foot Height (in)	1.19 in
Base to Center Height (in)	3.7500 in
Length Through Bore (in)	3.875 in
Bolt Spacing Max (in)	11.5 in
Bolt Spacing Min (in)	10 in
Centerline to Outermost Bearing Face (in)	1.938 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	Brass
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	500-650 in/lbs
Ability to Relubricate	Yes
Shaft Locking Type	Double Set Screw
Vibration Frequency Roller Spin	0.0470 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Static Load Rating (lb)	13,174 lb
Size Code	2-33
Maximum Speed (RPM)	1950 rpm
Housing Material	Cast Iron
End Cap Available	No
Fixed vs. Expansion	Fixed
Lubricant	Lithium Complex NLGI 2 Grease
Insert	3-215DC
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	Black Oxide
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	3.922 in
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/4 NPT
Vibration Frequency Fundamental Train	0.0069 cps
Dynamic Load Rating (lb)	17,412 lb
Vibration Frequency Inner Ring Defect	0.1074 cps
Max Operating Temperature (F)	220 °F
Base Length (in)	13.75 in
Bearing Type	Medium Duty
Vibration Frequency Outer Ring Defect	0.0759 cps

General Specifications

UPC	662461018637
Weight	33.00 LB
Packaged Length	14.25 IN
Packaged Width	8.06 IN
Packaged Height	4.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
