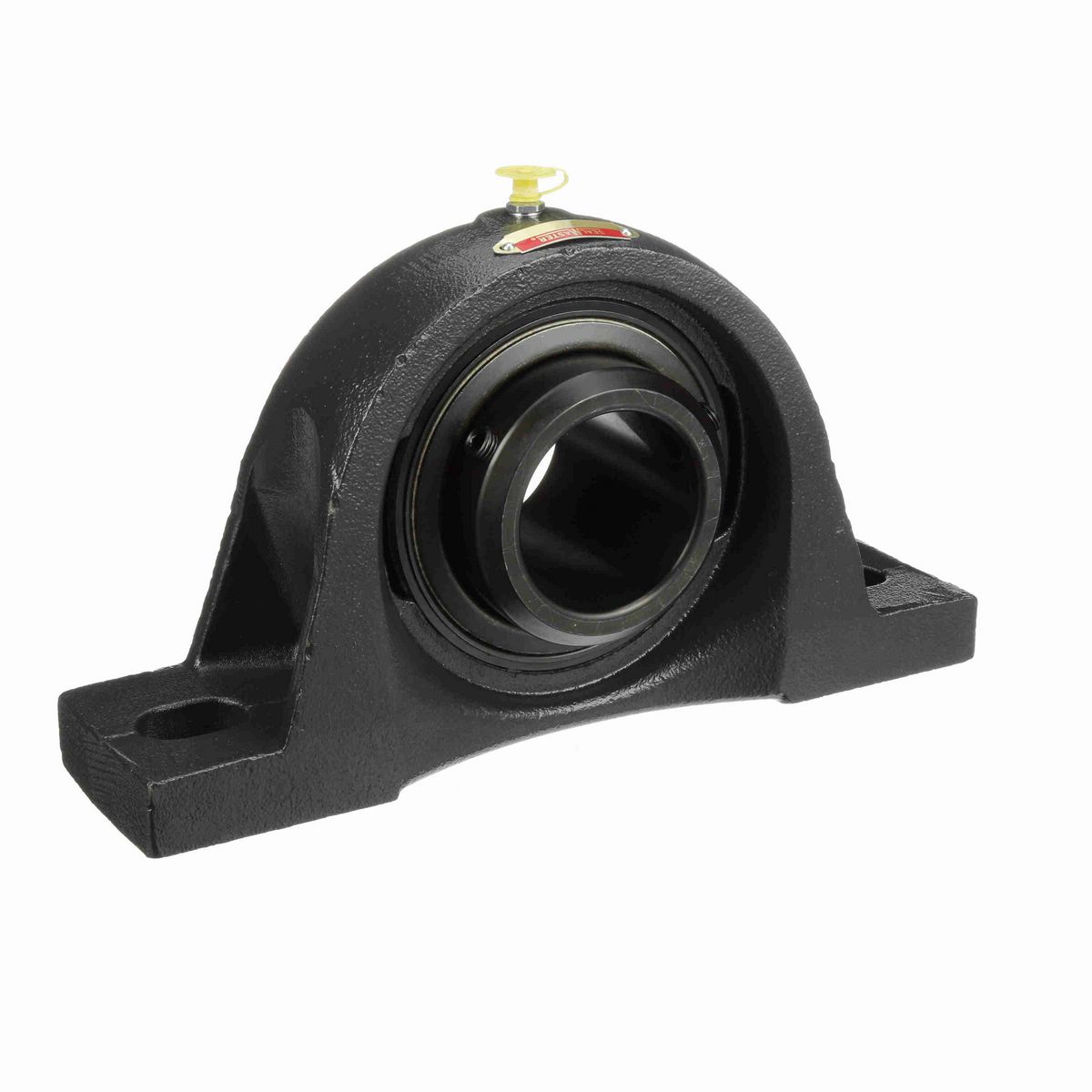

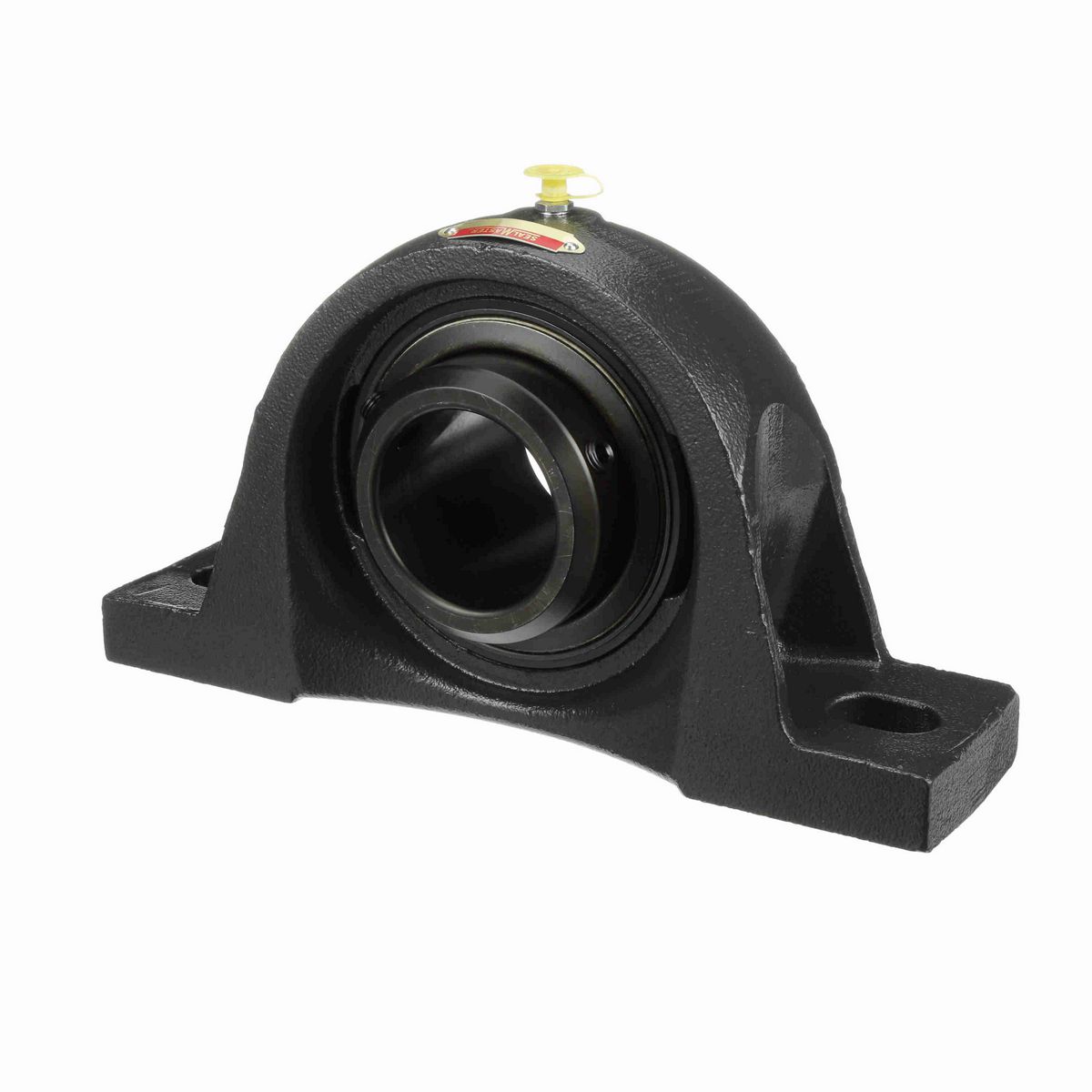

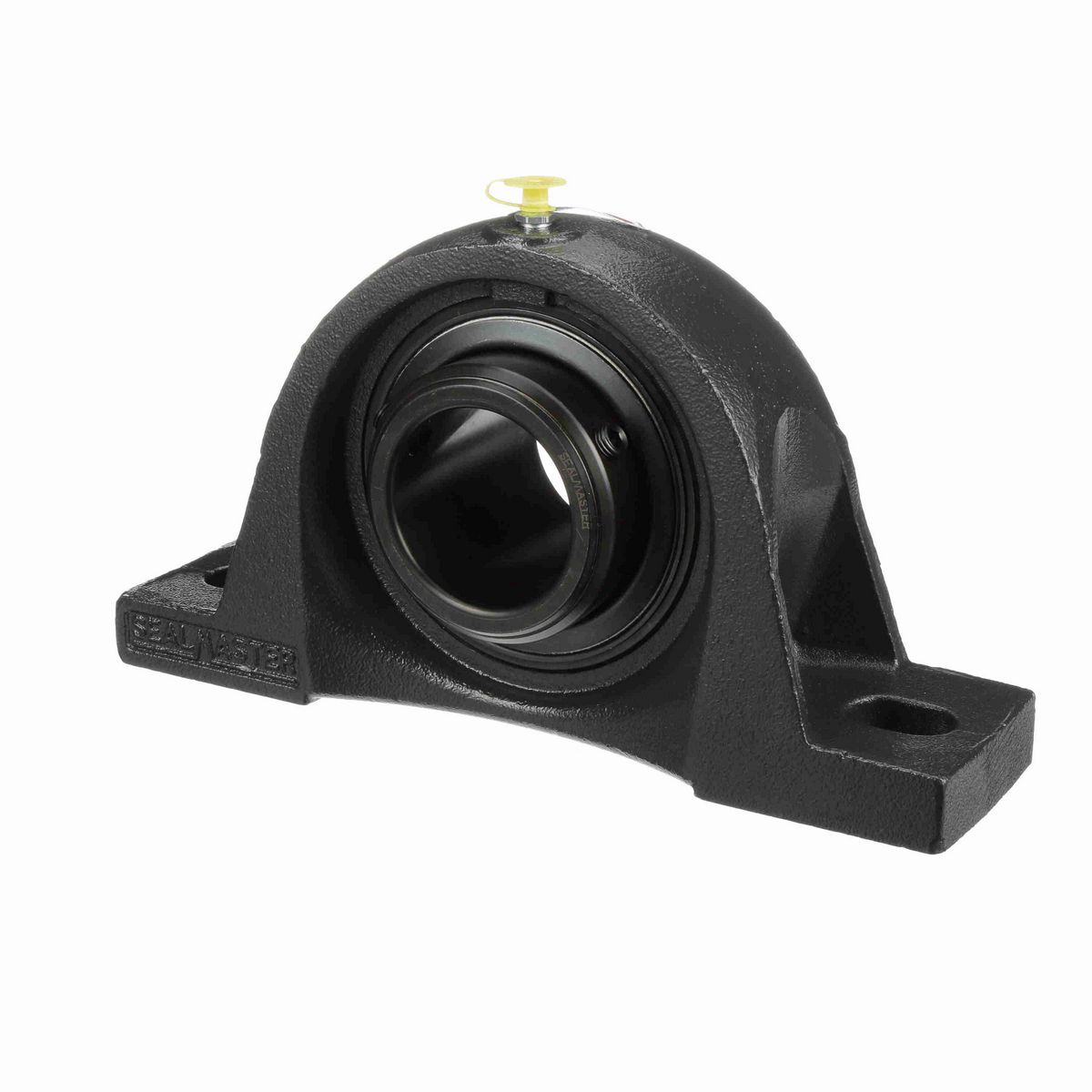

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSPD-43

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSPD-43
(0)
Под заказ
SealMaster
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Полное описание
Заказать товар
Товар доступен только под заказ.
Сроки поставки: 2–3 недели
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSPD-43
(0)
Под заказ
0 руб.
В корзину
Описание Отзывы Доставка


  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Dimensions
Overall Length (in)13.38 in
Overall Height (in)7.31 in
Overall Width (in)3.5 in
Base Width (in)3.25 in
Bolt Size (in)3/4 in
Bore Diameter (in)2.6875 in
Base to Center Height (in)3.7500 in
Foot Height (in)1 in
Length Through Bore (in)3.500 in
Centerline to Outermost Bearing Face (in)1.750 in
Bolt Spacing Min (in)10.13 in
Bolt Spacing Max (in)11.38 in
Technical Specifications
Housing BaseSolid
Rolling ElementBall Bearing
Bore ShapeStraight
Housing ConstructionOne Piece
Misalignment TypeStatic Only
Housing ColorBlack
Outer Ring Land ProfileStandard
Cage MaterialBrass
Housing TypePillow Block, Two Bolt
Seal TypeFelt Labyrinth Seal
Housing StylePillow Block
Ability to RelubricateYes
Setscrew Torque (in-lbs)500-650 in/lbs
Inner Race Heat Treat MethodZone-Hardened
Housing CoatingPowder Coated
Bearing Insert FinishBlack Oxide
Radial ClearanceStandard
Dynamic Load Rating (lb)14,839 lb
Fixed vs. ExpansionFixed
Insert3-211D
Vibration Frequency Roller Spin0.0476 cps
Housing MaterialCast Iron
Shaft Locking TypeDouble Set Screw
Vibration Frequency Fundamental Train0.0069 cps
Size Code2-215
End Cap AvailableNo
Inner Ring Outside Diameter (in)3.641 in
Static Load Rating (lb)11,224 lb
Grease Fitting Thread Size1/8 NPT
Misalignment Capability±2.0° Misalignment - Static Only
Base Length (in)13.38 in
Maximum Speed (RPM)3600 rpm
Max Operating Temperature (F)220 °F
LubricantLithium Complex NLGI 2 Grease
Vibration Frequency Inner Ring Defect0.1072 cps
Cage TypeLand Riding Retainer
Bearing TypeMedium Duty
Vibration Frequency Outer Ring Defect0.0761 cps
Bearing Insert Material52100 Bearing Steel
General Specifications
UPC662461016169
Weight28.00 LB
Packaged Length8.06 IN
Packaged Width14.25 IN
Packaged Height4.00 IN
HTC8483.20.8040
Country of OriginUnited States of America
