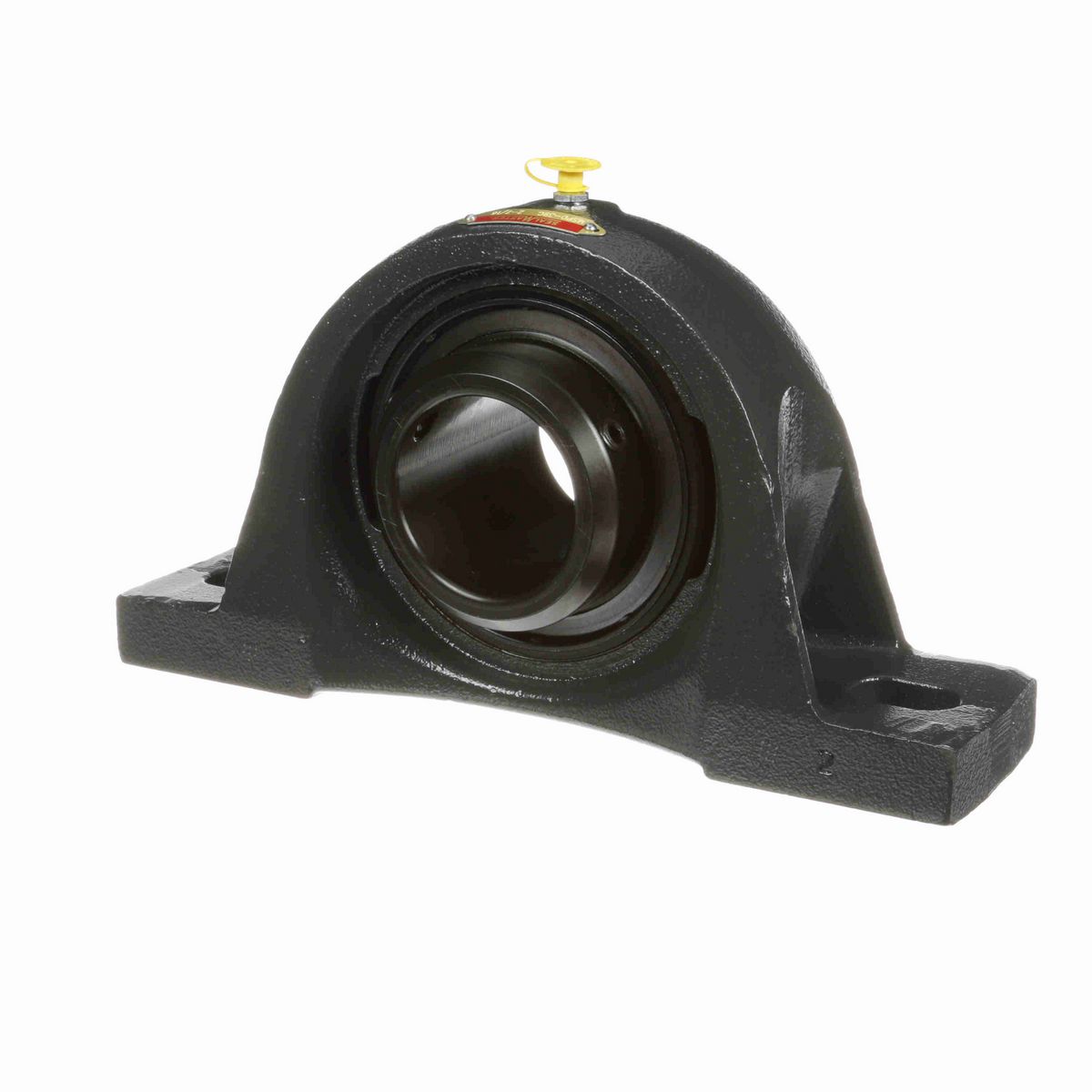

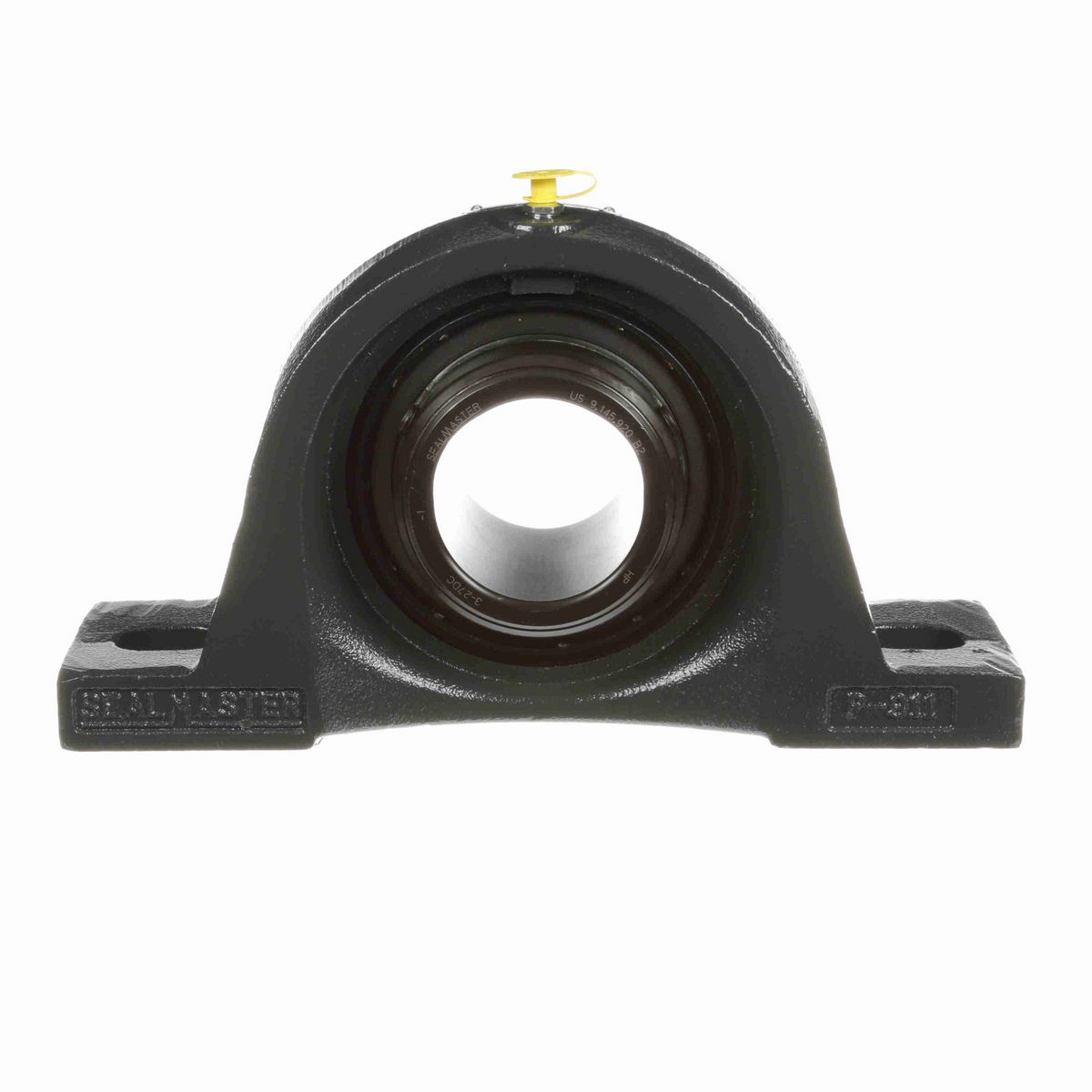

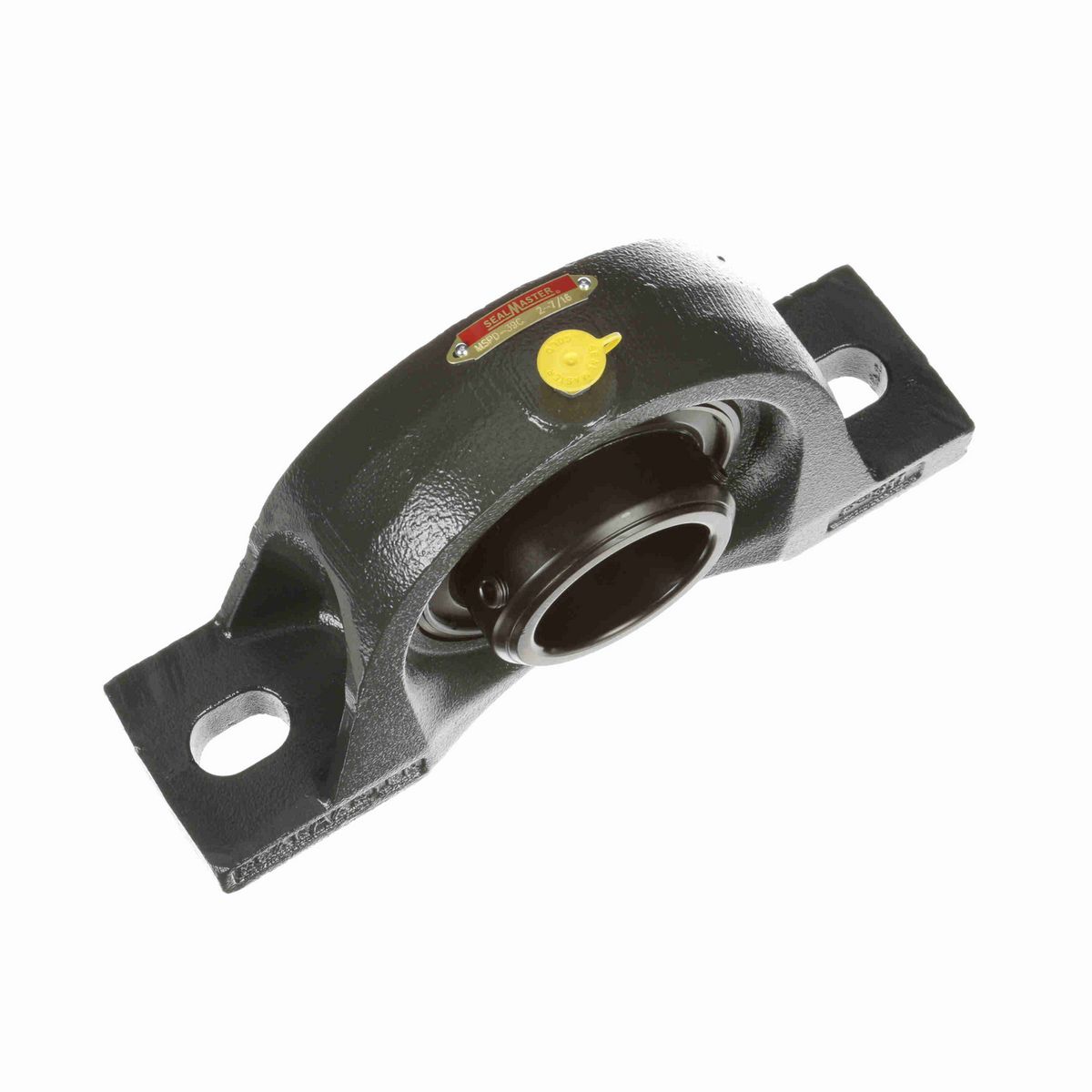

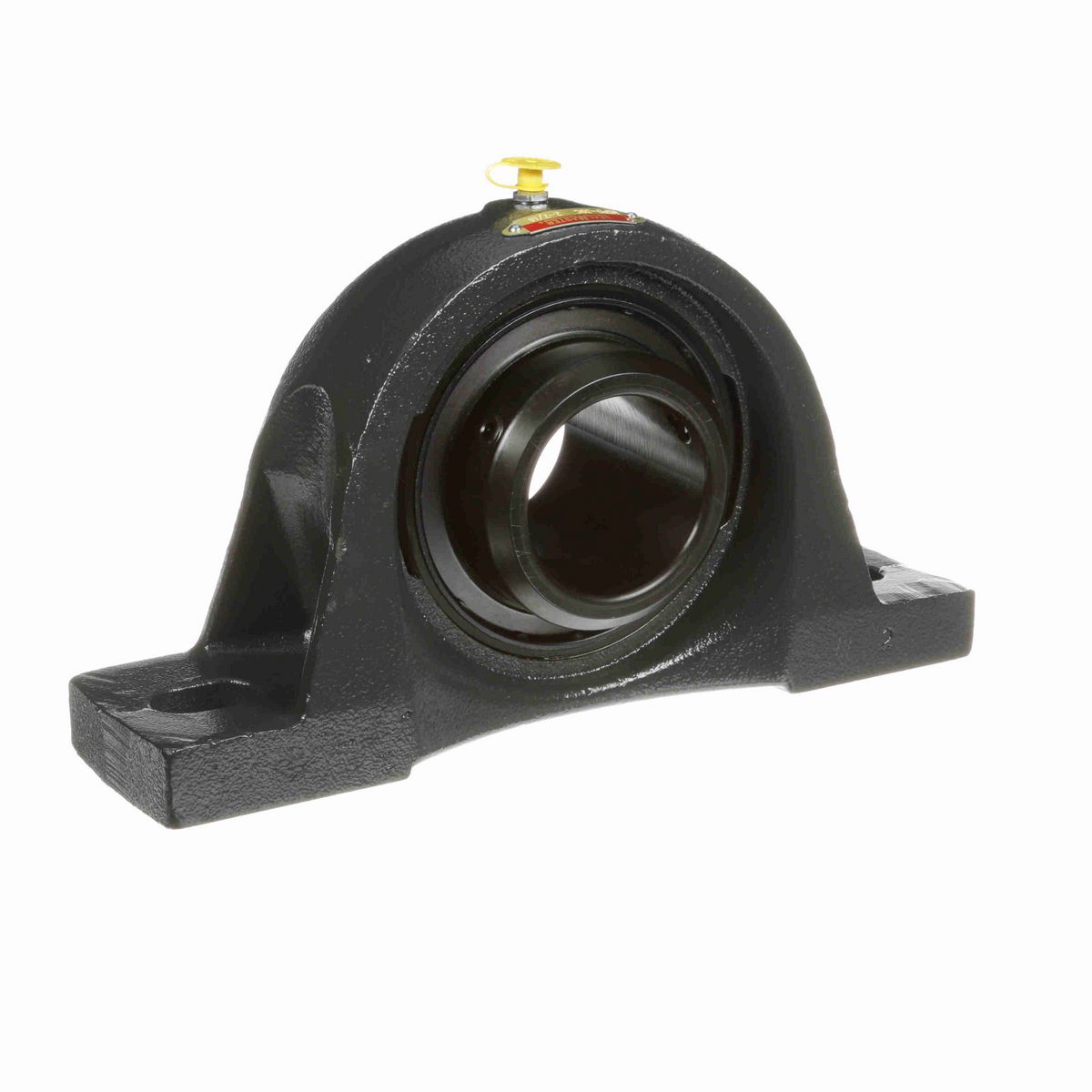

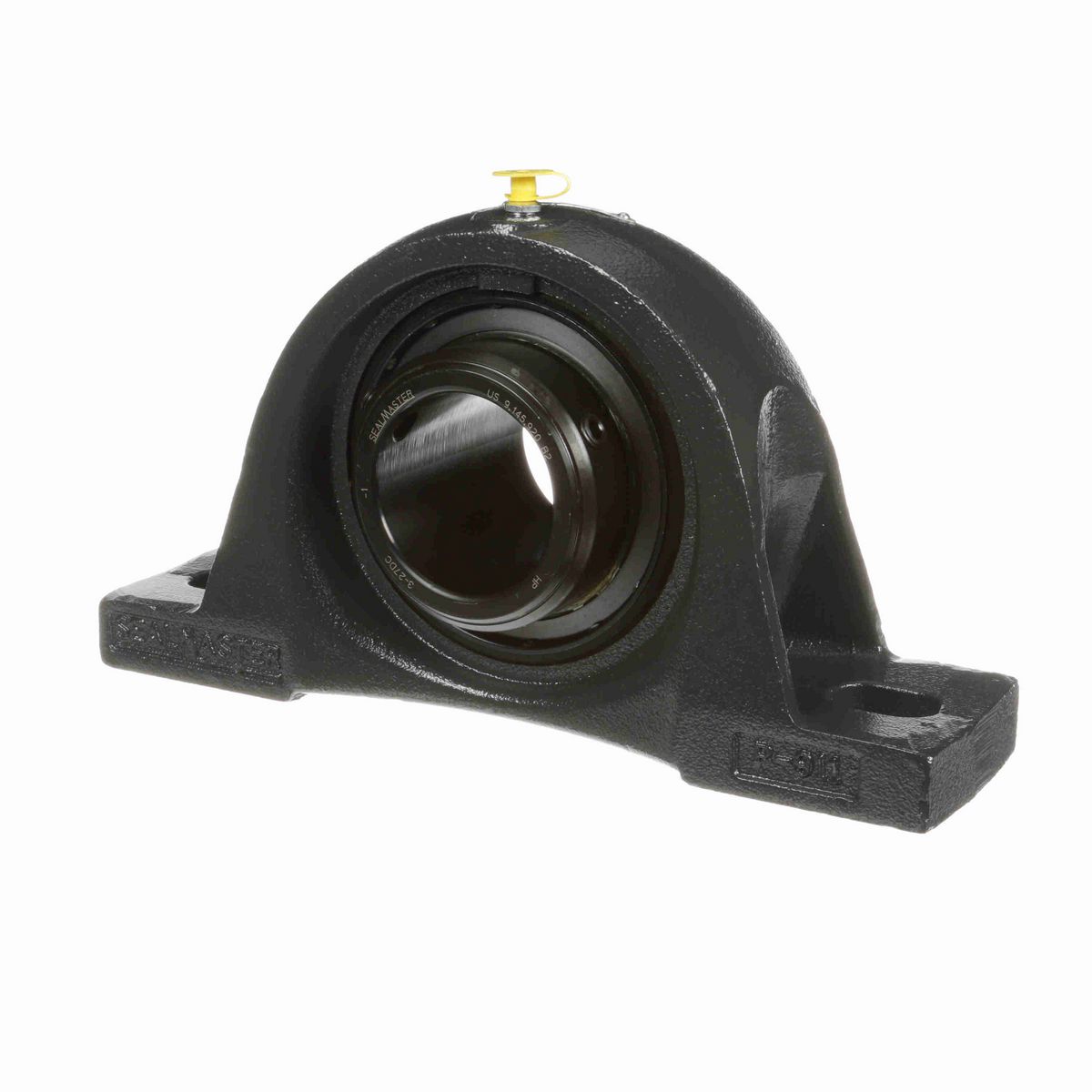

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	3.00 in
Overall Length (in)	11.75 in
Overall Height (in)	6.31 in
Overall Width (in)	3.50 in
Bolt Size (in)	3/4 in
Bore Diameter (in)	2.4375 in
Base to Center Height (in)	3.1250 in
Foot Height (in)	1.00 in
Length Through Bore (in)	3.498 in
Bolt Spacing Min (in)	8.75 in
Centerline to Outermost Bearing Face (in)	1.750 in
Bolt Spacing Max (in)	9.88 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	Brass
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Setscrew Torque (in-lbs)	350-450 in/lbs
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Shaft Locking Type	Double Set Screw
End Cap Available	No
Insert	3-27DC
Housing Material	Cast Iron
Vibration Frequency Inner Ring Defect	0.0982 cps
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	220 °F
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Bearing Type	Medium Duty
Base Length (in)	11.75 in
Static Load Rating (lb)	10,063 lb
Size Code	2-211
Maximum Speed (RPM)	2225 rpm
Housing Coating	Powder Coated
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	3.438 in
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Roller Spin	0.0451 cps
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Outer Ring Defect	0.0684 cps
Lubricant	Lithium Complex NLGI 2 Grease
Dynamic Load Rating (lb)	13,971 lb

General Specifications

UPC	662461018606
Weight	20.75 LB
Packaged Length	12.38 IN
Packaged Width	7.13 IN
Packaged Height	3.56 IN
HTC	8483.20.8040
Country of Origin	United States of America
