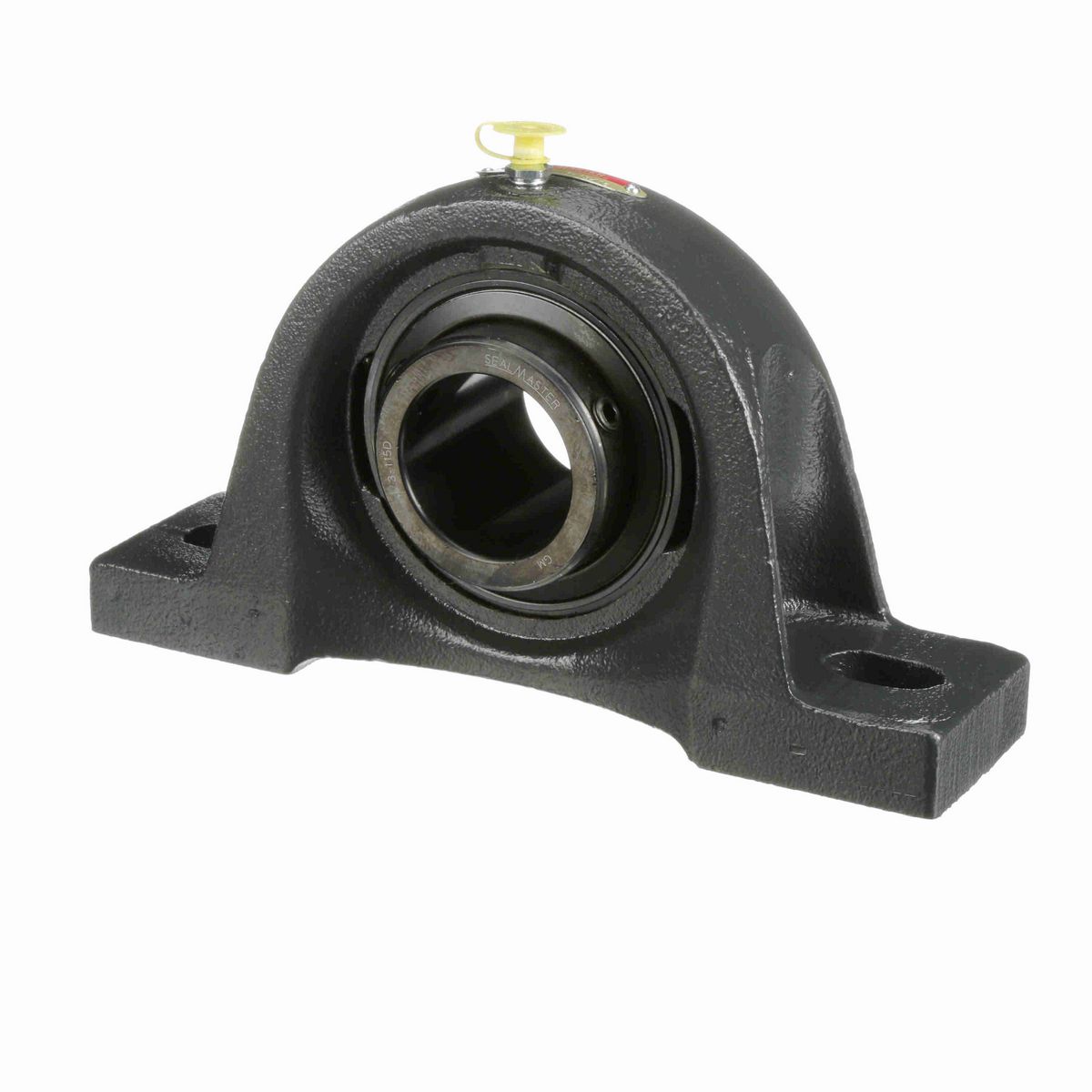

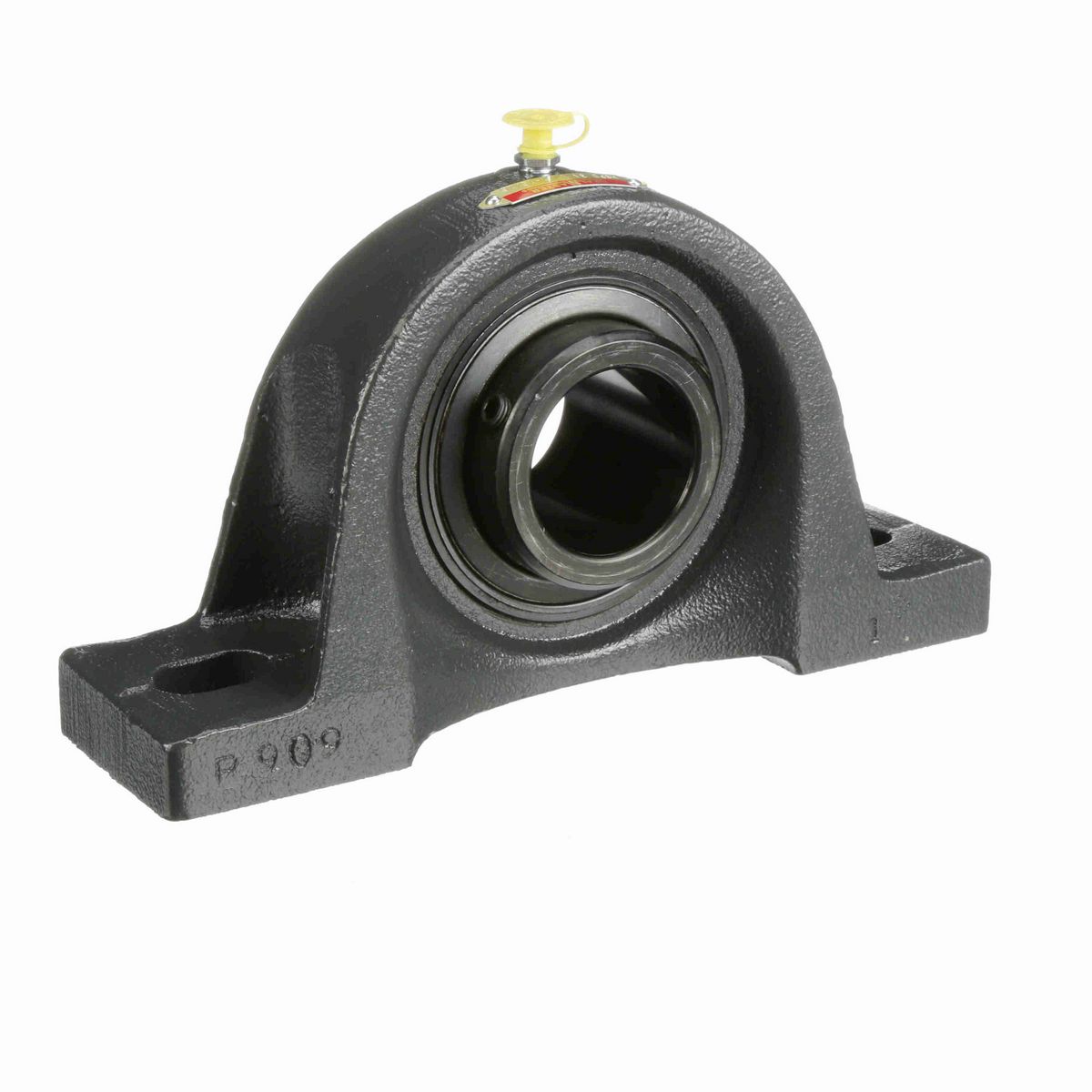

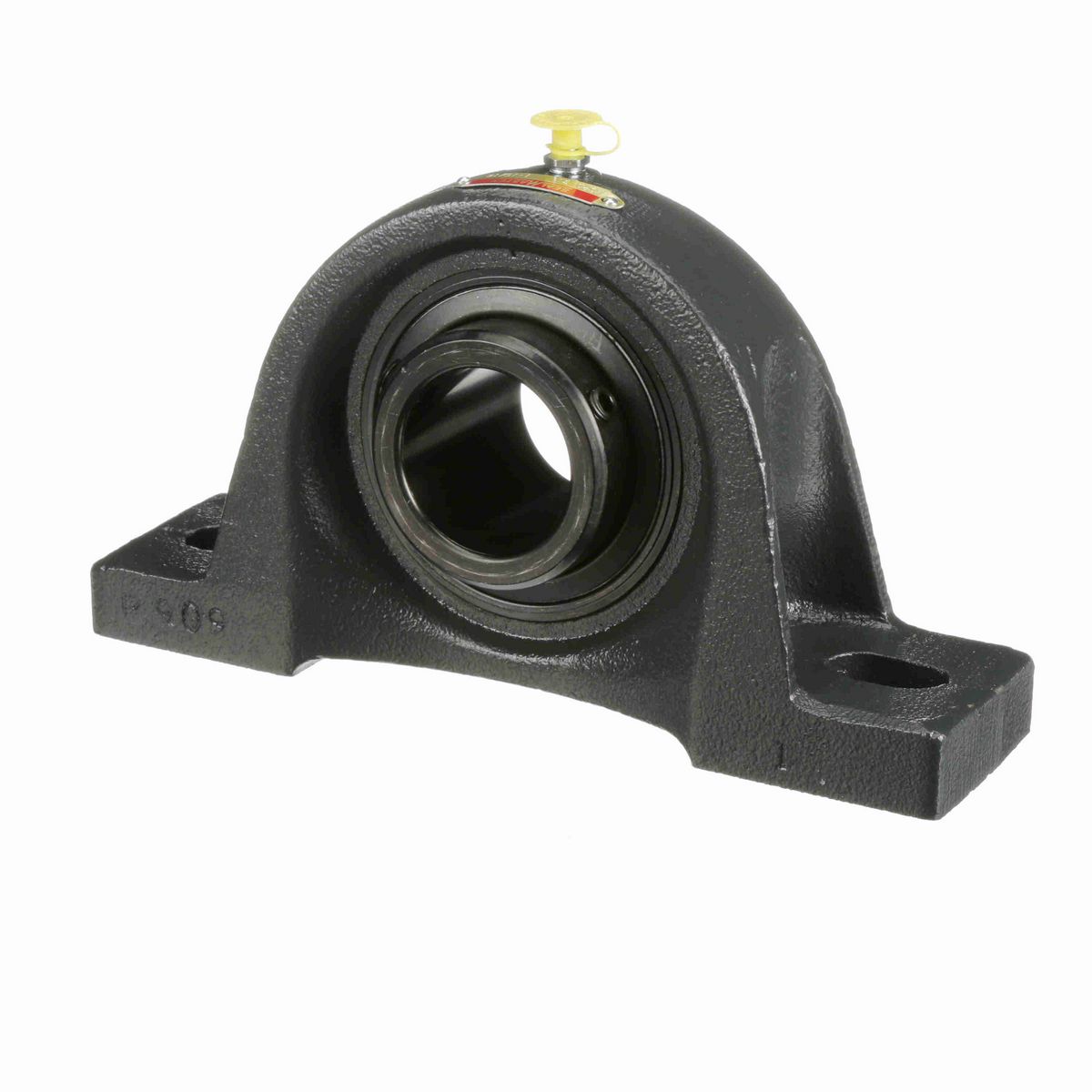

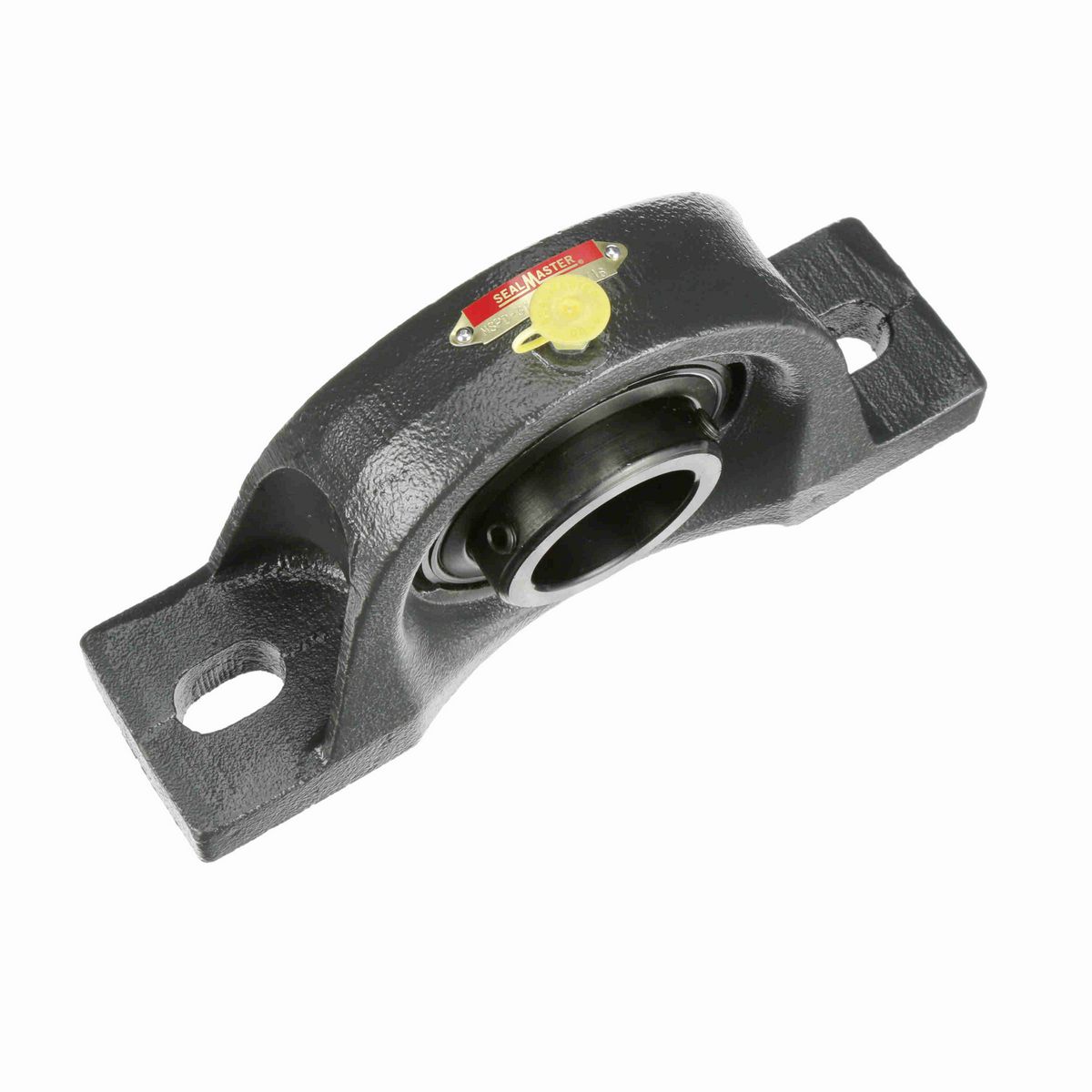

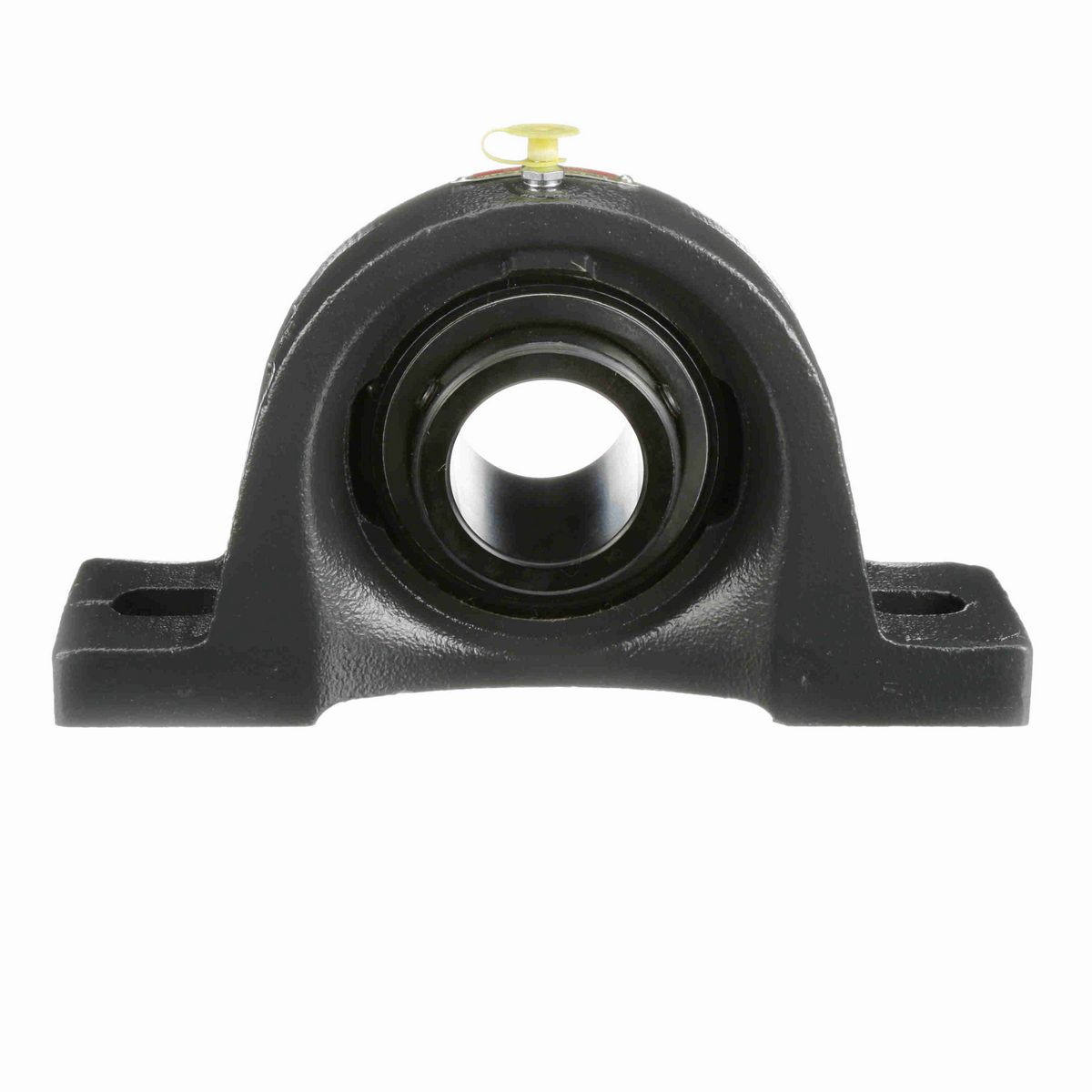

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.63 in
Overall Length (in)	10 in
Base Width (in)	2.63 in
Overall Height (in)	5.44 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.88 in
Base to Center Height (in)	2.7500 in
Length Through Bore (in)	2.625 in
Bolt Spacing Min (in)	7.13 in
Bolt Spacing Max (in)	8.38 in
Centerline to Outermost Bearing Face (in)	1.313 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Static Load Rating (lb)	6,601 lb
Shaft Locking Type	Double Set Screw
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	9,752 lb
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	2.625 in
Housing Material	Cast Iron
Base Length (in)	10.00 in
Housing Coating	Powder Coated
Maximum Speed (RPM)	4500 rpm
Bearing Type	Medium Duty
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Outer Ring Defect	0.068 cps
Max Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0987 cps
End Cap Available	No
Grease Fitting Thread Size	1/8 NPT
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Vibration Frequency Roller Spin	0.0437 cps
Lubricant	Lithium Complex NLGI 2 Grease
Insert	3-115D
Size Code	2-23

General Specifications

UPC	662461016107
Weight	12.55 LB
Packaged Length	10.38 IN
Packaged Width	6.50 IN
Packaged Height	3.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
