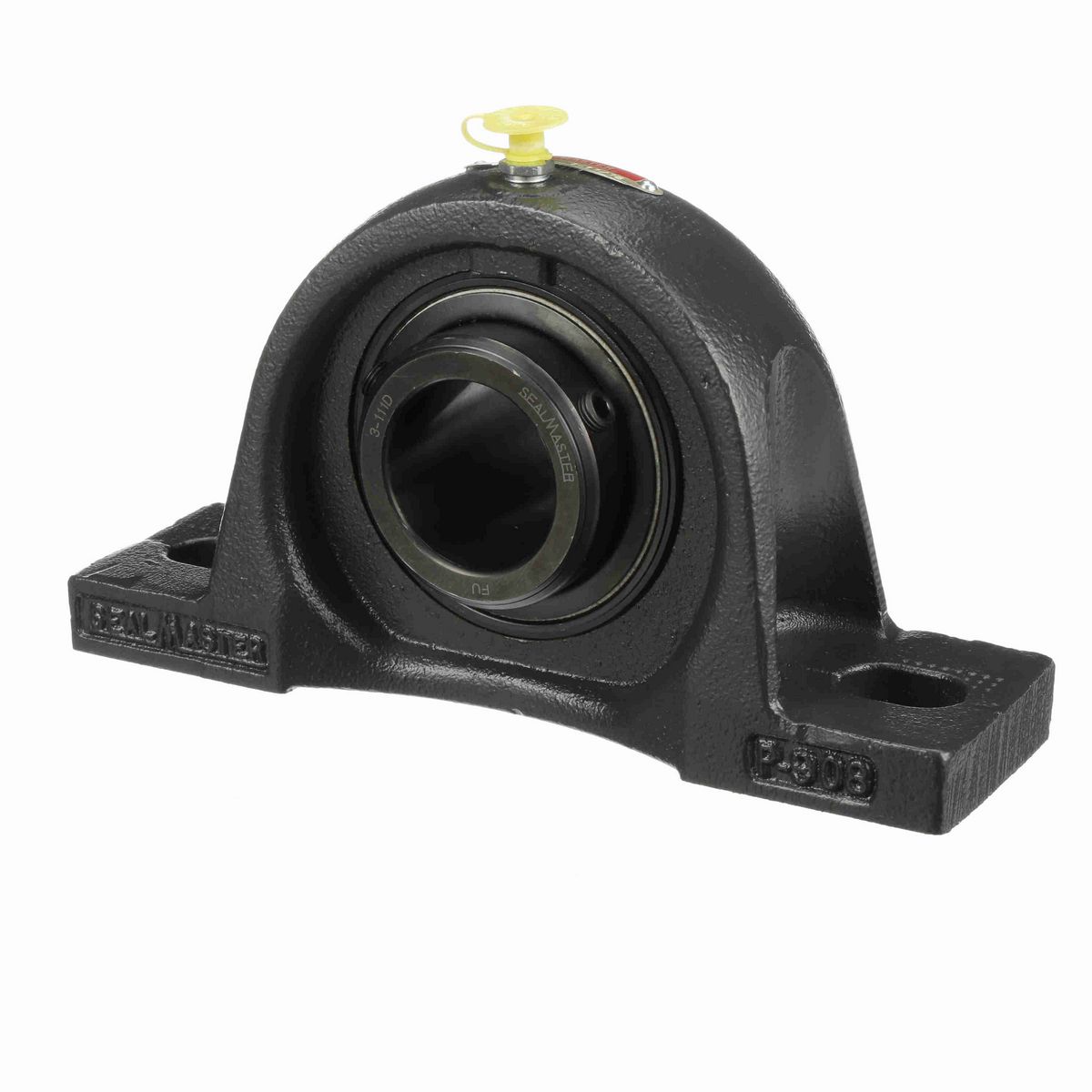

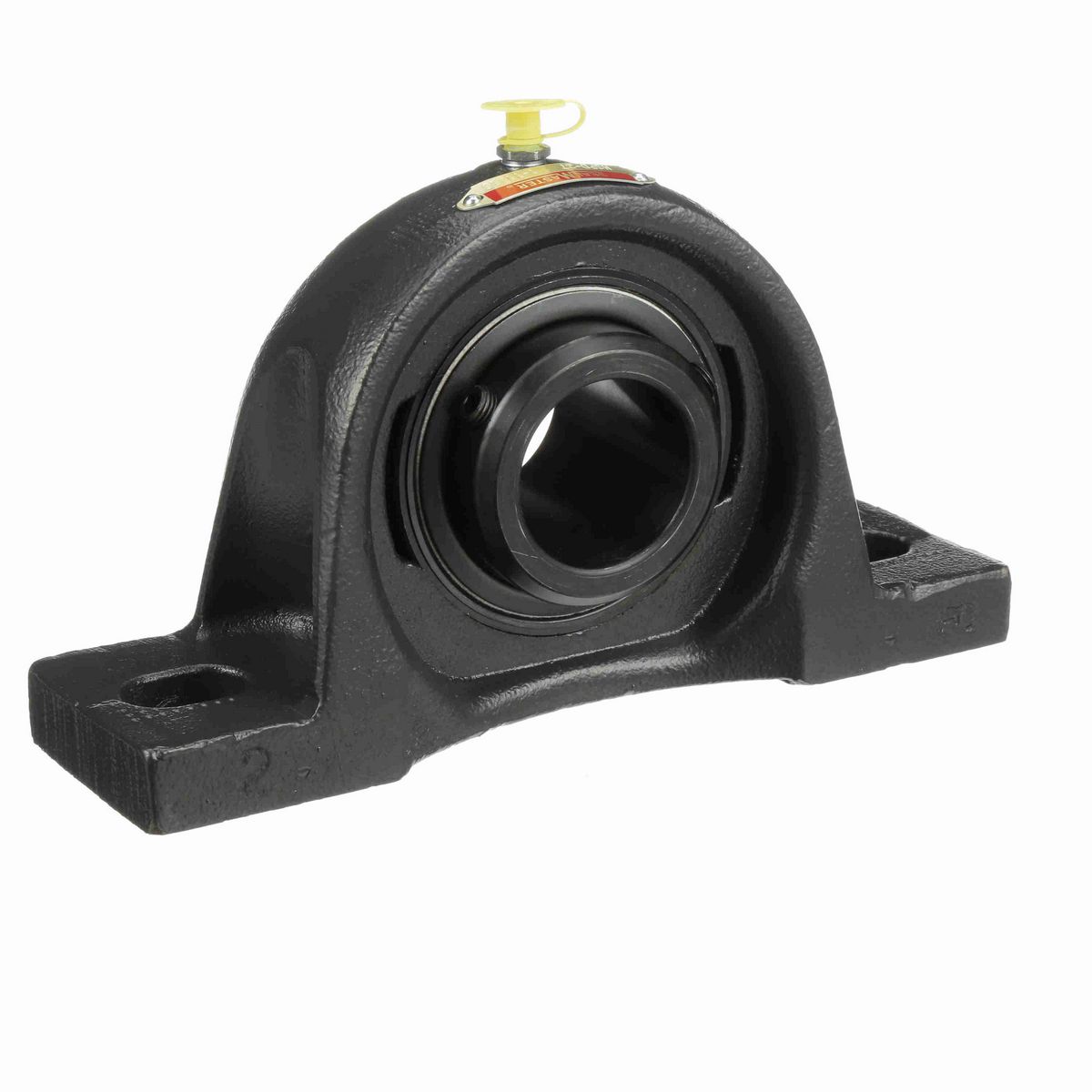

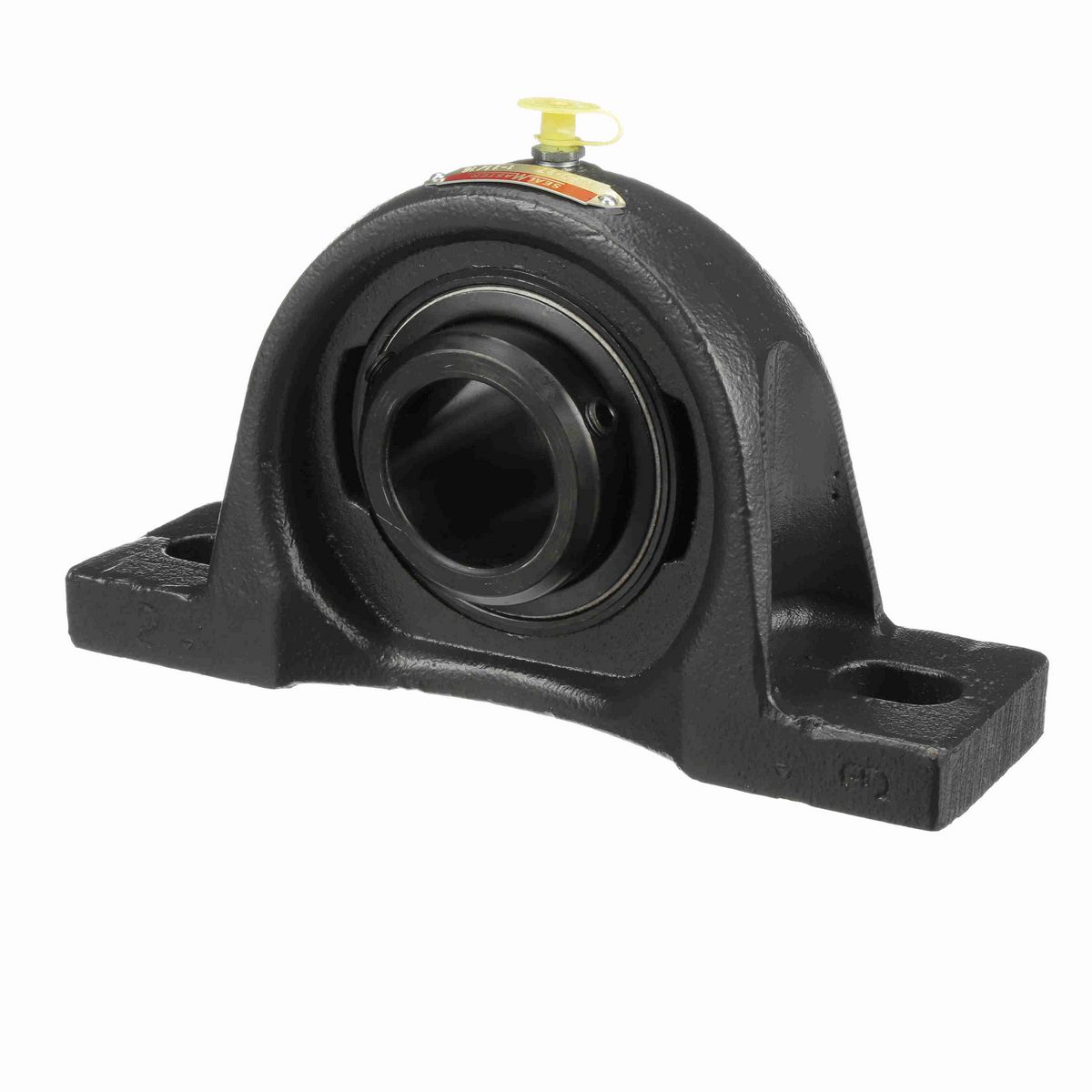

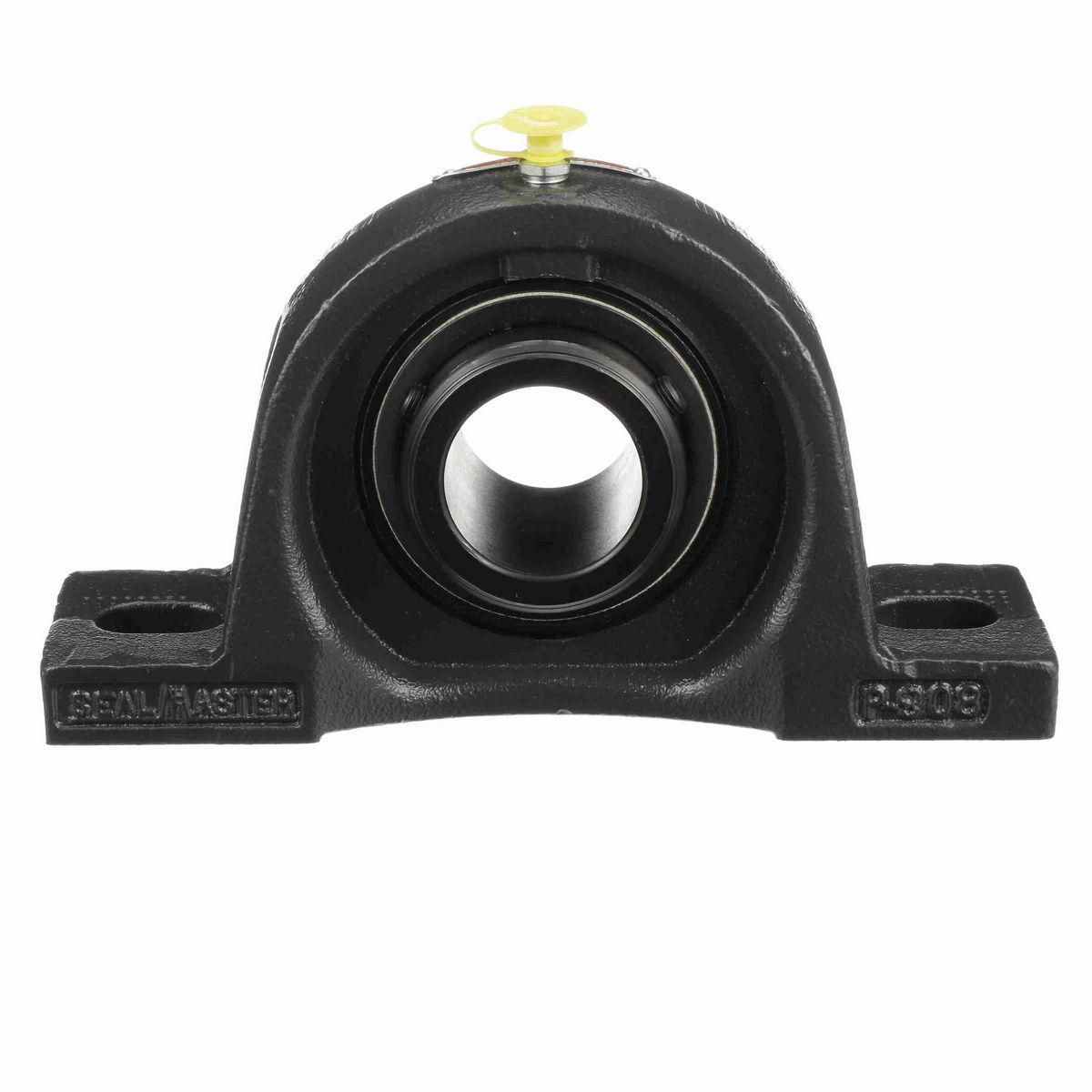

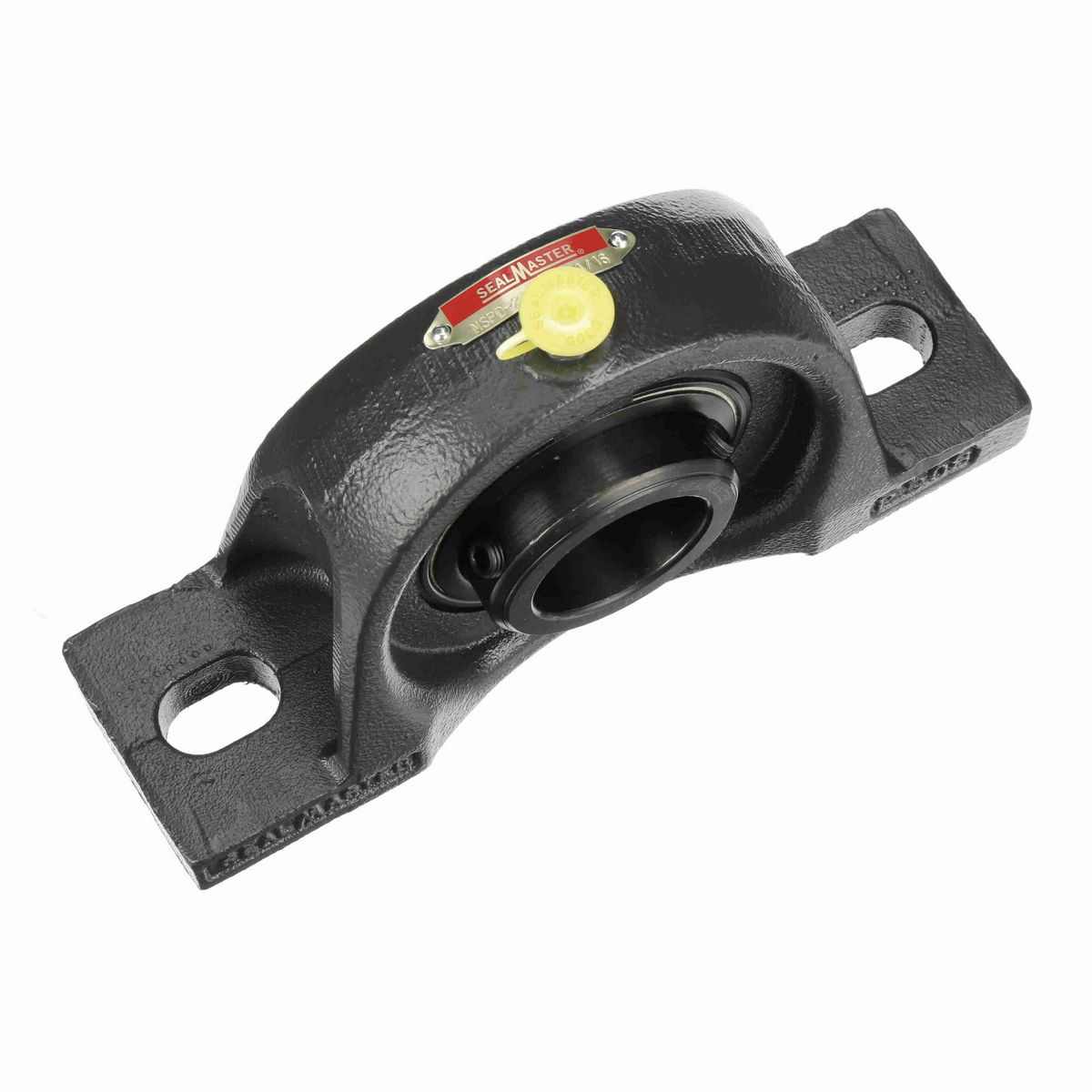

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	4.81 in
Overall Width (in)	2.50 in
Overall Length (in)	8.88 in
Base Width (in)	2.50 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.6875 in
Base to Center Height (in)	2.3750 in
Foot Height (in)	0.75 in
Length Through Bore (in)	2.500 in
Bolt Spacing Min (in)	6.44 in
Centerline to Outermost Bearing Face (in)	1.250 in
Bolt Spacing Max (in)	7.44 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Bearing Type	Medium Duty
Vibration Frequency Roller Spin	0.0445 cps
Housing Coating	Powder Coated
Vibration Frequency Inner Ring Defect	0.0984 cps
Size Code	2-115
Inner Ring Outside Diameter (in)	2.469 in
Shaft Locking Type	Double Set Screw
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	220 °F
Vibration Frequency Fundamental Train	0.0068 cps
Maximum Speed (RPM)	5000 rpm
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/8 NPT
Dynamic Load Rating (lb)	7,889 lb
Insert	3-111D
Housing Material	Cast Iron
Base Length (in)	8.88 in
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Outer Ring Defect	0.0683 cps
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
End Cap Available	No
Static Load Rating (lb)	5,216 lb

General Specifications

UPC	662461016084
Weight	9.12 LB
Packaged Length	5.94 IN
Packaged Width	8.88 IN
Packaged Height	2.63 IN
HTC	8483.20.8040
Country of Origin	United States of America
