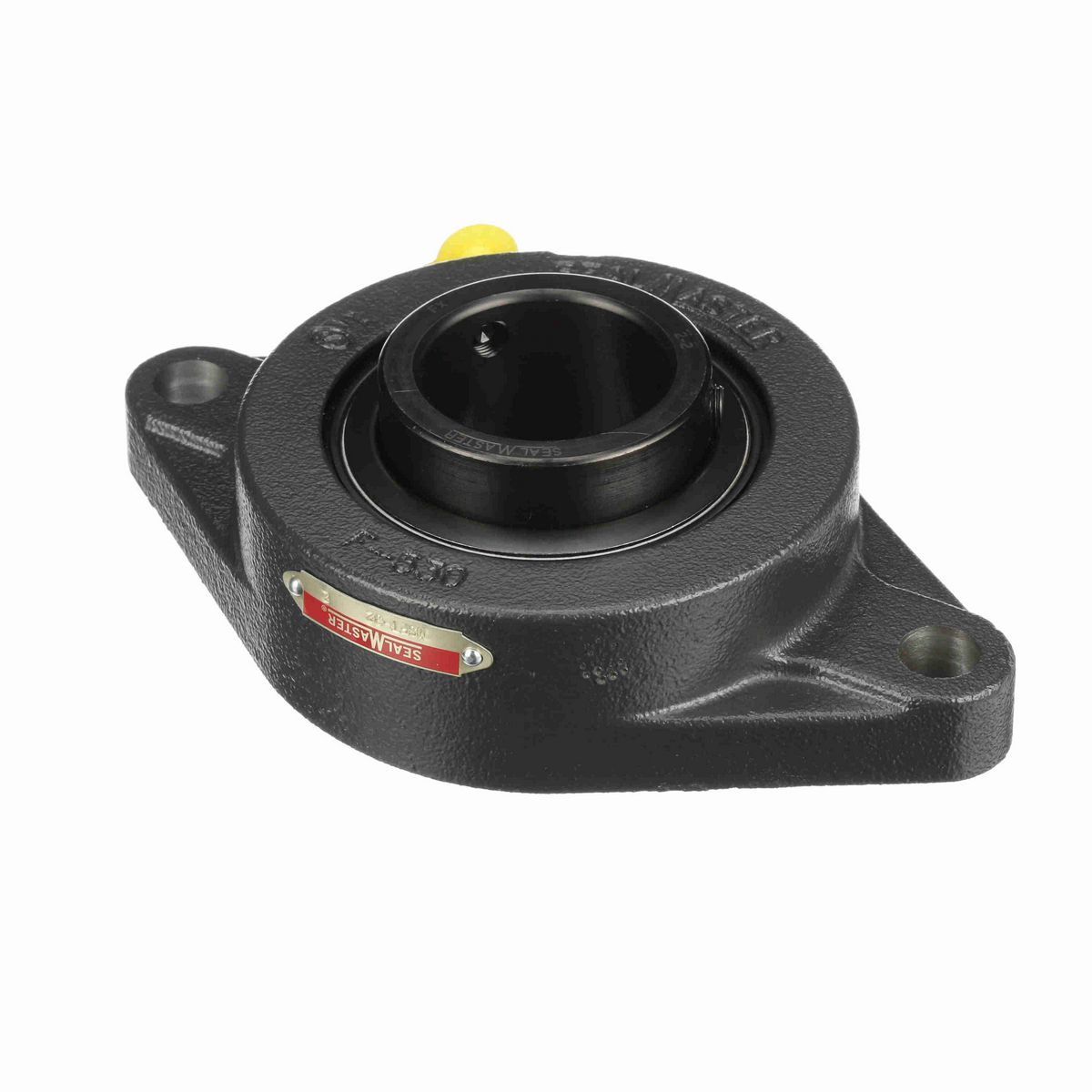

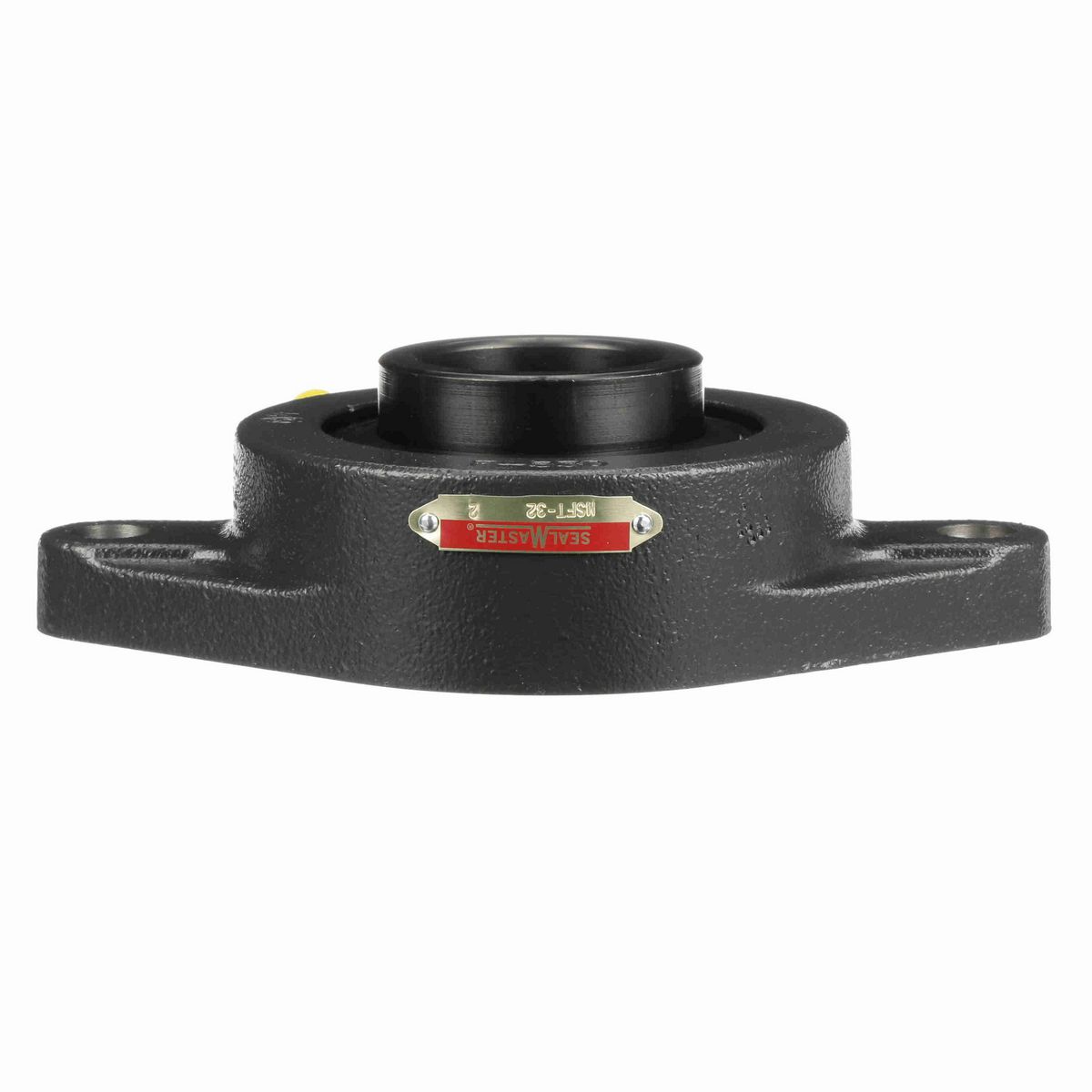

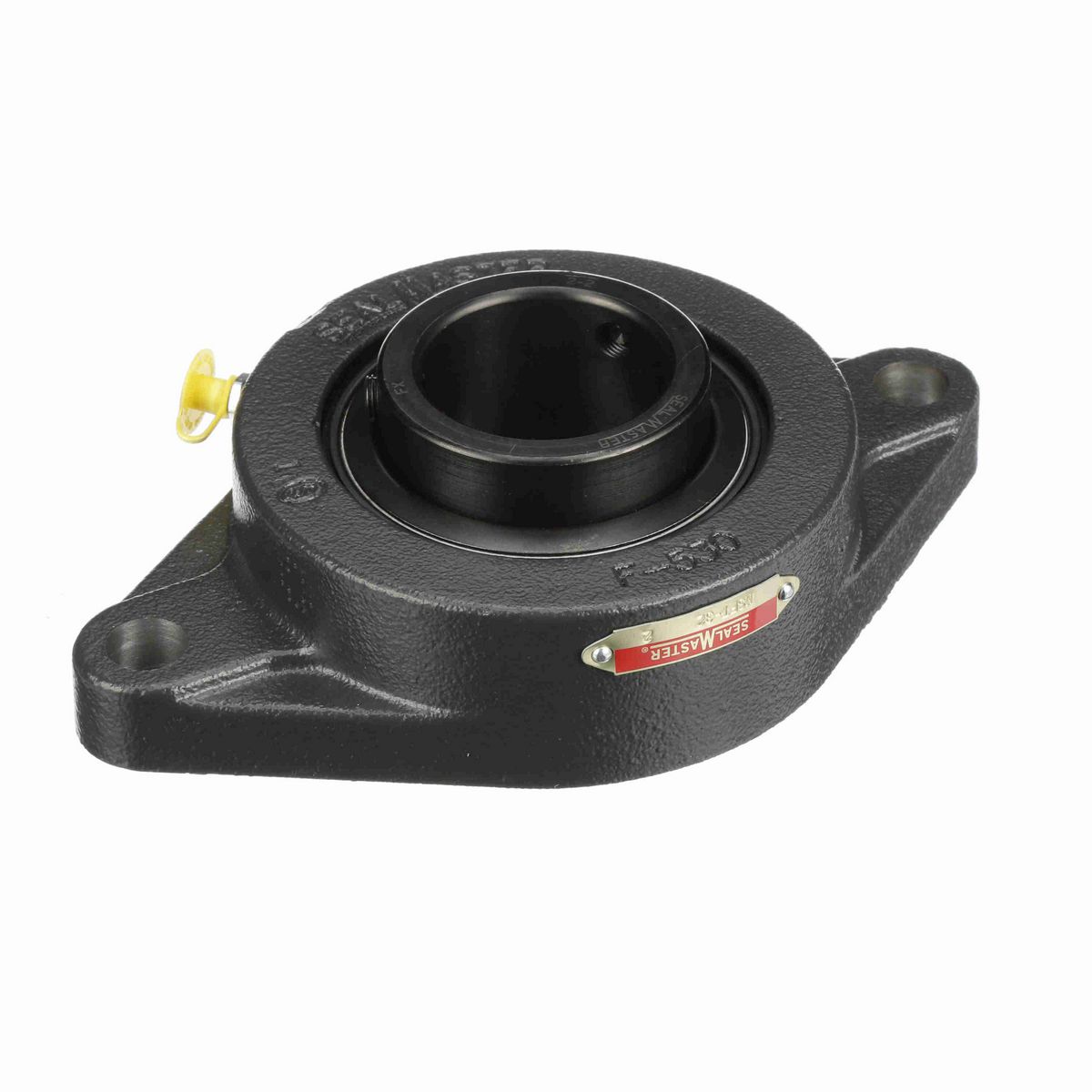

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	5.25 in
Bolt Size (in)	5/8 in
Overall Height (in)	2.313 in
Overall Length (in)	8.5 in
Bore Diameter (in)	2 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.188 in
Bolt Spacing (in)	7.2500 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Maximum Speed (RPM)	3250 rpm
Bearing Type	Medium Duty
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Static Load Rating (lb)	6,601 lb
Insert	2-2
Inner Ring Outside Diameter (in)	2.719 in
Max Operating Temperature (F)	220 °F
Size Code	2-23
Bearing Insert Material	52100 Bearing Steel
End Cap Available	No
Dynamic Load Rating (lb)	9,752 lb
Max Operating Temperature (C)	104 °C
Housing Coating	Powder Coated
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Shaft Locking Type	Set Screw
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron

General Specifications

UPC	662461001219
Weight	8.34 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	Mexico
