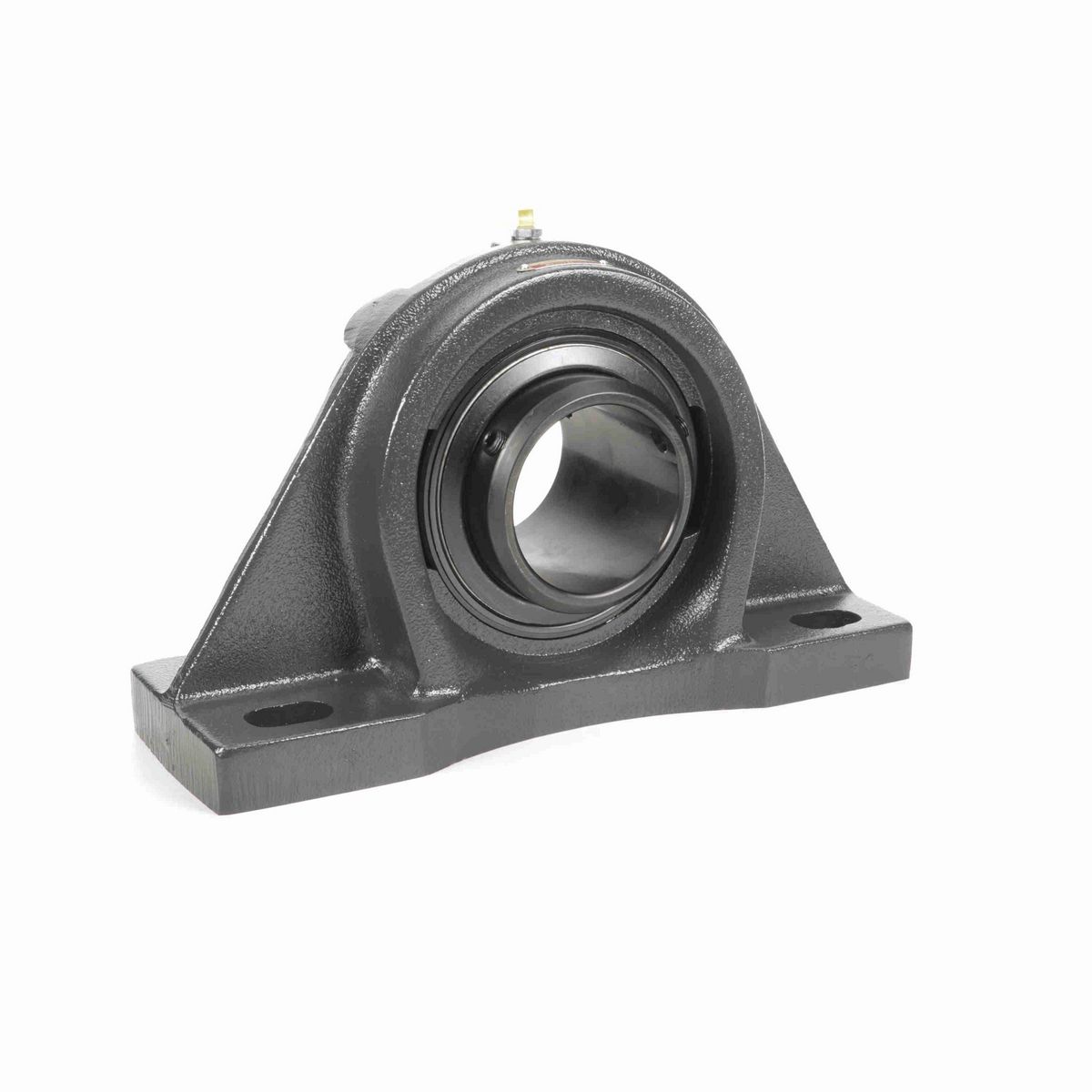

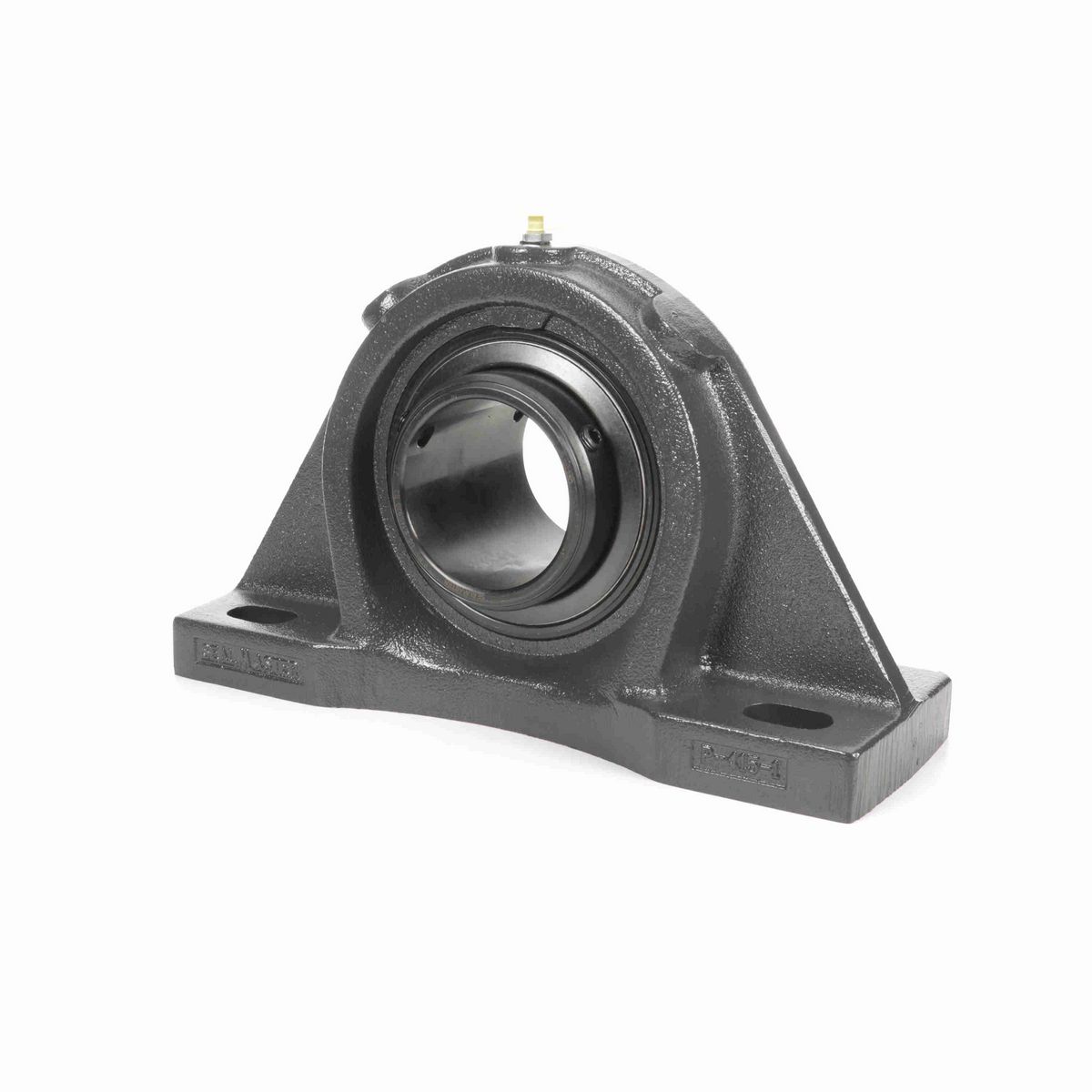

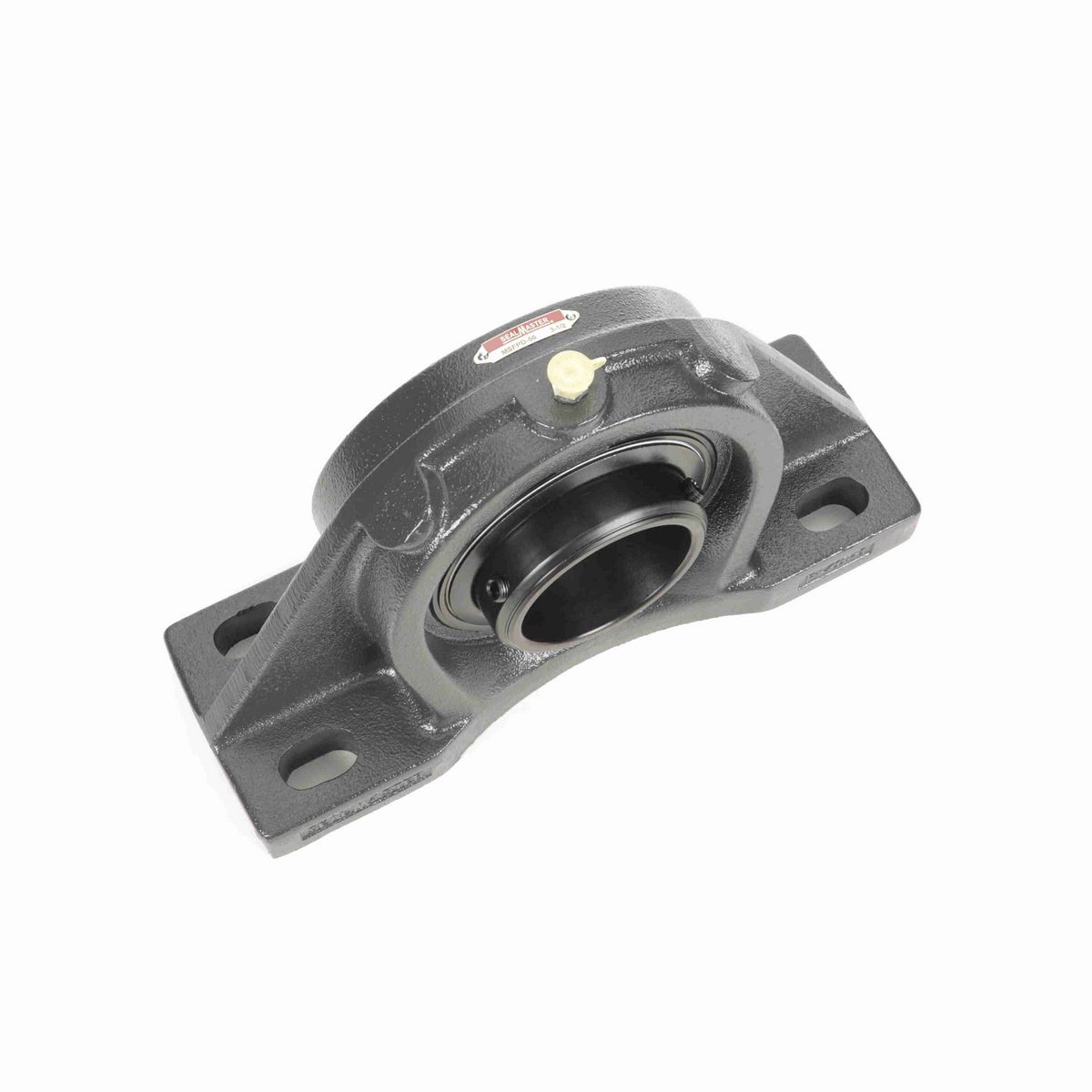

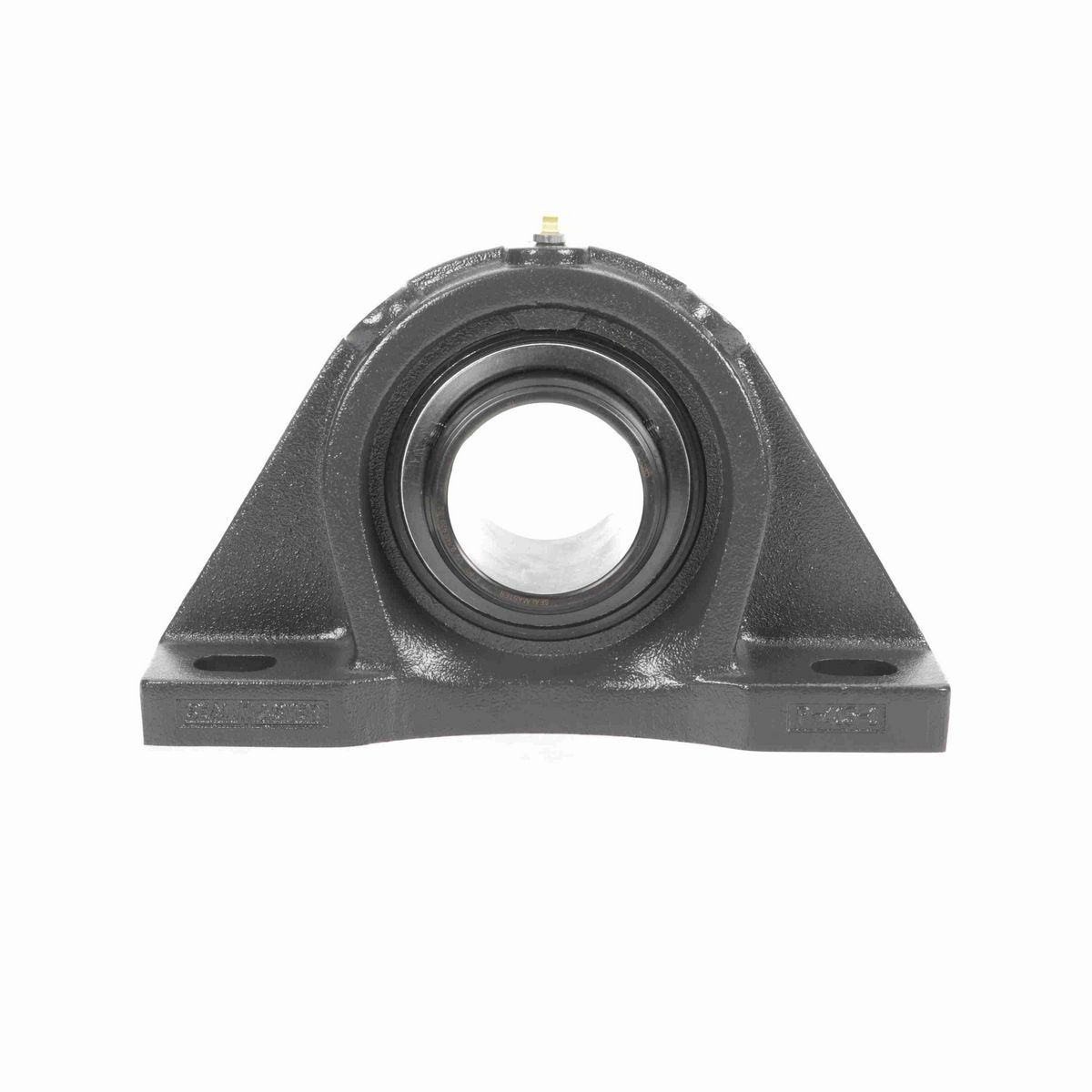

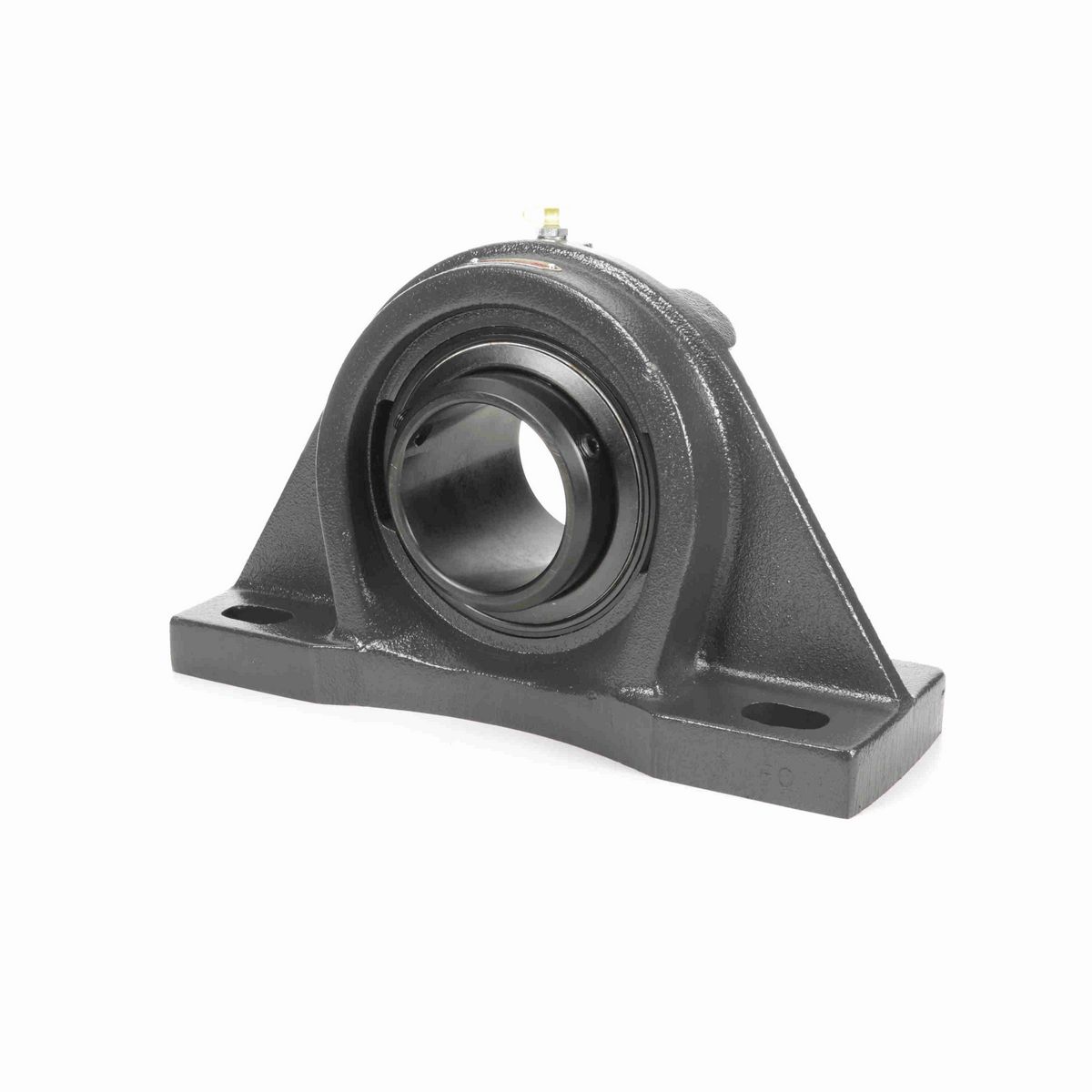

Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSFPD-56

Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSFPD-56
Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSFPD-56
Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSFPD-56
Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSFPD-56
Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSFPD-56
Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSFPD-56
(0)
Под заказ
SealMaster
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Полное описание
Заказать товар
Товар доступен только под заказ.
Сроки поставки: 2–3 недели
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSFPD-56
Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MSFPD-56
(0)
Под заказ
0 руб.
В корзину
Описание Отзывы Доставка


  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Dimensions
Overall Width (in)5.00 in
Base Width (in)5.00 in
Overall Length (in)15.06 in
Overall Height (in)9.00 in
Bolt Size (in)3/4 in
Bore Diameter (in)3.5 in
Foot Height (in)1.25 in
Base to Center Height (in)4.5625 in
Length Through Bore (in)4.438 in
Bolt Spacing Max (in)12.25 in
Centerline to Outermost Bearing Face (in)2.219 in
Bolt Spacing Min (in)10.75 in
Technical Specifications
Housing BaseSolid
Rolling ElementBall Bearing
Housing ConstructionOne Piece
Bore ShapeStraight
Outer Ring Land ProfileStandard
Housing ColorBlack
Misalignment TypeStatic Only
Cage MaterialBrass
Housing TypePillow Block, Four Bolt
Seal TypeFelt Labyrinth Seal
Housing StylePillow Block
Setscrew Torque (in-lbs)500-650 in/lbs
Ability to RelubricateYes
Inner Race Heat Treat MethodZone-Hardened
Housing MaterialCast Iron
Insert2-38D
Base Length (in)15.06 in
Vibration Frequency Inner Ring Defect0.0981 cps
LubricantLithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect0.0685 cps
Vibration Frequency Fundamental Train0.0069 cps
Static Load Rating (lb)16,301 lb
Inner Ring Outside Diameter (in)4.391 in
Radial ClearanceStandard
Dynamic Load Rating (lb)21,566 lb
Max Operating Temperature (F)220 °F
Bolt Spacing Width Direction (in)3.00 in
Misalignment Capability±2.0° Misalignment - Static Only
Maximum Speed (RPM)2800 rpm
Housing CoatingPowder Coated
Shaft Locking TypeDouble Set Screw
Grease Fitting Thread Size1/4 NPT
Vibration Frequency Roller Spin0.0454 cps
Bearing Insert Material52100 Bearing Steel
Bearing TypeMedium Duty
Fixed vs. ExpansionFixed
Cage TypeLand Riding Retainer
Size Code2-38
End Cap AvailableNo
Bearing Insert FinishBlack Oxide
General Specifications
UPC662461016008
Weight51.80 LB
Packaged Length9.25 IN
Packaged Width15.75 IN
Packaged Height5.25 IN
HTC8483.20.8040
Country of OriginUnited States of America
