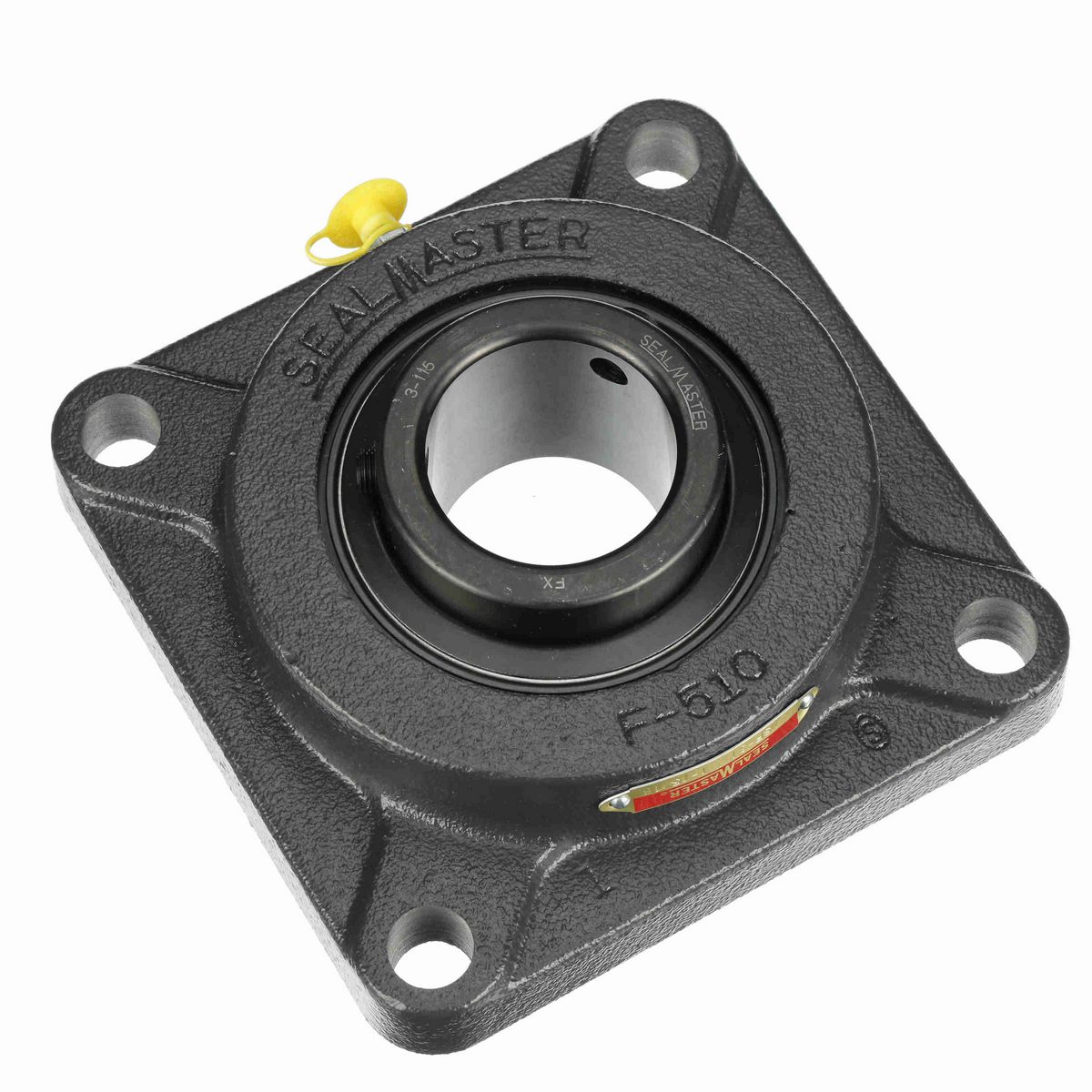

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	5.38 in
Overall Length (in)	5.38 in
Overall Height (in)	2.375 in
Bore Diameter (in)	1.5 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.375 in
Bolt Spacing (in)	4.1250 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Housing Backside Inner Diameter	3.88
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Fixed vs. Expansion	Fixed
Housing Material	Cast Iron
Insert	3-18D
Static Load Rating (lb)	5,139 lb
Shaft Locking Type	Double Set Screw
Dynamic Load Rating (lb)	7,901 lb
End Cap Available	No
Maximum Speed (RPM)	5300 rpm
Bearing Insert Finish	Black Oxide
Grease Fitting Thread Size	1/4-28
Cage Type	Land Riding Retainer
Bearing Type	Medium Duty
Size Code	2-111
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.307 in
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461134733
Weight	6.30 LB
Packaged Length	5.50 IN
Packaged Width	5.38 IN
Packaged Height	3.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
