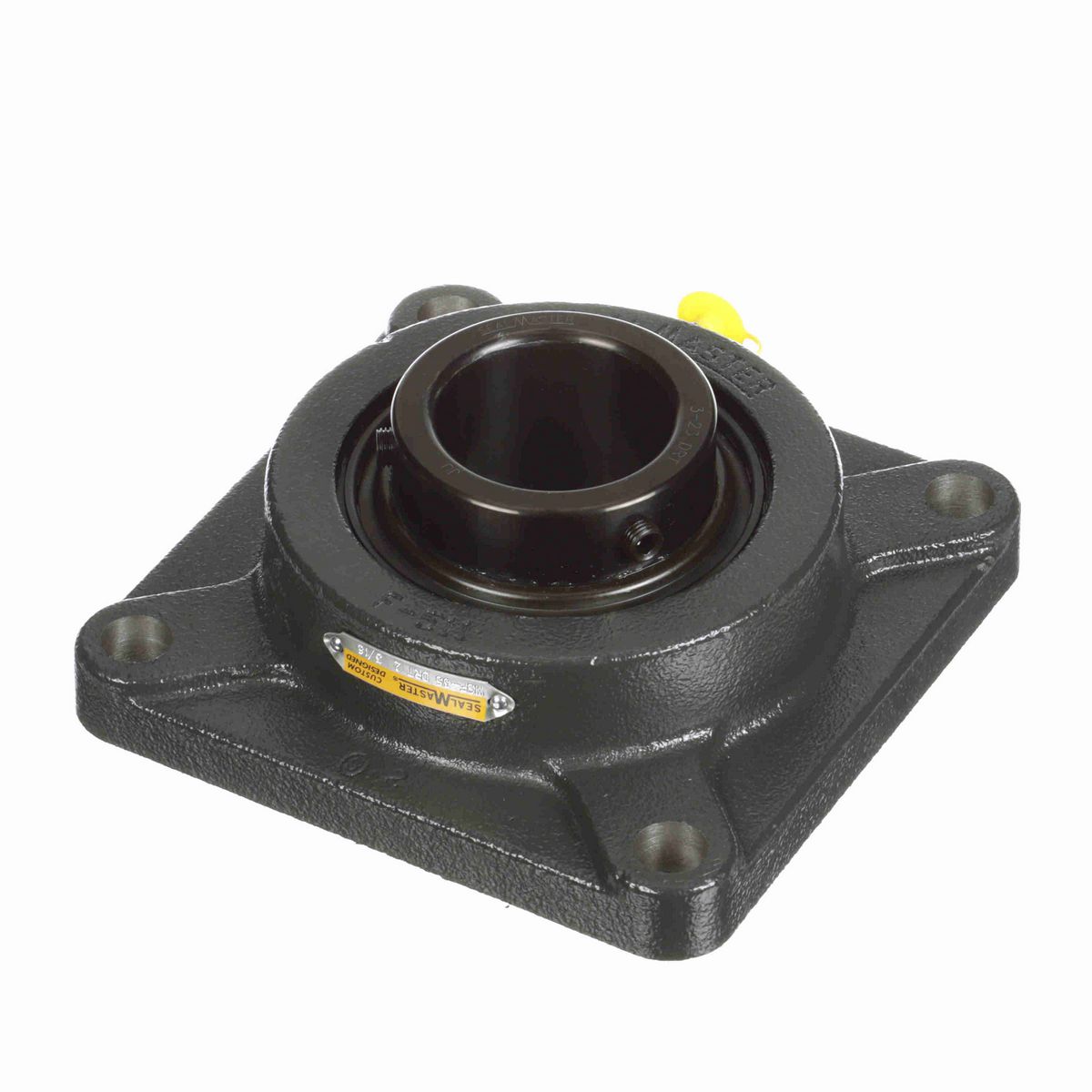

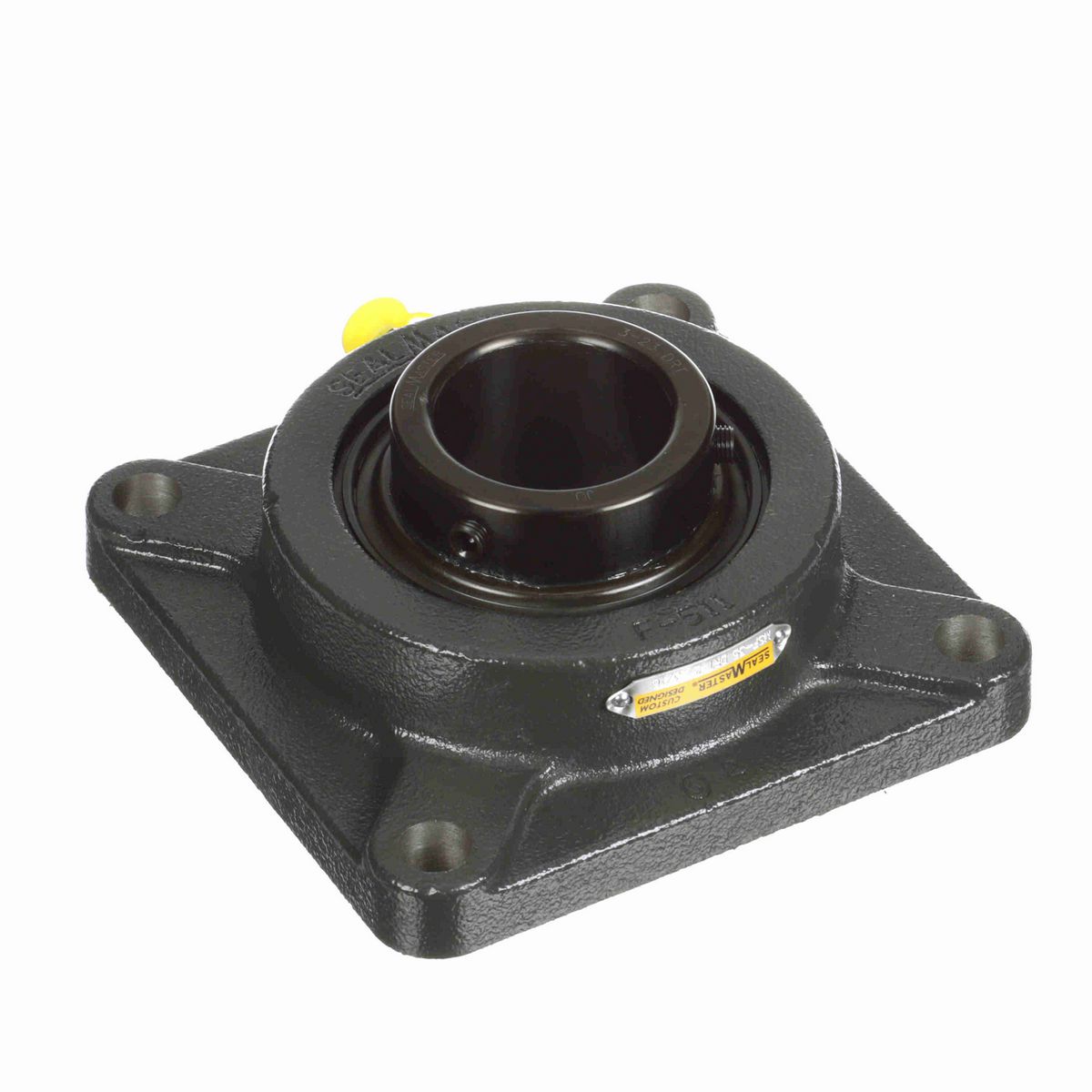

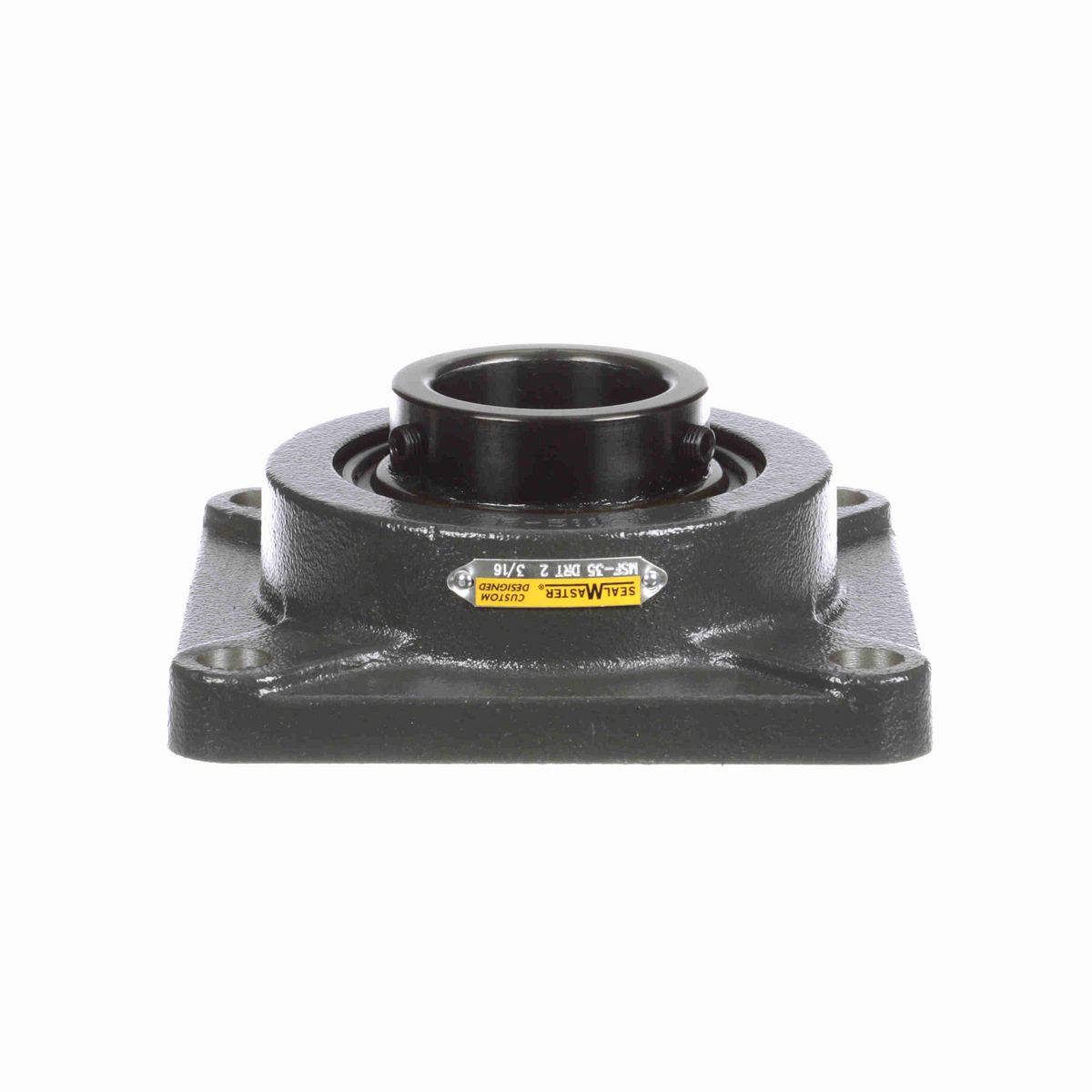

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.88 in
Bolt Size (in)	5/8 in
Overall Height (in)	2.688 in
Overall Length (in)	6.88 in
Bore Diameter (in)	2.1875 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.559 in
Bolt Spacing (in)	5.6250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Options	High Contamination
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Multi-Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (RPM)	650 rpm
Size Code	2-27
End Cap Available	No
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease - 100% Fill
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	8,150 lb
Max Operating Temperature (F)	220 °F
Insert	3-23 DRT
Bearing Type	Medium Duty
Inner Ring Outside Diameter (in)	2.981 in
Housing Backside Inner Diameter	5
Shaft Locking Type	Set Screw
Fixed vs. Expansion	Fixed
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Grease Fitting Thread Size	1/8 NPT
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Coating	Powder Coated
Housing Material	Cast Iron
Dynamic Load Rating (lb)	11,789 lb

General Specifications

UPC	662461326596
Weight	12.10 LB
Packaged Length	7.19 IN
Packaged Width	7.00 IN
Packaged Height	3.31 IN
HTC	8483.20.4040
Country of Origin	United States of America
