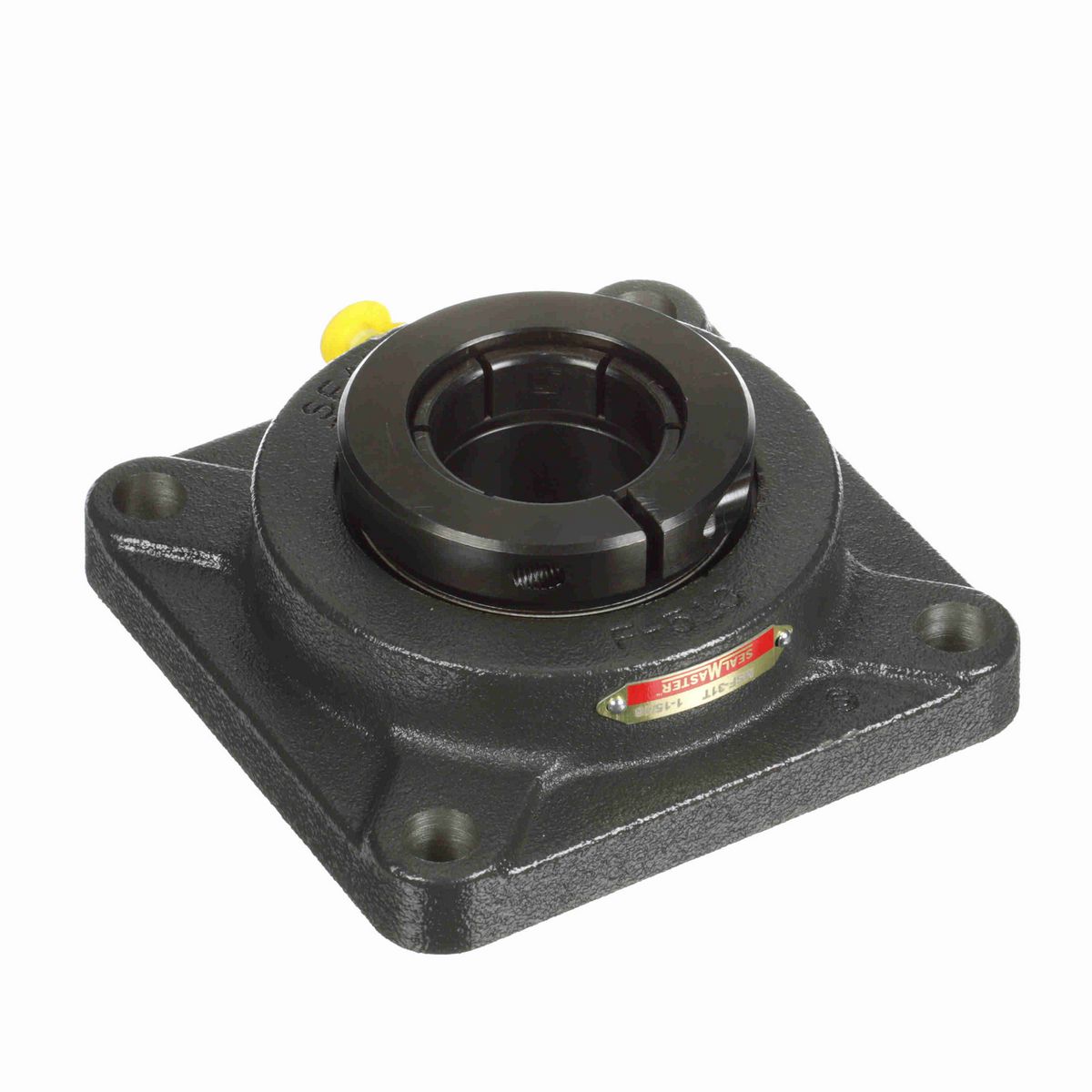

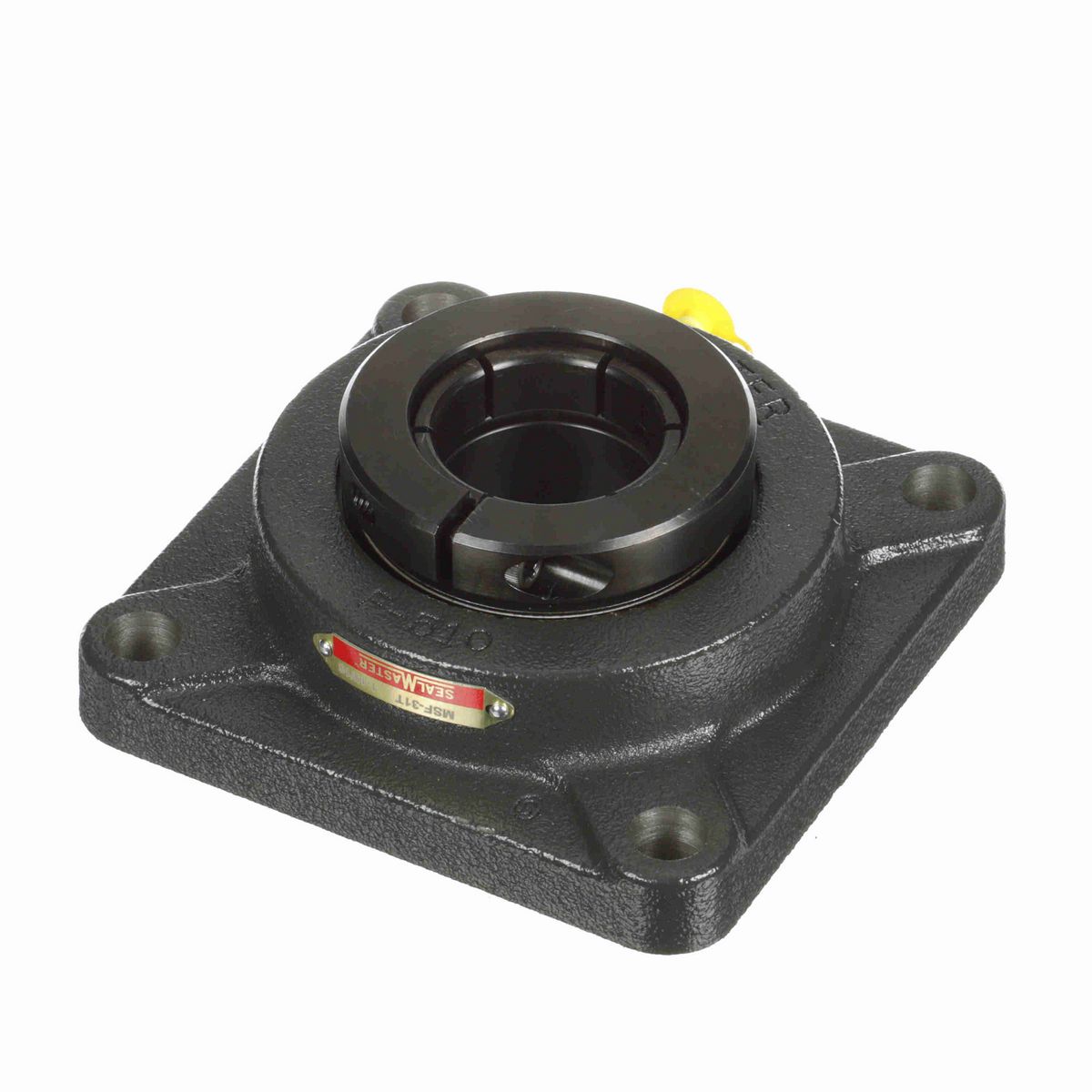

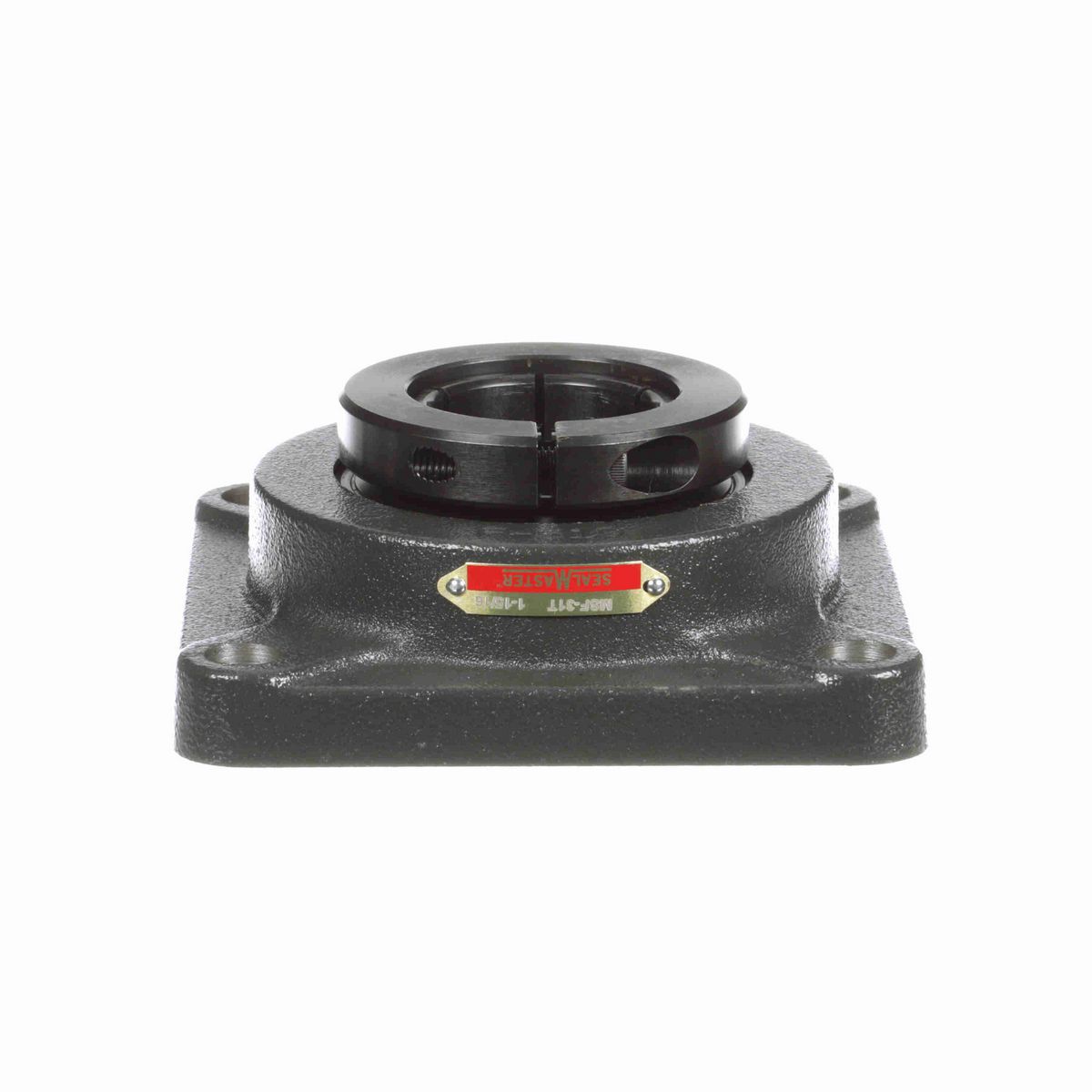

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	5/8 in
Overall Width (in)	6.38 in
Overall Length (in)	6.38 in
Overall Height (in)	2.375 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.33 in
Bolt Spacing (in)	5.1250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	3.6 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Housing Coating	Powder Coated
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	1/8 NPT
Insert	3-115T
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	9,752 lb
Bearing Type	Medium Duty
Maximum Speed (RPM)	4500 rpm
Fixed vs. Expansion	Fixed
Cage Type	Land Riding Retainer
Shaft Locking Type	Concentric
Inner Ring Outside Diameter (in)	2.723 in
Lubricant	Lithium Complex NLGI 2 Grease
Housing Backside Inner Diameter	4.25
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	No
Static Load Rating (lb)	6,601 lb
Size Code	2-23
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard

General Specifications

UPC	662461032183
Weight	11.07 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
