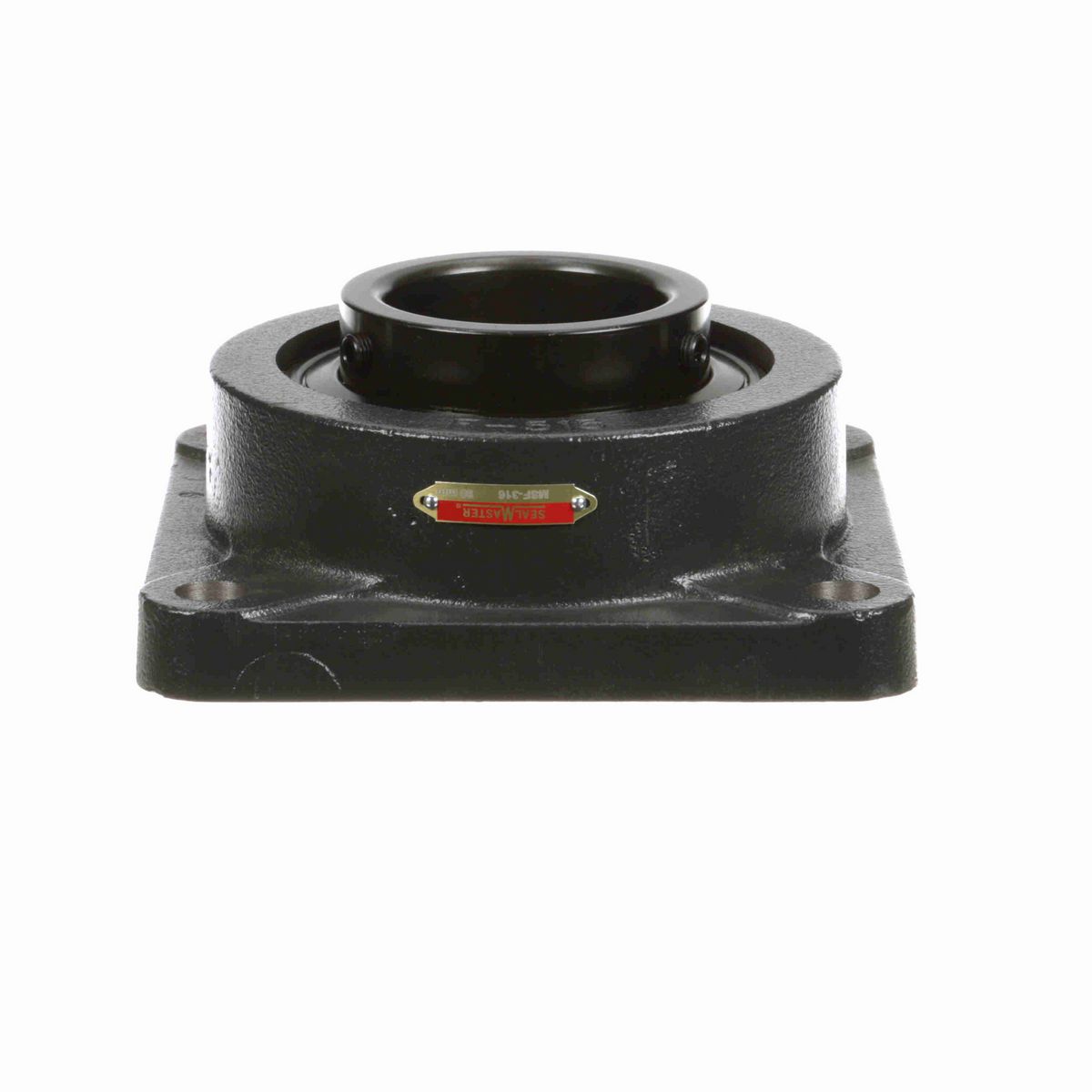

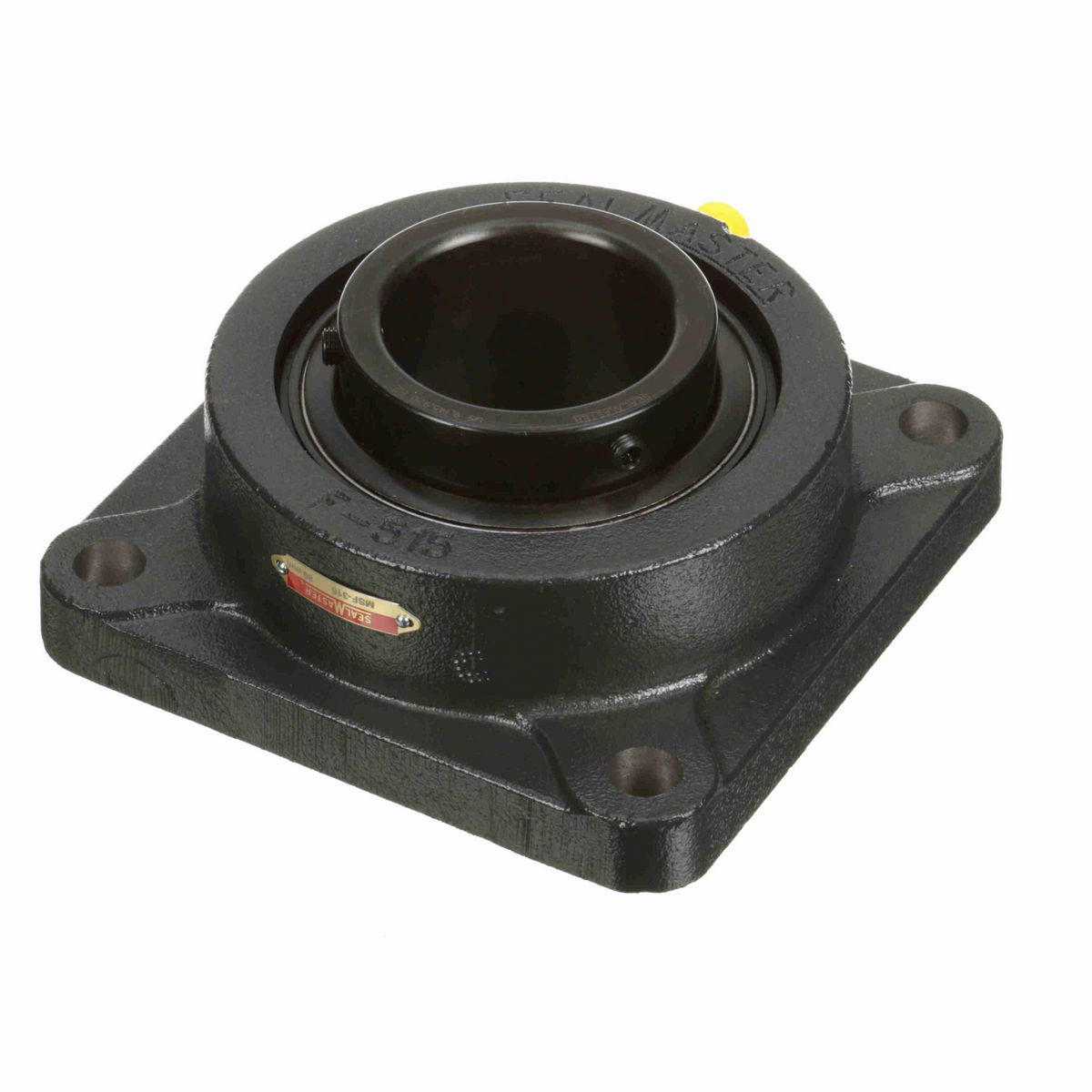

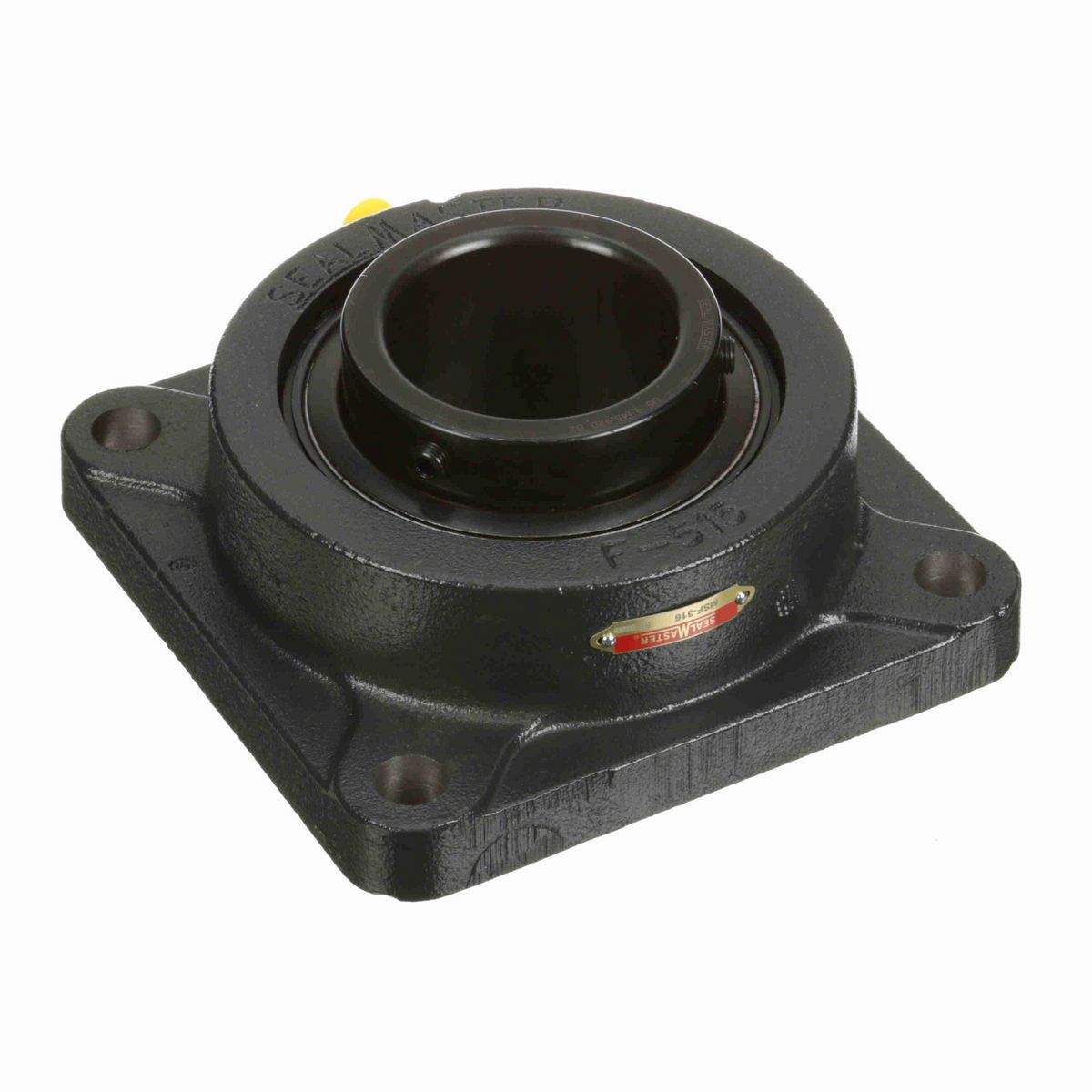

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	8.44 in
Bolt Size (in)	3/4 in
Overall Length (in)	8.44 in
Overall Height (in)	3.531 in
Bore Diameter (mm)	80 mm
Foot Height (in)	1 in
Length Through Bore (in)	3.375 in
Bolt Spacing (in)	6.7500 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	Brass
Housing Type	Flange, Four Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Max Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	18,681 lb
Cage Type	Land Riding Retainer
Housing Coating	Powder Coated
Maximum Speed (RPM)	2125 rpm
Bearing Type	Medium Duty
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
End Cap Available	No
Insert	5316
Grease Fitting Thread Size	1/4 NPT
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	4.156 in
Lubricant	Lithium Complex NLGI 2 Grease
Static Load Rating (lb)	14,496 lb
Shaft Locking Type	Set Screw
Housing Material	Cast Iron
Housing Backside Inner Diameter	6
Size Code	2-37

General Specifications

UPC	662461053720
Weight	26.70 LB
Packaged Length	8.56 IN
Packaged Width	8.75 IN
Packaged Height	4.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
