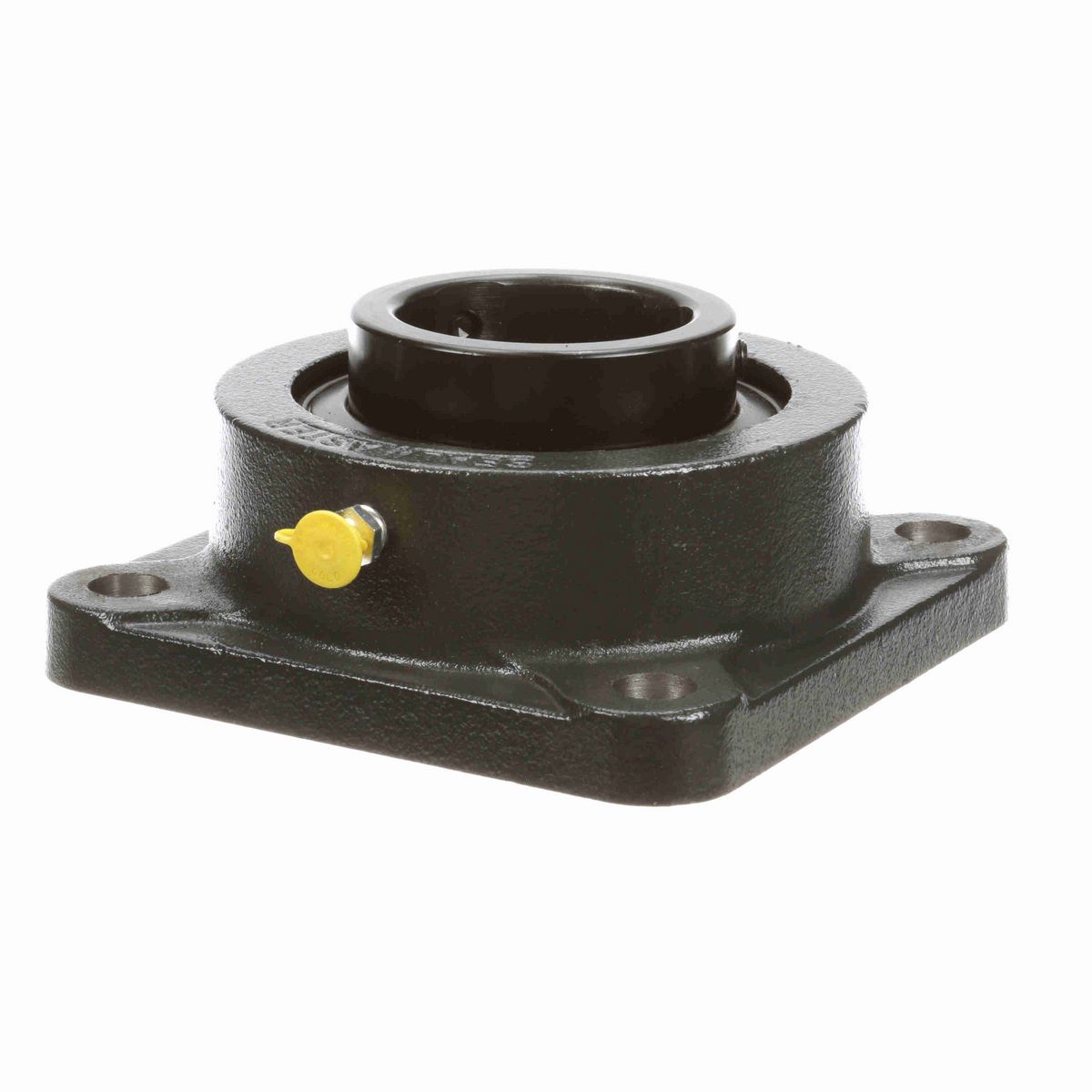

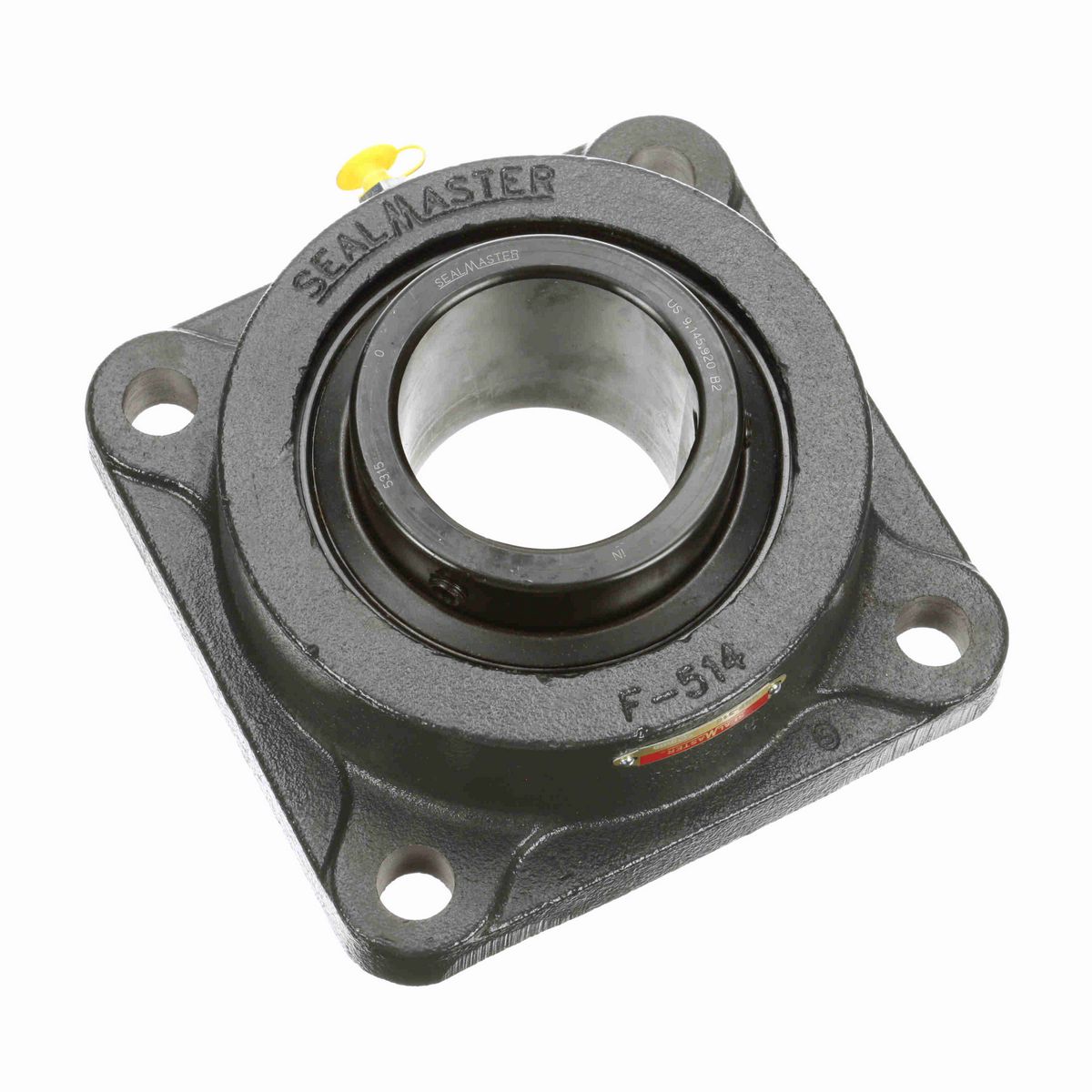

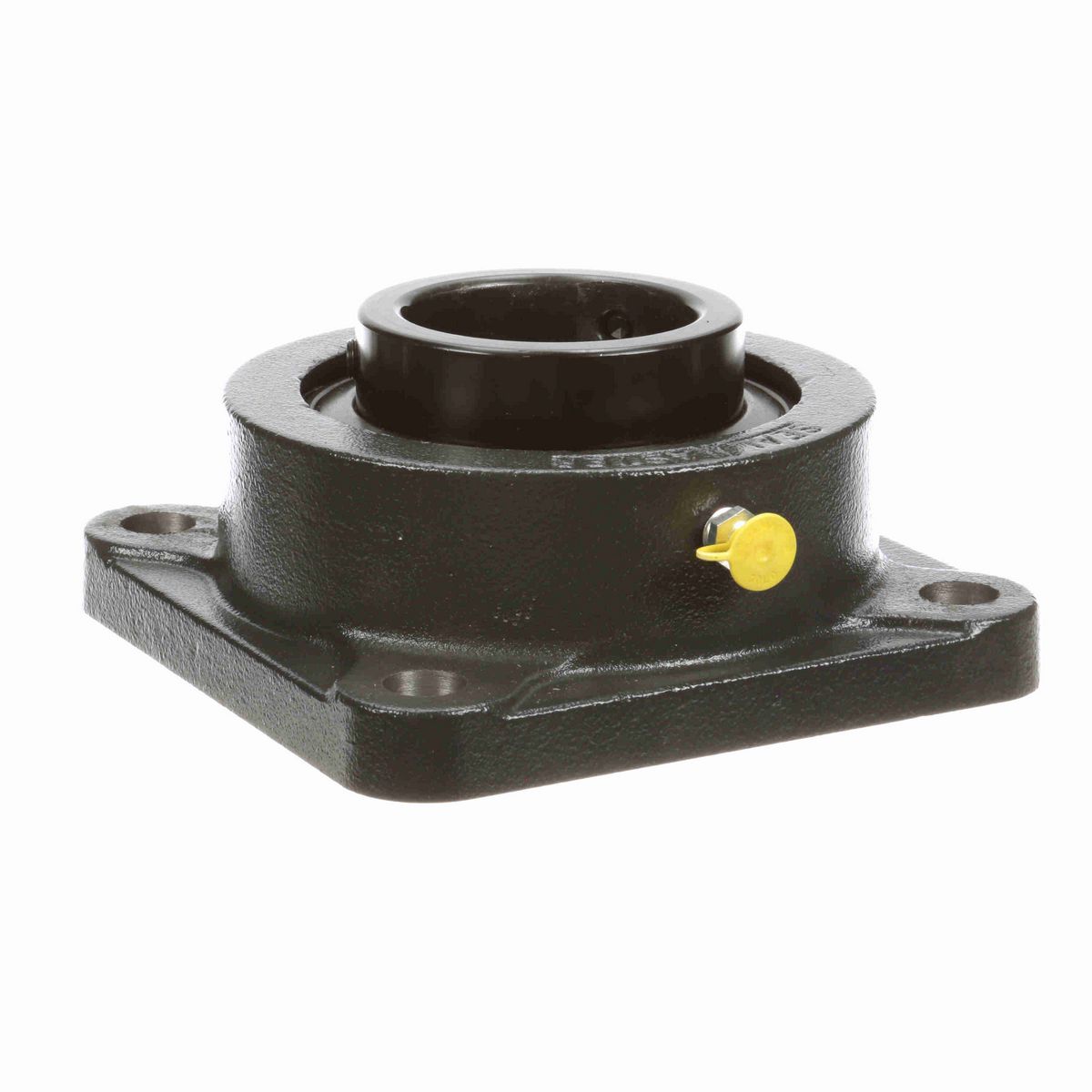

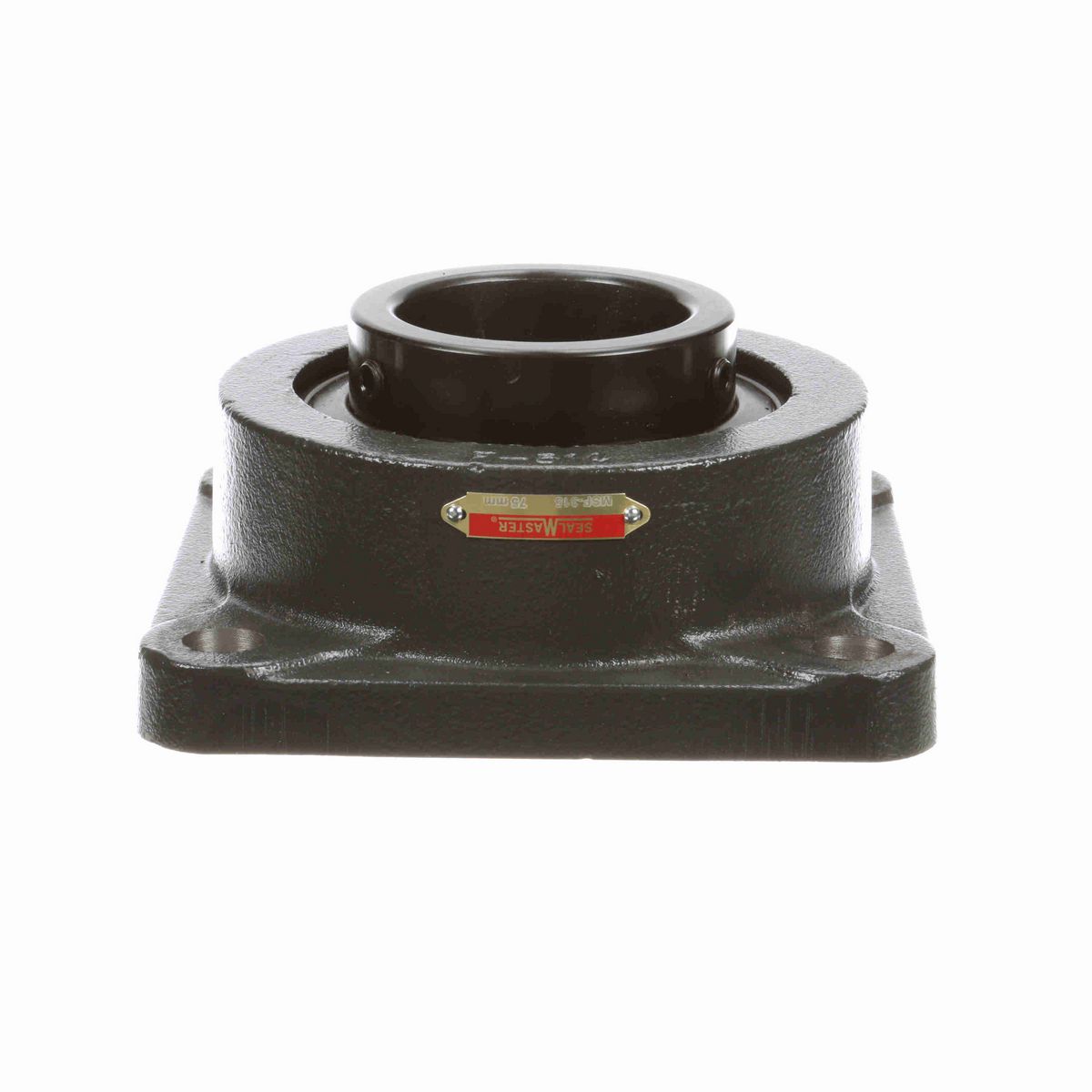

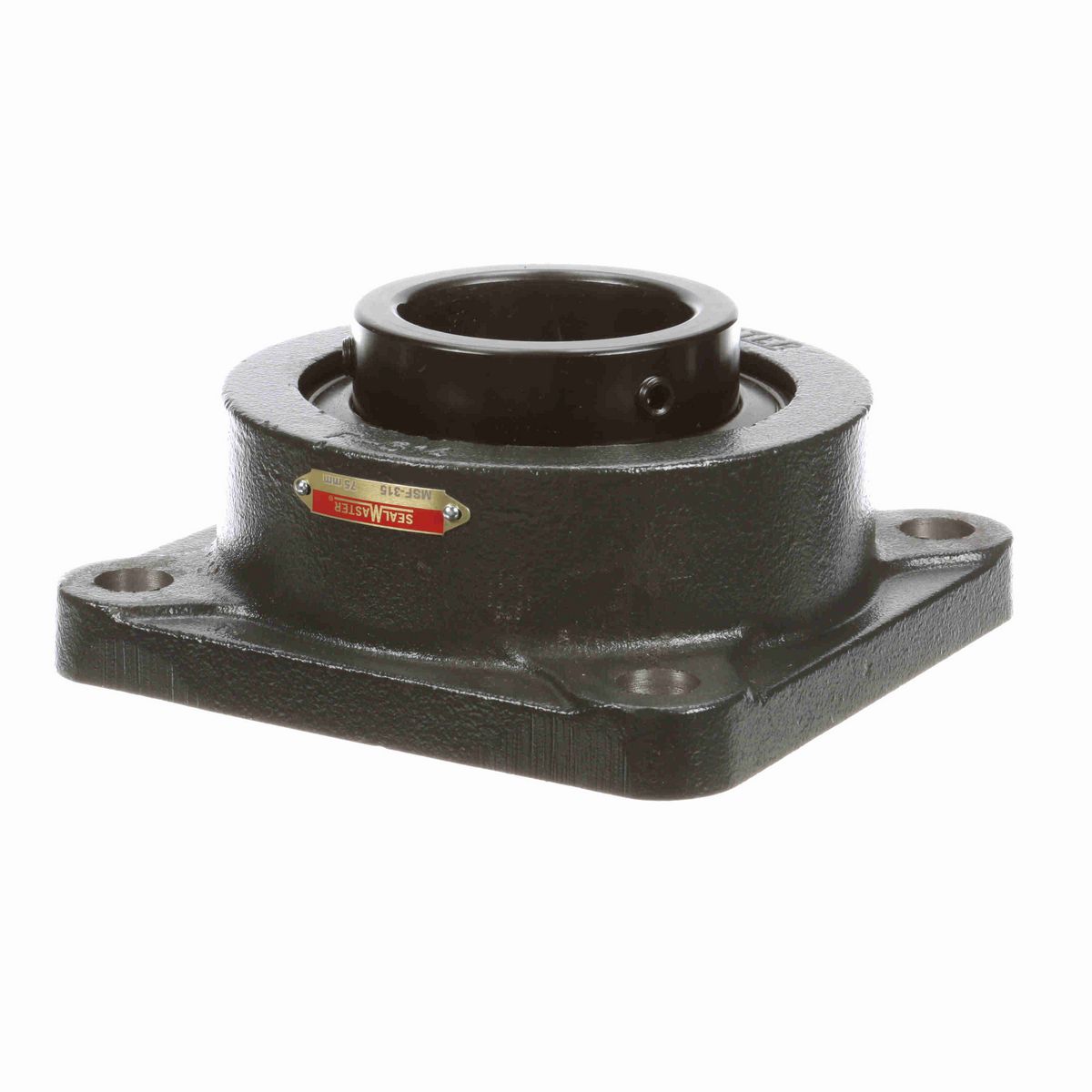

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	7.75 in
Bolt Size (in)	3/4 in
Overall Height (in)	3.5 in
Overall Length (in)	7.75 in
Bore Diameter (mm)	75 mm
Foot Height (in)	0.88 in
Length Through Bore (in)	3.25 in
Bolt Spacing (in)	6.0000 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	Brass
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Static Load Rating (lb)	13,174 lb
Cage Type	Land Riding Retainer
Max Operating Temperature (F)	220 °F
Housing Backside Inner Diameter	5.56
Radial Clearance	Standard
Fixed vs. Expansion	Fixed
Bearing Type	Medium Duty
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	Black Oxide
Maximum Speed (RPM)	2250 rpm
Inner Ring Outside Diameter (in)	3.922 in
Dynamic Load Rating (lb)	17,412 lb
Insert	5315
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Grease Fitting Thread Size	1/4 NPT
Housing Material	Cast Iron
Lubricant	Lithium Complex NLGI 2 Grease
Shaft Locking Type	Set Screw
Size Code	2-33

General Specifications

UPC	662461053713
Weight	20.89 LB
Packaged Length	7.94 IN
Packaged Width	8.13 IN
Packaged Height	3.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
