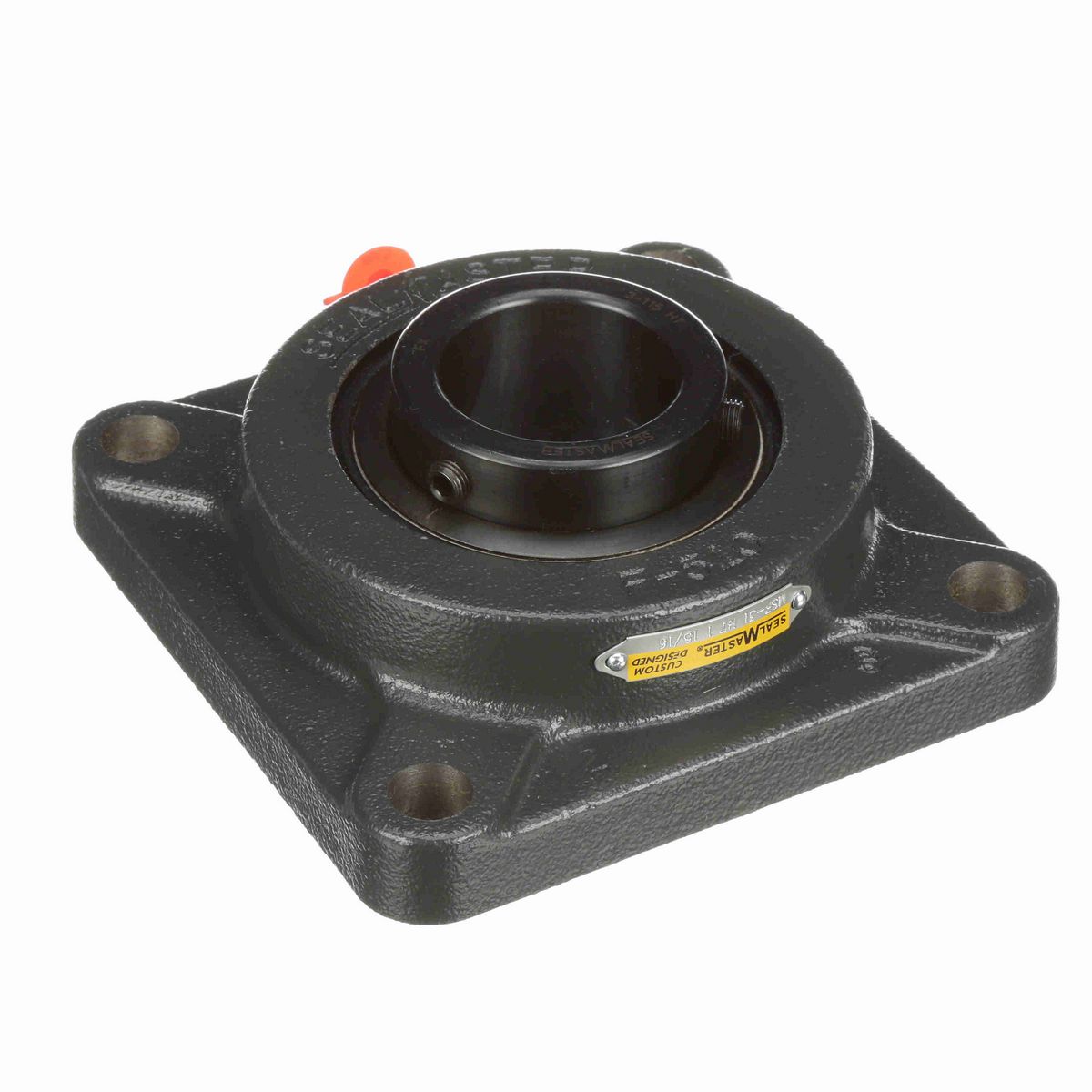

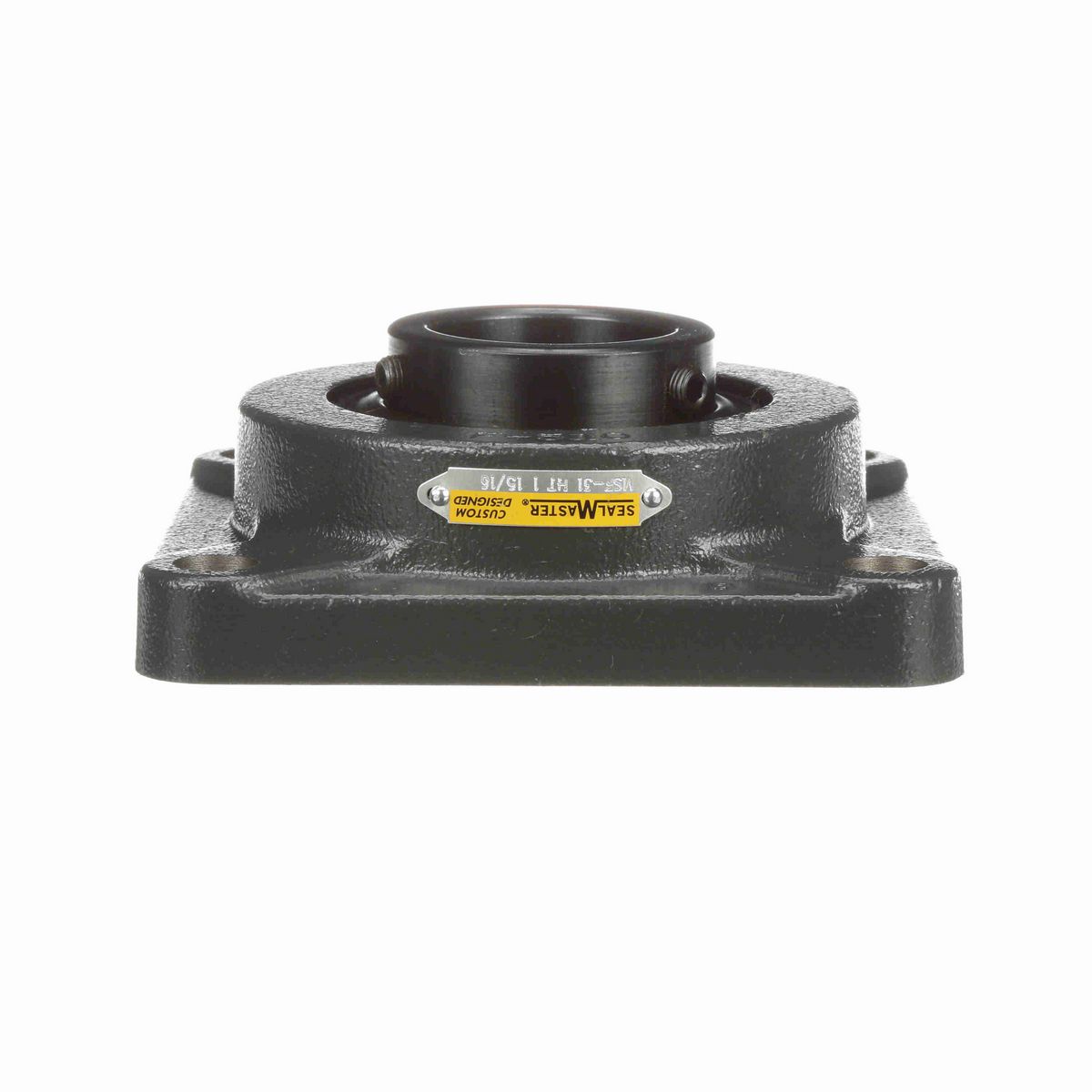

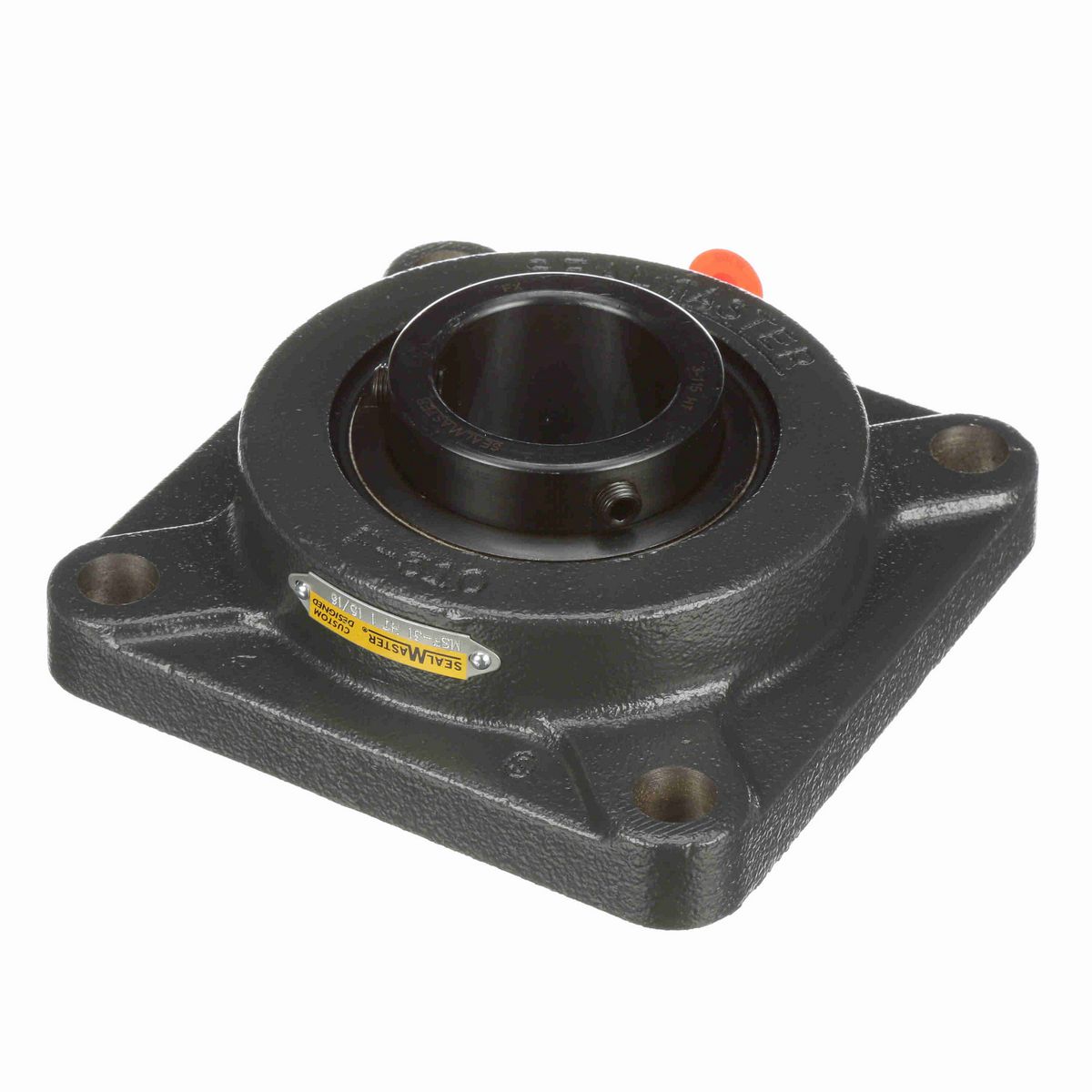

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger for dry and dusty environment
• Increased internal clearance and high temperature grease
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	5/8 in
Overall Width (in)	6.38 in
Overall Height (in)	2.313 in
Overall Length (in)	6.38 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.19 in
Bolt Spacing (in)	5.1250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Options	High Temperature
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	High Temp Labyrinth
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Lubricant	Lithium Complex Grease With Synthetic Oil
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	9,752 lb
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	2.723 in
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Size Code	2-23
Max Operating Temperature (F)	400 °F
End Cap Available	No
Static Load Rating (lb)	6,601 lb
Radial Clearance	Increased
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Shaft Locking Type	Set Screw
Grease Fitting Thread Size	1/8 NPT
Bearing Type	Medium Duty
Maximum Speed (RPM)	1400 rpm
Insert	3-115 HT
Housing Backside Inner Diameter	4.25

General Specifications

UPC	662461314104
Weight	10.47 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
