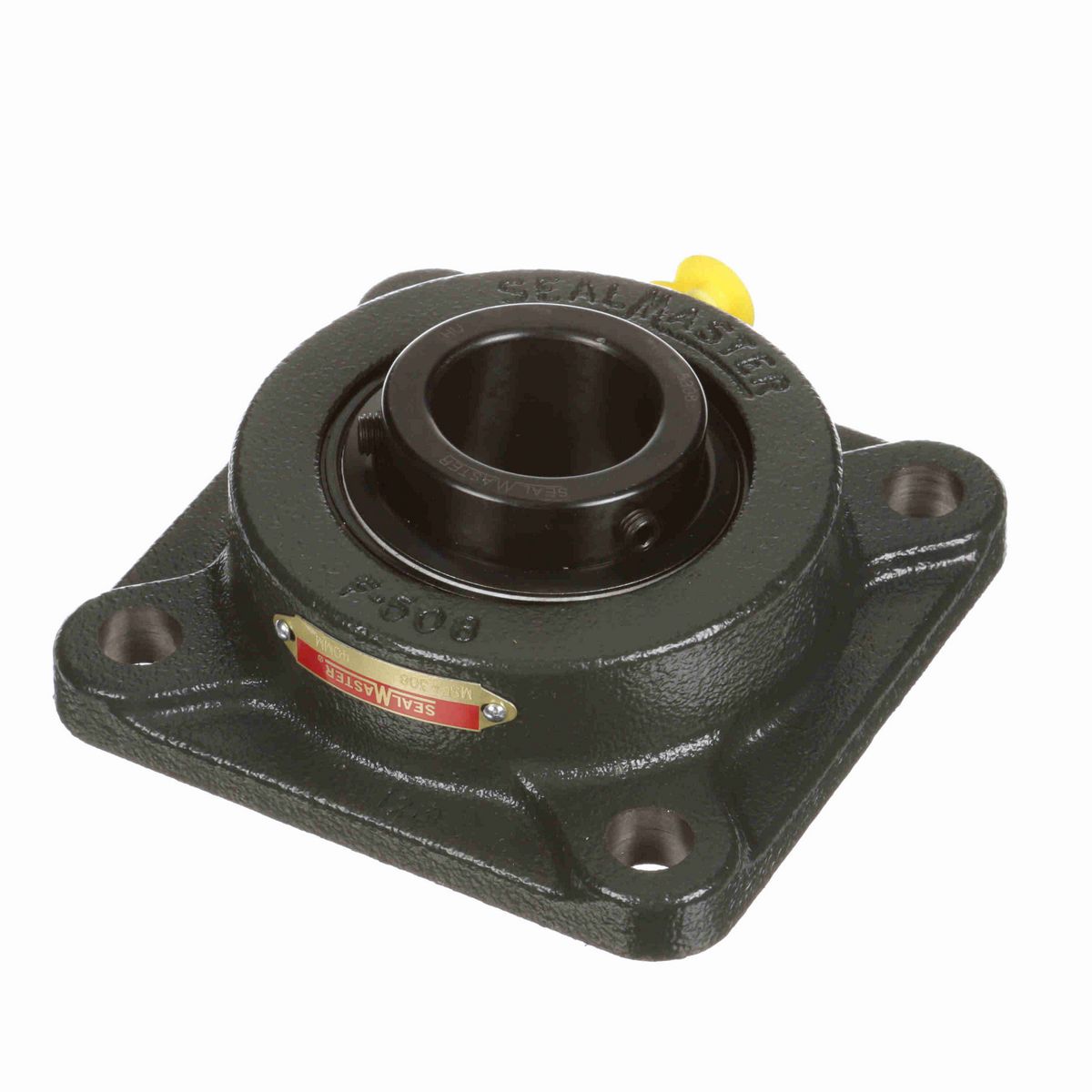

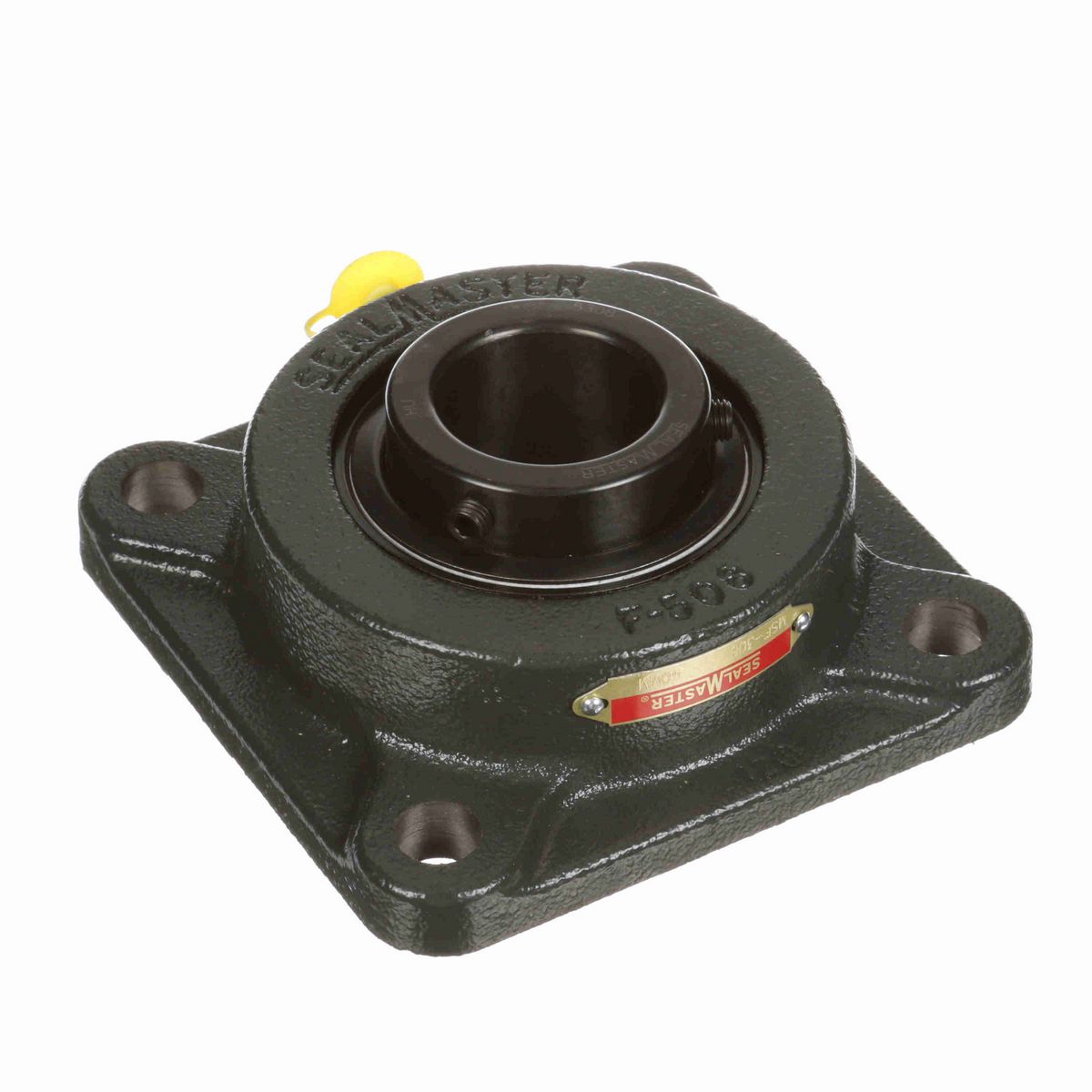

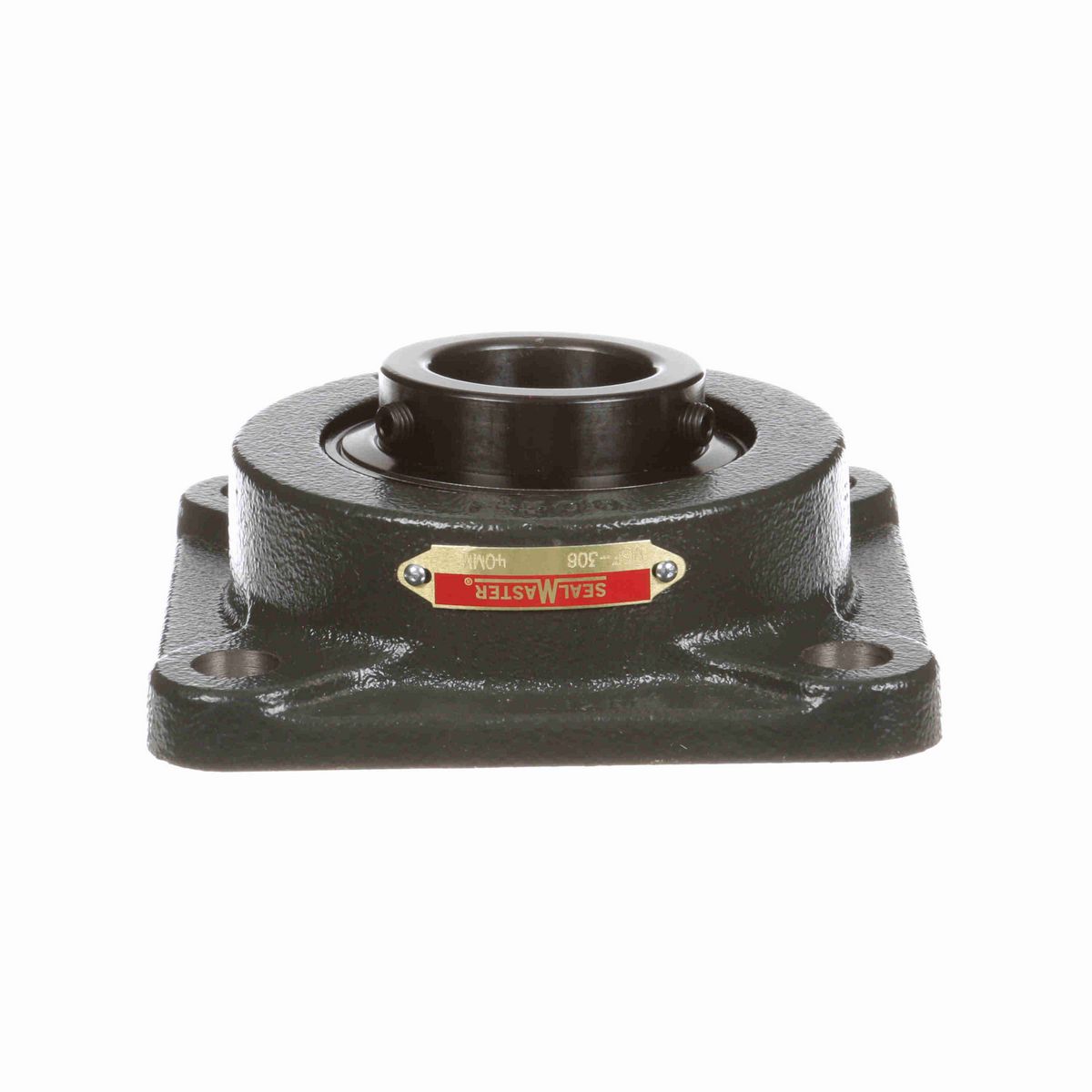

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	5.38 in
Bolt Size (mm)	M14 mm
Overall Height (in)	2.047 in
Overall Length (in)	5.38 in
Bore Diameter (mm)	40 mm
Foot Height (in)	0.56 in
Length Through Bore (in)	1.934 in
Bolt Spacing (in)	4.1250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	7,901 lb
Housing Backside Inner Diameter	3.88
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	3800 rpm
Grease Fitting Thread Size	1/4-28
Size Code	2-111
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Medium Duty
Bearing Insert Finish	Black Oxide
Shaft Locking Type	Set Screw
Static Load Rating (lb)	5,139 lb
Inner Ring Outside Diameter (in)	2.307 in
Max Operating Temperature (F)	220 °F
Insert	5308
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662461053652
Weight	6.00 LB
Packaged Length	5.94 IN
Packaged Width	6.06 IN
Packaged Height	2.19 IN
HTC	8483.20.4040
Country of Origin	United States of America
