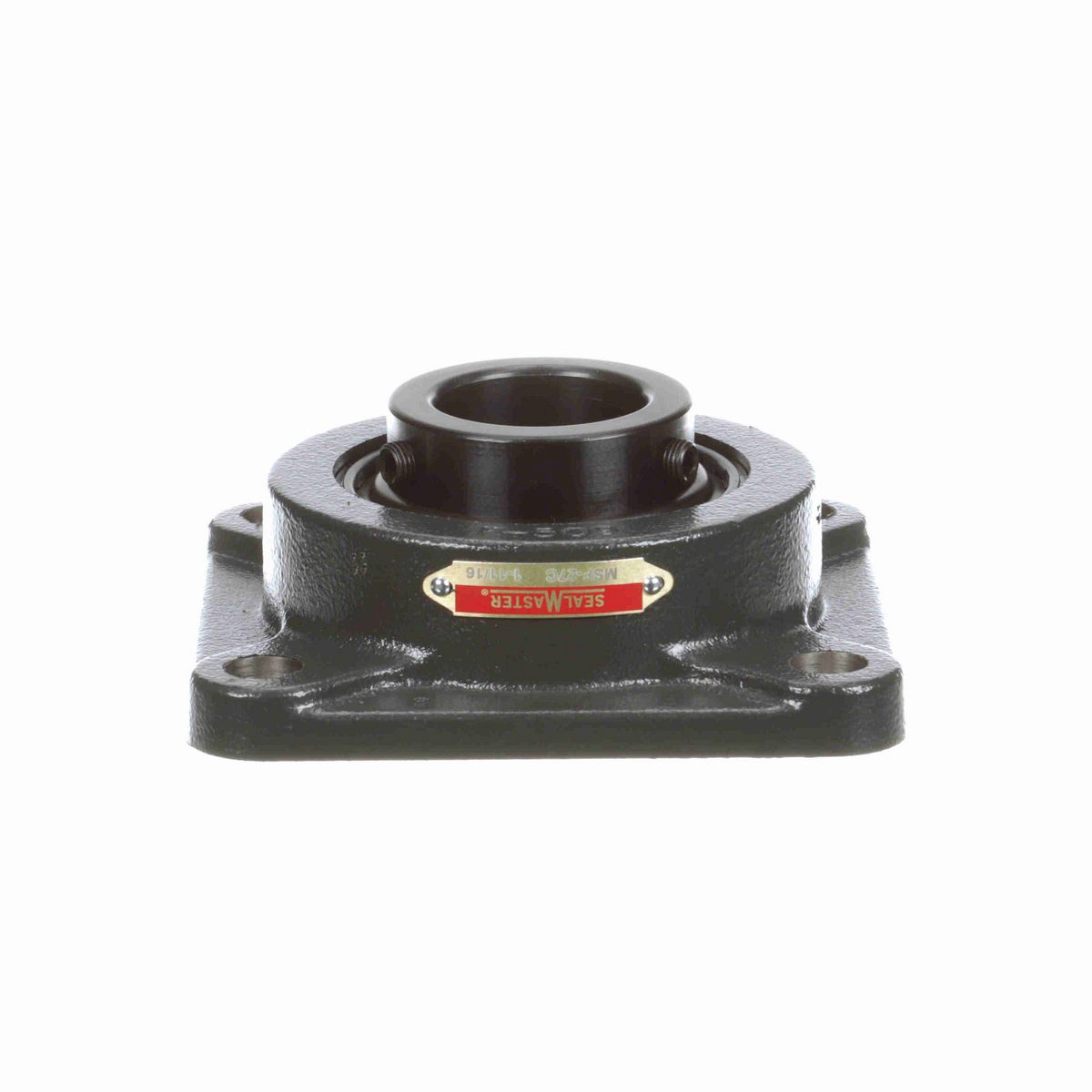

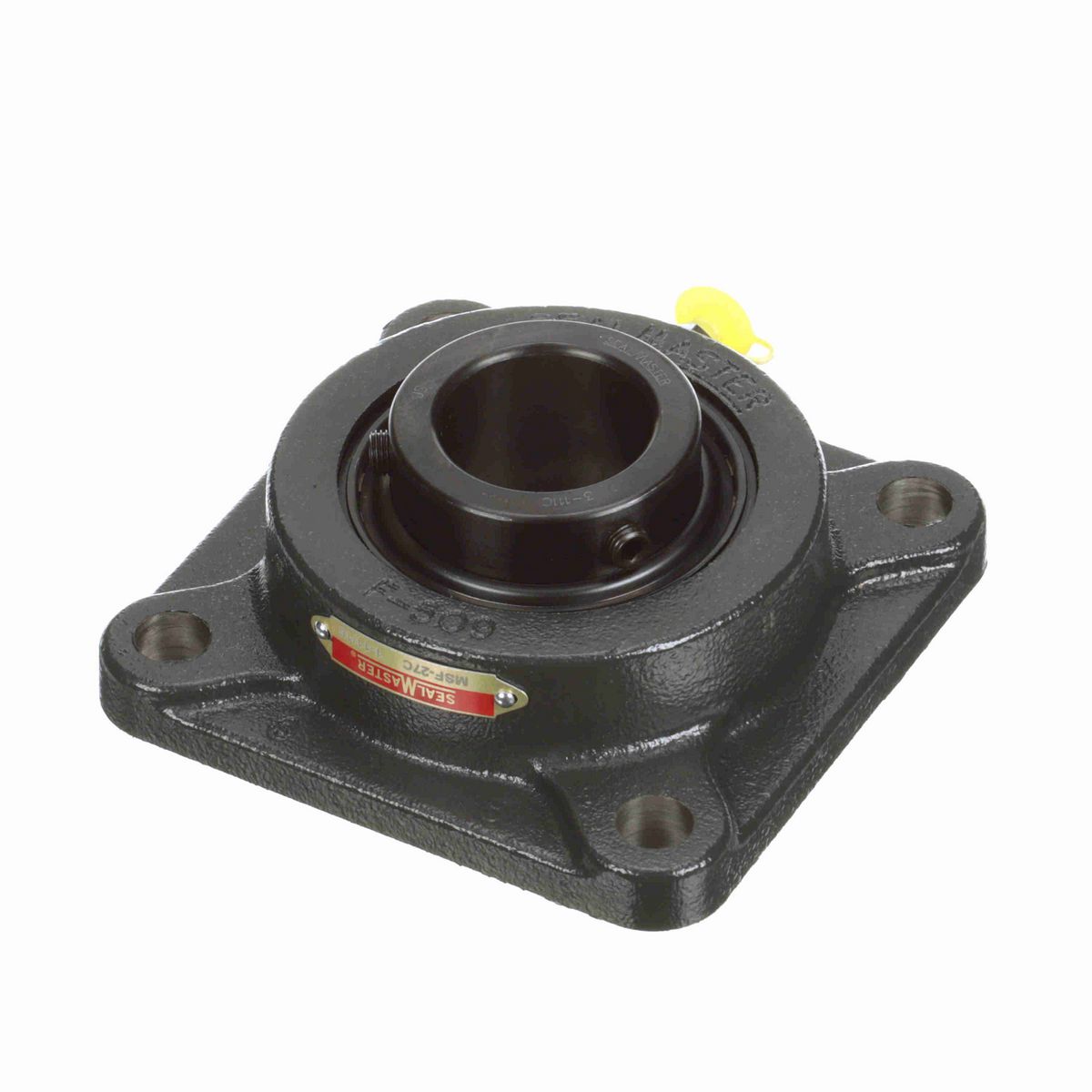

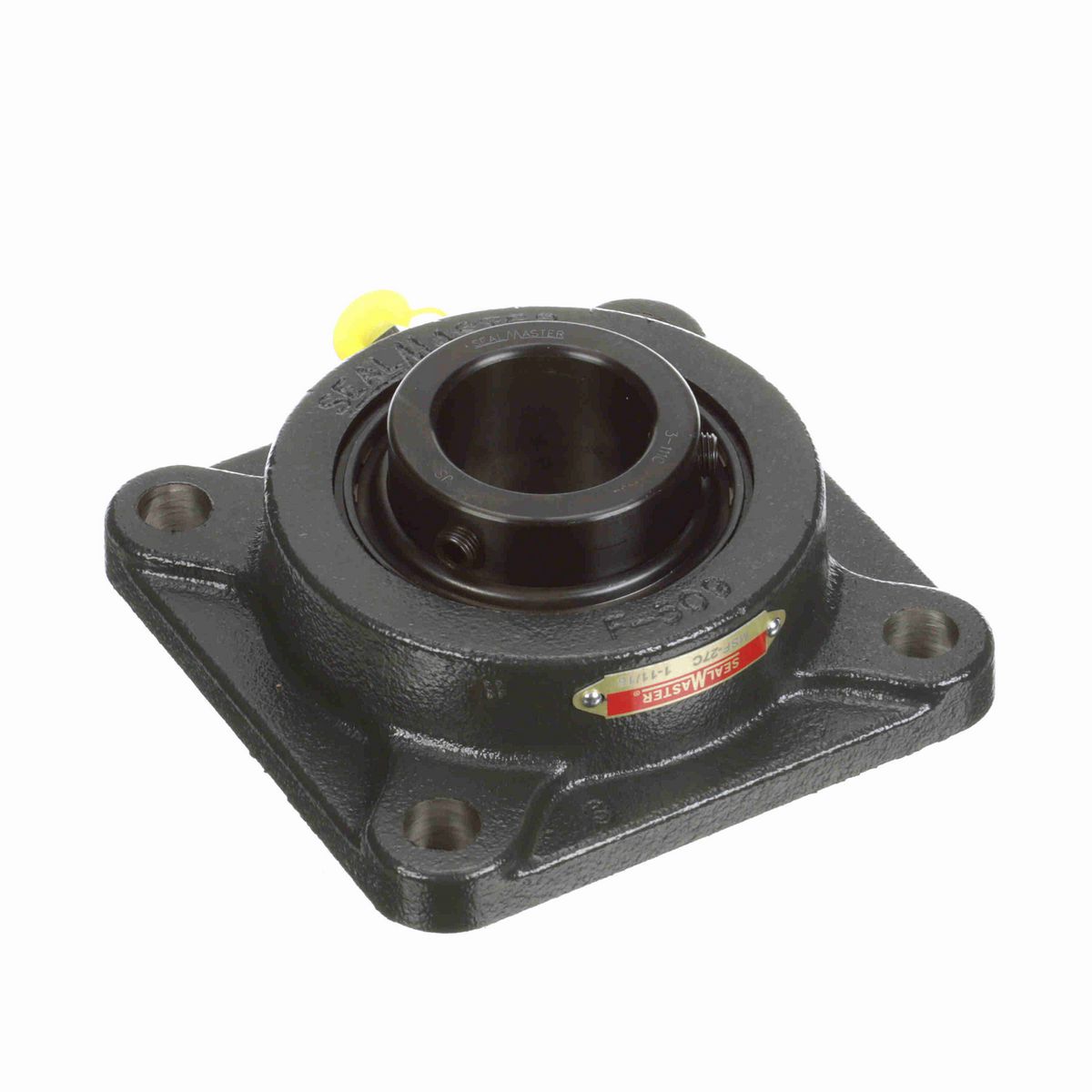

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	5.63 in
Bolt Size (in)	9/16 in
Overall Height (in)	2.156 in
Overall Length (in)	5.63 in
Bore Diameter (in)	1.6875 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.027 in
Bolt Spacing (in)	4.3750 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Max Operating Temperature (F)	220 °F
Housing Backside Inner Diameter	4
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	7,889 lb
Static Load Rating (lb)	5,216 lb
Grease Fitting Thread Size	1/8 NPT
End Cap Available	No
Housing Coating	Powder Coated
Cage Type	Land Riding Retainer
Shaft Locking Type	Set Screw
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Medium Duty
Inner Ring Outside Diameter (in)	2.469 in
Insert	3-111C
Radial Clearance	Standard
Size Code	2-115
Maximum Speed (RPM)	3550 rpm
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Fixed vs. Expansion	Fixed

General Specifications

UPC	662461027325
Weight	6.60 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
