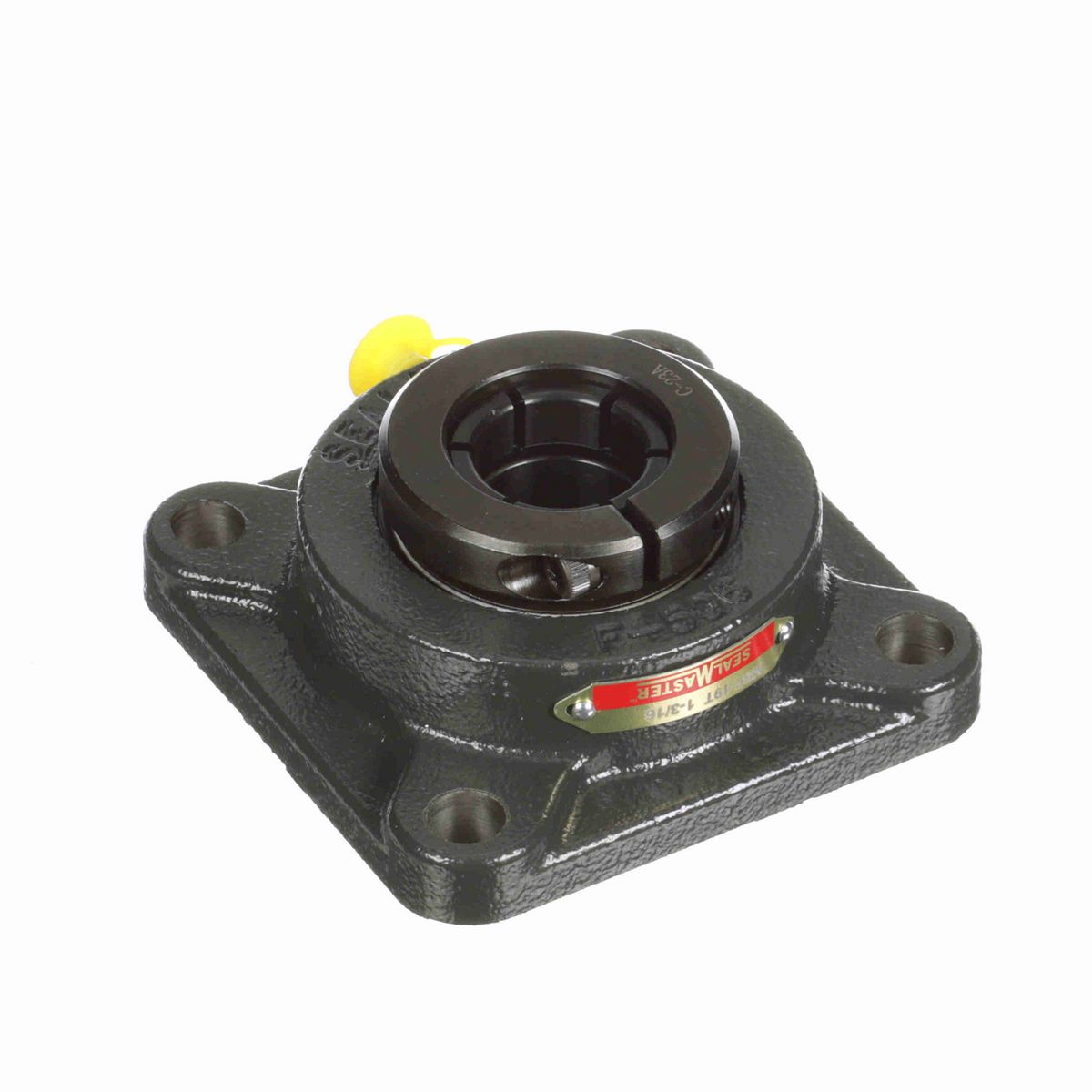

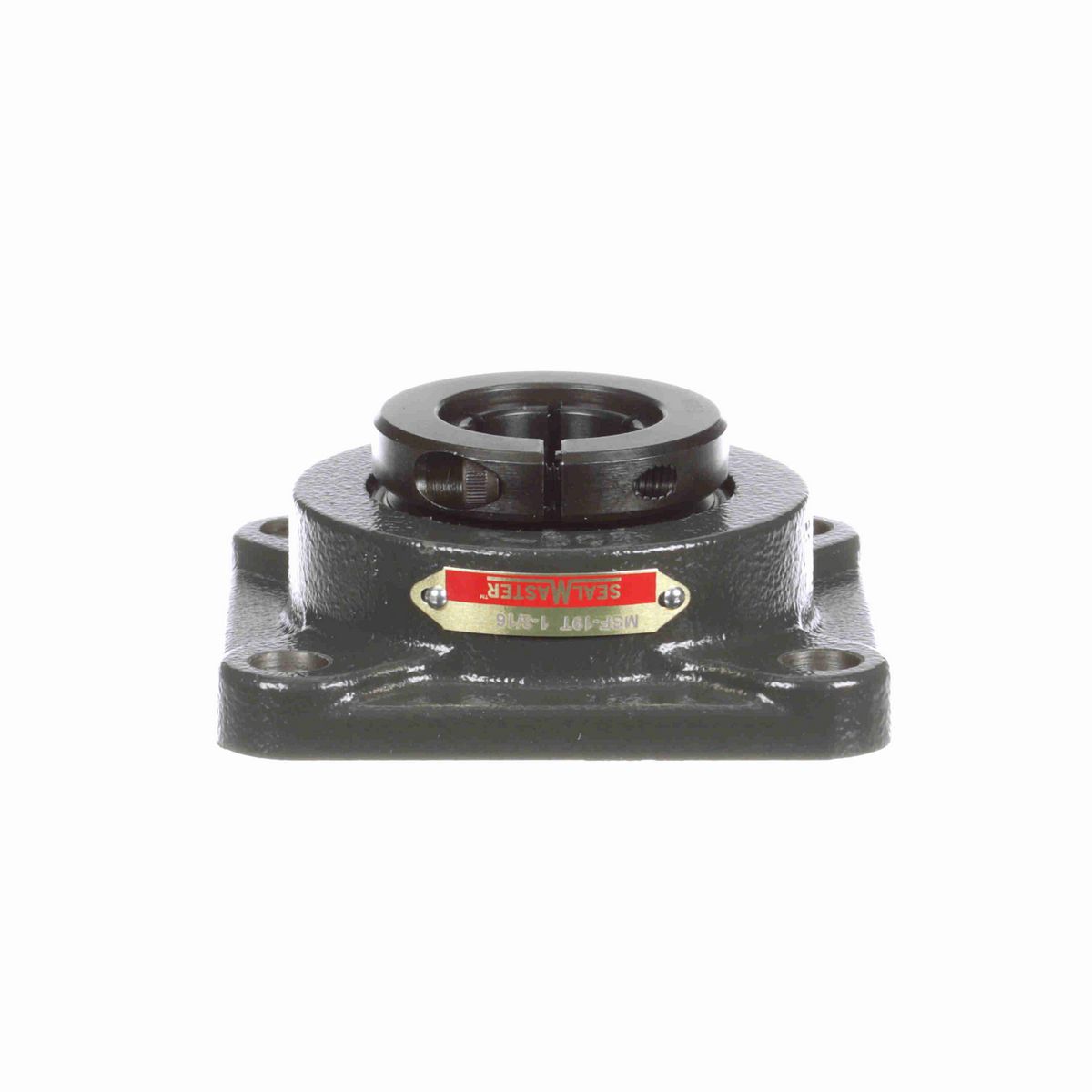

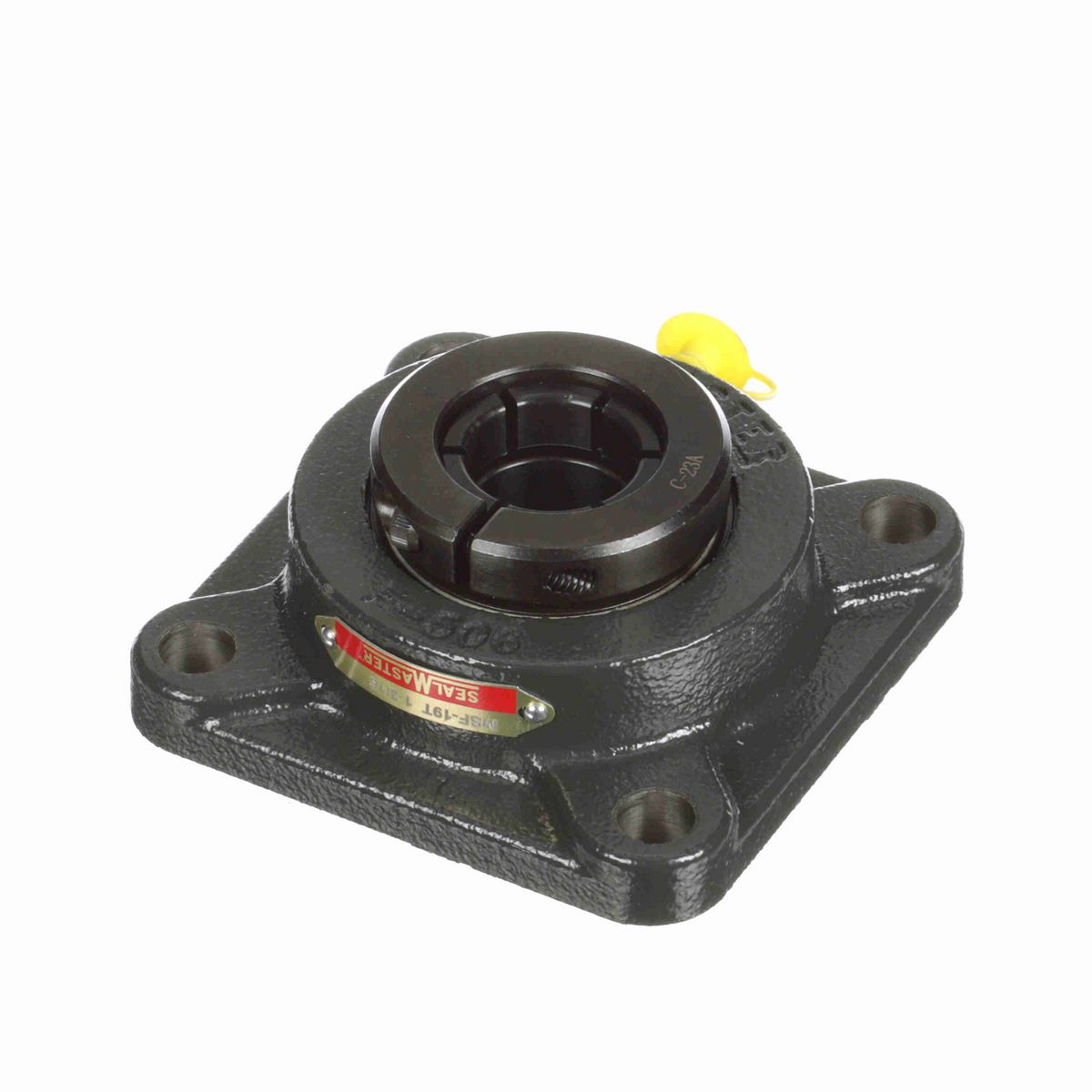

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	4.63 in
Overall Length (in)	4.63 in
Overall Height (in)	1.81 in
Bore Diameter (in)	1.1875 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.75 in
Bolt Spacing (in)	3.6250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.50 in
Inner Race Heat Treat Method	Zone-Hardened
End Cap Available	No
Dynamic Load Rating (lb)	5,782 lb
Static Load Rating (lb)	3,493 lb
Housing Coating	Powder Coated
Shaft Locking Type	Concentric
Cage Type	Land Riding Retainer
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Insert	3-13T
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Medium Duty
Inner Ring Outside Diameter (in)	1.86 in
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Maximum Speed (RPM)	6500 rpm
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Housing Material	Cast Iron
Housing Backside Inner Diameter	3.31

General Specifications

UPC	662461032121
Weight	4.09 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
