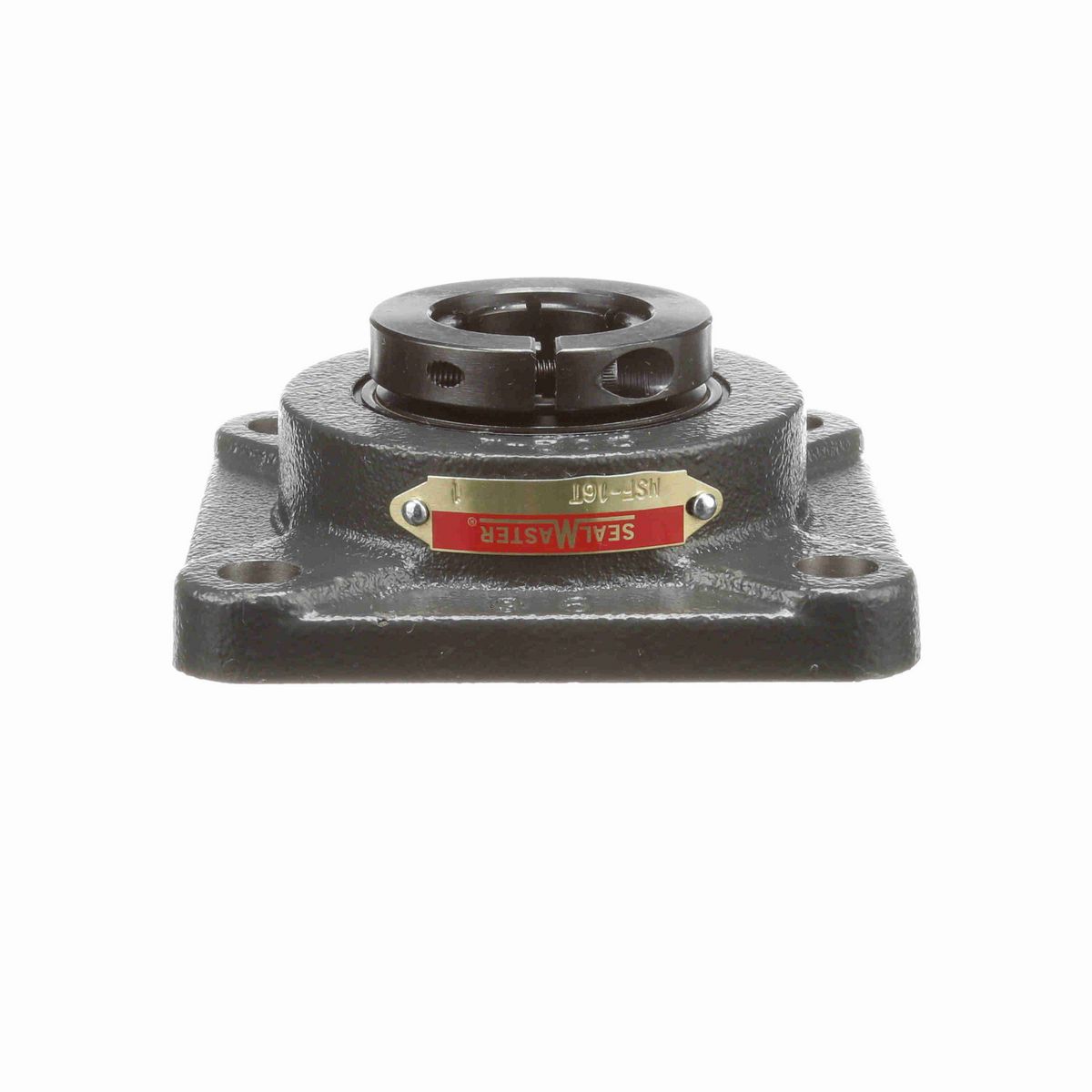

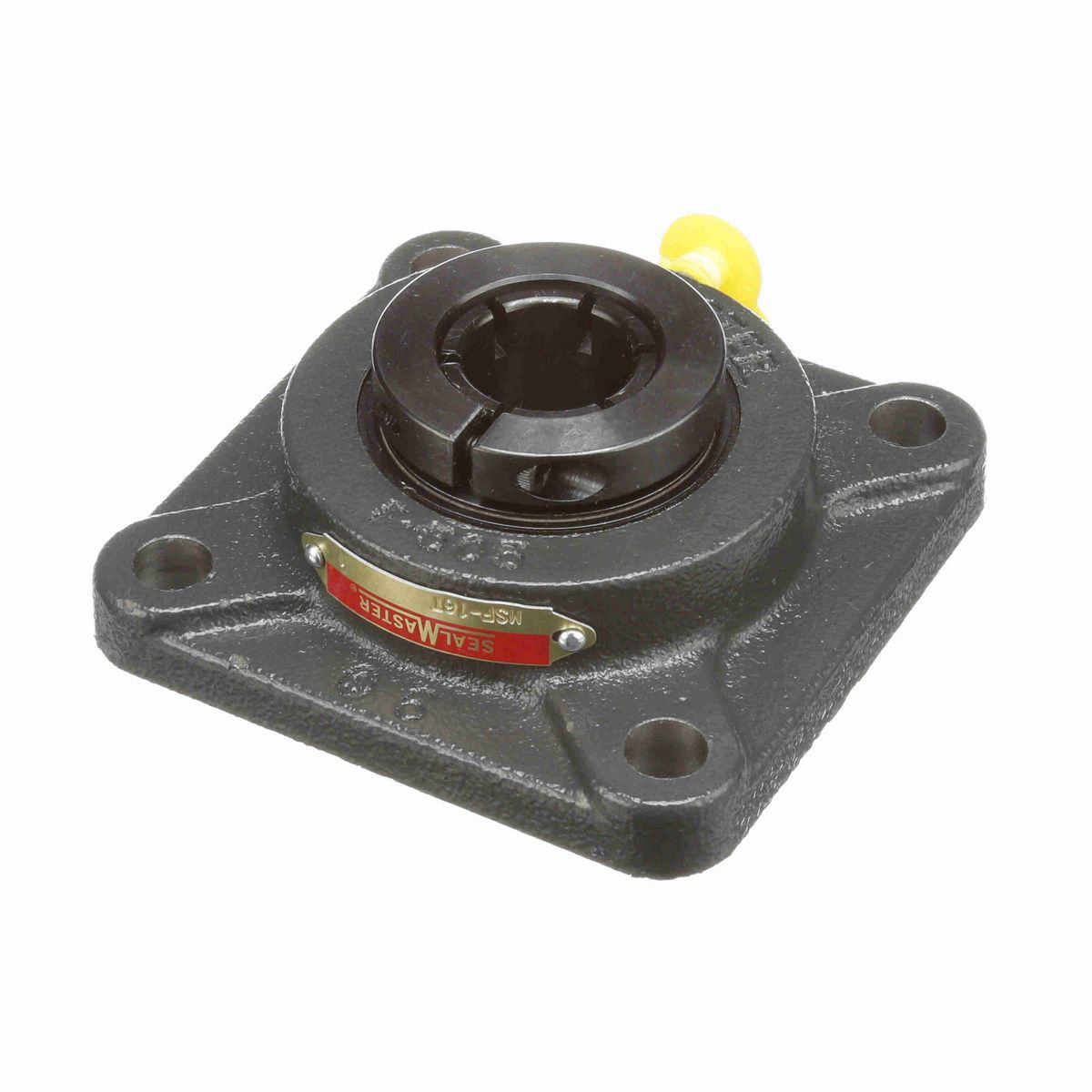

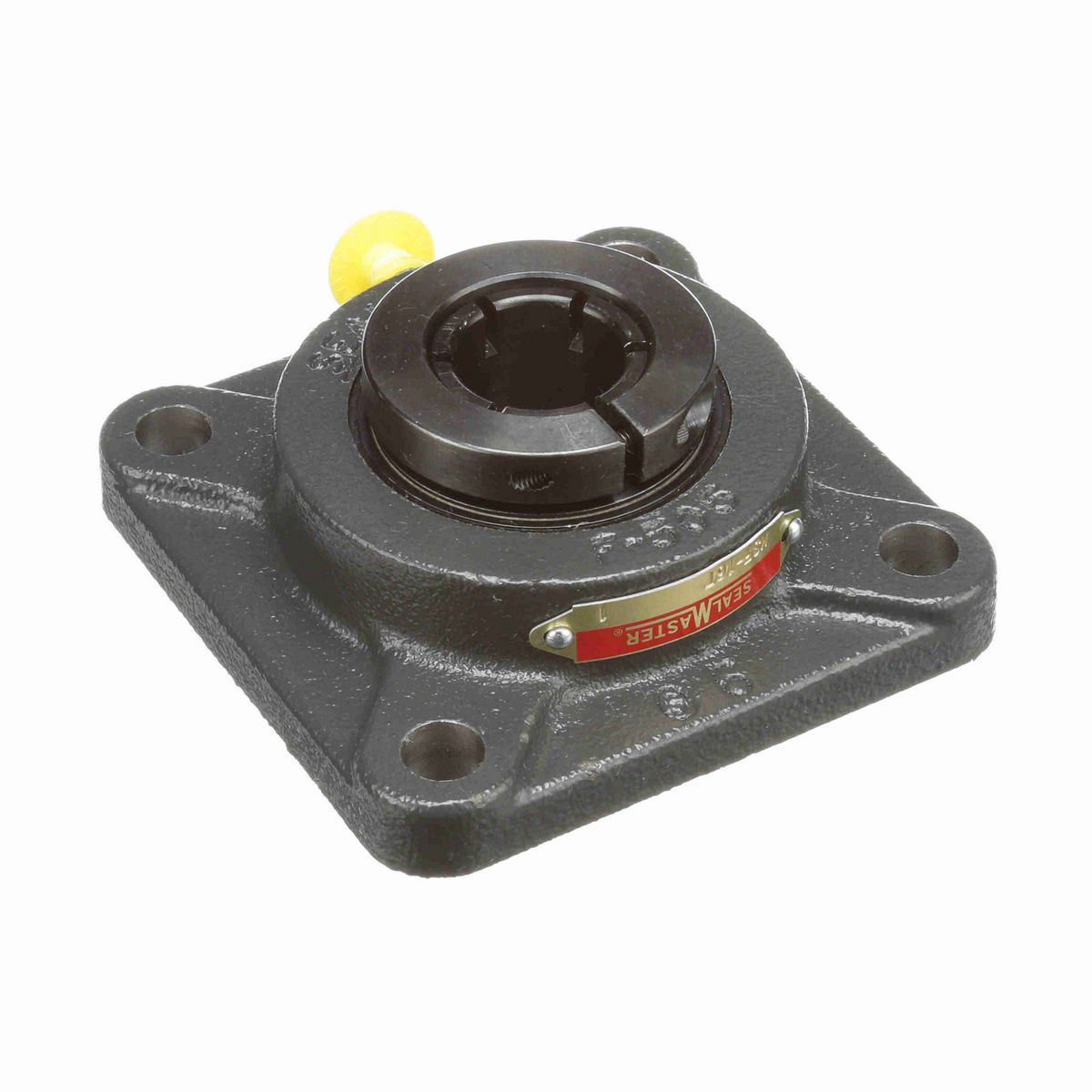

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - MSF-16T

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - MSF-16T
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - MSF-16T
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - MSF-16T
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - MSF-16T
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - MSF-16T
(0)
Под заказ
SealMaster
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Полное описание
Заказать товар
Товар доступен только под заказ.
Сроки поставки: 2–3 недели
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - MSF-16T
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - MSF-16T
(0)
Под заказ
0 руб.
В корзину
Описание Отзывы Доставка


  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Skwezloc® concentric locking for near perfect concentricity
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Dimensions
Overall Width (in)4.25 in
Bolt Size (in)7/16 in
Overall Length (in)4.25 in
Overall Height (in)1.673 in
Bore Diameter (in)1 in
Foot Height (in)0.53 in
Length Through Bore (in)1.61 in
Bolt Spacing (in)3.2500 in
Technical Specifications
Rolling ElementBall Bearing
Bore ShapeStraight
Pilot ConfigurationNo Pilot
Housing ConstructionOne Piece
Housing ColorBlack
Misalignment TypeStatic Only
Outer Ring Land ProfileStandard
Cage MaterialPPS - Polyphenylene Sulfide
Housing TypeFlange, Four Bolt
Seal TypeFelt Labyrinth Seal
Housing StyleFlange Block
Inner Race Heat Treat MethodZone-Hardened
Locking Collar Outside Diameter (in)2.11 in
Ability to RelubricateYes
Setscrew Torque (in-lbs)85 in/lbs
Max Operating Temperature (F)220 °F
Vibration Frequency Outer Ring Defect0.0595 cps
Vibration Frequency Roller Spin0.0385 cps
Radial ClearanceStandard
LubricantLithium Complex NLGI 2 Grease
Size Code2-13
Shaft Locking TypeConcentric
Maximum Speed (RPM)7600 rpm
Grease Fitting Thread Size1/4-28
Dynamic Load Rating (lb)4,381 lb
Misalignment Capability±2.0° Misalignment - Static Only
Vibration Frequency Inner Ring Defect0.0905 cps
Housing Backside Inner Diameter2.88
Bearing TypeMedium Duty
Inner Ring Outside Diameter (in)1.587 in
Static Load Rating (lb)2,567 lb
Fixed vs. ExpansionFixed
Cage TypeLand Riding Retainer
Bearing Insert Material52100 Bearing Steel
Vibration Frequency Fundamental Train0.0066 cps
Housing MaterialCast Iron
End Cap AvailableNo
Bearing Insert FinishBlack Oxide Inner Ring
Housing CoatingPowder Coated
Insert3-1T
General Specifications
UPC662461032114
Weight3.10 LB
Packaged Length4.50 IN
Packaged Width1.69 IN
Packaged Height4.56 IN
HTC8483.20.4040
Country of OriginUnited States of America
