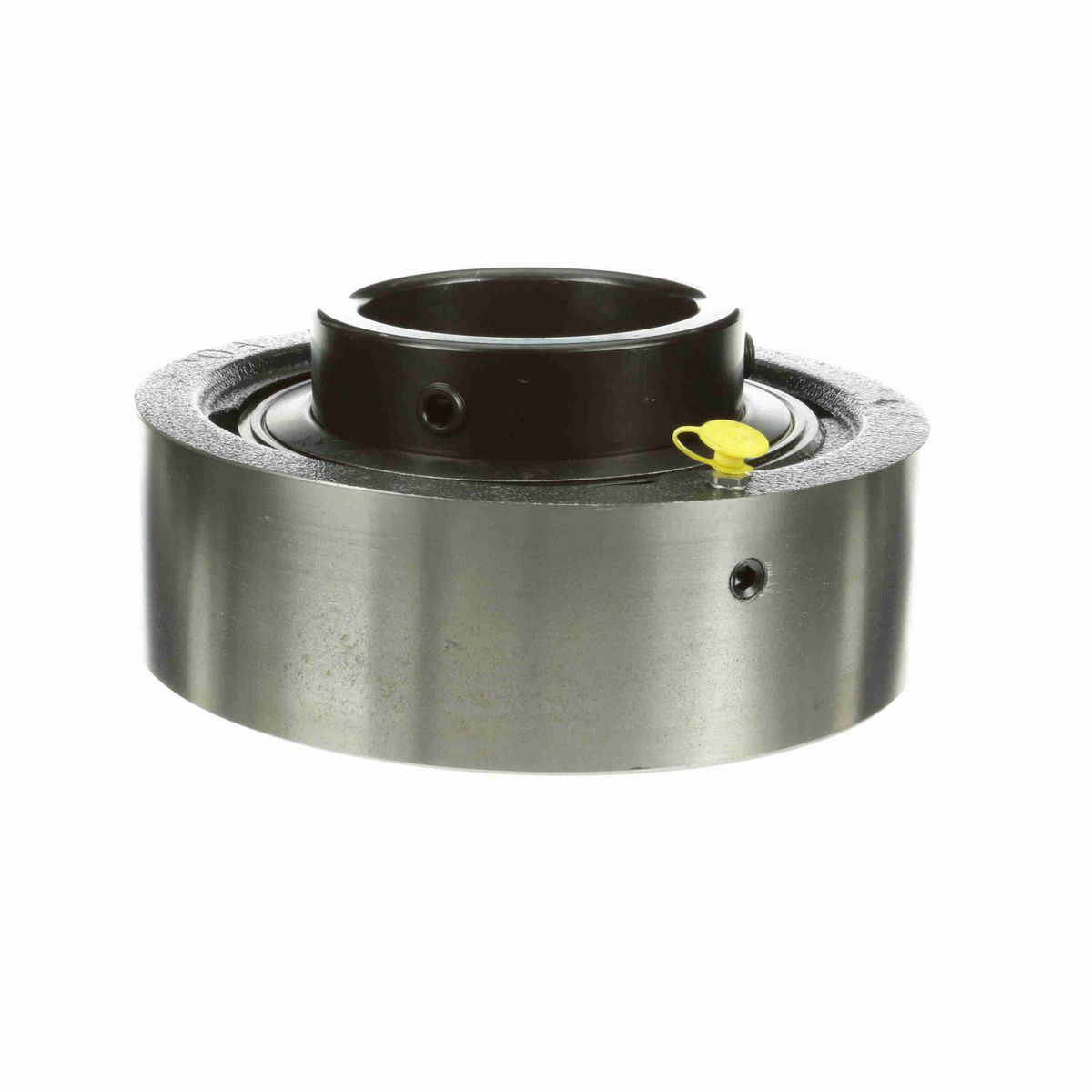

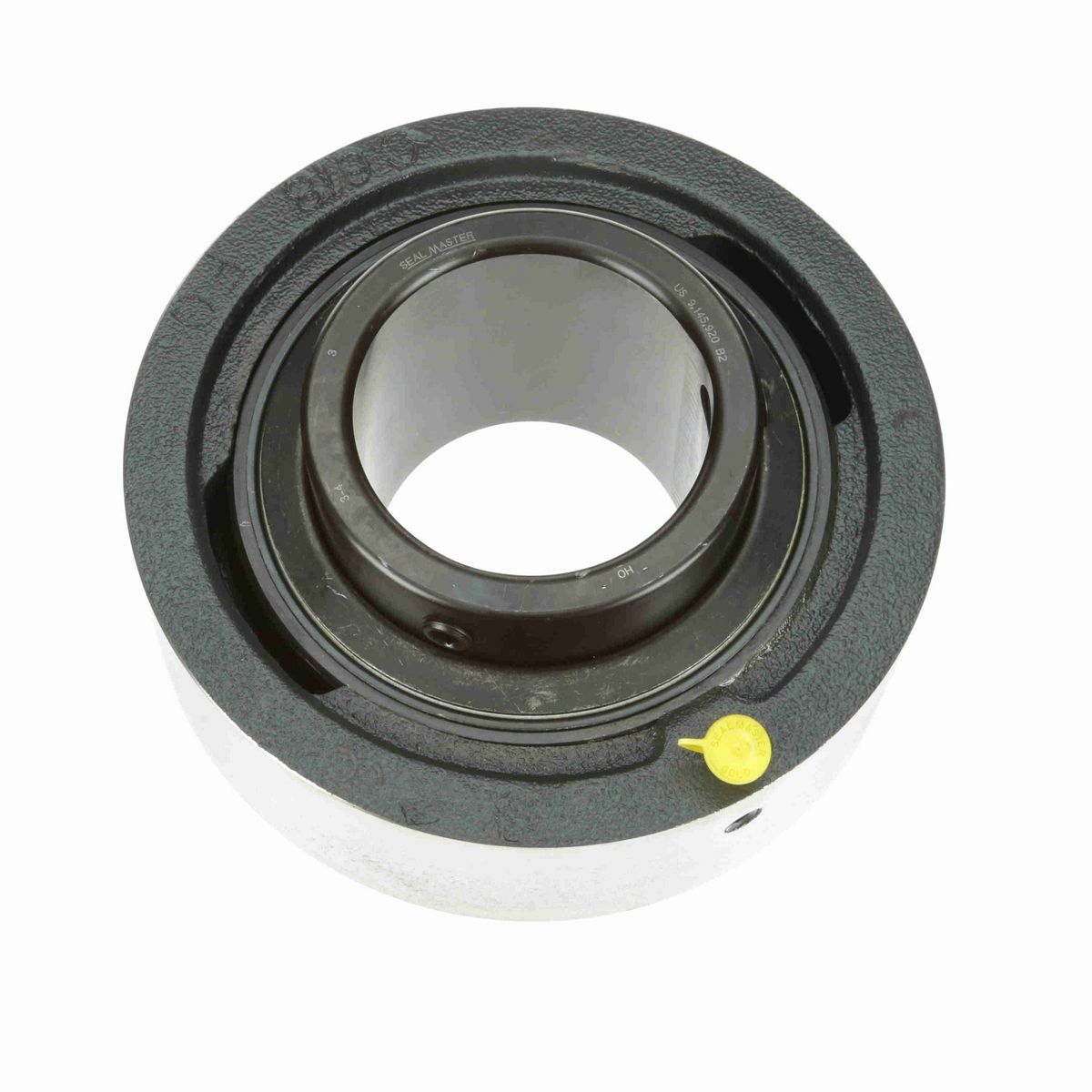

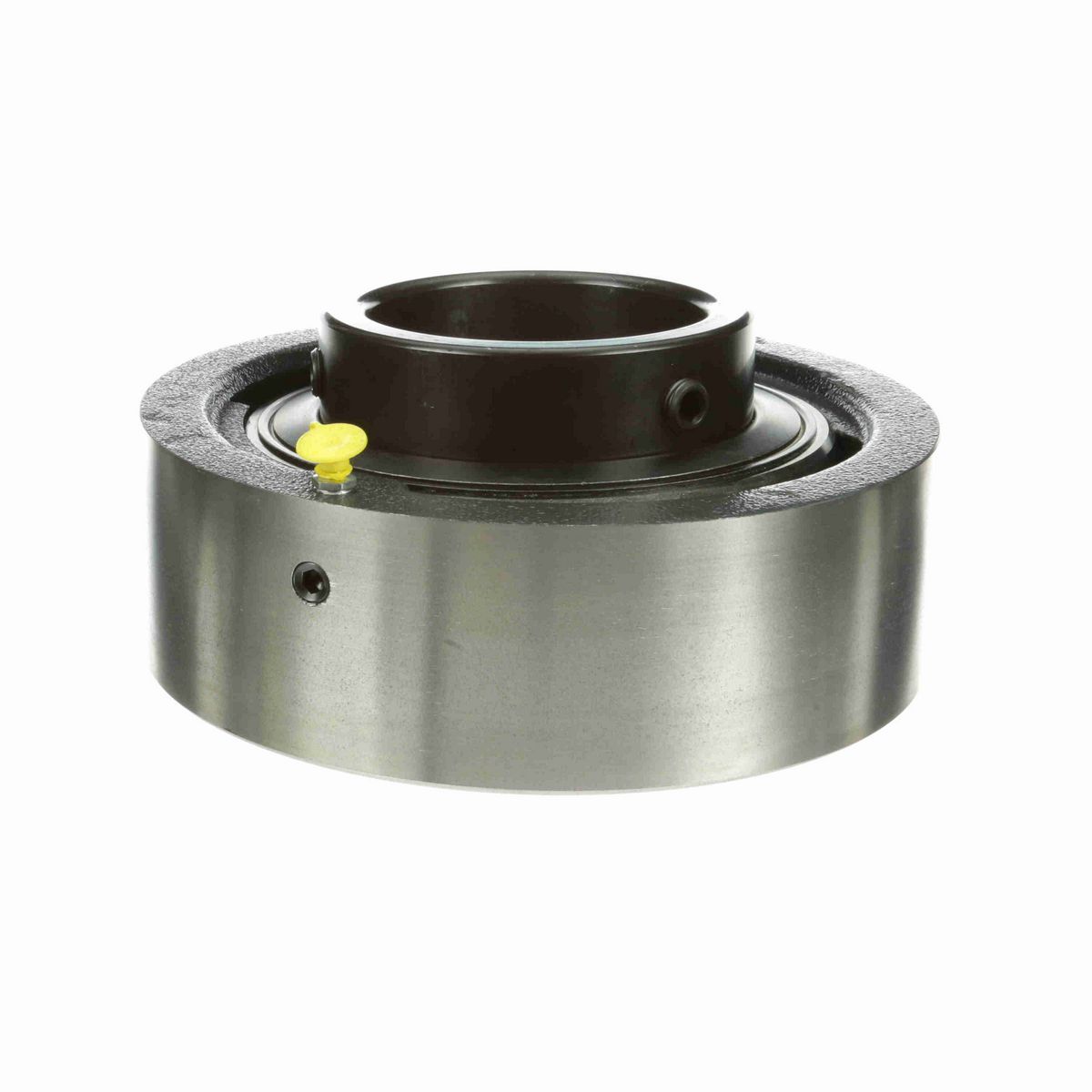

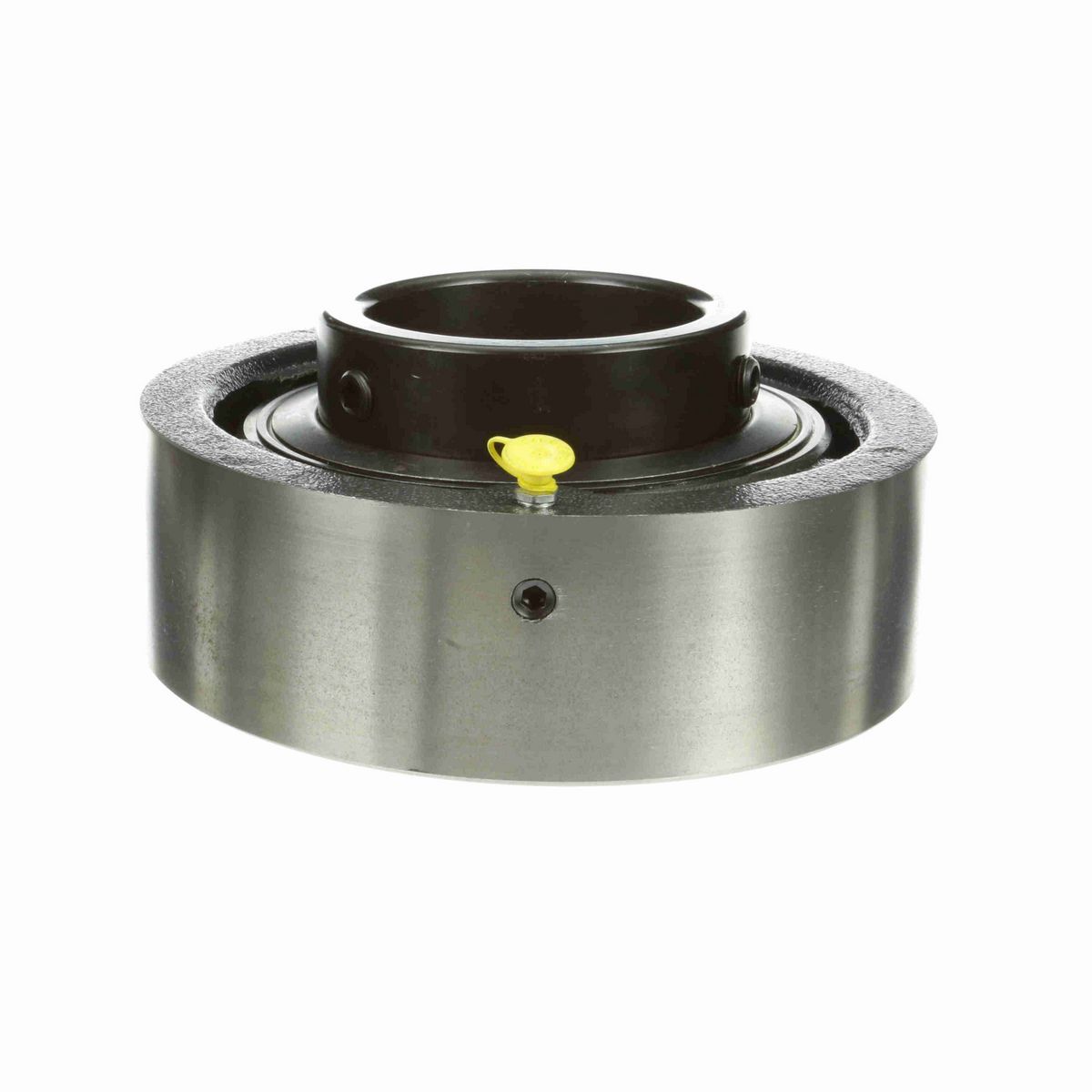

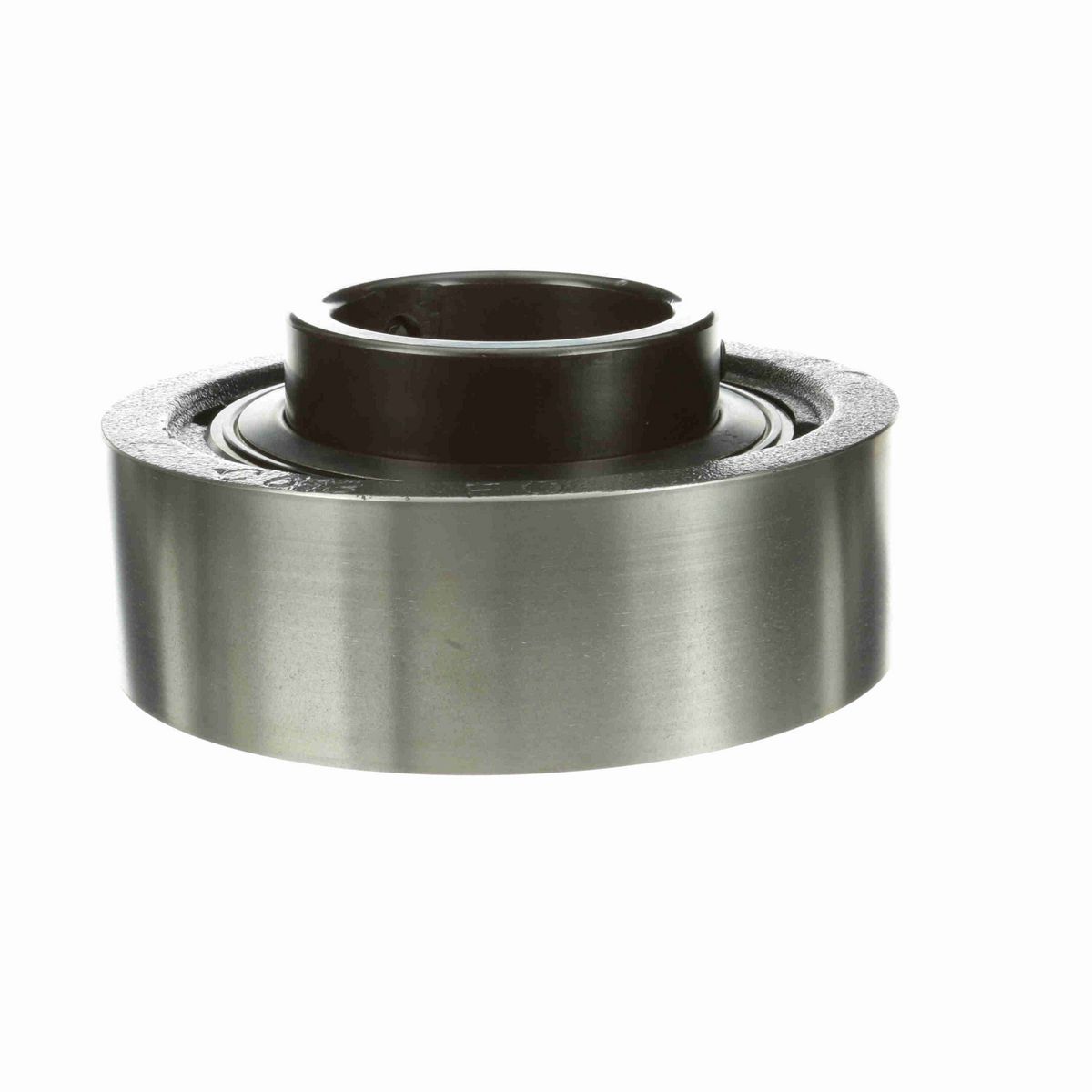

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	9.5 in
Overall Length (in)	9.5 in
Overall Width (in)	4.63 in
Bore Diameter (in)	4 in
Length Through Bore (in)	4.625 in
Centerline to Outermost Bearing Face (in)	2.69 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Gray
Outer Ring Land Profile	Standard
Cage Material	Brass
Series	MSC
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Housing Style	Cartridge Block
Outside Diameter (in)	9.5
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bearing Type	Medium Duty
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	1700 rpm
Inner Ring Outside Diameter (in)	5.172 in
Insert	3-4
Radial Clearance	Standard
Static Load Rating (lb)	23,553 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Grease Fitting Thread Size	1/8 NPT
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
Max Operating Temperature (F)	220 °F
Shaft Locking Type	Set Screw
Dynamic Load Rating (lb)	29,905 lb
Bearing Insert Material	52100 Bearing Steel
Size Code	2-43
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
End Cap Available	No
Housing Width (in)	3 in

General Specifications

UPC	662461014493
Weight	42.28 LB
Packaged Length	11.00 IN
Packaged Width	11.00 IN
Packaged Height	6.63 IN
HTC	8482.10.5056
Country of Origin	United States of America
