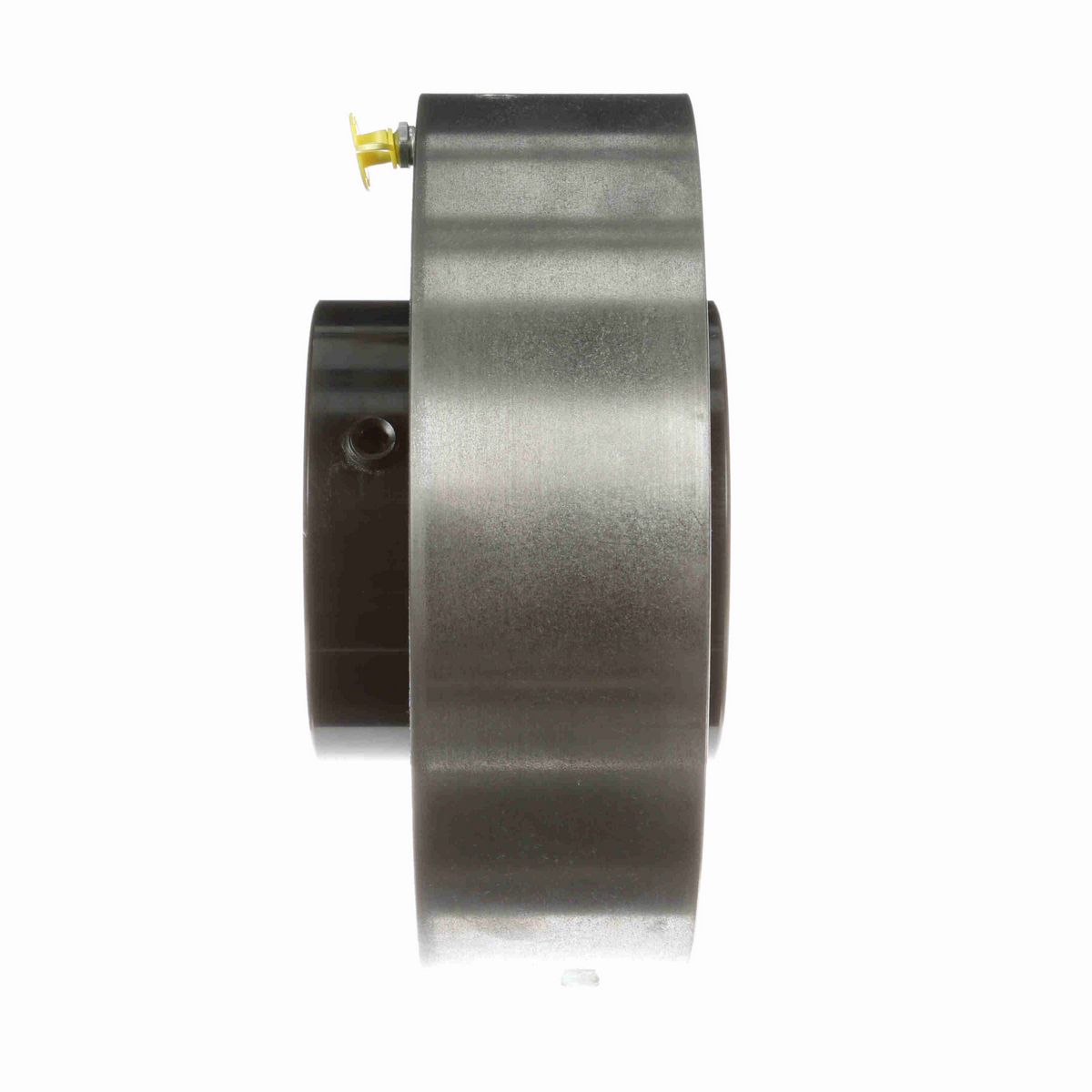

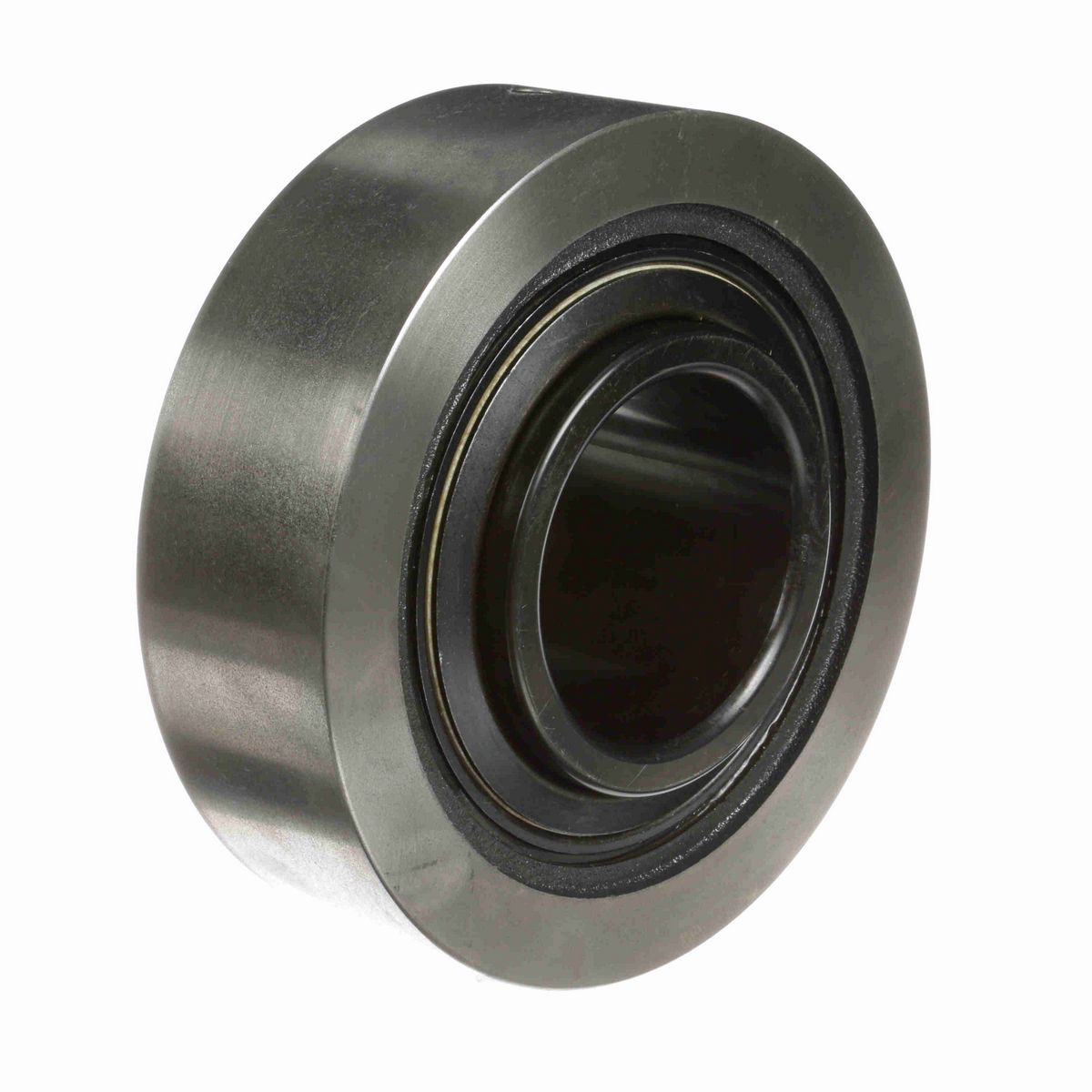

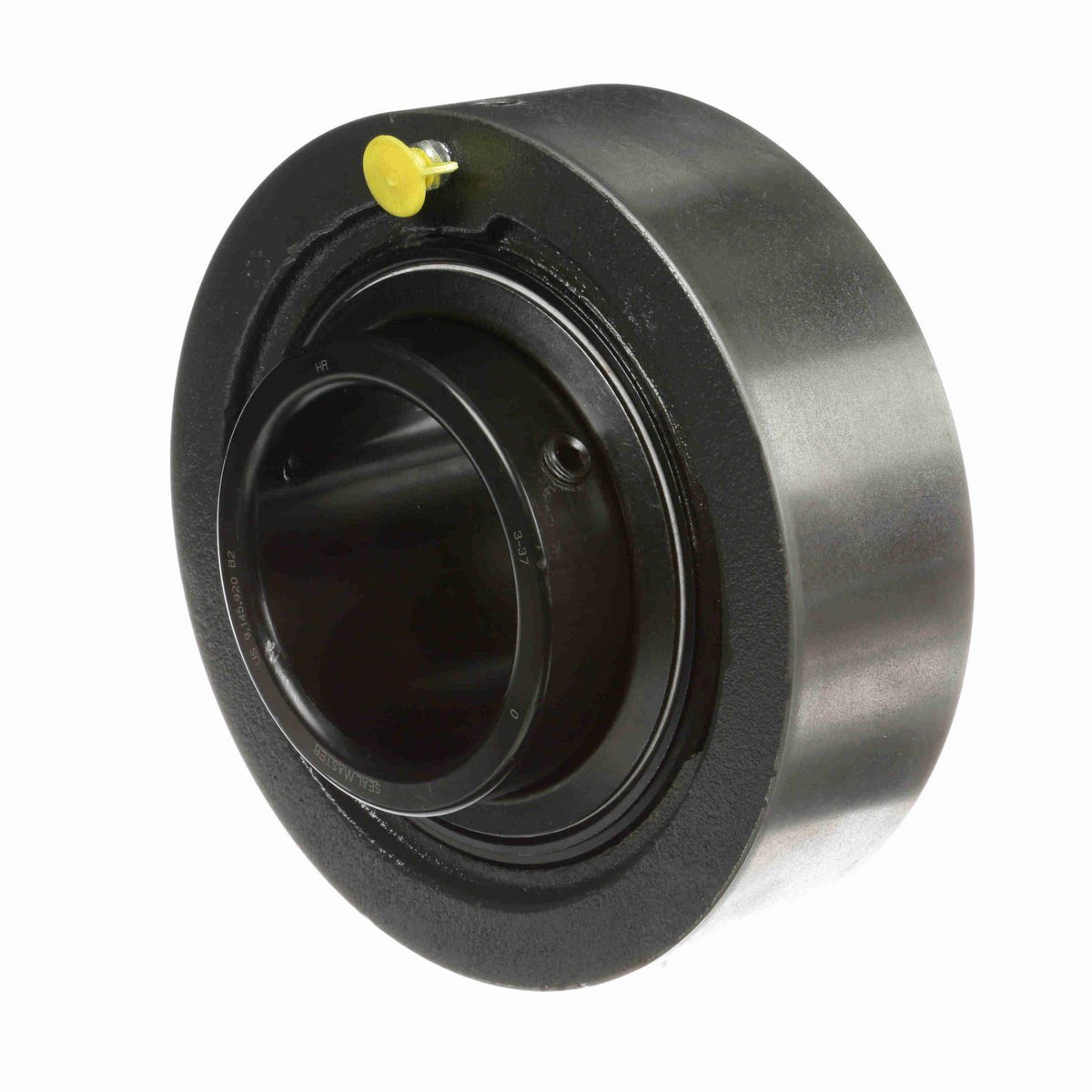

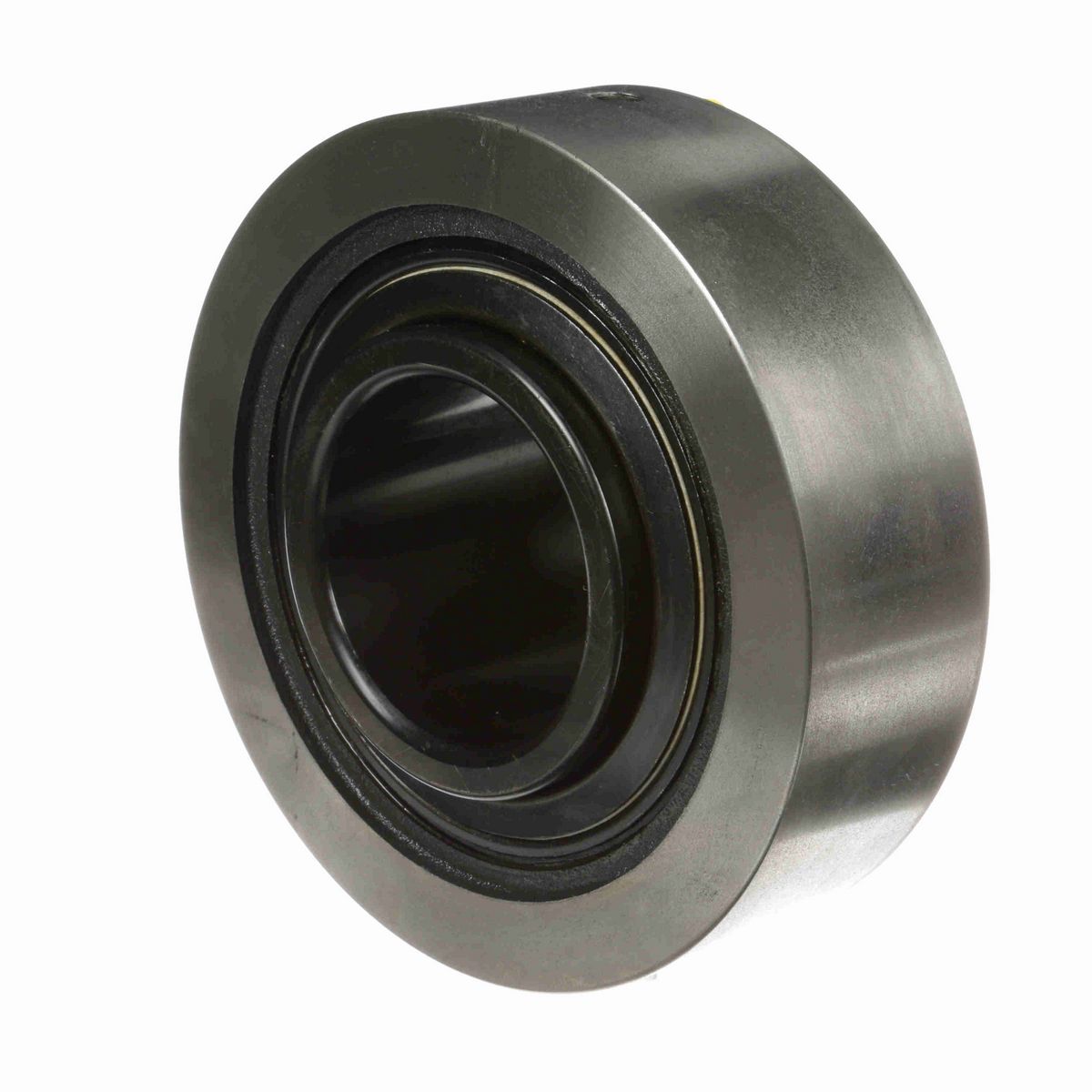

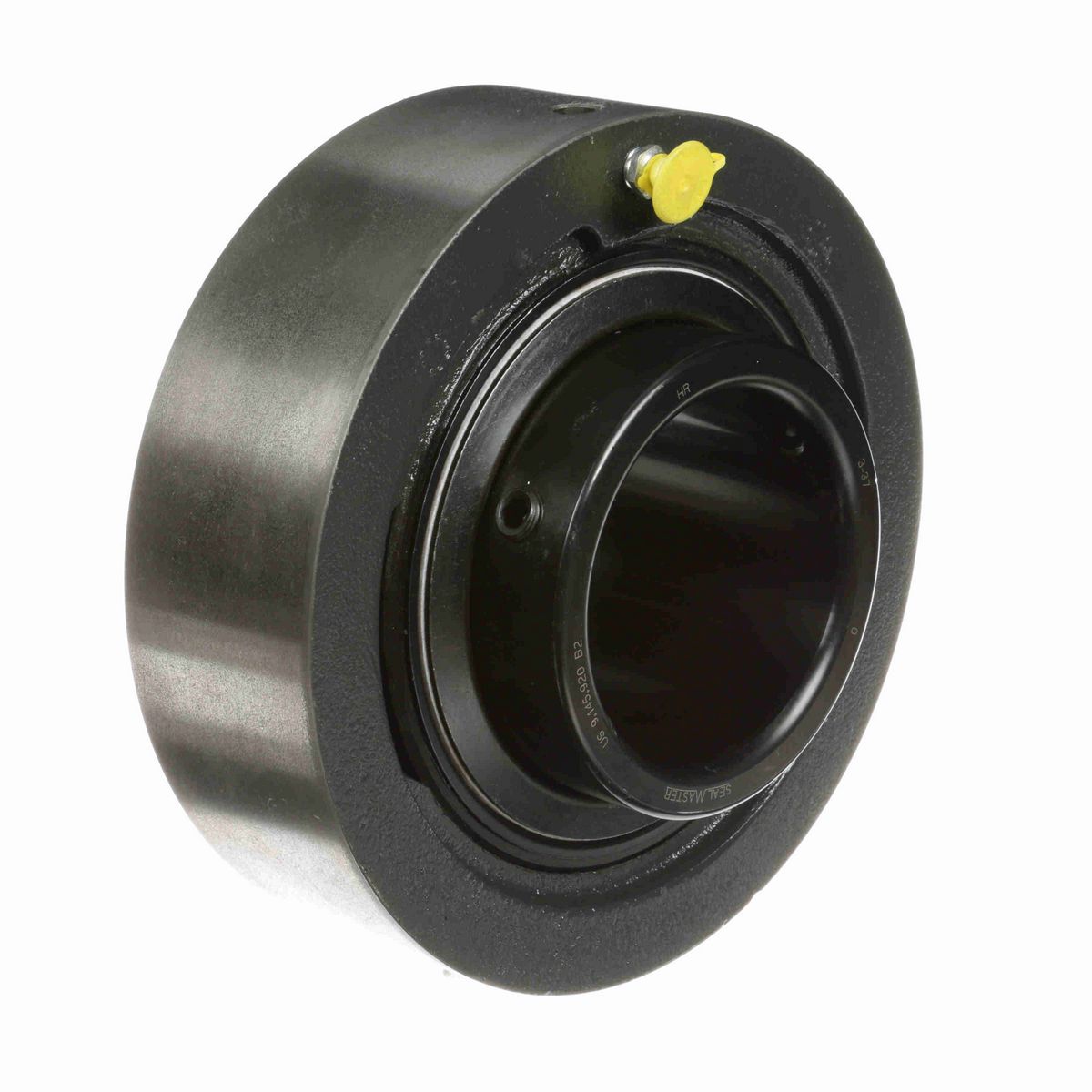

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	8.19 in
Overall Length (in)	8.19 in
Overall Width (in)	3.78 in
Bore Diameter (in)	3.4375 in
Length Through Bore (in)	3.781 in
Centerline to Outermost Bearing Face (in)	2.22 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Gray
Outer Ring Land Profile	Standard
Series	MSC
Cage Material	Brass
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Outside Diameter (in)	8.188
Housing Style	Cartridge Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Insert	3-37
Housing Material	Cast Iron
Radial Clearance	Standard
Static Load Rating (lb)	16,301 lb
End Cap Available	No
Bearing Insert Finish	Black Oxide
Size Code	2-38
Grease Fitting Thread Size	1/8 NPT
Dynamic Load Rating (lb)	21,566 lb
Shaft Locking Type	Set Screw
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	2000 rpm
Inner Ring Outside Diameter (in)	4.391 in
Max Operating Temperature (F)	220 °F
Bearing Type	Medium Duty
Cage Type	Land Riding Retainer
Housing Width (in)	2.5 in

General Specifications

UPC	662461014462
Weight	25.80 LB
Packaged Length	8.75 IN
Packaged Width	8.56 IN
Packaged Height	4.00 IN
HTC	8482.10.5056
Country of Origin	United States of America
