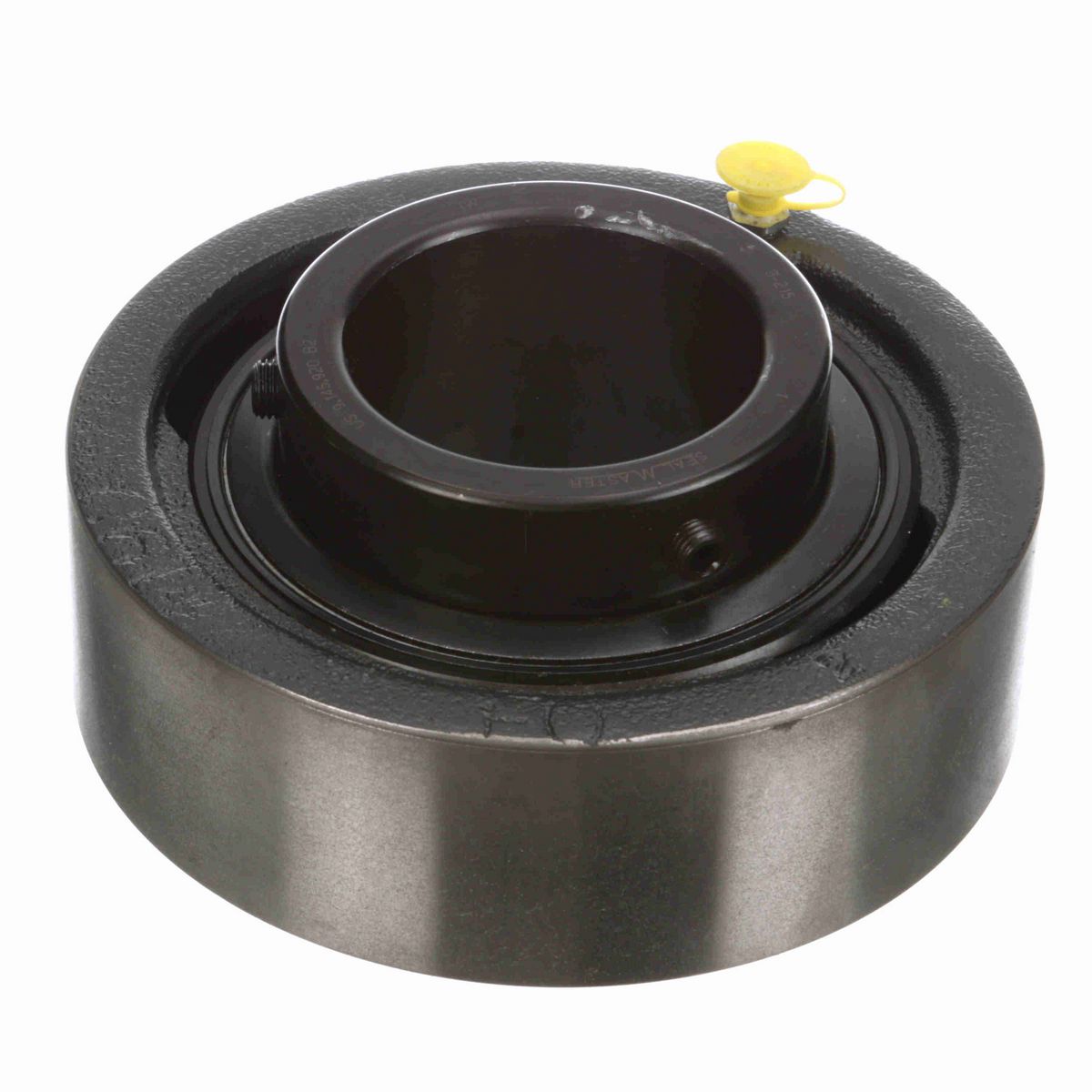

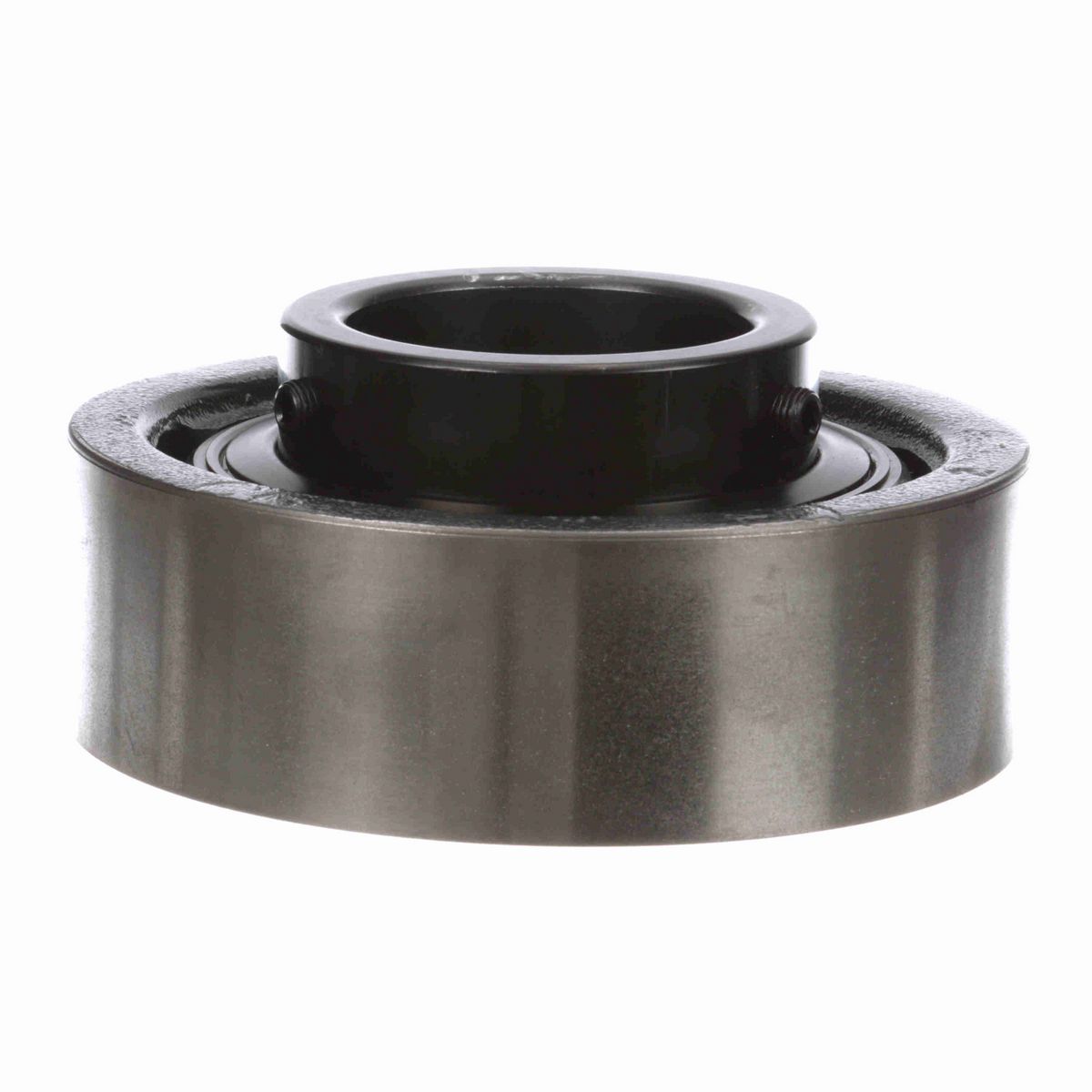

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	7 in
Overall Width (in)	3.25 in
Overall Height (in)	7 in
Bore Diameter (in)	2.9375 in
Length Through Bore (in)	3.25 in
Centerline to Outermost Bearing Face (in)	1.94 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Gray
Cage Material	Brass
Series	MSC
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Housing Style	Cartridge Block
Outside Diameter (in)	7
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Housing Material	Cast Iron
Insert	3-215
Shaft Locking Type	Set Screw
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Bearing Type	Medium Duty
Bearing Insert Material	52100 Bearing Steel
Size Code	2-33
Inner Ring Outside Diameter (in)	3.922 in
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	13,174 lb
Maximum Speed (RPM)	2250 rpm
Grease Fitting Thread Size	1/8 NPT
Bearing Insert Finish	Black Oxide
Max Operating Temperature (F)	220 °F
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	No
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	17,412 lb
Housing Width (in)	2.19 in

General Specifications

UPC	662461014424
Weight	16.90 LB
Packaged Length	7.19 IN
Packaged Width	7.00 IN
Packaged Height	3.31 IN
HTC	8482.10.5056
Country of Origin	United States of America
