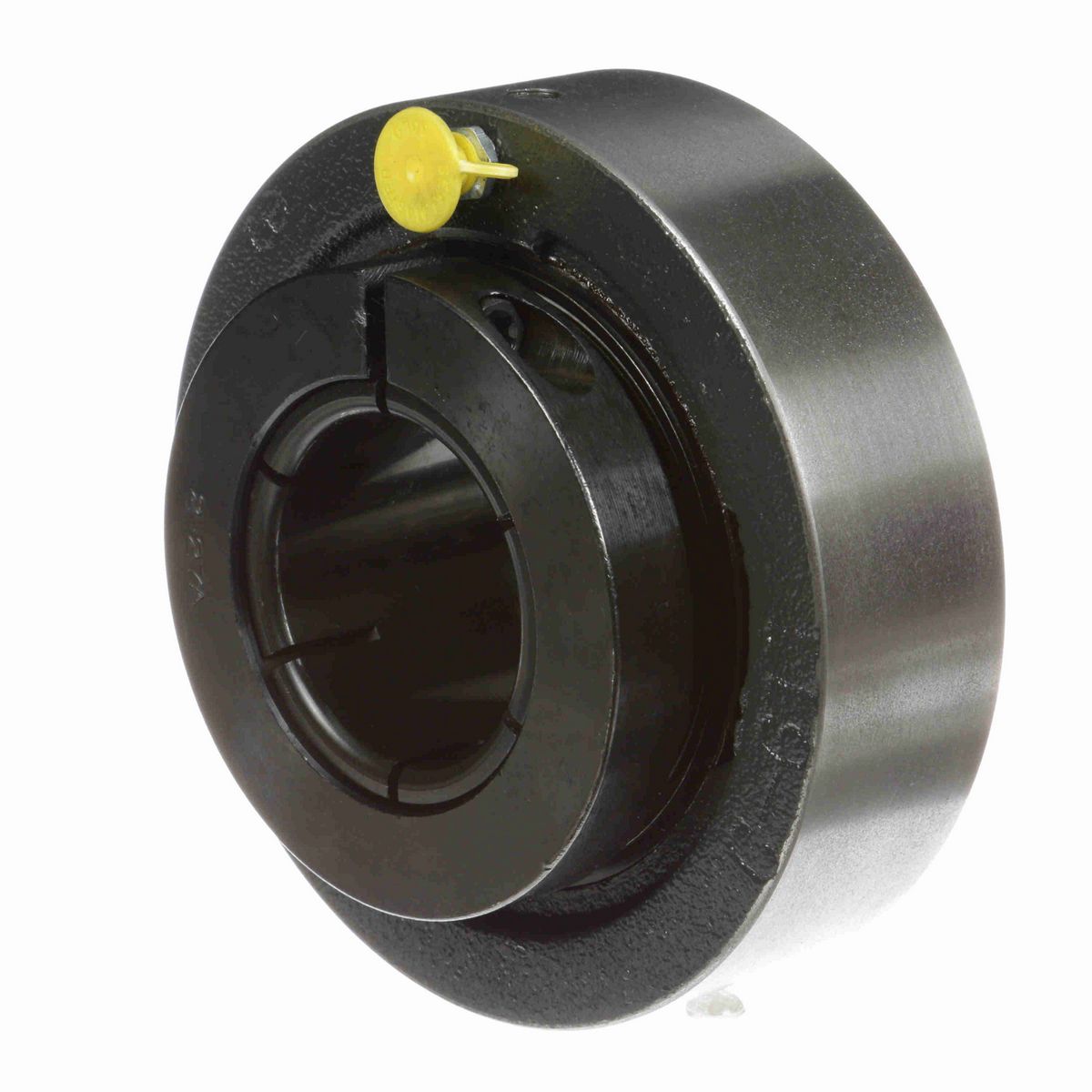

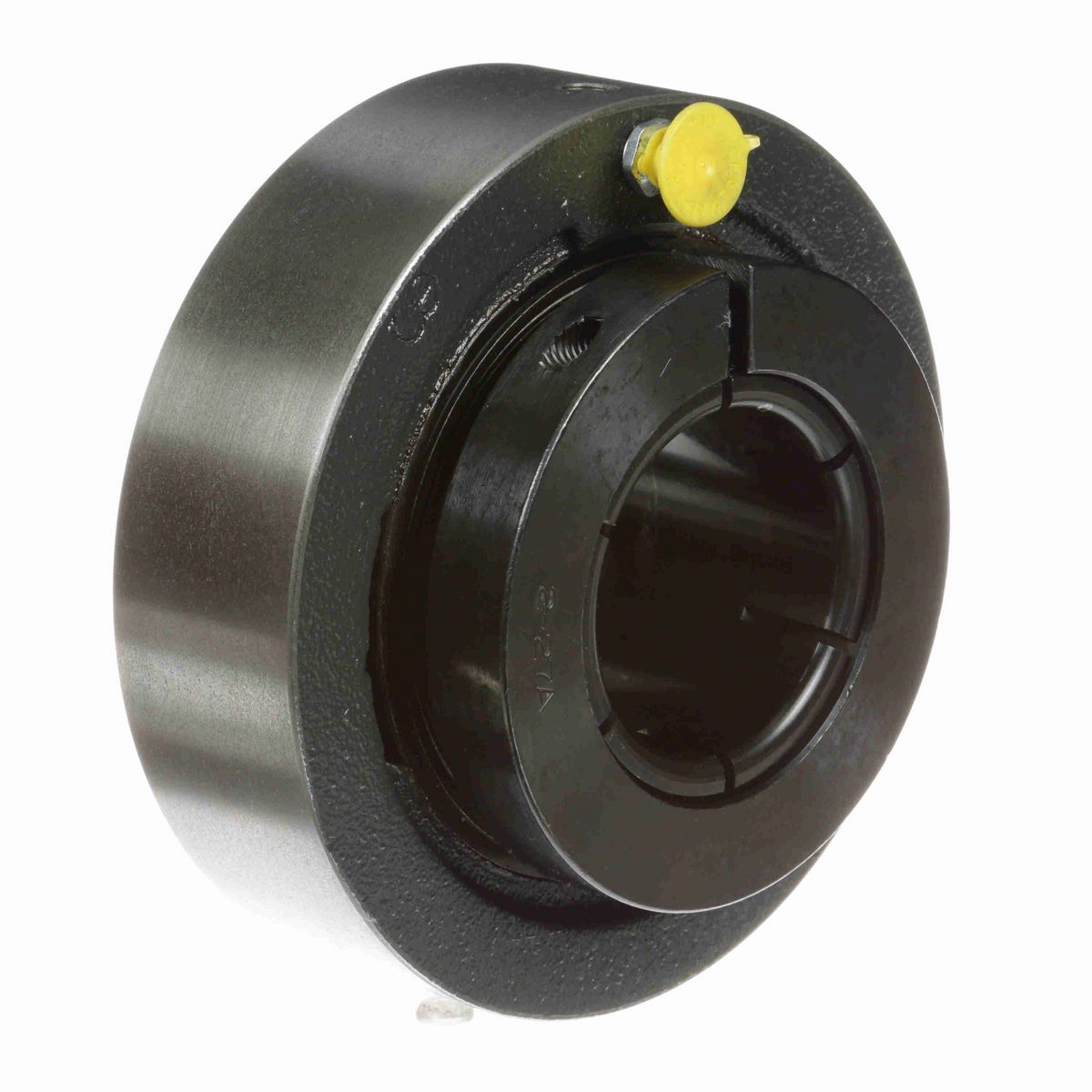

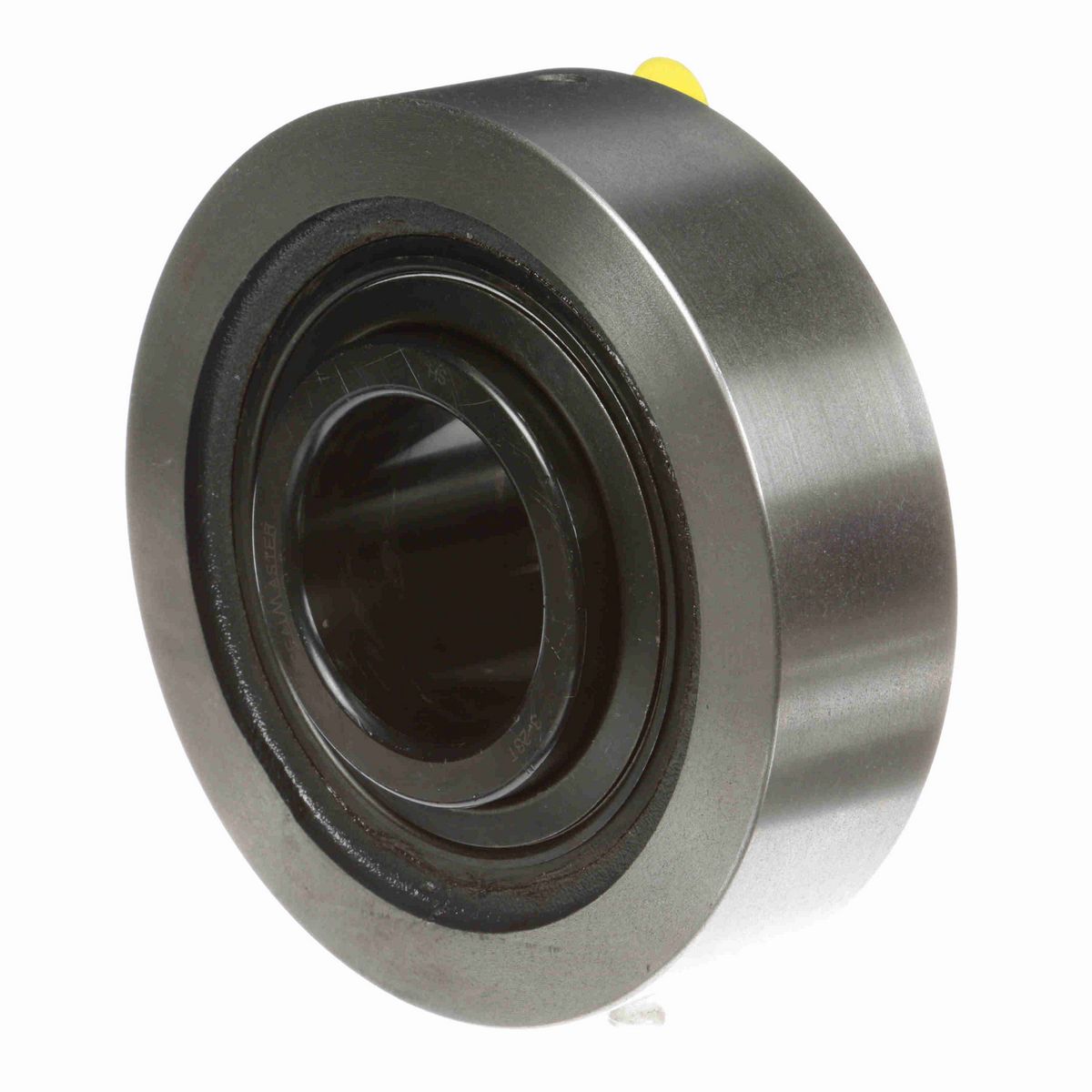

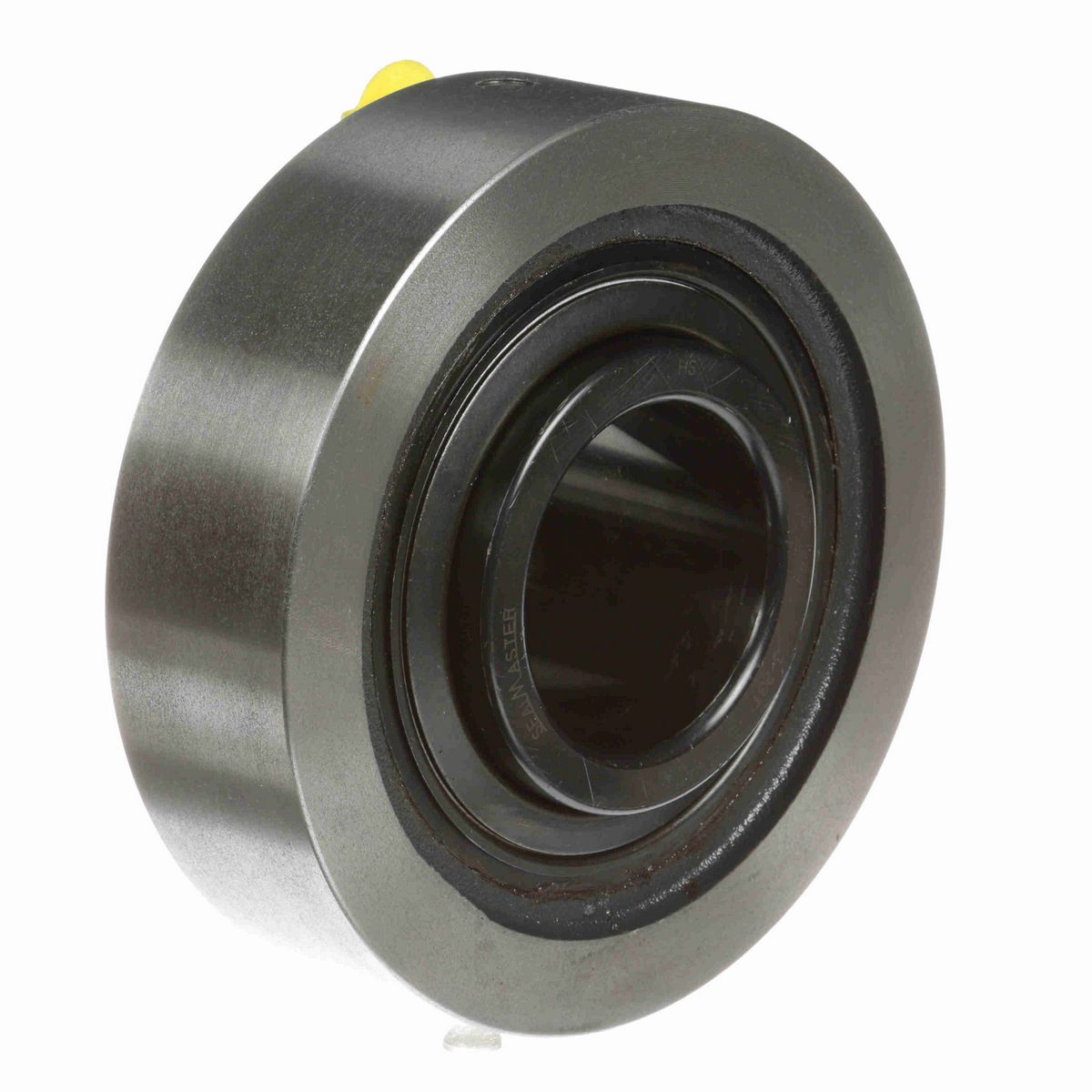

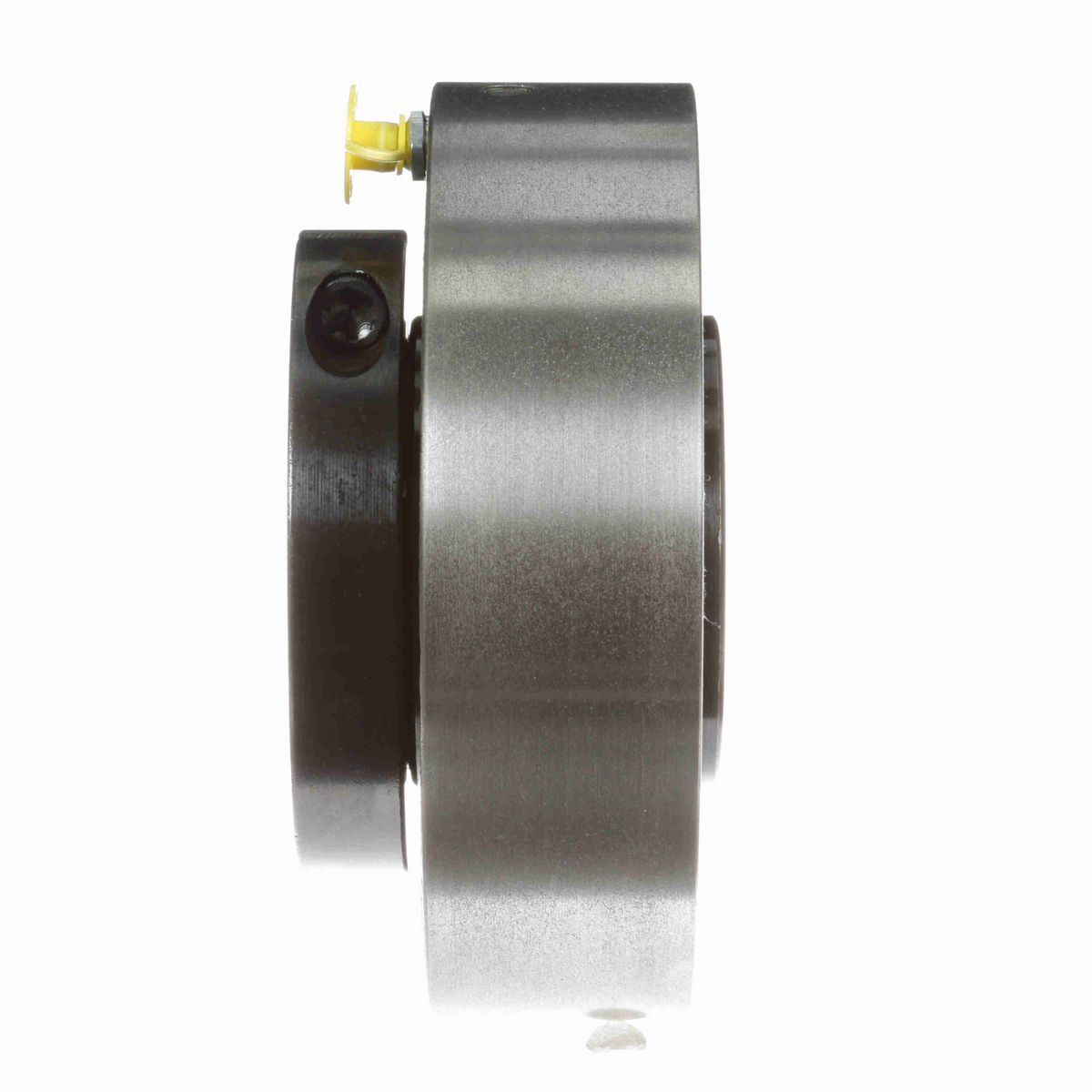

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.63 in
Overall Height (in)	5.88 in
Overall Length (in)	5.88 in
Bore Diameter (in)	2.1875 in
Length Through Bore (in)	2.625 in
Centerline to Outermost Bearing Face (in)	1.7 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Gray
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Series	MSC-T
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Outside Diameter (in)	5.875
Housing Style	Cartridge Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	4.16 in
Grease Fitting Thread Size	1/8 NPT
Insert	3-23T
Inner Ring Outside Diameter (in)	2.984 in
Size Code	2-27
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	8,150 lb
Bearing Insert Finish	Black Oxide
Shaft Locking Type	Concentric
Lubricant	Lithium Complex NLGI 2 Grease
Max Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	11,789 lb
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Fixed vs. Expansion	Fixed
End Cap Available	No
Maximum Speed (RPM)	4100 rpm
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Bearing Type	Medium Duty
Housing Width (in)	1.63 in

General Specifications

UPC	662461032091
Weight	10.52 LB
Packaged Length	6.88 IN
Packaged Width	6.88 IN
Packaged Height	2.63 IN
HTC	8482.10.5056
Country of Origin	Mexico
