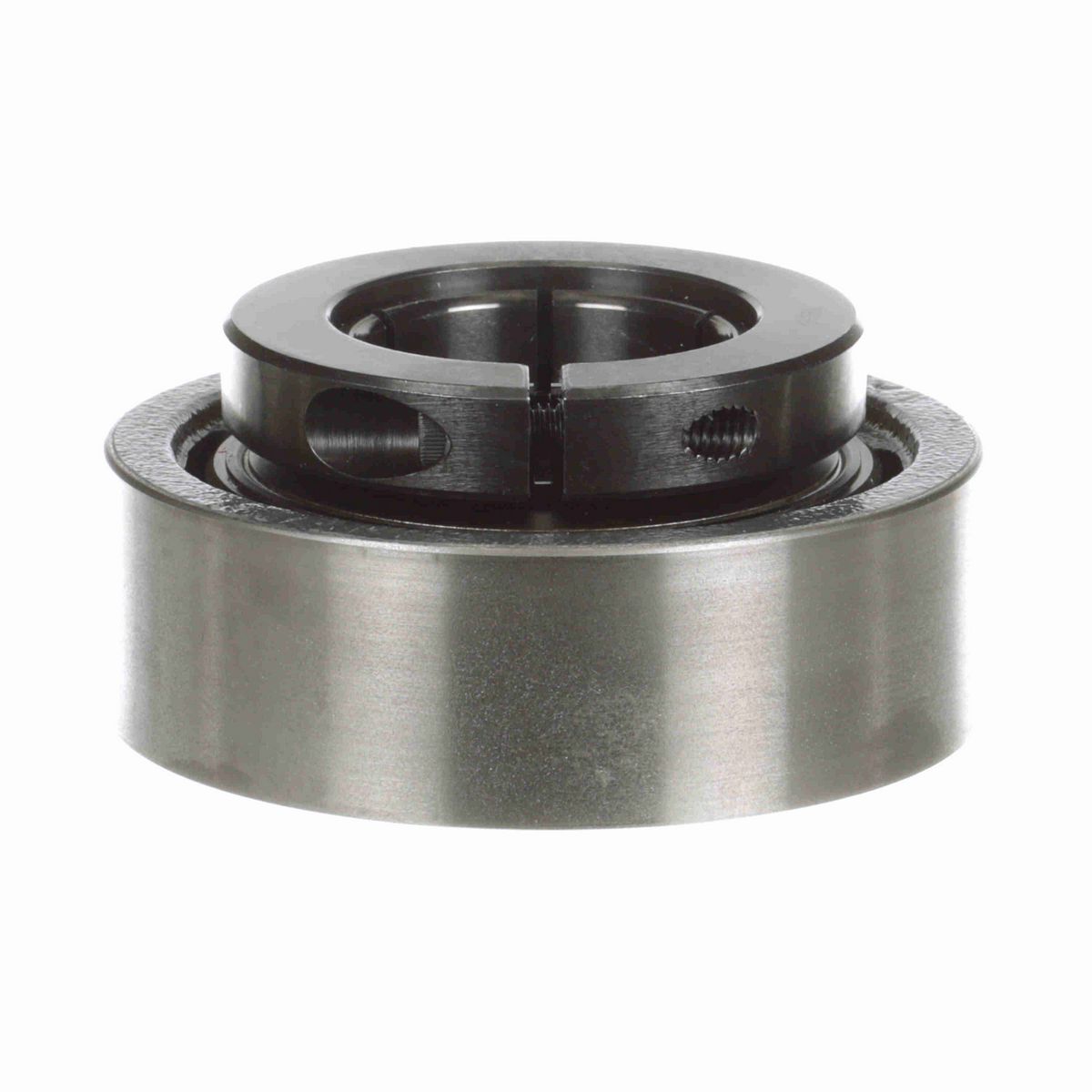

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	4.94 in
Overall Length (in)	4.94 in
Overall Width (in)	2.25 in
Bore Diameter (in)	2 in
Length Through Bore (in)	2.25 in
Centerline to Outermost Bearing Face (in)	1.45 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Gray
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Series	MSC-T
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Outside Diameter (in)	4.938
Housing Style	Cartridge Block
Locking Collar Outside Diameter (in)	3.6 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bearing Type	Medium Duty
Dynamic Load Rating (lb)	9,752 lb
Inner Ring Outside Diameter (in)	2.719 in
Static Load Rating (lb)	6,601 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed
End Cap Available	No
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	220 °F
Bearing Insert Finish	Black Oxide
Housing Material	Cast Iron
Insert	2-2T
Maximum Speed (RPM)	4500 rpm
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-23
Radial Clearance	Standard
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Concentric
Housing Width (in)	1.59 in

General Specifications

UPC	662461032084
Weight	6.66 LB
Packaged Length	5.38 IN
Packaged Width	5.50 IN
Packaged Height	3.50 IN
HTC	8482.10.5052
Country of Origin	Mexico
