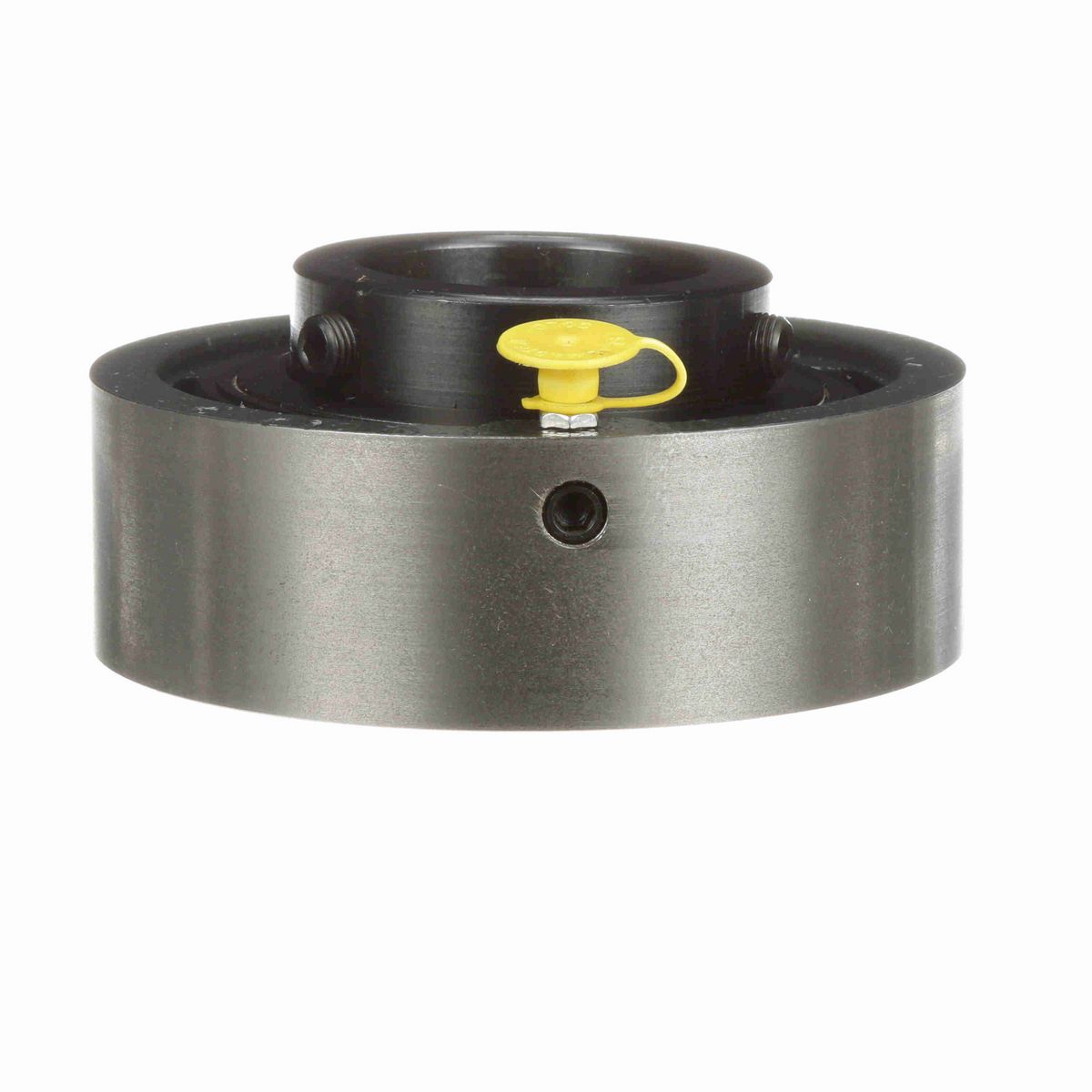

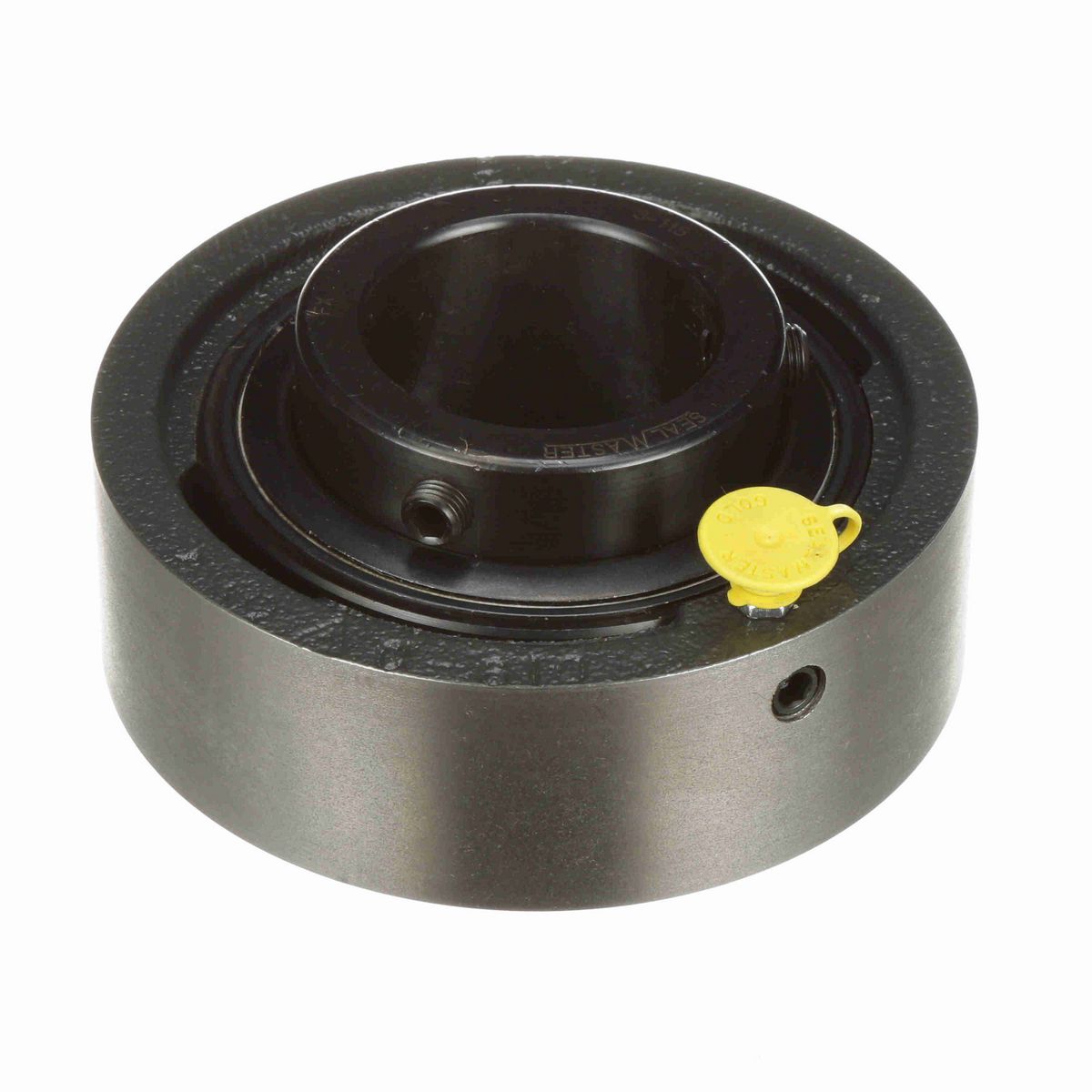

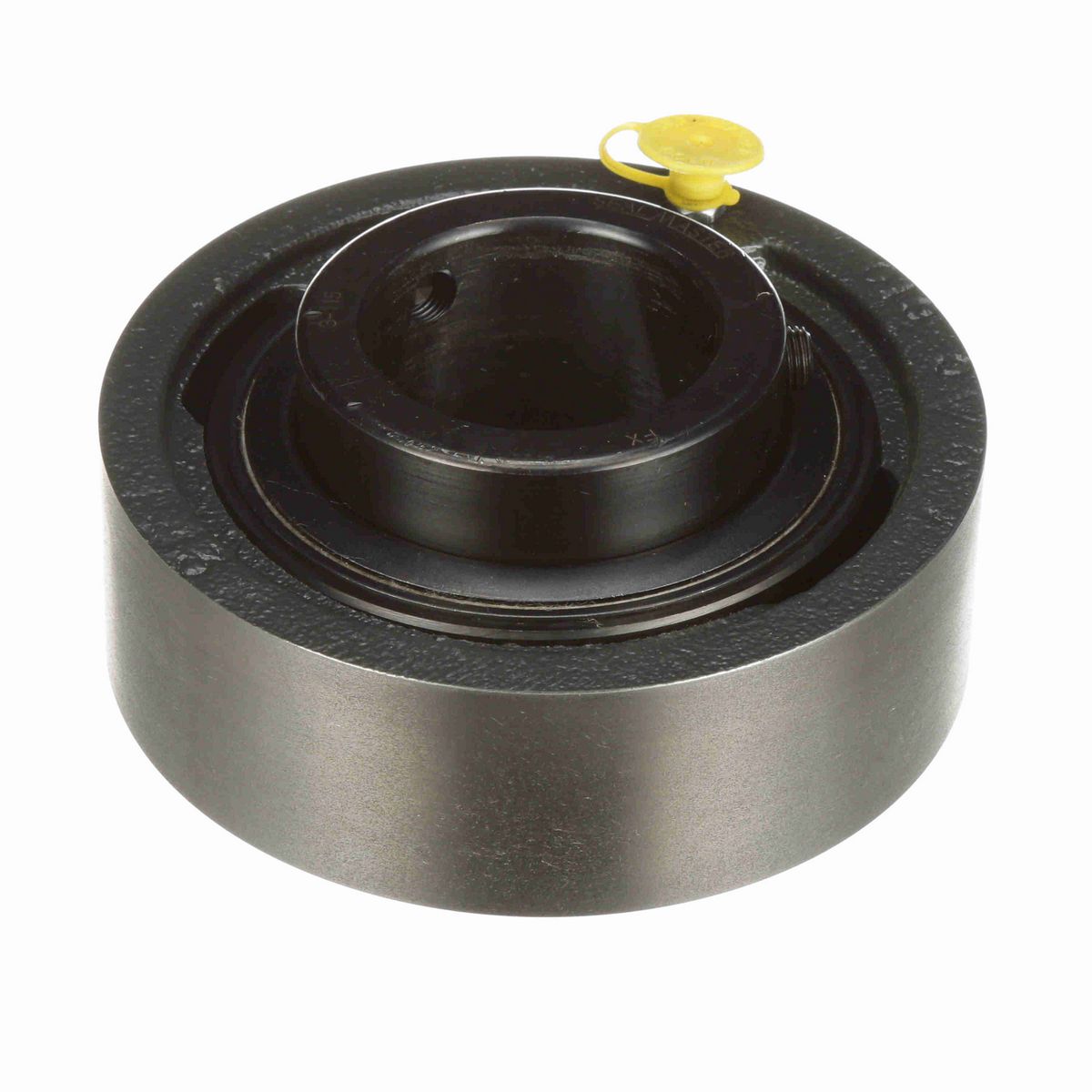

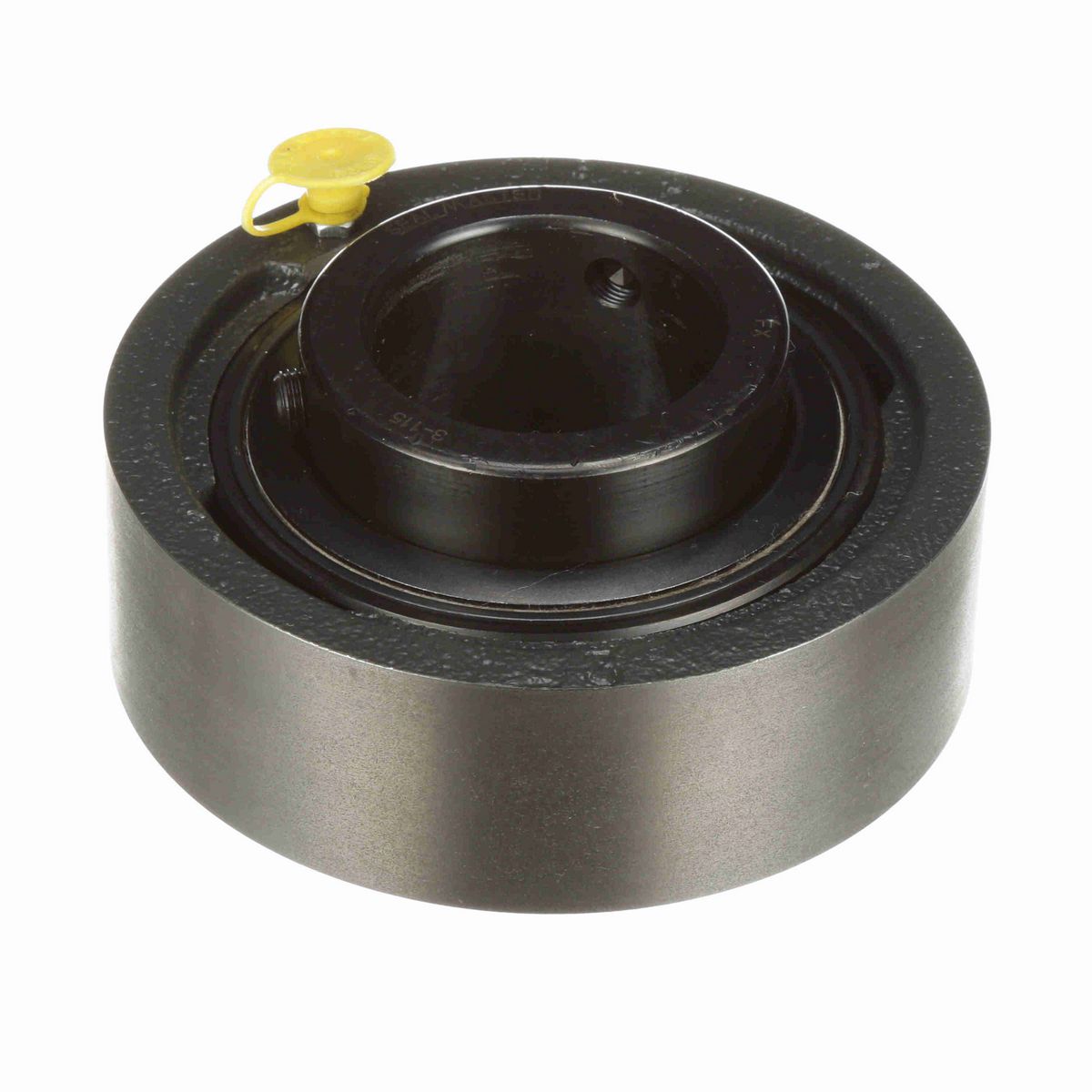

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.19 in
Overall Length (in)	4.94 in
Overall Height (in)	4.94 in
Bore Diameter (in)	1.9375 in
Length Through Bore (in)	2.188 in
Centerline to Outermost Bearing Face (in)	1.31 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Gray
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Series	MSC
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Outside Diameter (in)	4.938
Housing Style	Cartridge Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Maximum Speed (RPM)	3250 rpm
Grease Fitting Thread Size	1/4-28
End Cap Available	No
Static Load Rating (lb)	6,601 lb
Bearing Type	Medium Duty
Insert	3-115
Fixed vs. Expansion	Fixed
Lubricant	Lithium Complex NLGI 2 Grease
Inner Ring Outside Diameter (in)	2.719 in
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	9,752 lb
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Max Operating Temperature (F)	220 °F
Shaft Locking Type	Set Screw
Bearing Insert Material	52100 Bearing Steel
Size Code	2-23
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Housing Width (in)	1.59 in

General Specifications

UPC	662461014356
Weight	6.00 LB
Packaged Length	5.50 IN
Packaged Width	5.38 IN
Packaged Height	3.50 IN
HTC	8482.10.5052
Country of Origin	Mexico
