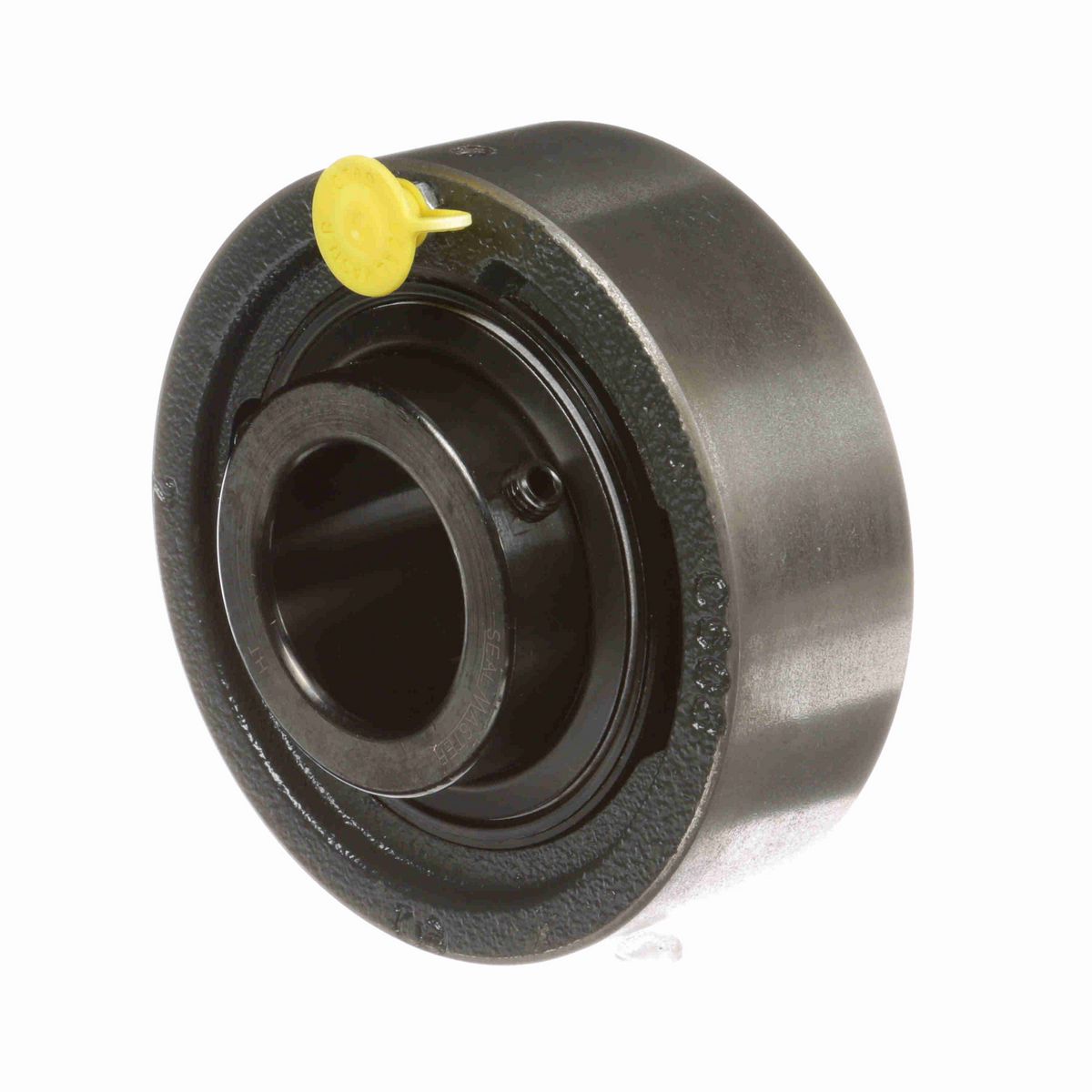

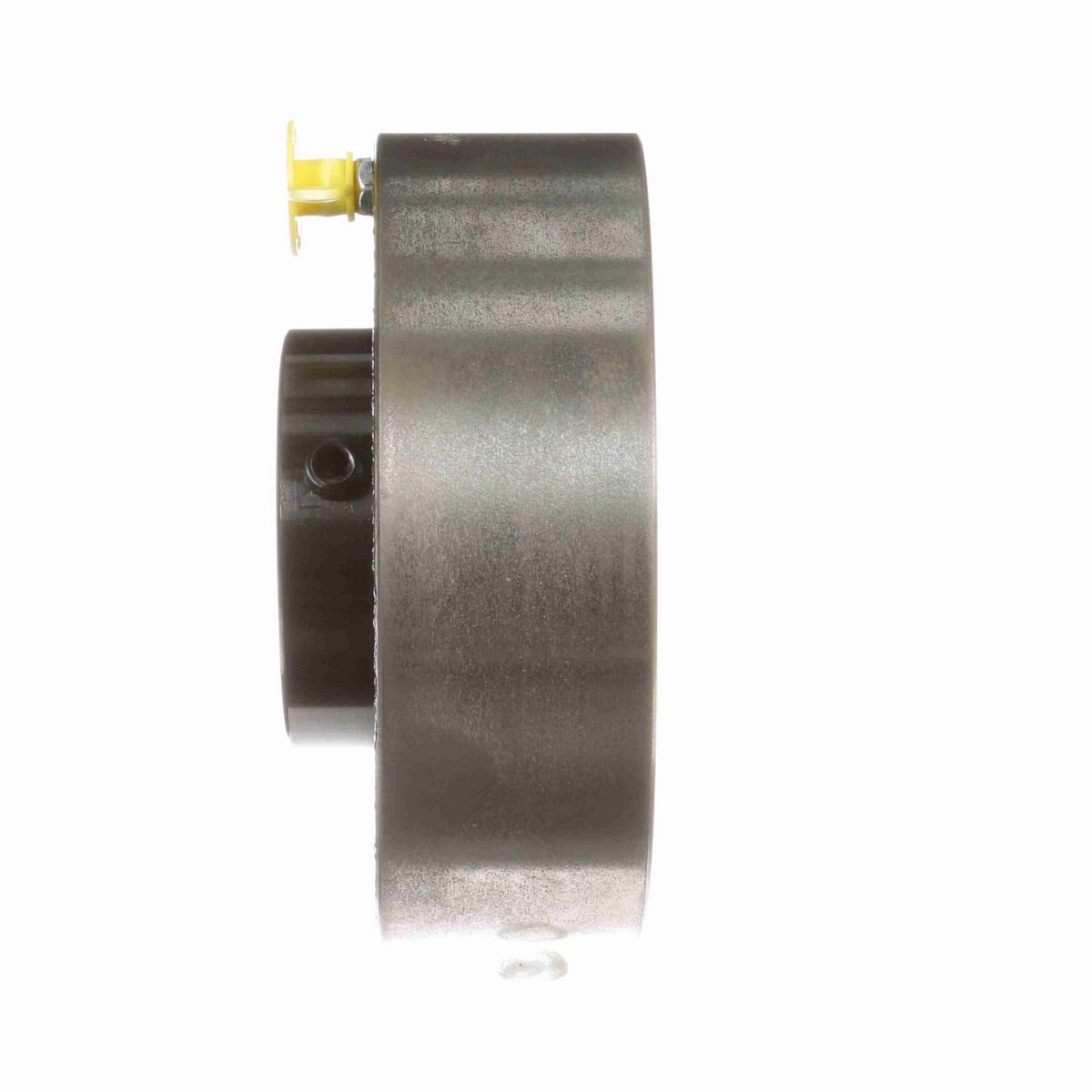

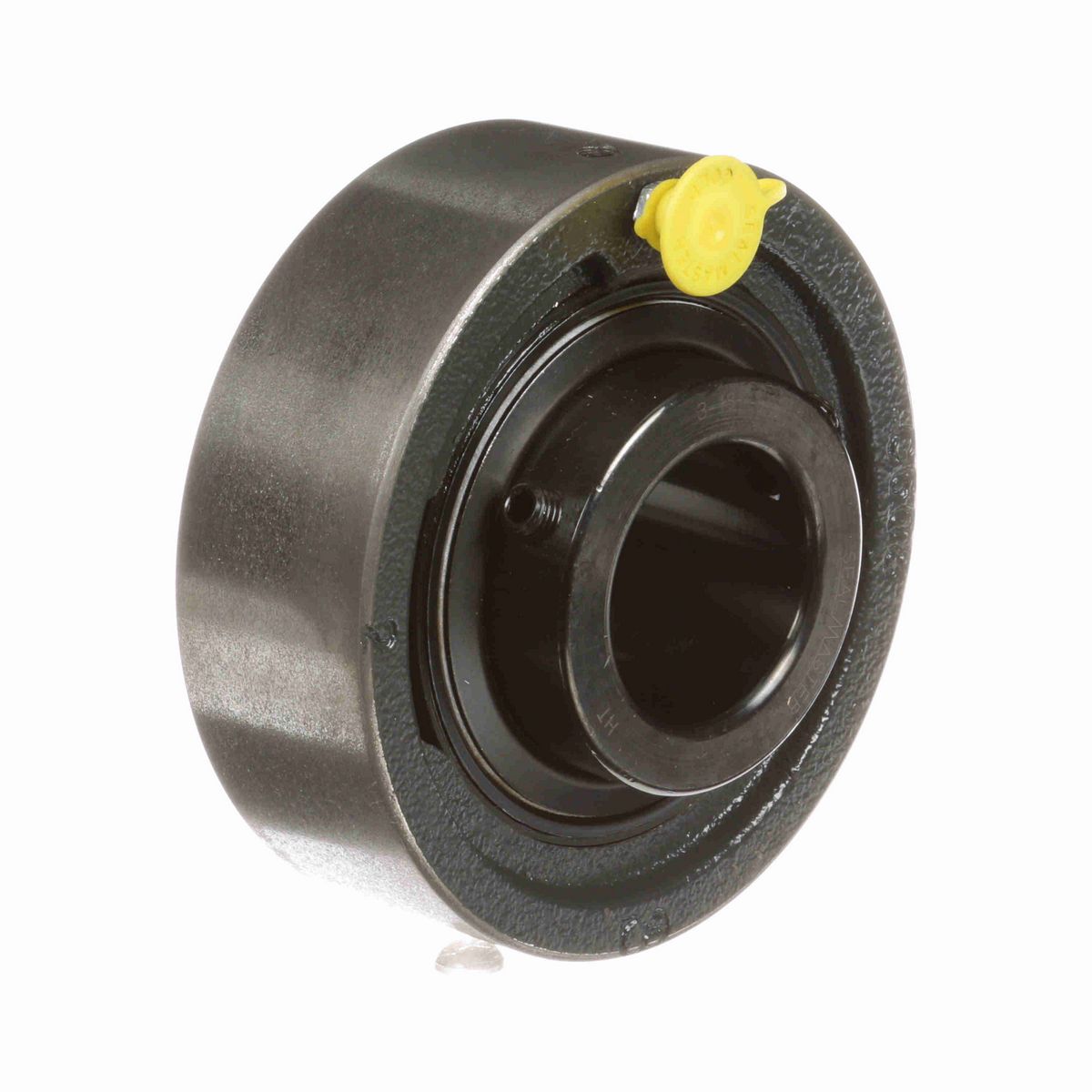

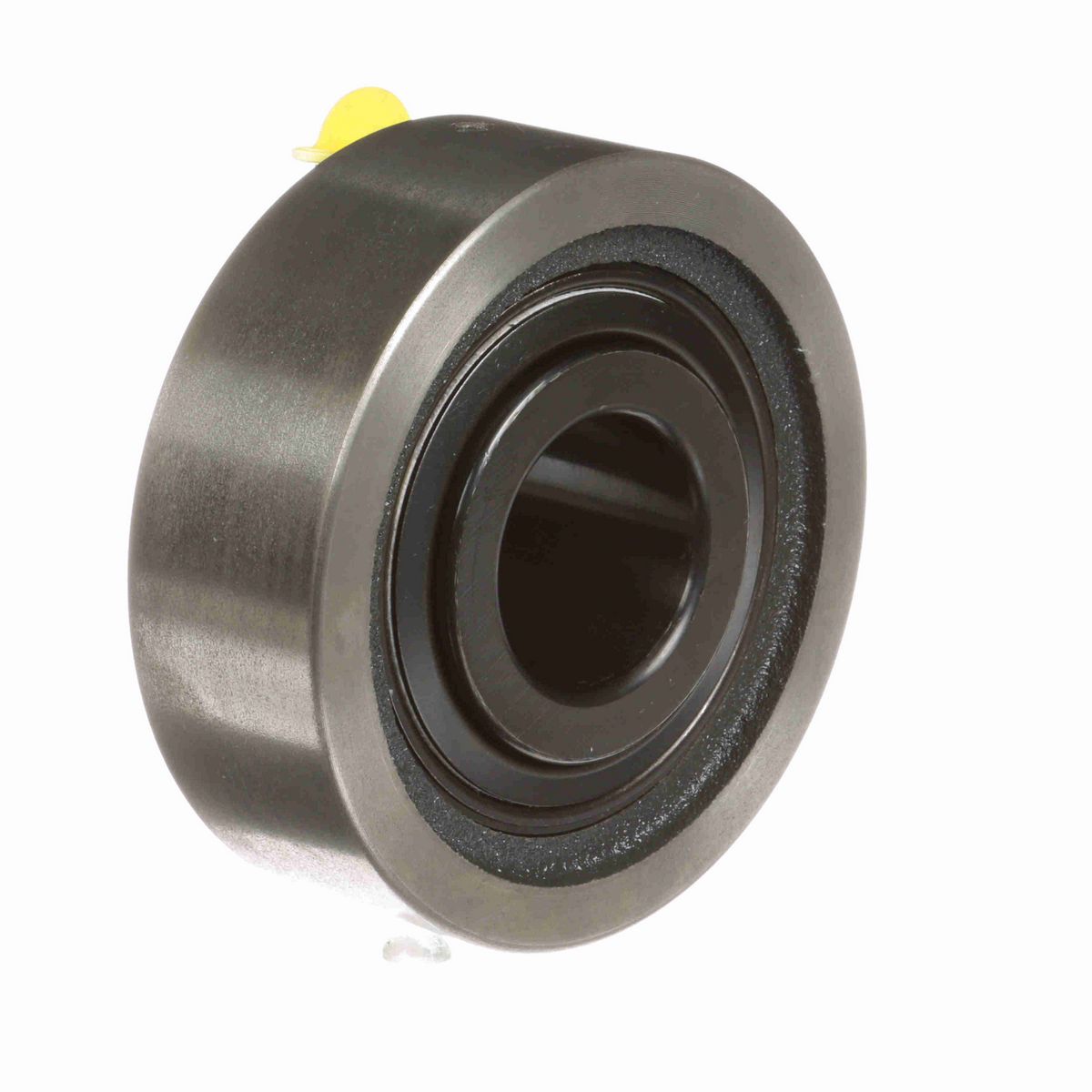

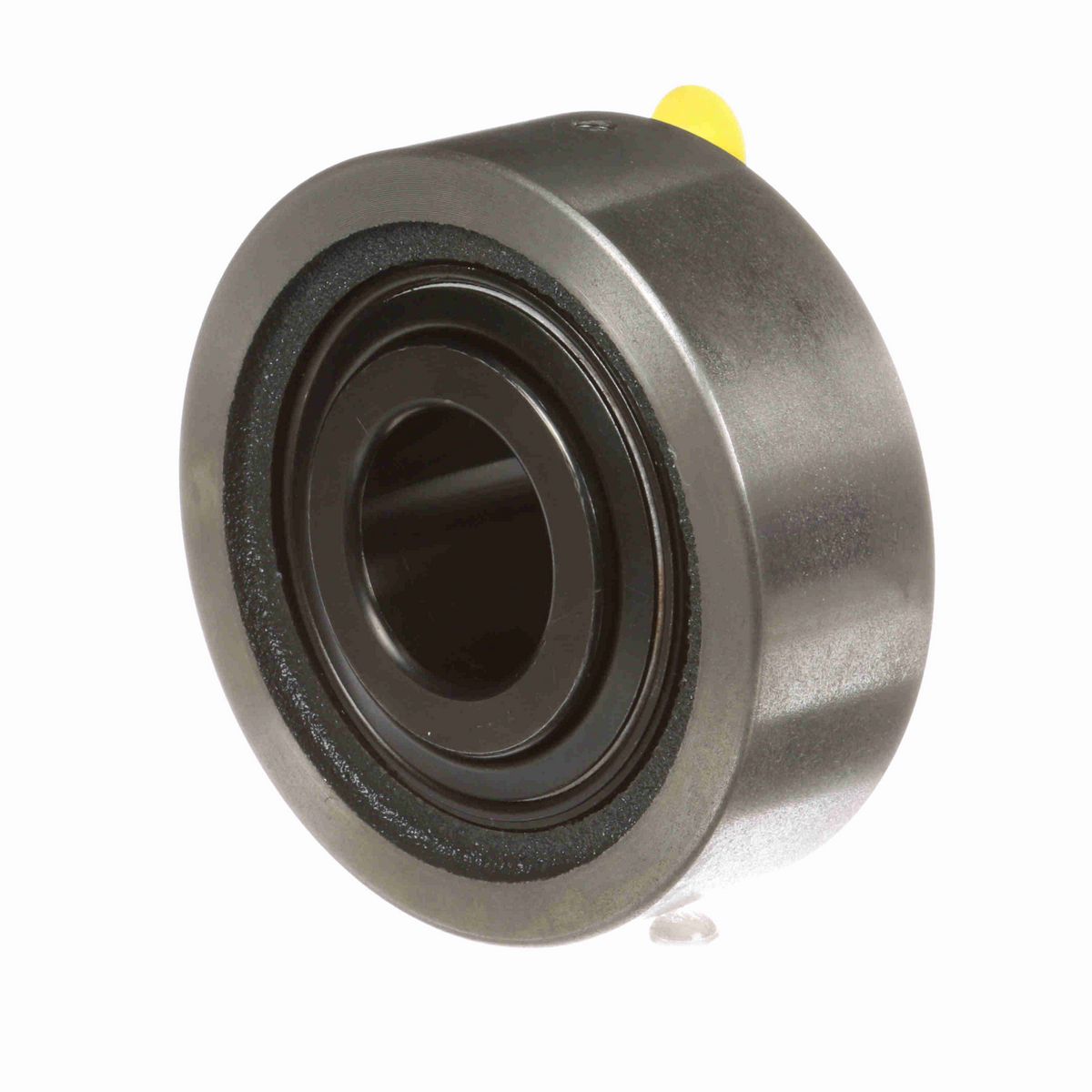

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	1.94 in
Overall Height (in)	4.38 in
Overall Length (in)	4.38 in
Bore Diameter (in)	1.5 in
Length Through Bore (in)	1.938 in
Centerline to Outermost Bearing Face (in)	1.19 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Gray
Series	MSC
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Outside Diameter (in)	4.375
Housing Style	Cartridge Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Max Operating Temperature (F)	220 °F
End Cap Available	No
Size Code	2-111
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Shaft Locking Type	Set Screw
Insert	3-18
Static Load Rating (lb)	5,139 lb
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Medium Duty
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.297 in
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	3800 rpm
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,901 lb
Housing Width (in)	1.44 in

General Specifications

UPC	662461014325
Weight	4.52 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8482.10.5052
Country of Origin	Mexico
