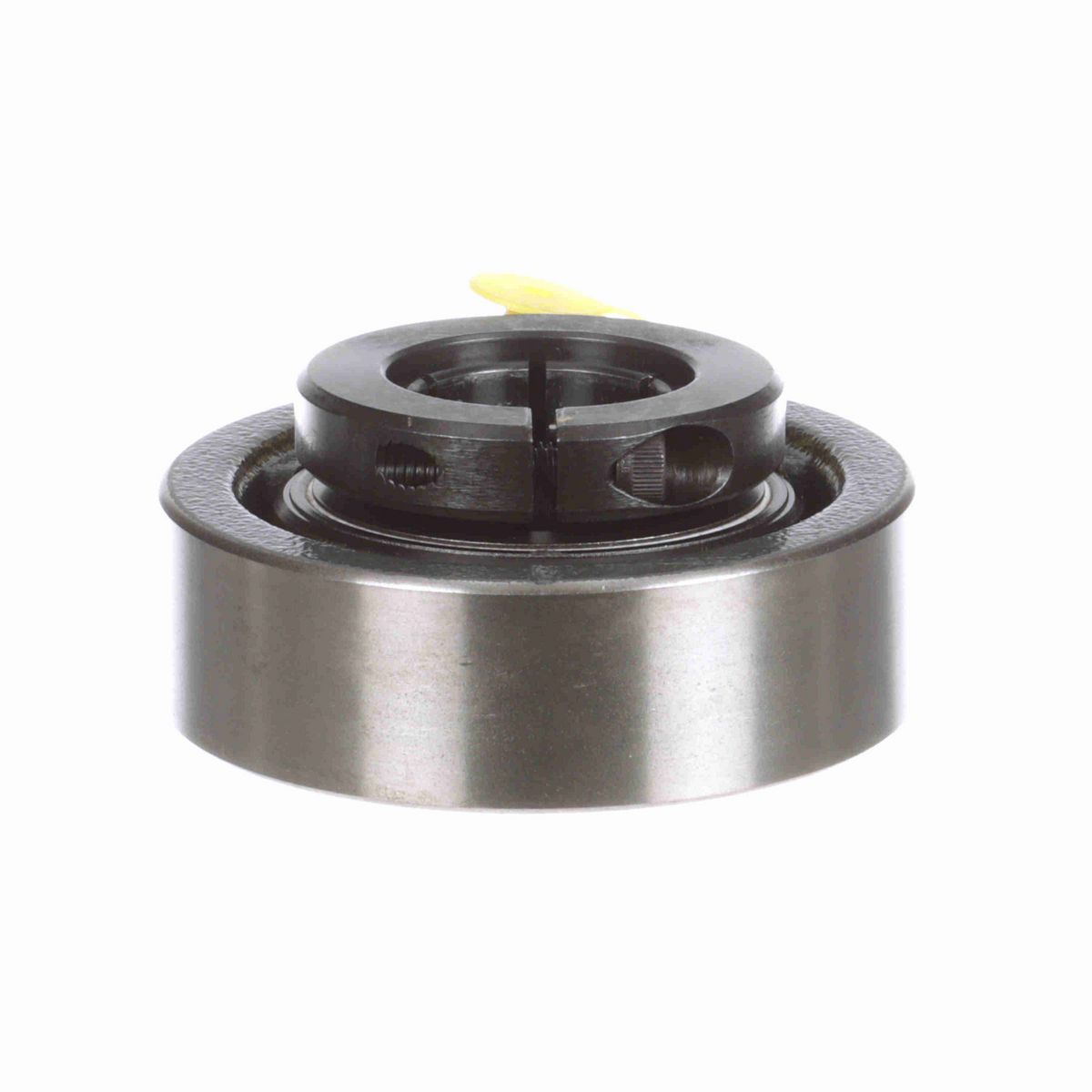

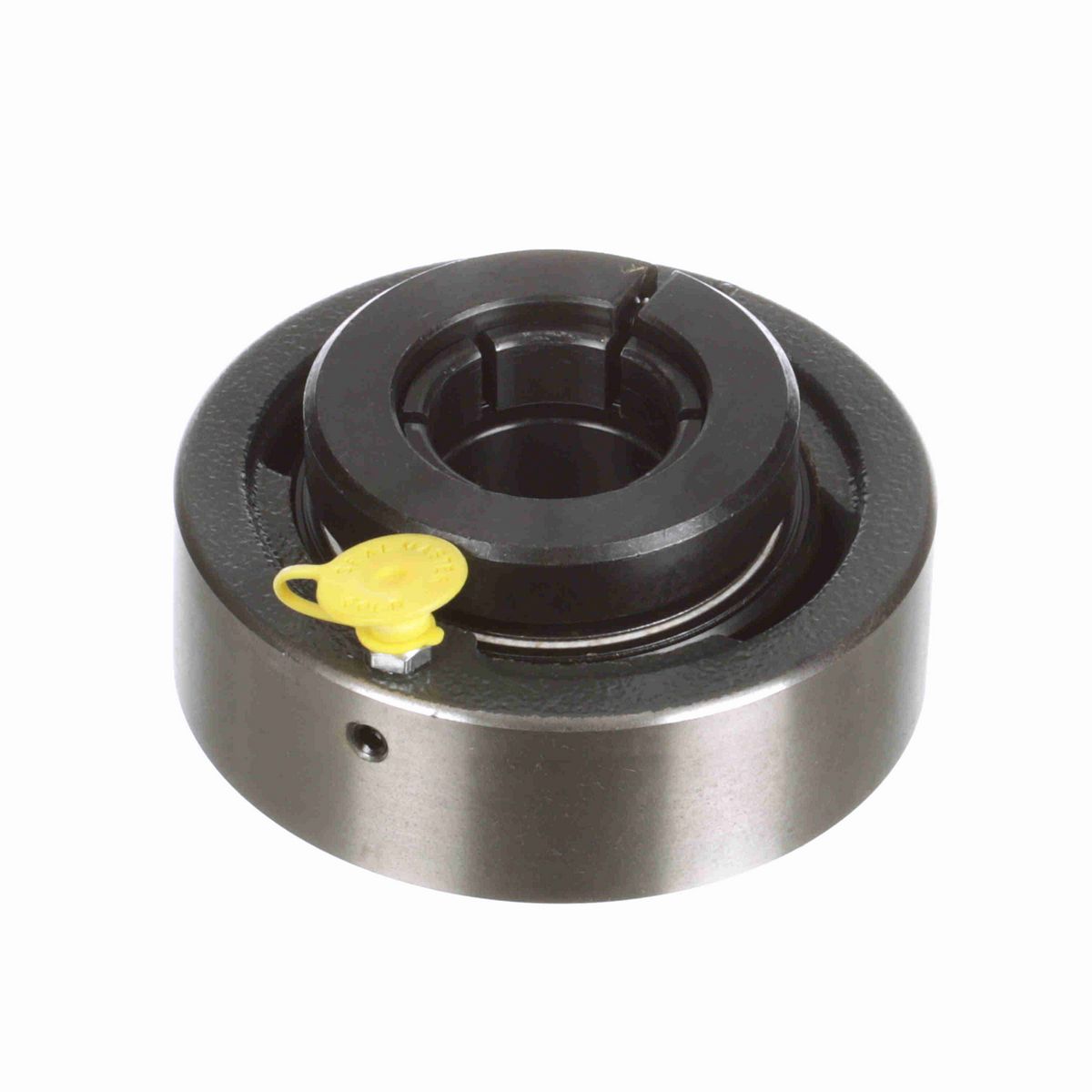

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	3.88 in
Overall Height (in)	3.88 in
Overall Width (in)	1.75 in
Bore Diameter (in)	1.25 in
Length Through Bore (in)	1.75 in
Centerline to Outermost Bearing Face (in)	1.12 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Housing Color	Gray
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Series	MSC-T
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Housing Style	Cartridge Block
Outside Diameter (in)	3.875
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.5 in
Inner Race Heat Treat Method	Zone-Hardened
Dynamic Load Rating (lb)	5,782 lb
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Housing Material	Cast Iron
Size Code	2-17
Maximum Speed (RPM)	6500 rpm
Bearing Insert Finish	Black Oxide
Cage Type	Land Riding Retainer
Bearing Type	Medium Duty
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	1.859 in
Shaft Locking Type	Concentric
End Cap Available	No
Insert	2-14T
Static Load Rating (lb)	3,493 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease
Housing Width (in)	1.22 in

General Specifications

UPC	662461032022
Weight	3.25 LB
Packaged Length	4.50 IN
Packaged Width	1.69 IN
Packaged Height	4.56 IN
HTC	8482.10.5052
Country of Origin	Mexico
