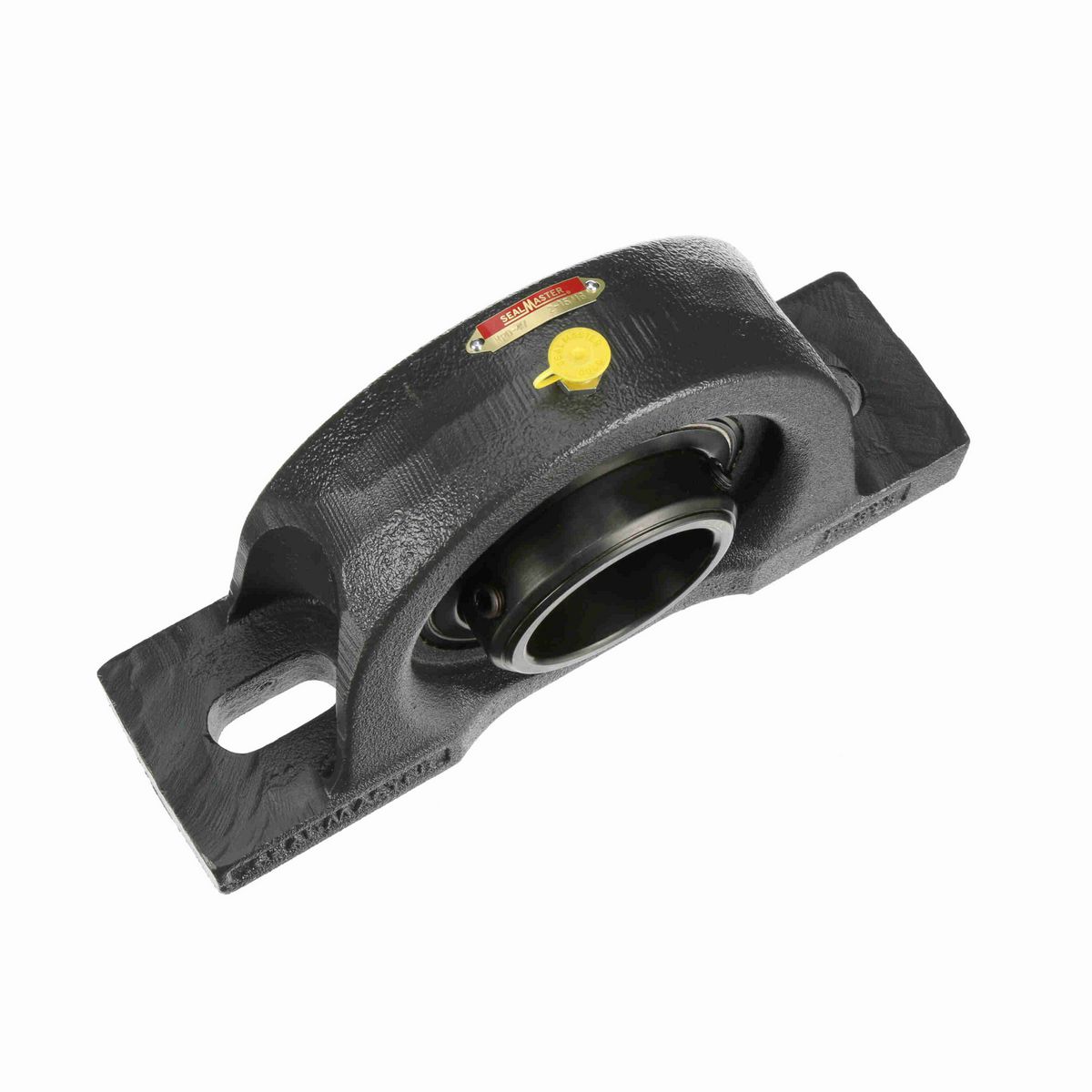

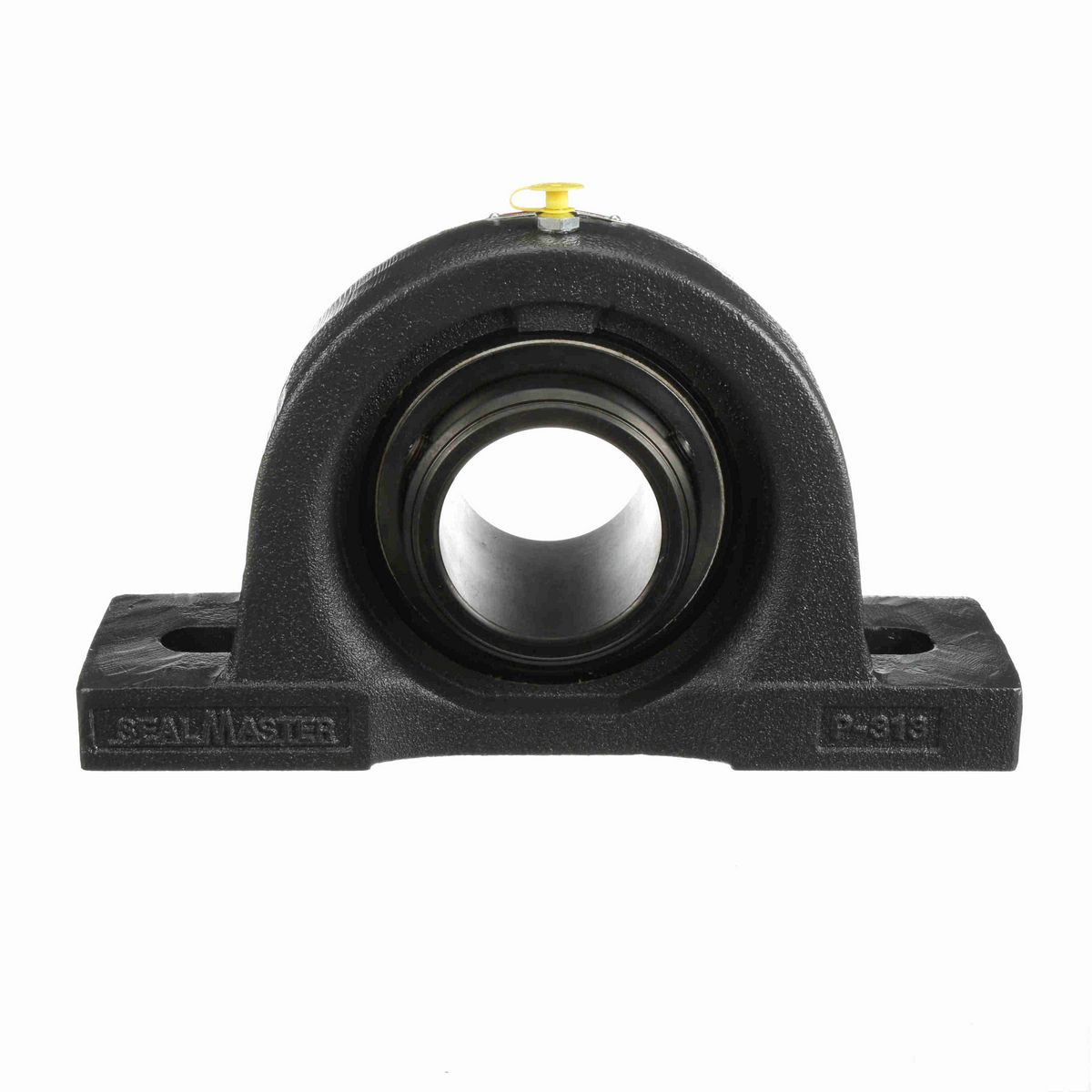

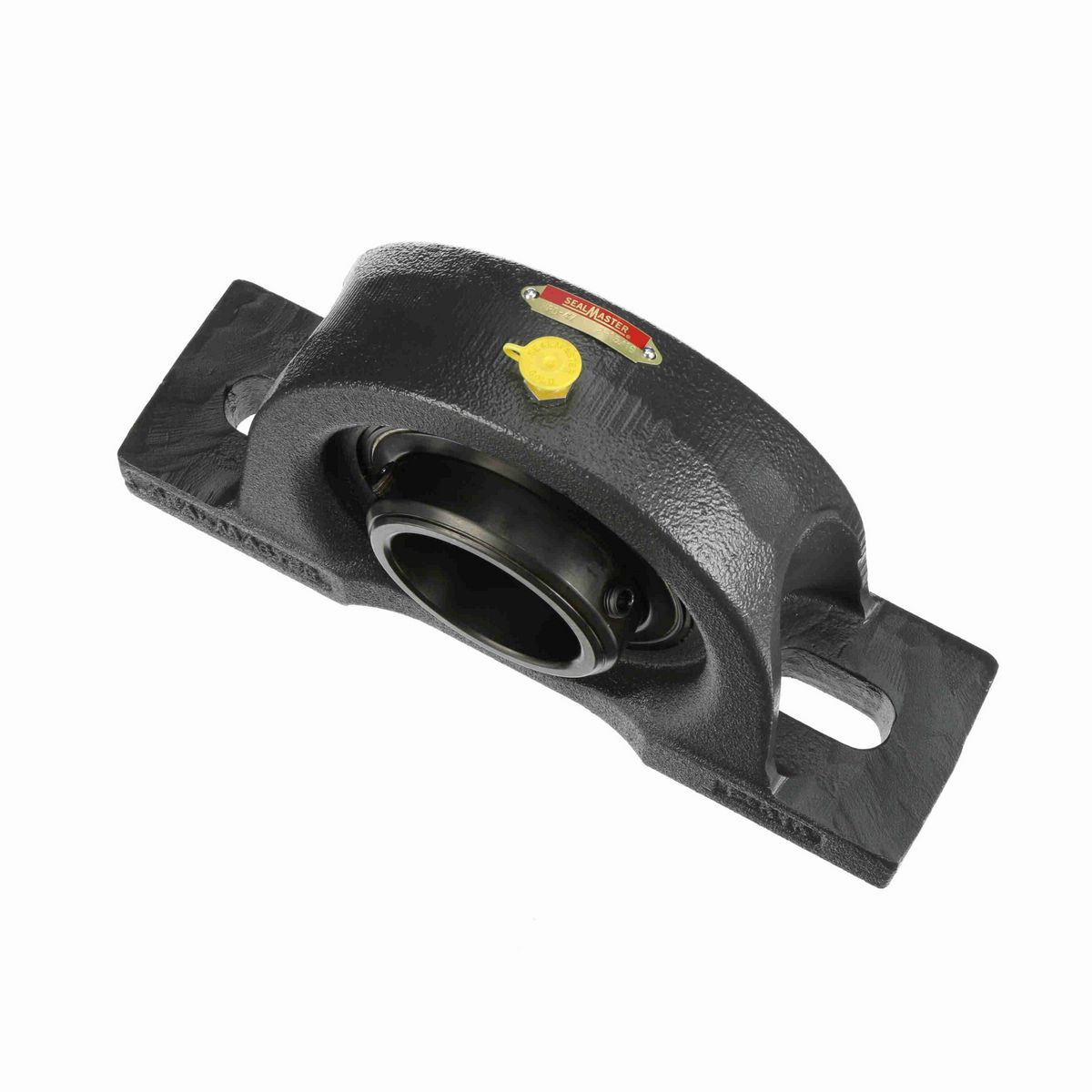

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	3.50 in
Overall Width (in)	3.88 in
Overall Length (in)	13 in
Overall Height (in)	7.25 in
Bolt Size (in)	7/8 in
Bore Diameter (in)	2.9375 in
Foot Height (in)	1.25 in
Base to Center Height (in)	3.5000 in
Length Through Bore (in)	3.875 in
Bolt Spacing Min (in)	7.88 in
Centerline to Outermost Bearing Face (in)	1.938 in
Bolt Spacing Max (in)	10.13 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	Brass
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	500-650 in/lbs
Insert	3-215D
Base Length (in)	13.00 in
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	17,412 lb
Shaft Locking Type	Double Set Screw
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	13,174 lb
Bearing Type	Medium Duty
Radial Clearance	Standard
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/4 NPT
Lubricant	Lithium Complex NLGI 2 Grease
Max Operating Temperature (F)	220 °F
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	3.922 in
Cage Type	Land Riding Retainer
Size Code	2-33
Vibration Frequency Roller Spin	0.0470 cps
End Cap Available	No
Maximum Speed (RPM)	3150 rpm
Vibration Frequency Inner Ring Defect	0.1074 cps
Vibration Frequency Outer Ring Defect	0.0759 cps
Vibration Frequency Fundamental Train	0.0069 cps
Housing Material	Cast Iron

General Specifications

UPC	662461016824
Weight	31.87 LB
Packaged Length	14.25 IN
Packaged Width	8.06 IN
Packaged Height	4.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
