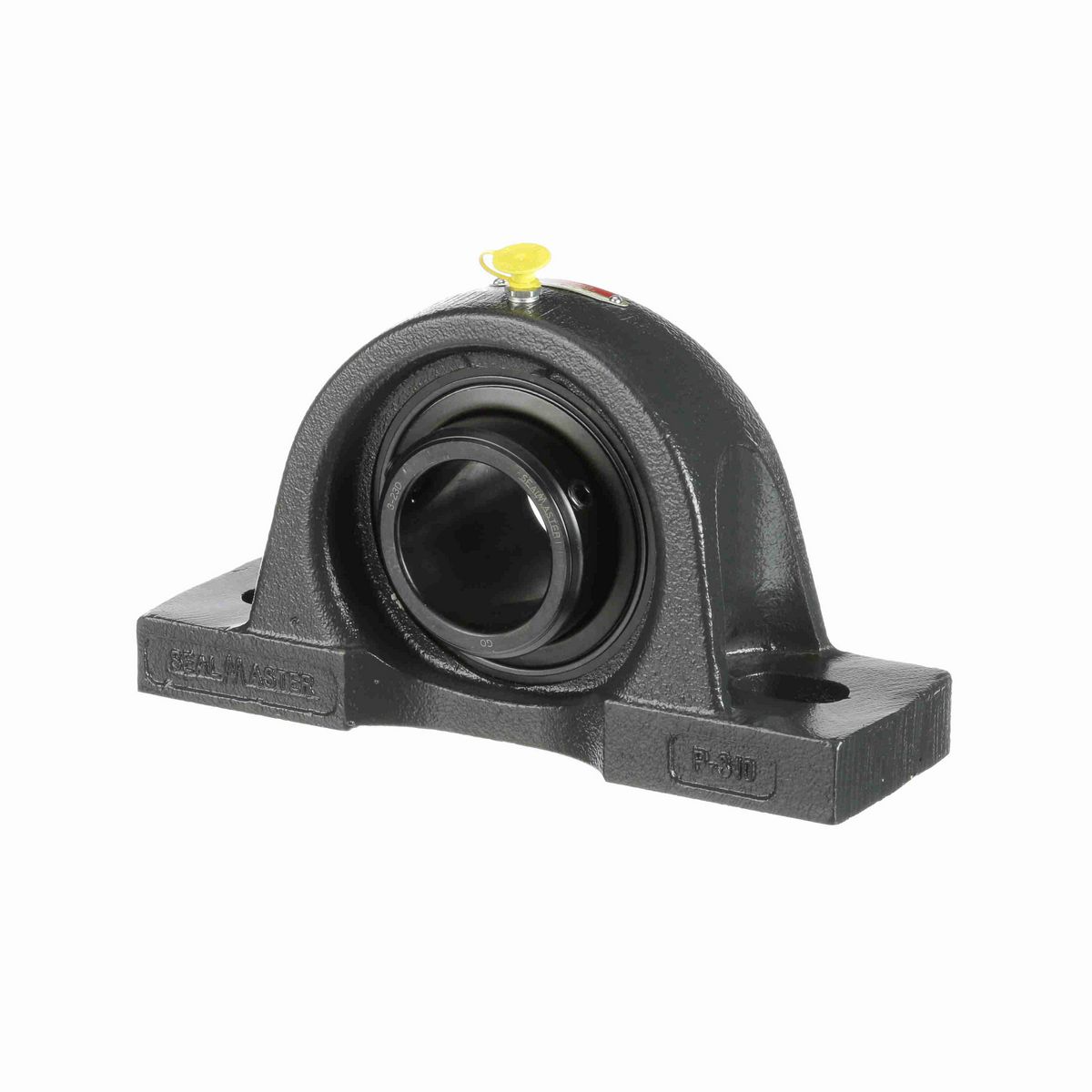

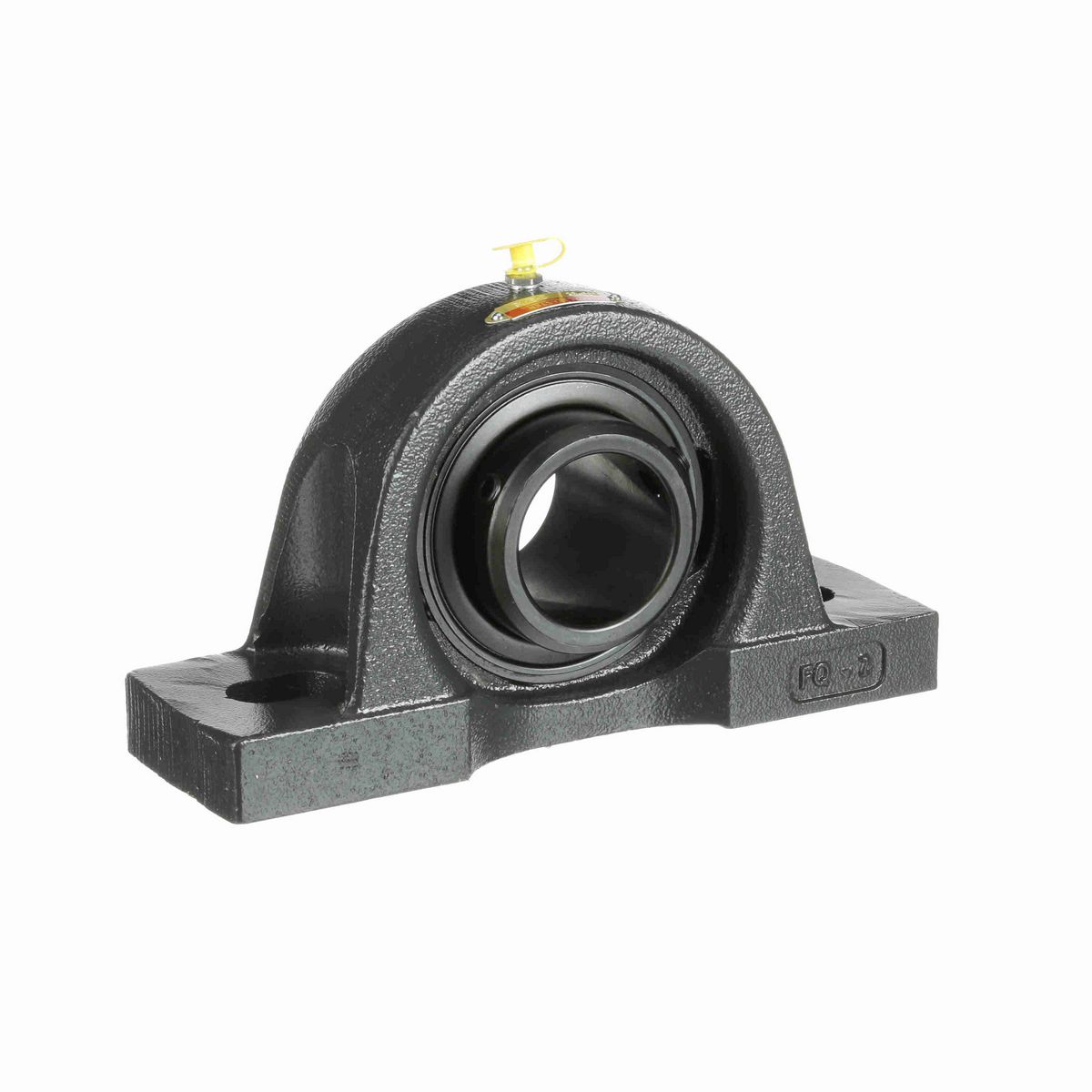

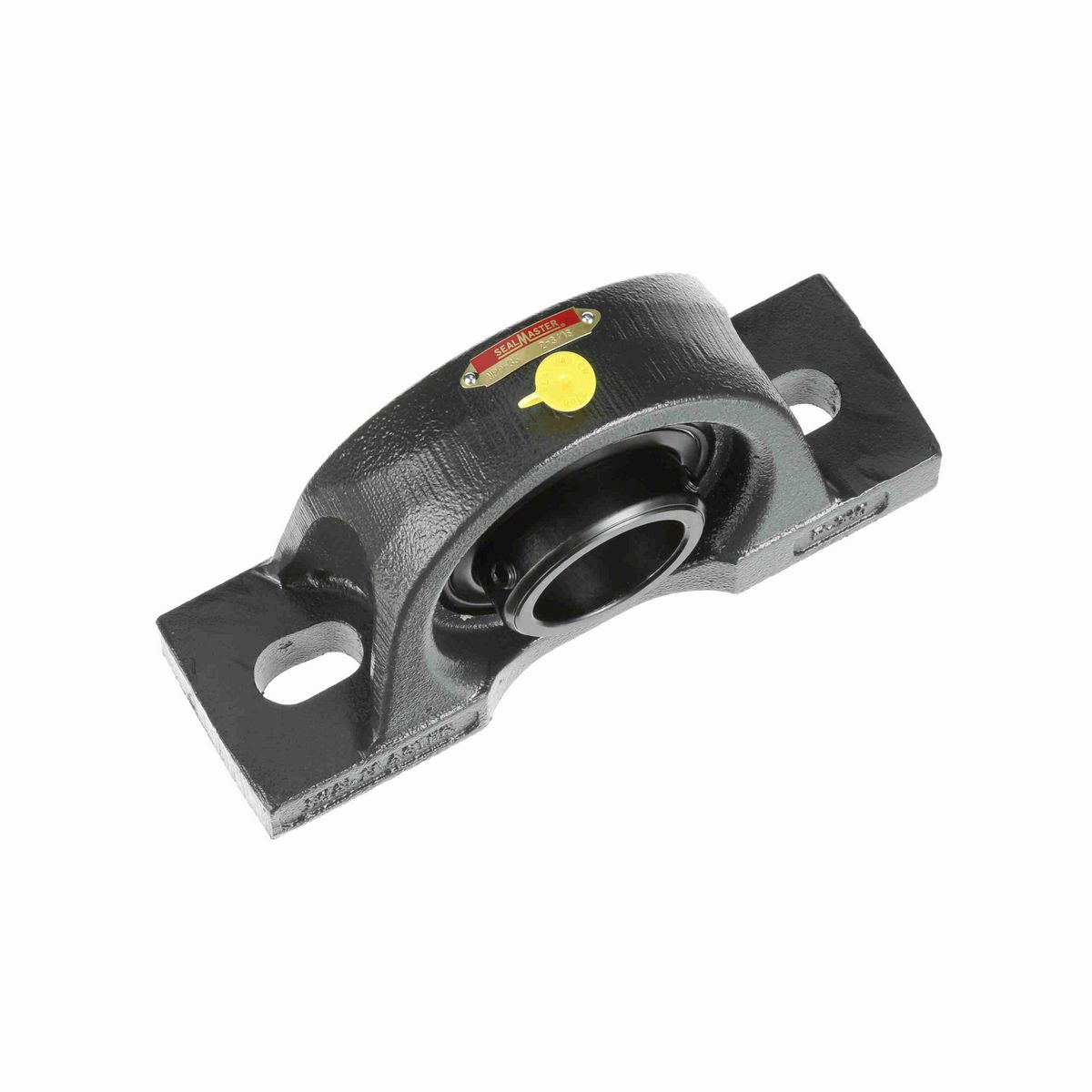

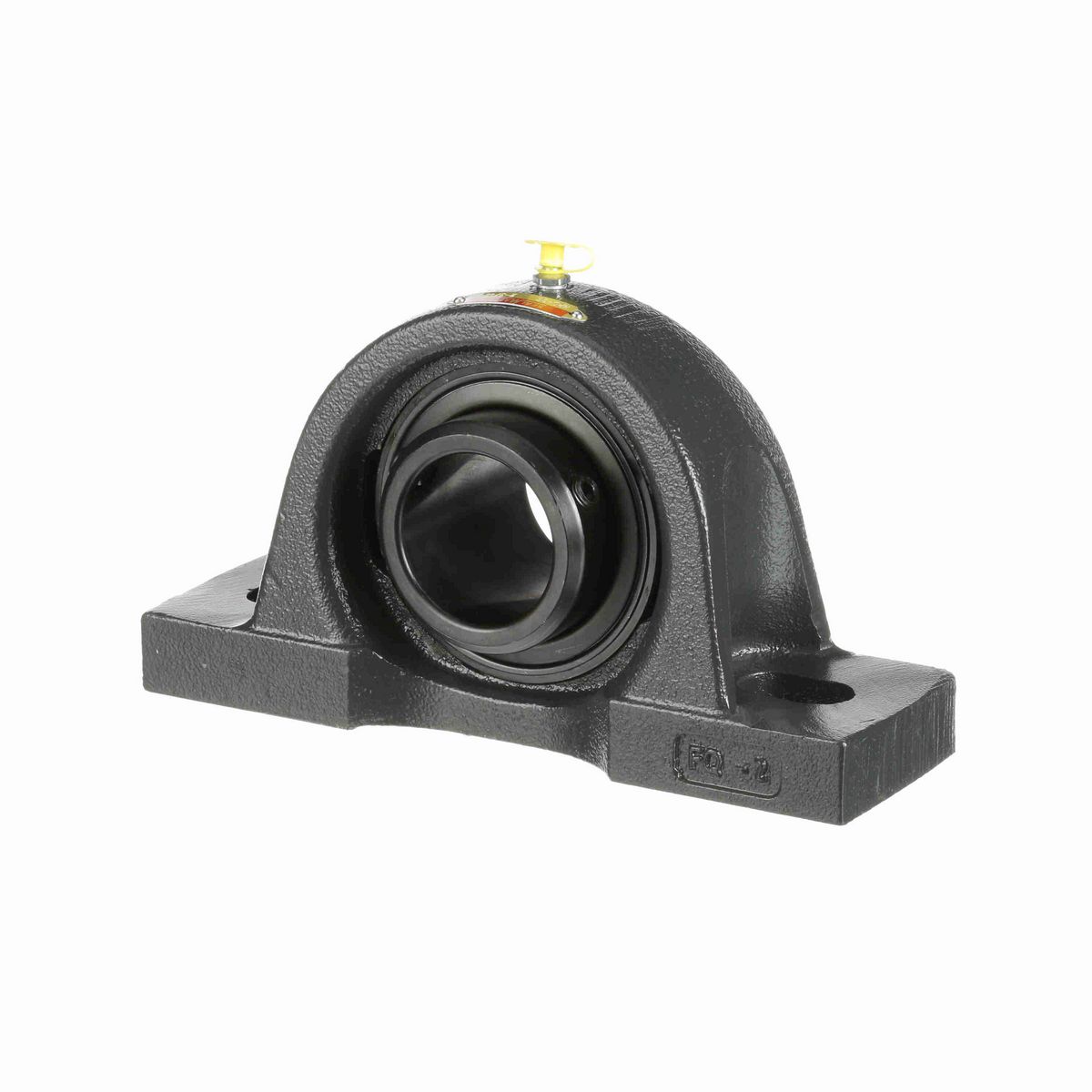

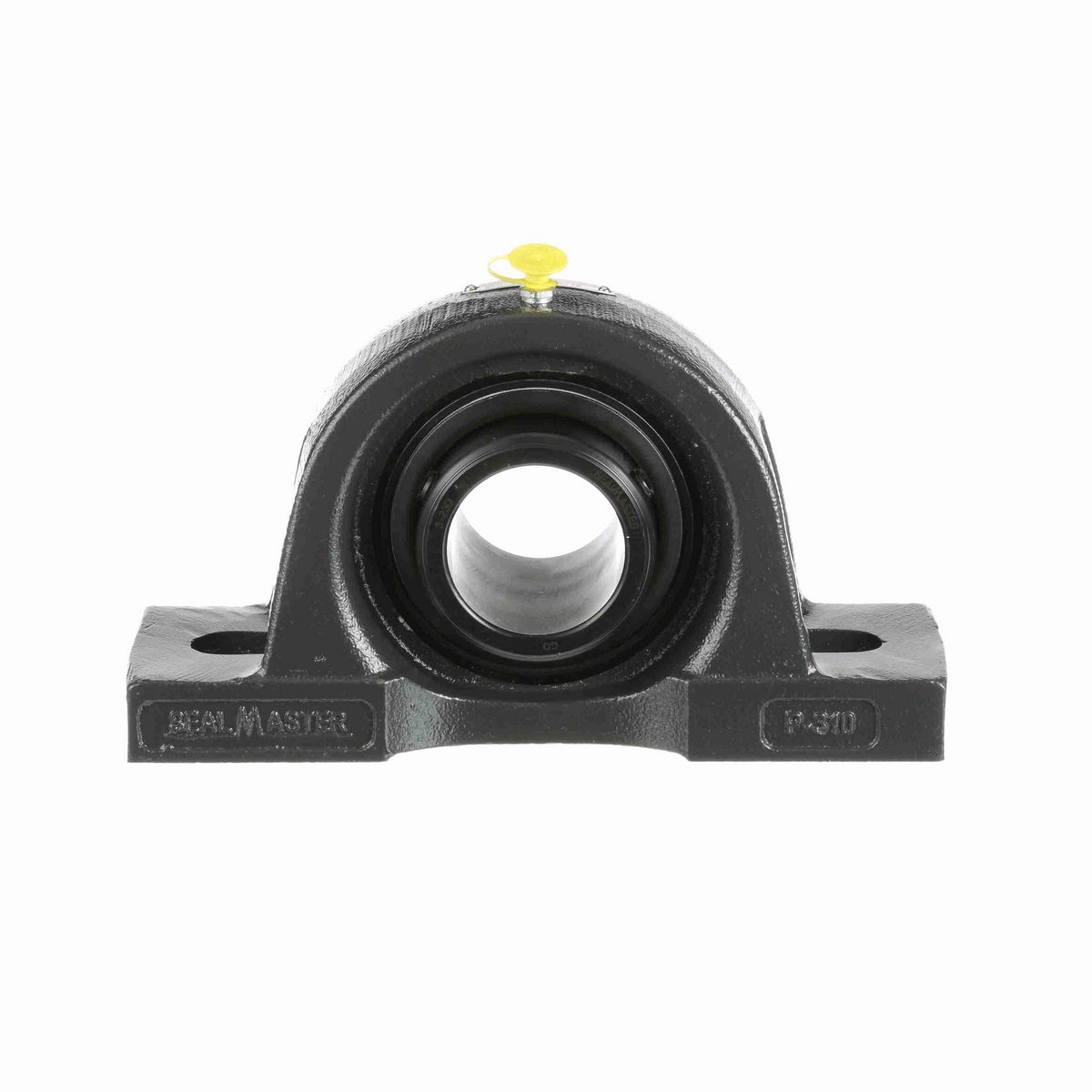

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MPD-35

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MPD-35
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MPD-35
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MPD-35
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MPD-35
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MPD-35
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MPD-35
(0)
Под заказ
SealMaster
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Полное описание
Заказать товар
Товар доступен только под заказ.
Сроки поставки: 2–3 недели
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MPD-35
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - MPD-35
(0)
Под заказ
0 руб.
В корзину
Описание Отзывы Доставка


  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Dimensions
Base Width (in)3.13 in
Overall Width (in)3.13 in
Overall Height (in)5.63 in
Overall Length (in)10.25 in
Bolt Size (in)3/4 in
Bore Diameter (in)2.1875 in
Foot Height (in)1.06 in
Base to Center Height (in)2.7500 in
Length Through Bore (in)3.125 in
Bolt Spacing Max (in)7.94 in
Centerline to Outermost Bearing Face (in)1.563 in
Bolt Spacing Min (in)6.56 in
Technical Specifications
Housing BaseSolid
Rolling ElementBall Bearing
Bore ShapeStraight
Housing ConstructionOne Piece
Outer Ring Land ProfileStandard
Housing ColorBlack
Misalignment TypeStatic Only
Cage MaterialPPS - Polyphenylene Sulfide
Seal TypeFelt Labyrinth Seal
Housing TypePillow Block, Two Bolt
Housing StylePillow Block
Inner Race Heat Treat MethodZone-Hardened
Ability to RelubricateYes
Setscrew Torque (in-lbs)230-300 in/lbs
Bearing TypeMedium Duty
End Cap AvailableNo
Housing MaterialCast Iron
Vibration Frequency Fundamental Train0.0068 cps
Vibration Frequency Outer Ring Defect0.0678 cps
Dynamic Load Rating (lb)11,789 lb
Static Load Rating (lb)8,150 lb
Base Length (in)10.25 in
Bearing Insert Material52100 Bearing Steel
Inner Ring Outside Diameter (in)2.984 in
Misalignment Capability±2.0° Misalignment - Static Only
Insert3-23D
Vibration Frequency Roller Spin0.0432 cps
Vibration Frequency Inner Ring Defect0.0989 cps
Shaft Locking TypeDouble Set Screw
Radial ClearanceStandard
Housing CoatingPowder Coated
Size Code2-27
Bearing Insert FinishBlack Oxide
Cage TypeLand Riding Retainer
Fixed vs. ExpansionFixed
Max Operating Temperature (F)220 °F
Maximum Speed (RPM)4100 rpm
Grease Fitting Thread Size1/8 NPT
LubricantLithium Complex NLGI 2 Grease
General Specifications
UPC662461016763
Weight16.97 LB
Packaged Length11.13 IN
Packaged Width6.31 IN
Packaged Height3.19 IN
HTC8483.20.8040
Country of OriginUnited States of America
