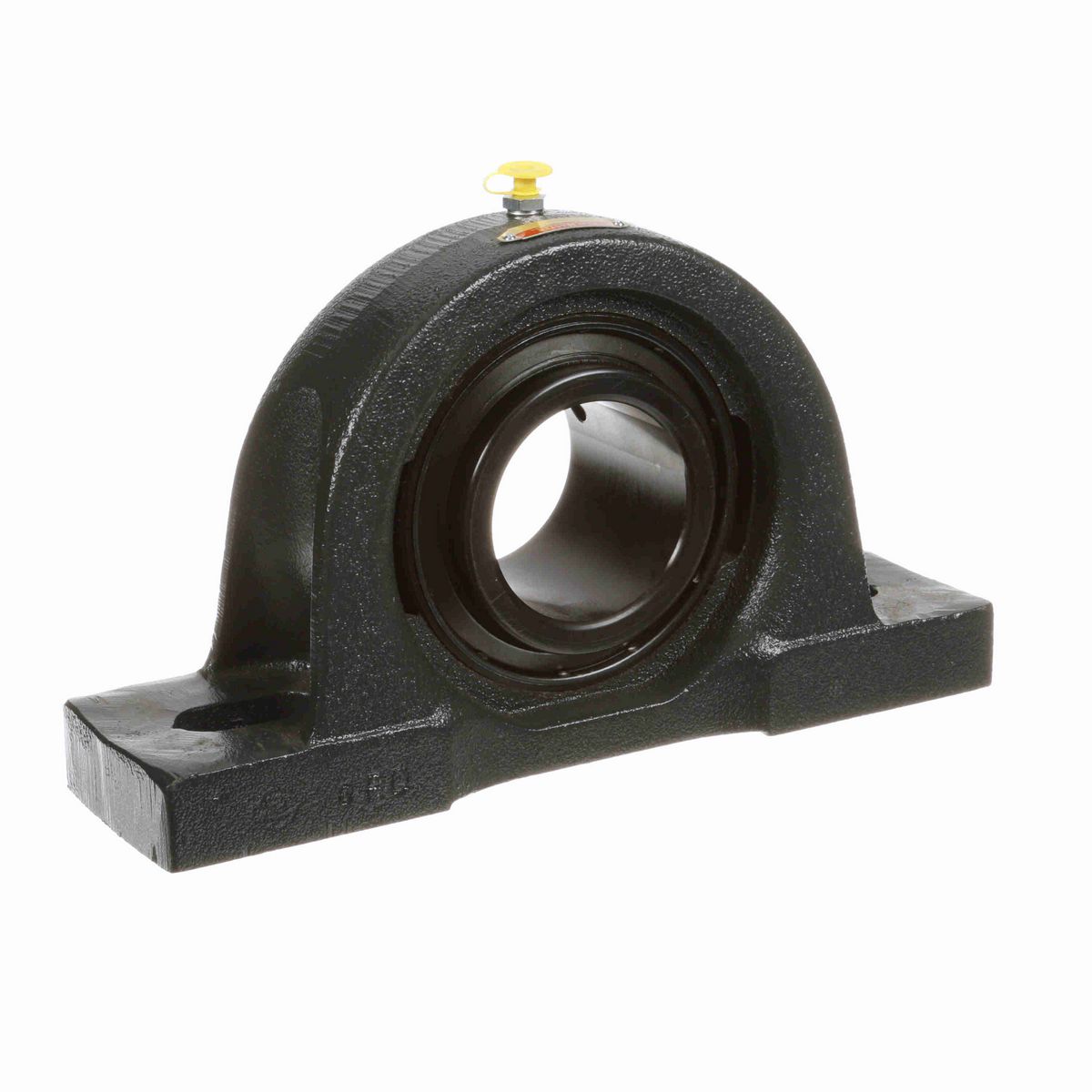

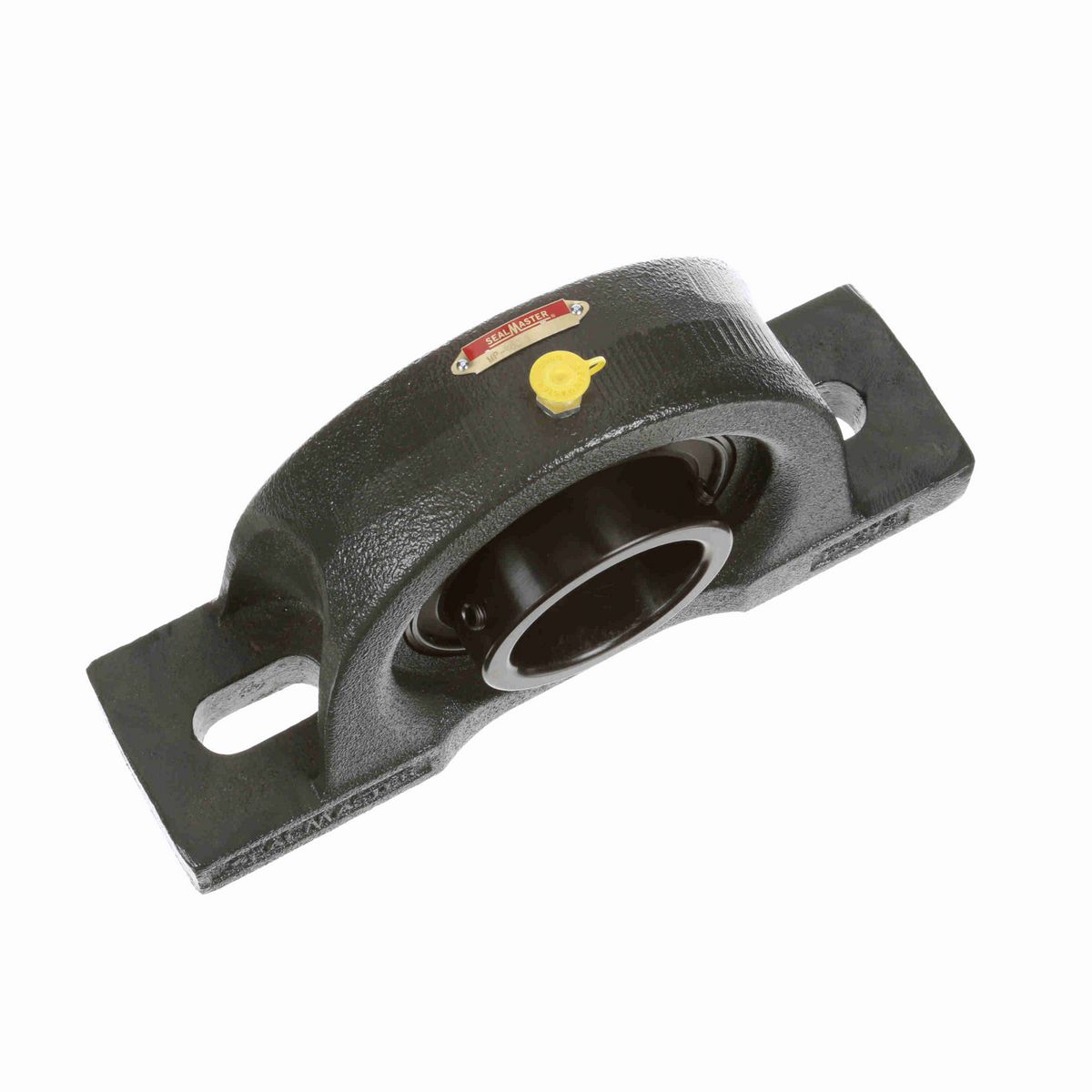

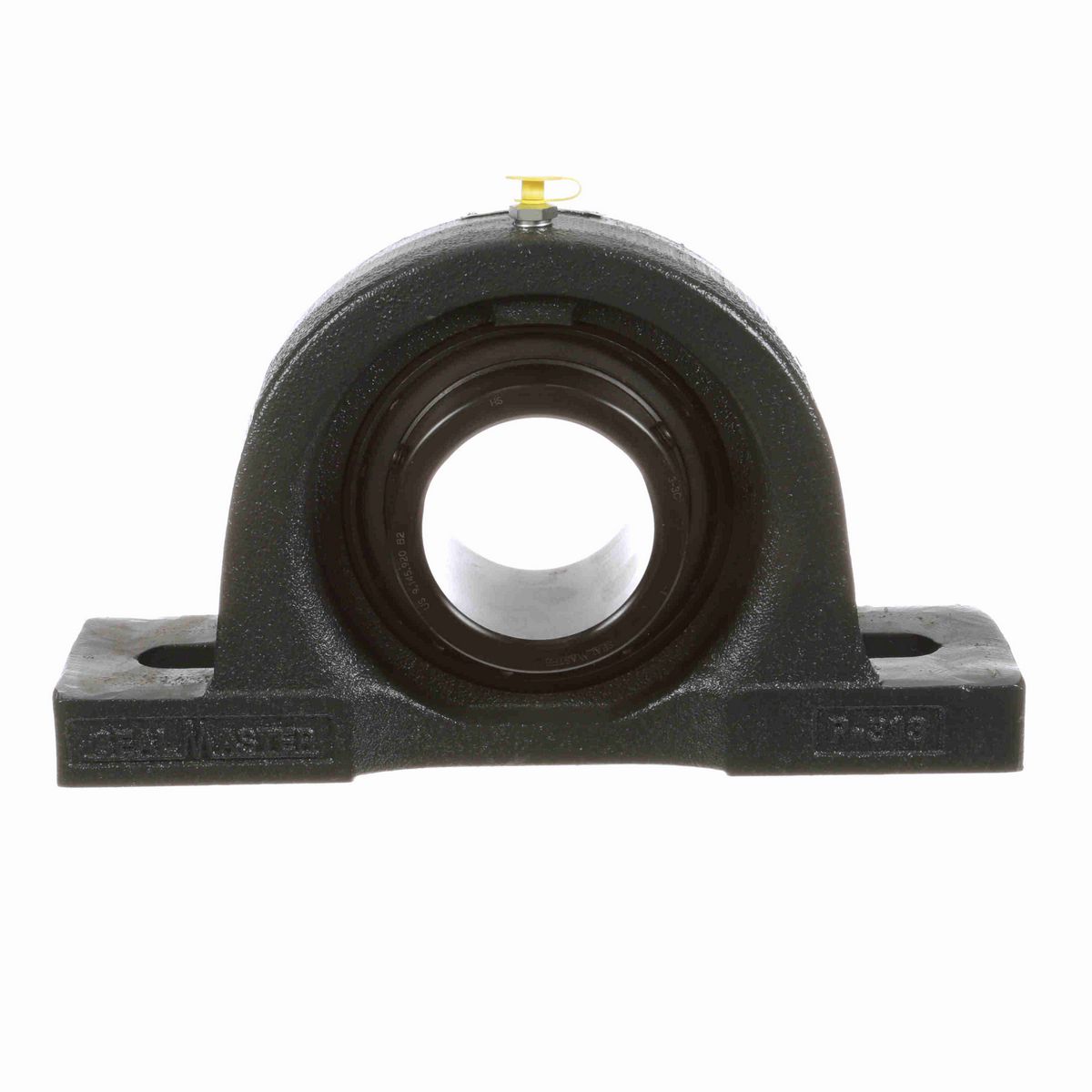

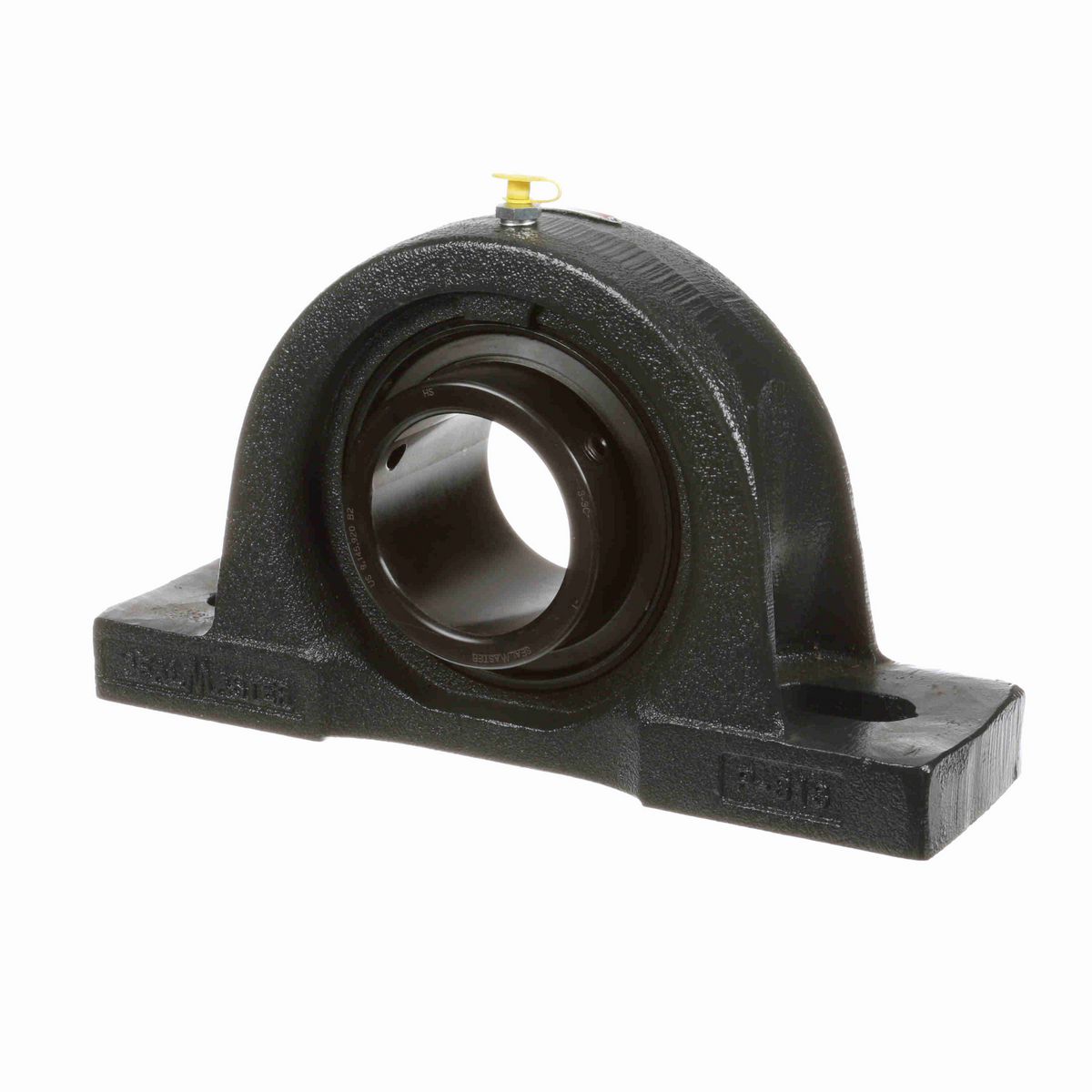

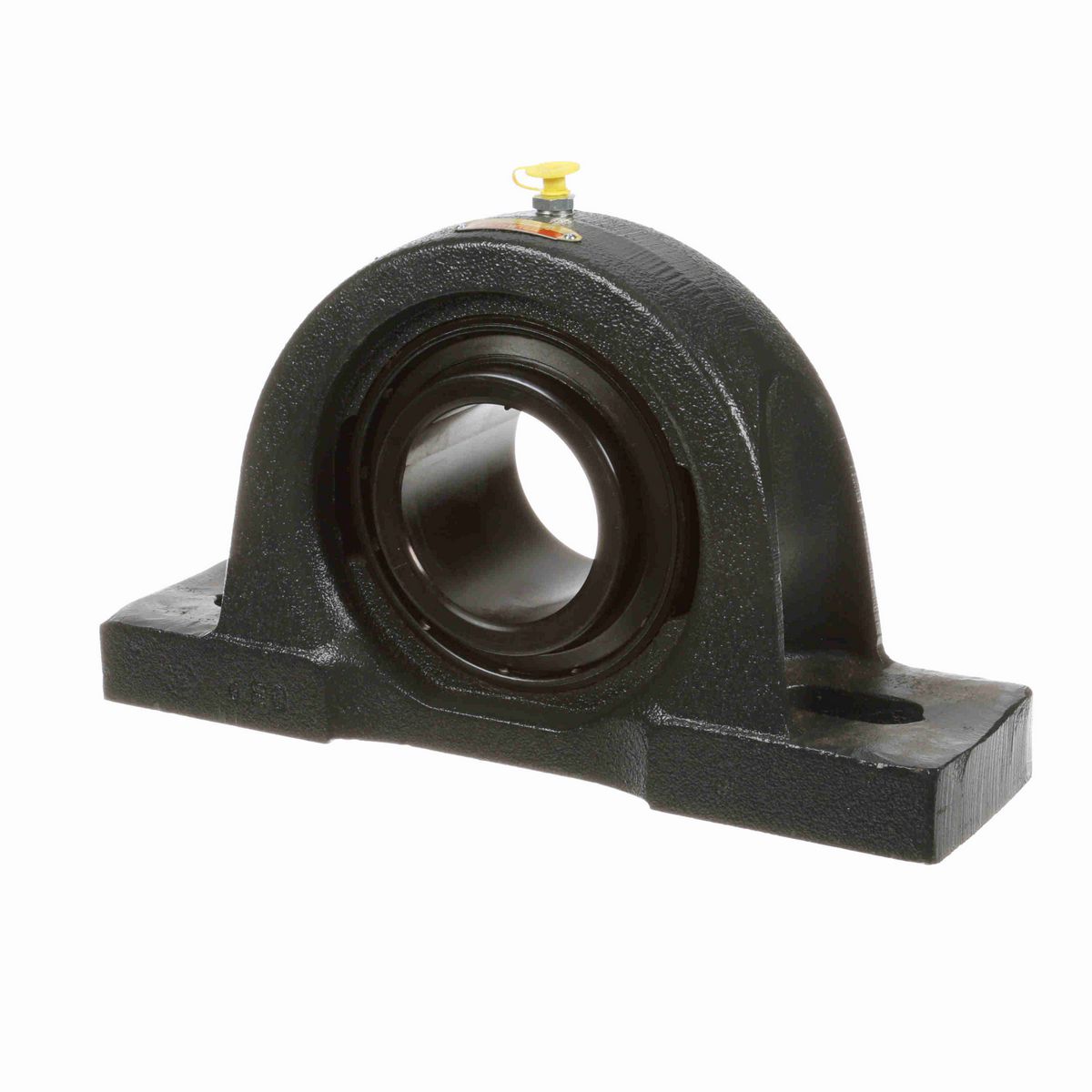

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	3.50 in
Base Width (in)	3.50 in
Overall Height (in)	7.25 in
Overall Length (in)	13 in
Bolt Size (in)	7/8 in
Bore Diameter (in)	3 in
Foot Height (in)	1.25 in
Base to Center Height (in)	3.5000 in
Length Through Bore (in)	3.248 in
Centerline to Outermost Bearing Face (in)	1.938 in
Bolt Spacing Min (in)	7.88 in
Bolt Spacing Max (in)	10.13 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	Brass
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Setscrew Torque (in-lbs)	350-450 in/lbs
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Housing Coating	Powder Coated
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Radial Clearance	Standard
End Cap Available	No
Maximum Speed (RPM)	1950 rpm
Vibration Frequency Roller Spin	0.0470 cps
Vibration Frequency Inner Ring Defect	0.1074 cps
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	3-3C
Dynamic Load Rating (lb)	17,412 lb
Bearing Type	Medium Duty
Static Load Rating (lb)	13,174 lb
Inner Ring Outside Diameter (in)	3.922 in
Size Code	2-33
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Finish	Black Oxide
Vibration Frequency Outer Ring Defect	0.0759 cps
Bearing Insert Material	52100 Bearing Steel
Base Length (in)	13.00 in
Grease Fitting Thread Size	1/4 NPT
Shaft Locking Type	Set Screw
Vibration Frequency Fundamental Train	0.0069 cps

General Specifications

UPC	662461026793
Weight	30.22 LB
Packaged Length	14.25 IN
Packaged Width	8.06 IN
Packaged Height	4.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
